Silver PTZ camera with HDMI SDI USB and network ports 20x optical zoom 1080p 60fps PoE

BFKK

BFKK 20X HDMI SDI USB IP PTZ Network Camera 1080P 60fps PoE

SKU CH-GTKZ-RWV88

PTZ network camera with 20× optical zoom, 1080p 60 fps output and simultaneous HDMI, SDI, USB 2.0 and IP streaming plus PoE power

  • Simultaneous HDMI, SDI, IP and USB 2.0 outputs for flexible live production
  • 20× optical zoom with 55.8° wide angle to 3.2° telephoto for detailed close-ups
  • 1080p 60 fps video with H.264 and H.265 compression for smooth streaming
  • 350° pan and 90° tilt with 255 VISCA presets for automated multi-angle capture
  • PoE IEEE 802.3 power and RS-485/RS-232 control for simple installation and joystick operation

Multi-output IP PTZ camera

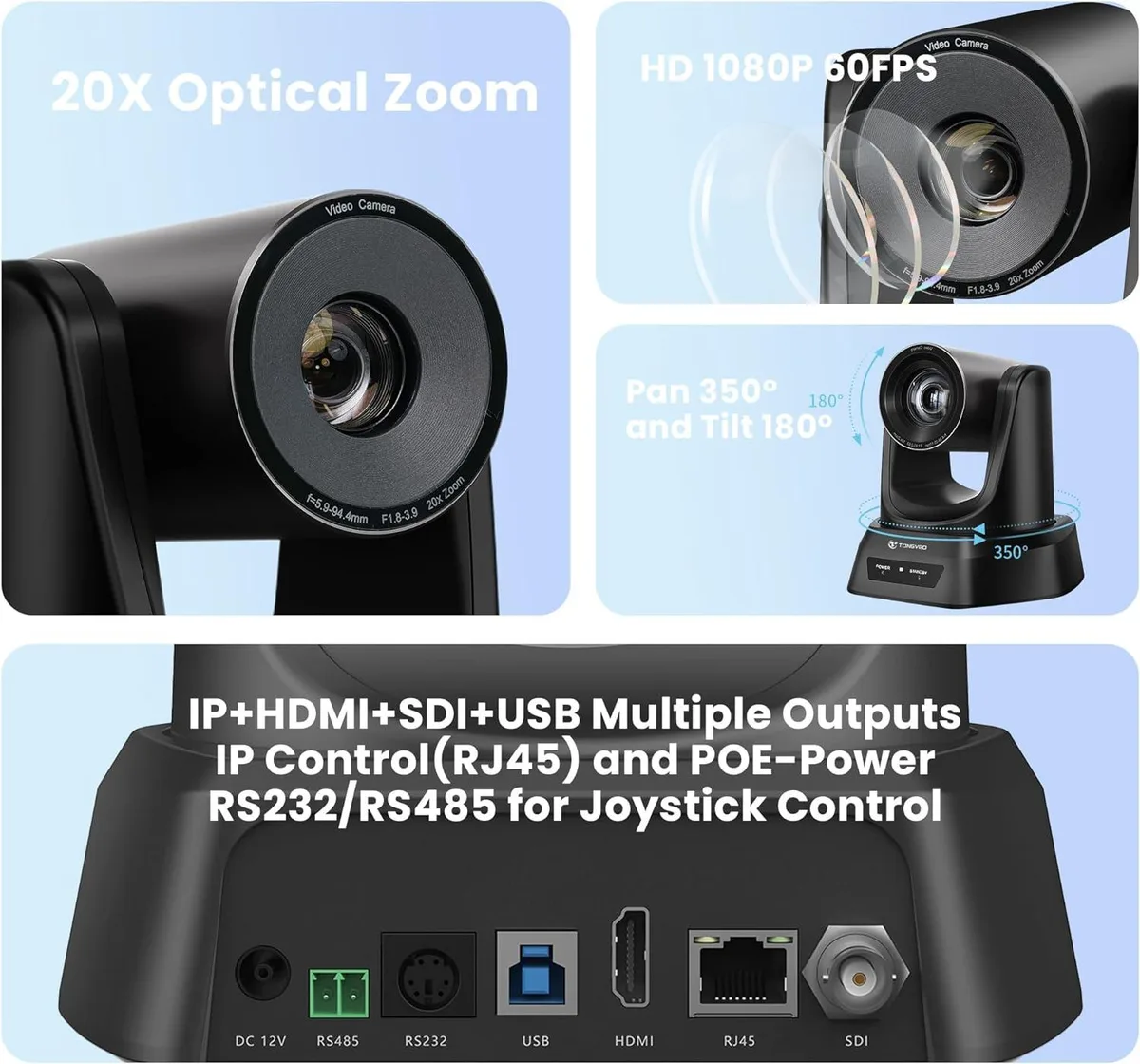

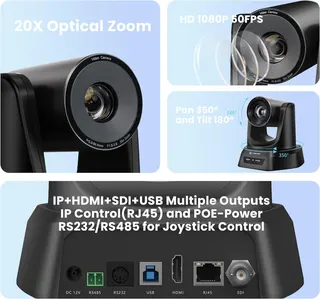

The BFKK 20X network camera delivers simultaneous HDMI, SDI, IP and USB 2.0 video outputs. It streams 1080p at 60fps using H.264 or H.265 compression and receives power through a PoE IEEE802.3af Ethernet port. The unit has no built-in microphone.

20X optical zoom with wide PTZ range

The 1/2.8 inch CMOS sensor provides 2.38 megapixel resolution and a horizontal field of view from 55.8° to 3.2°. Pan covers 350° (±175°) and tilt covers 90° (-35° to +55°). Preset positions reach 10 via IR remote, 64 via VISCA and 255 via PELCO-D/P protocols, with RS485 and RS232 interfaces for joystick control.

Software and OS compatibility matrix

Works with OBS, vMix, Wirecast, Zoom, Skype, WebEx, Facebook Live, Polycom, Microsoft Lync, Cisco and BlueJeans. Supported operating systems include Windows 7, 8.1, 10, 11 and Mac OS 10.10 or higher. Not suited for users who require integrated audio capture or wireless network connectivity.

Highlights

  • Simultaneous HDMI, SDI, IP and USB 2.0 outputs for flexible live production
  • 20× optical zoom with 55.8° wide angle to 3.2° telephoto for detailed close-ups
  • 1080p 60 fps video with H.264 and H.265 compression for smooth streaming
  • 350° pan and 90° tilt with 255 VISCA presets for automated multi-angle capture
  • PoE IEEE 802.3 power and RS-485/RS-232 control for simple installation and joystick operation

Specifications

No published specifications for this item yet.

Questions about this item

Does the pan-tilt mechanism need lubrication or scheduled servicing?

The PTZ head rotates 350° horizontally and 90° vertically with smooth quiet movement; no lubrication interval or user-serviceable parts are indicated.

What thermal or bandwidth limit appears first during continuous 1080p 60 fps streaming?

Sustained 1080p 60 fps uses H.264 or H.265 compression over a 100 Mbit Ethernet link, so the network ceiling is reached before the sensor overheats.

How much fan noise and heat does the camera produce when running all day?

The unit has no built-in microphone and is described as smooth and quiet; PoE IEEE 802.3 power keeps heat low enough for silent operation in a chapel or meeting room.
