BFKK 1734-IB8 POINT I/O 8 Point Digital Input Module

Allen Bradley 1734-IB8 Input Module

The Allen Bradley 1734-IB8 is a POINT I/O digital input module that provides eight sinking inputs grouped together for industrial automation systems. It operates at a nominal 24 volts DC with an on-state range of 10 to 28.8 volts DC. This new module suits engineers integrating discrete sensors into Rockwell Automation architectures.

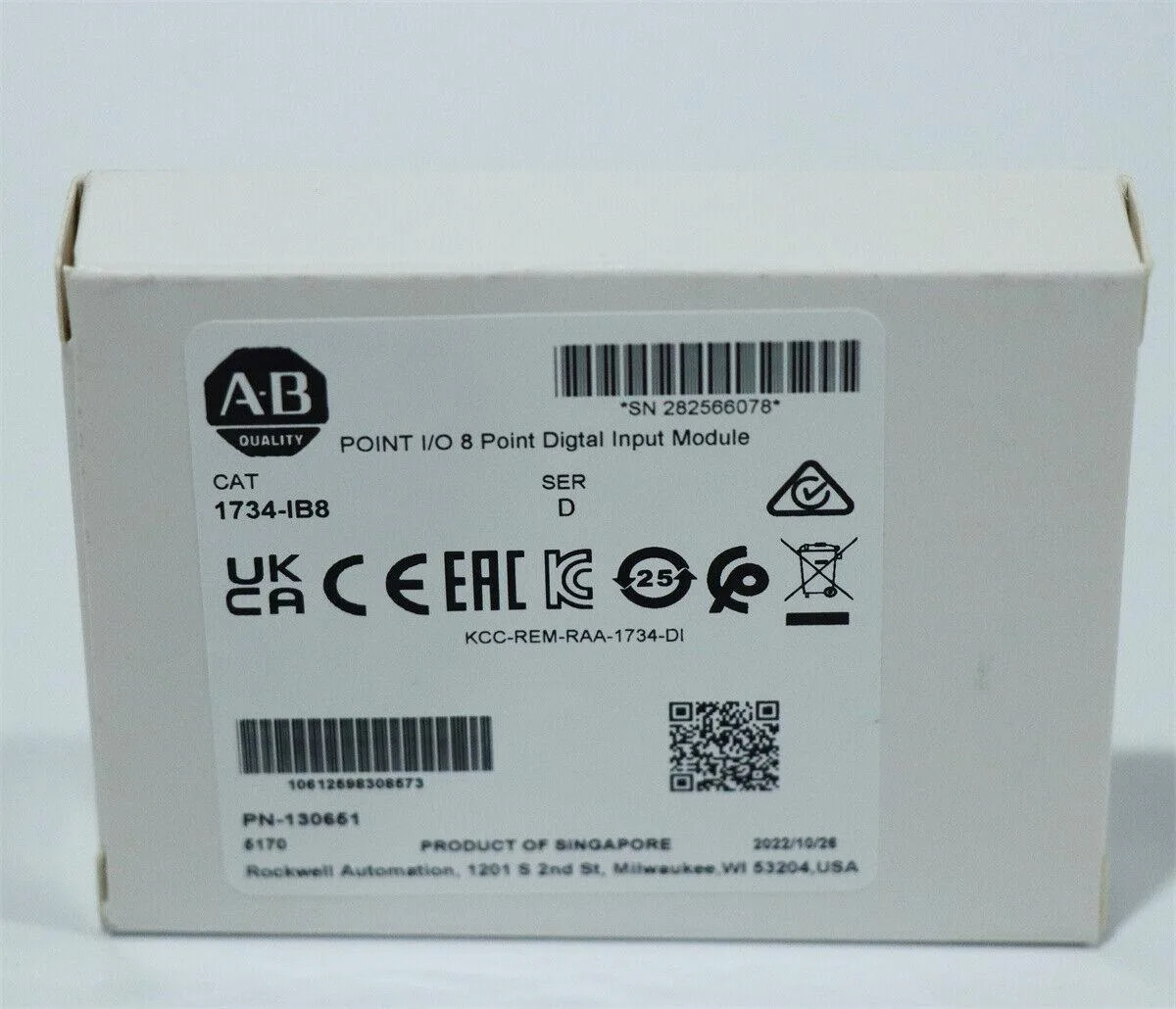

Factory-Sealed Condition

Supplied new and factory sealed, the module arrives ready for immediate commissioning without handling wear. The sealed packaging protects the 3.6 to 4.7 kilo-ohm input impedance circuitry and LED status indicators from contamination. No additional accessories or software licences are included in the shipment.

DIN-Rail Mounting Considerations

The module mounts on a standard POINT I/O base which clips onto DIN rail, allowing tool-less installation alongside other 1734 series blocks. Wiring uses the base terminal block; ensure sensor outputs match the 2 milliampere minimum on-state current and stay below the 5 volt DC off-state threshold to avoid false signals.

Not for High-Density or Sourcing Applications

Builders needing more than eight inputs per module or sourcing-type input logic should select a different POINT I/O variant. The fixed 1.5 milliampere off-state current and grouped common also limit use where isolated channels are required.
