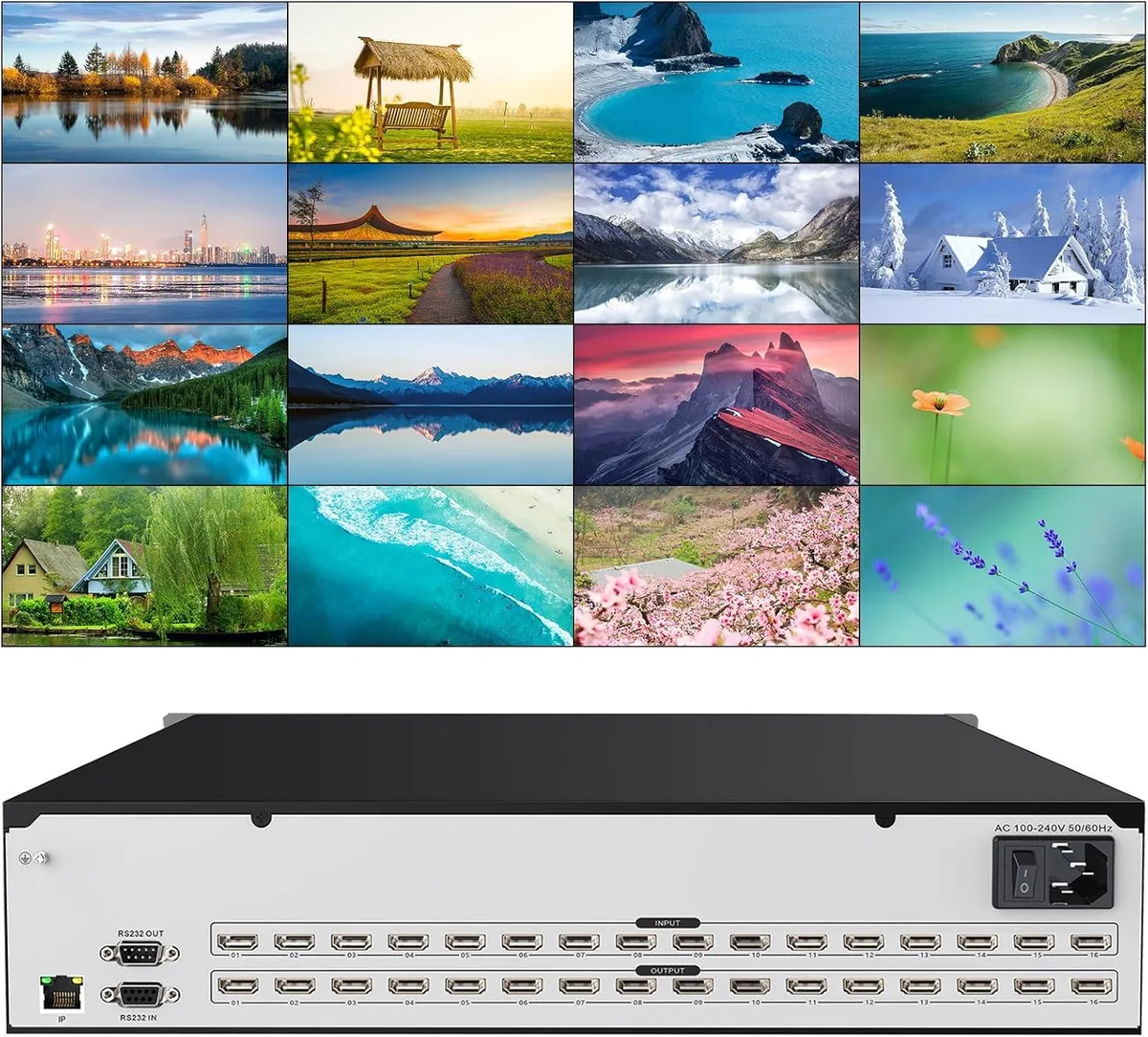

Rack-mount 16x16 HDMI matrix switch with LCD screen and backlit buttons

BFKK

BFKK 16x16 HDMI Matrix Switch 4K@30Hz Web GUI RS232 Rack Mount

SKU CH-V9GF-NV76R

Routes 16 HDMI sources to 16 displays at 4K 30 Hz with web GUI, RS-232 and front-panel control plus 32 preset scenes

  • Routes 16 HDMI sources to 16 displays independently

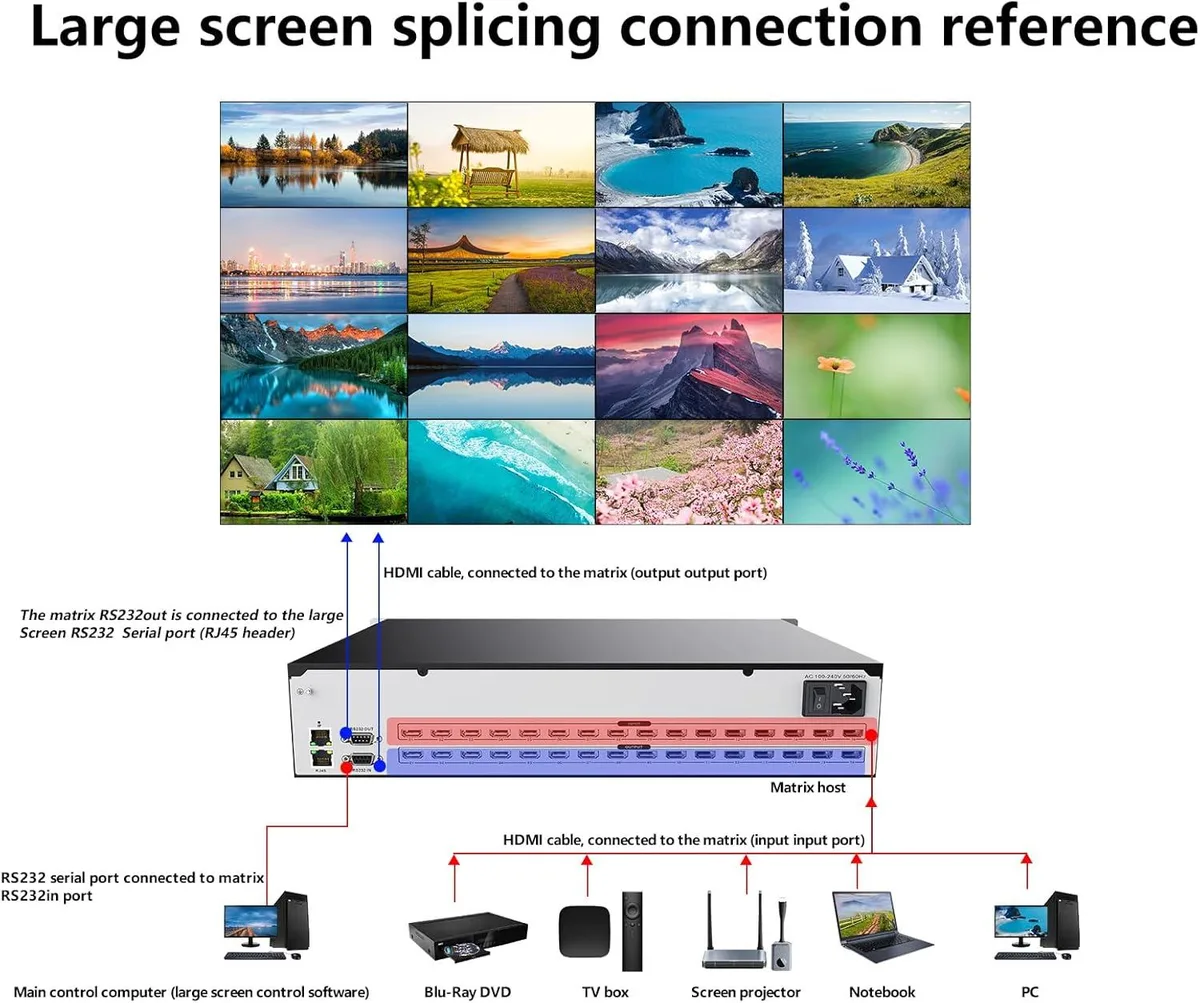

  • Web GUI and RS-232 give remote control from any device
  • Supports 4K at 30 Hz and 1080p up to 120 Hz
  • Built-in EDID management stores 32 preset scenes
  • Rack-mount chassis with LCD status screen and backlit buttons

16x16 HDMI Matrix Switch 4K@30Hz

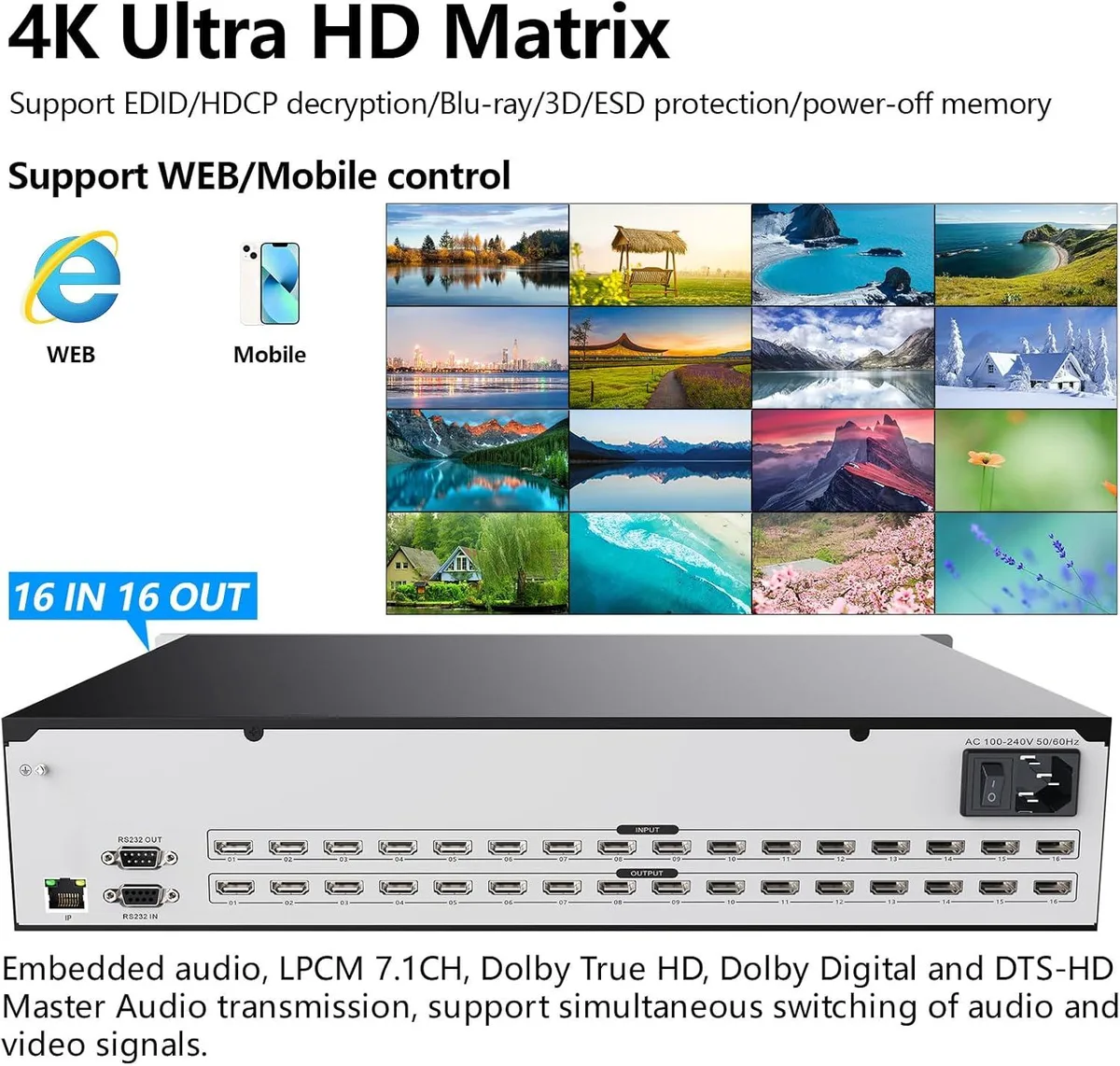

The BFKK 16x16 HDMI Matrix Switch routes sixteen HDMI sources to sixteen displays with independent switching per output. It supports HDMI 1.4a signals up to 4K at 30 Hz, 1920p at 60 Hz and 1080p 3D at 60 Hz. All inputs handle HDCP decoding for protected content playback. Integrated EDID management and 32 storable scenes simplify complex routing tasks.

Installers needing multi-zone HDMI distribution

This matrix suits AV integrators, command centres, hospitality venues and education facilities that require centralised, driver-free control via Web GUI, RS-232, front-panel buttons or remote. It is not for users who need HDMI 2.0 bandwidth such as 4K at 60 Hz 4:4:4, nor for point-to-point extension over long cable runs. Buyers requiring audio de-embedding or video wall processing should look at dedicated processors.

HDMI 1.4a 4K@30Hz bandwidth ceiling

The single specification that decides fit is the HDMI 1.4a limit of 4K at 30 Hz per channel. Sources and displays negotiating higher refresh rates or deeper colour spaces will fall back to 1080p at 120 Hz or 1080p at 60 Hz. Verify that every device in the chain accepts this ceiling before specifying the unit.

Highlights

  • Routes 16 HDMI sources to 16 displays independently
  • Web GUI and RS-232 give remote control from any device
  • Supports 4K at 30 Hz and 1080p up to 120 Hz
  • Built-in EDID management stores 32 preset scenes
  • Rack-mount chassis with LCD status screen and backlit buttons

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick the 16-input 16-output version or a smaller matrix?

This unit is a fixed 16x16 configuration with sixteen HDMI inputs and sixteen HDMI outputs; there is no smaller capacity option in this model.

What does 4K at 30 Hz mean for my displays?

Each channel can pass 4K resolution at 30 frames per second, and also handles 1920×1080 at 60 Hz plus 1080p 3D at 60 Hz.

Which HDMI standard does it use and what does that limit?

It follows HDMI 1.4a, which caps 4K signals at 30 Hz while allowing 1080p at up to 120 Hz.
