Belkin

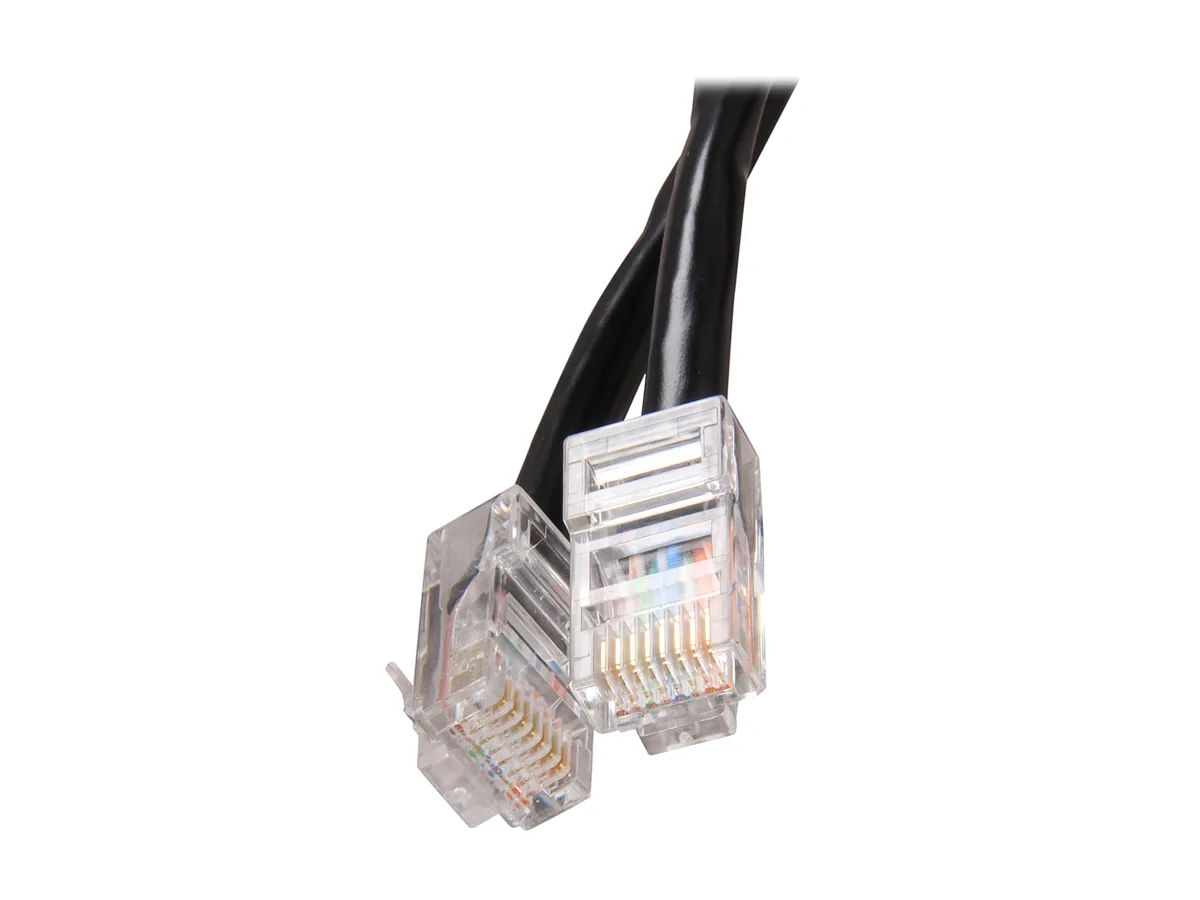

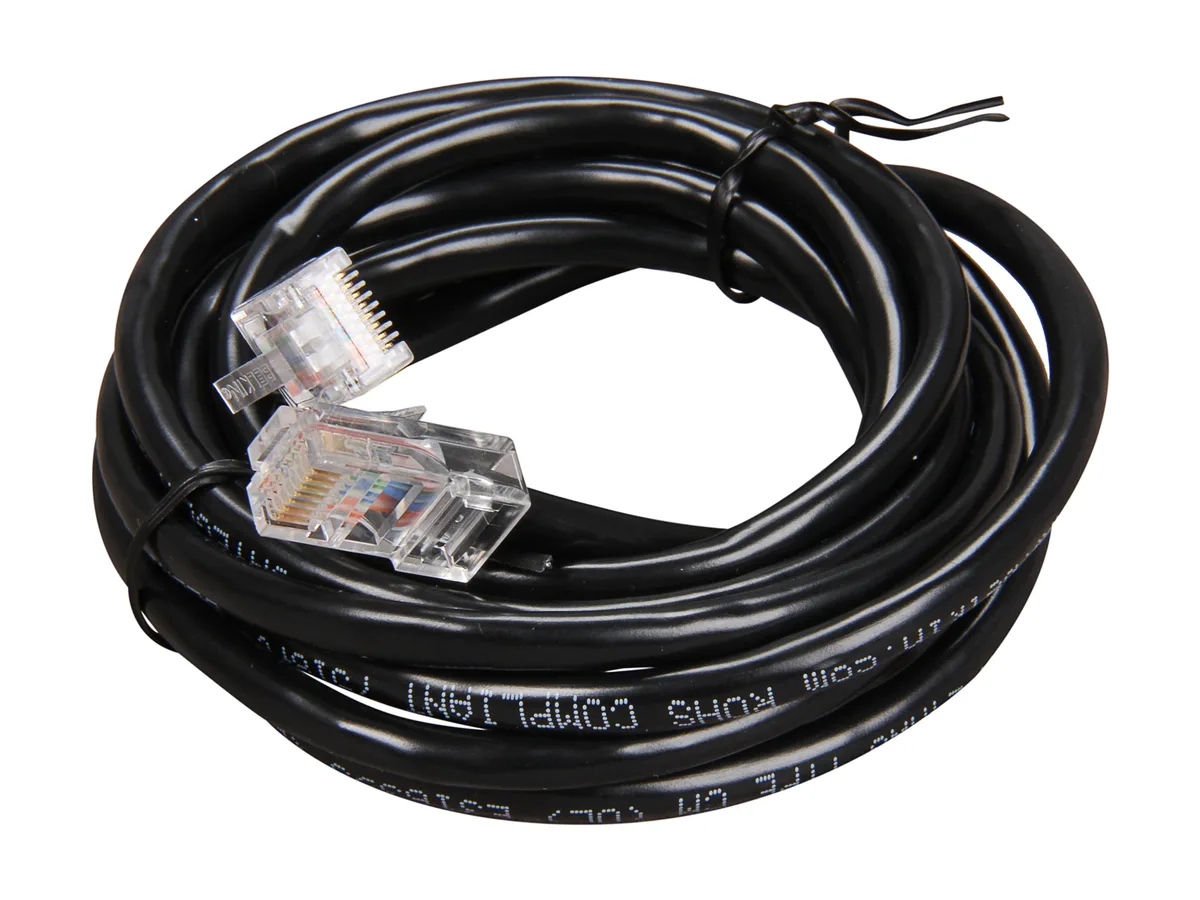

Belkin A3L791-07-BLK Cat 5E RJ45 network ethernet cable 7 ft black
A 7 ft Cat 5E patch cable with RJ45 connectors and 24 AWG stranded copper conductors
- TypeNetwork Cable
- Cat5E
- Connector ARJ45
- Connector BRJ45
- Length7 ft.
- ColorBlack
- Reliable 10/100 Base-T performance with Cat 5E rating
- Clean signal transmission via 50-micron gold-plated connectors
- Low 89.2 Ω/km resistance from 24 AWG stranded copper
- Tight 100±15 Ω impedance for stable 100 MHz operation
- Durable 7 ft black patch cable for tidy connections
Belkin Cat 5E 7 ft patch cable
This Belkin A3L791-07-BLK cable connects computers, routers and switches with standard RJ45 plugs. The 7 ft length suits desk-to-wall runs or short rack links. Black jacket and 24 AWG stranded conductors make it flexible for tight routing. Gold-plated contacts resist oxidation for reliable gigabit negotiation.
Cat 5E practical bandwidth ceiling
The Cat 5E rating supports 10 and 100 Base-T networks with a 100 MHz characteristic impedance of 100±15 Ω. Propagation delay is specified at 538 nS per 100 m at 100 MHz. Conductor resistance reaches 89.2 Ω/km at 20 °C maximum. Dielectric strength is tested to 1.75 kV for 0.15 seconds.
7 ft length decides fit
At exactly 7 ft the cable reaches nearby patch panels or wall plates without excess slack. Longer runs need a different length; shorter runs need a shorter cable. No other specification changes with this model. Buyers needing 10 ft or 15 ft should select another SKU.
Highlights
- Reliable 10/100 Base-T performance with Cat 5E rating
- Clean signal transmission via 50-micron gold-plated connectors
- Low 89.2 Ω/km resistance from 24 AWG stranded copper
- Tight 100±15 Ω impedance for stable 100 MHz operation
- Durable 7 ft black patch cable for tidy connections
Specifications
| Brand | Belkin |
|---|---|
| Model | A3L791-07-BLK |
| Type | Network Cable |
| Cat | 5E |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 7 ft. |
| Color | Black |
| Features | Characteristic Impedence: 100±15O @ 1 ~ 100MHz Conductor Construction: Bare Stranded Copper Conductor Resistance: 89.2O/km/20°C max Conductor Size: 24AWG x 4pairs Connector Type: 50 micron gold-plated connector Description: Cat5e UTP Stranded Patch Cable , ISO/IEC 11801; TIA/EIA-568-B.2 Dielectric Strength: AC 1.75kV/0.15sec Flame Retardant Test: CM Insulation Material: HDPE Jacket Diameter: 5.5±0.15mm Jacket Material: PVC Mutual Capacitance: 56pF/m max Propagation Delay: 538nS/100m max @ 100MHz Rating: 75°C, 300V Spark Test: 2.5kV Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2 |
| Shipping weight | 0.07 kg |
| Package size | 104 × 95 × 34 mm |
Questions about this item
Should I choose the 7 ft length for a short desktop run?
The 7 ft length suits short desktop runs, connecting a PC to a router or switch without excess cable.
What speeds does the Cat 5E rating deliver on a 100 Base-T network?
Cat 5E supports 10 and 100 Base-T networks, providing up to 100 MHz bandwidth for those standards.
How does the RJ45 connector with 50 micron gold plating affect signal quality?
The 50 micron gold-plated RJ45 connectors reduce corrosion and maintain low contact resistance for clear transmission.
