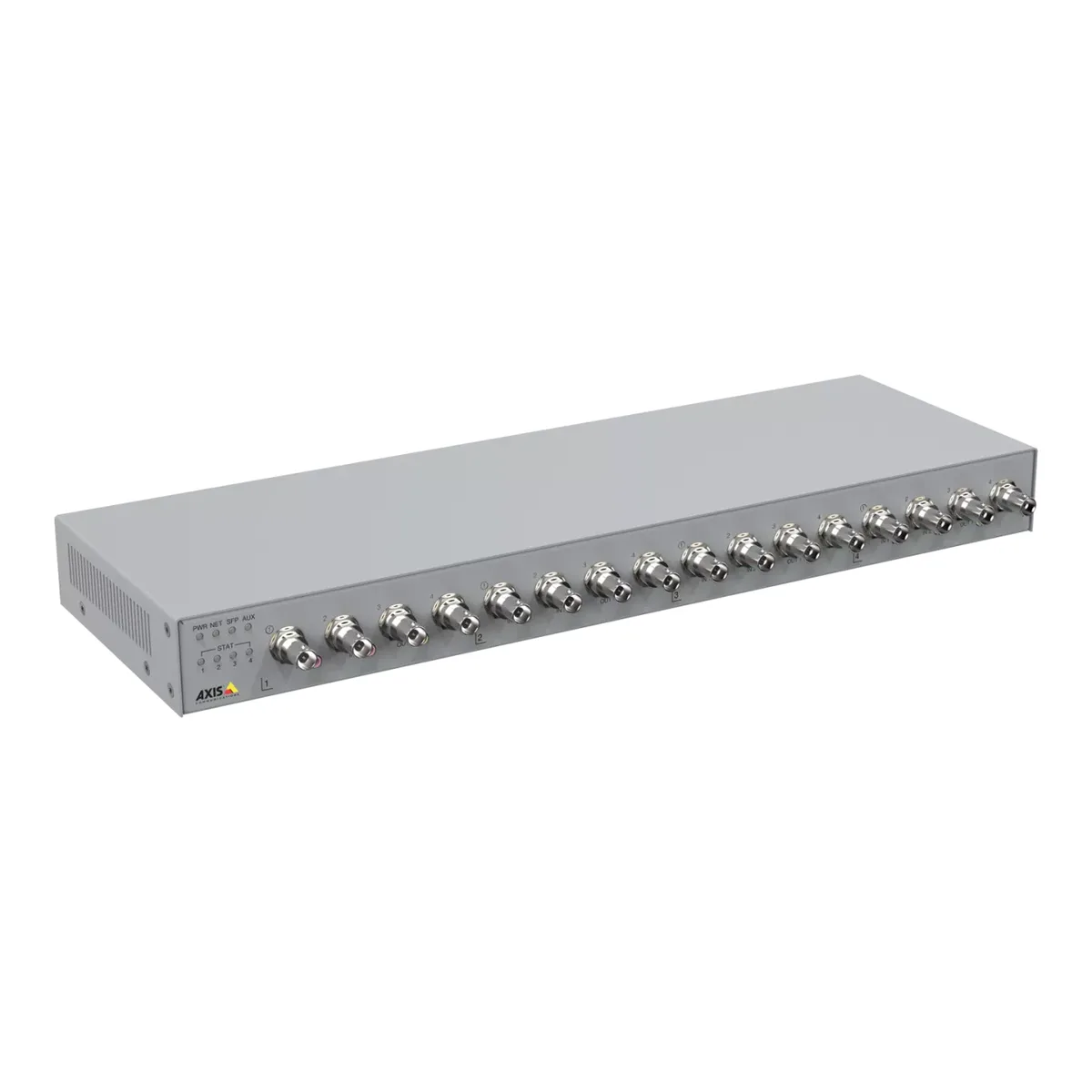

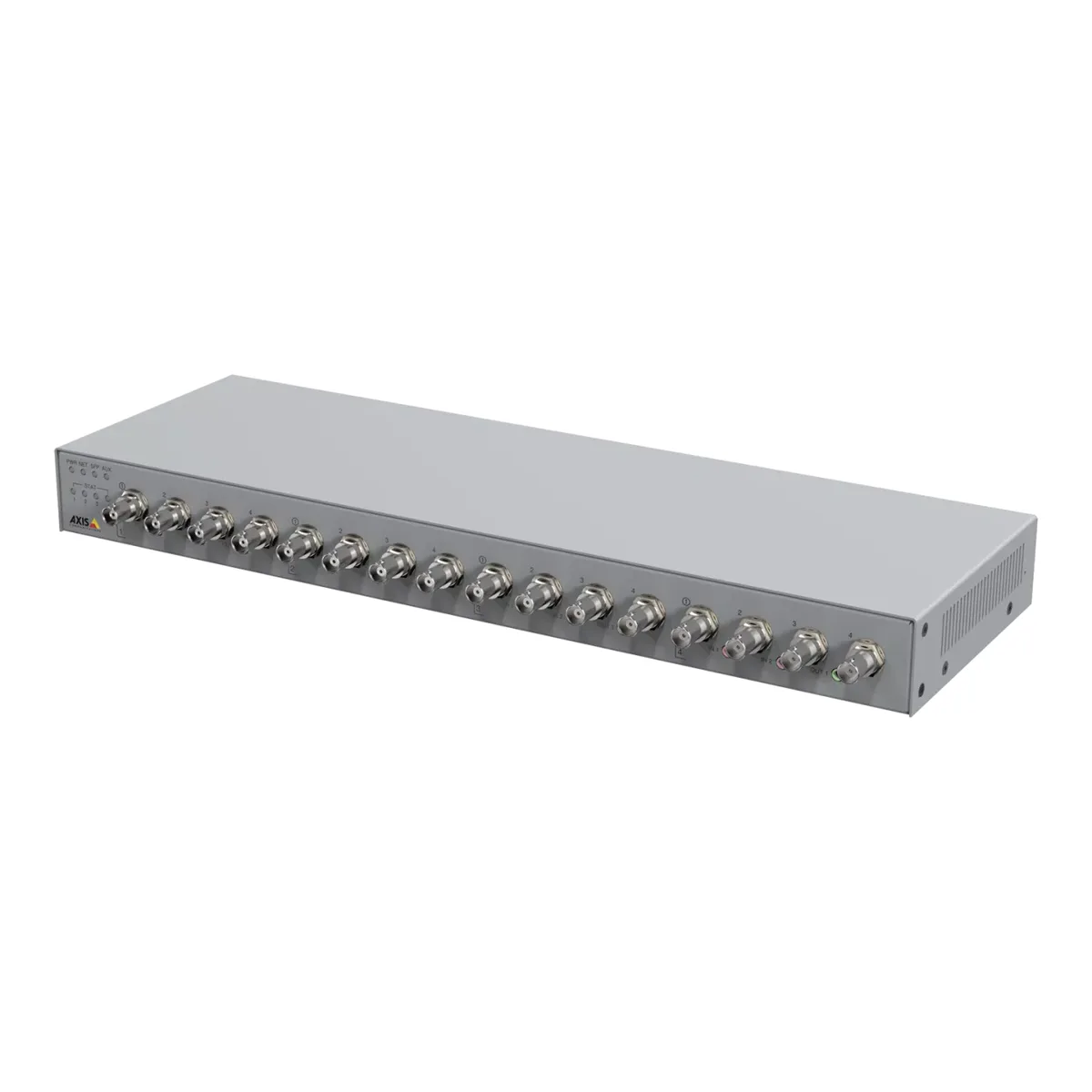

Silver rack-mount box with sixteen BNC ports on the front

Axis Communications

Axis Communications P7316 16-Channel Video Encoder 02037-004

SKU CH-4CZ3-CCSYG MPN 02037-004

Converts 16 analog cameras up to 4K into IP streams with H.264/H.265 Zipstream, PTZ control, two-way audio, and secure boot

  • TypeVideo Encoder
  • Migrate analog systems to IP with 16-channel encoding
  • Cut bandwidth and storage needs using Zipstream H.264/H.265
  • Connect HD analog cameras up to 4K resolution
  • Control PTZ cameras remotely via RS-485 interface
  • Secure deployment with signed firmware and secure boot

Axis P7316 16-Channel Encoder

The Axis P7316 is a 16-channel video encoder designed for security integrators migrating analog surveillance systems to IP networks. It accepts standard NTSC or PAL signals and HD analog cameras up to 4K resolution, making it suitable for large-scale retrofit projects.

Zipstream H.264/H.265 Compression

Zipstream technology with H.264 and H.265 support drastically reduces bandwidth and storage consumption compared to uncompressed streams. Signed firmware and secure boot protect the device integrity, while the SFP slot enables optical fiber connectivity for extended network reach.

30 fps at 1080p with 4K Support

The encoder delivers video at 30 fps in 1080p resolution and supports HD analog cameras up to 4K, providing headroom for high-detail monitoring. It handles PTZ control via RS485, two-way audio, and configurable I/O for external sensors, but lacks built-in storage or PoE switching for camera power.

Highlights

  • Migrate analog systems to IP with 16-channel encoding
  • Cut bandwidth and storage needs using Zipstream H.264/H.265
  • Connect HD analog cameras up to 4K resolution
  • Control PTZ cameras remotely via RS-485 interface
  • Secure deployment with signed firmware and secure boot

Specifications

BrandAXIS
ModelP7316
Part Number02037-004
TypeVideo Encoder
Shipping weight3.20 kg
Package size521 × 284 × 89 mm

Questions about this item

What maintenance will the 16-channel encoder need over time?

The unit has no user-serviceable parts; keep ventilation slots clear and apply signed firmware updates when Axis releases them to maintain secure boot integrity.

Which limit appears first when all 16 channels run continuously at 30 fps?

Bandwidth and storage load peak first; Zipstream with H.264/H.265 compression reduces both before the processor or I/O interfaces become bottlenecks.

How much heat and noise does the P7316 produce during all-day operation?

The fanless design runs silently; normal warmth is expected at the chassis, so mount it in a ventilated rack or cabinet to dissipate heat passively.
