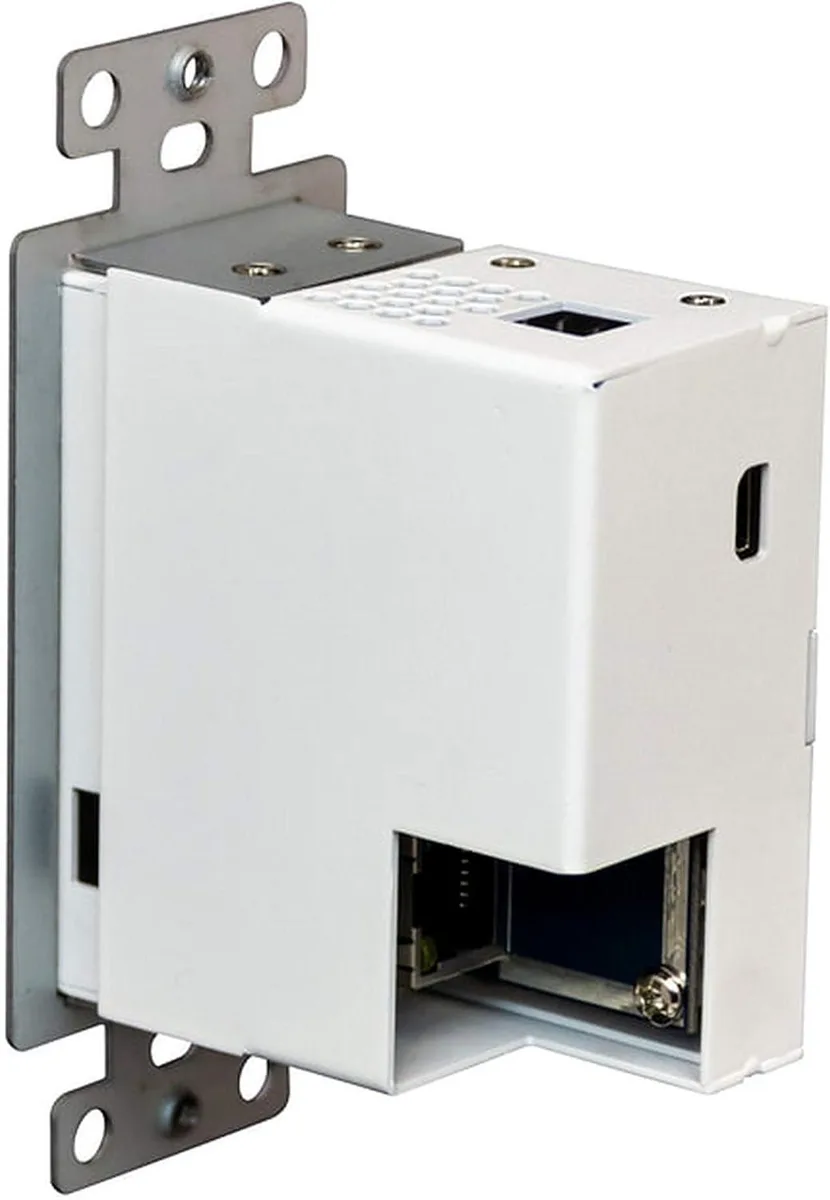

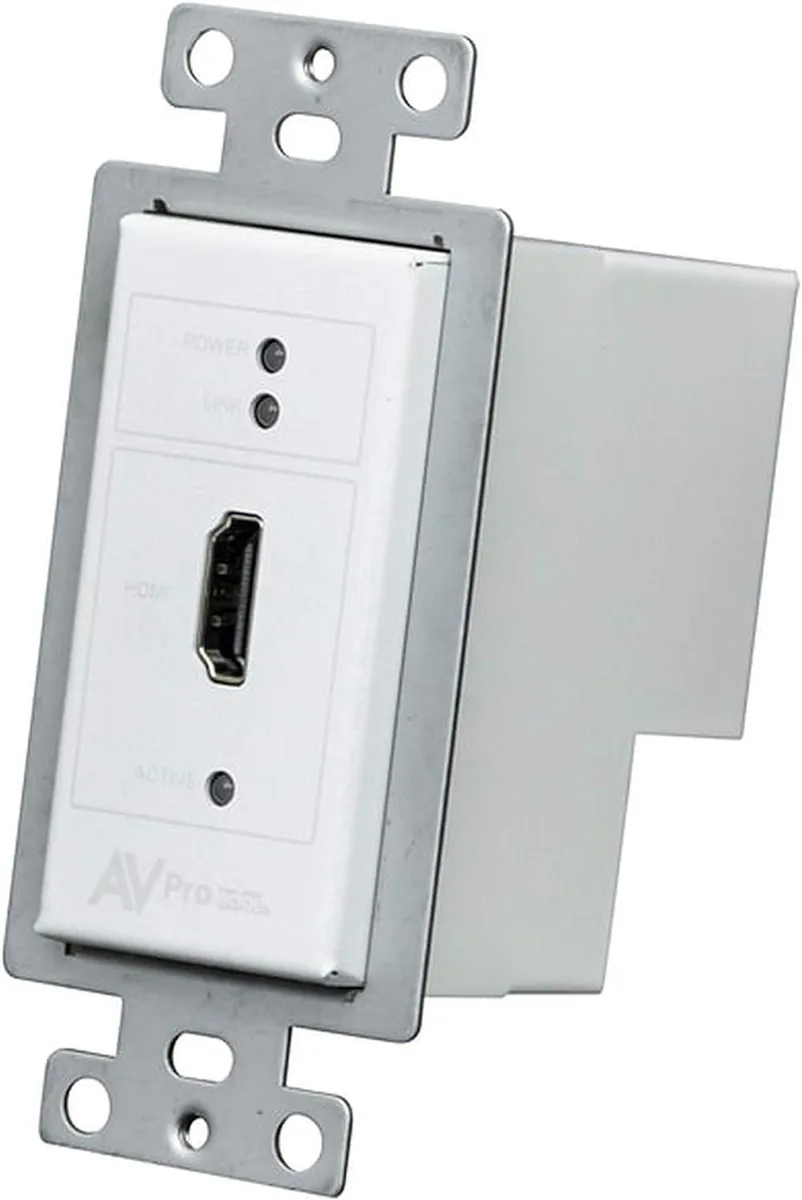

White single-gang HDMI wall plate transmitter with rear RJ45 port

AVPro Edge

AVPro Edge AC-CXWP-HDMO-T ConferX HDMI Wall Plate Transmitter

SKU CH-40F7-1SDR7

HDMI wall-plate transmitter sends 1080p up to 100 metres and 4K up to 70 metres over Cat6a with HDMI 2.0, HDR 4:2:2 12-bit and HDCP 2.3 support

  • HDMI 2.0 auto-sensing input simplifies connection
  • HDR 4:2:2 12-bit support delivers richer colour depth
  • HDCP 2.3 compliance protects premium 4K content
  • Transmits 1080p up to 100 m or 4K up to 70 m over Cat6a
  • Powered by the receiver so no local power supply is needed

HDMI Wall Plate Transmitter

The AVPro Edge AC-CXWP-HDMO-T ConferX transmitter installs in a standard single-gang mud ring to extend HDMI signals over HDBaseT. It is built for conference rooms and classrooms that need a clean, low-profile connection point at the wall.

HDBaseT Distance Limits

The unit reaches 100 metres at 1080p and 70 metres at 4K when paired with Cat6a cable and a compatible receiver such as the AC-EX100-UHD-R3. Beyond those distances the link will not hold the rated resolution.

4K and HDR Headroom

HDMI 2.0 input accepts 4K at 30 Hz 4:4:4 or 60 Hz 4:2:0 with HDR 4:2:2 12-bit colour and HDCP 2.3. It does not support 4K 60 Hz 4:4:4 or higher refresh rates, so sources requiring full 4:4:4 at 60 Hz will be limited.

Highlights

  • HDMI 2.0 auto-sensing input simplifies connection
  • HDR 4:2:2 12-bit support delivers richer colour depth
  • HDCP 2.3 compliance protects premium 4K content
  • Transmits 1080p up to 100 m or 4K up to 70 m over Cat6a
  • Powered by the receiver so no local power supply is needed

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 1080p or 4K version for my install?

This single model handles both; it reaches 100 metres at 1080p and 70 metres at 4K over Cat6a.

What does the 4K60 4:2:0 spec mean when the transmitter is connected to a display?

You get 4K at 60 Hz with 4:2:0 chroma subsampling; 4K at 30 Hz keeps full 4:4:4 colour.

How does HDMI 2.0 with HDCP 2.3 limit what I can send over the Cat6a link?

HDMI 2.0 caps video at 4K60 4:2:0 or 4K30 4:4:4, and HDCP 2.3 protects premium content up to that bandwidth.
