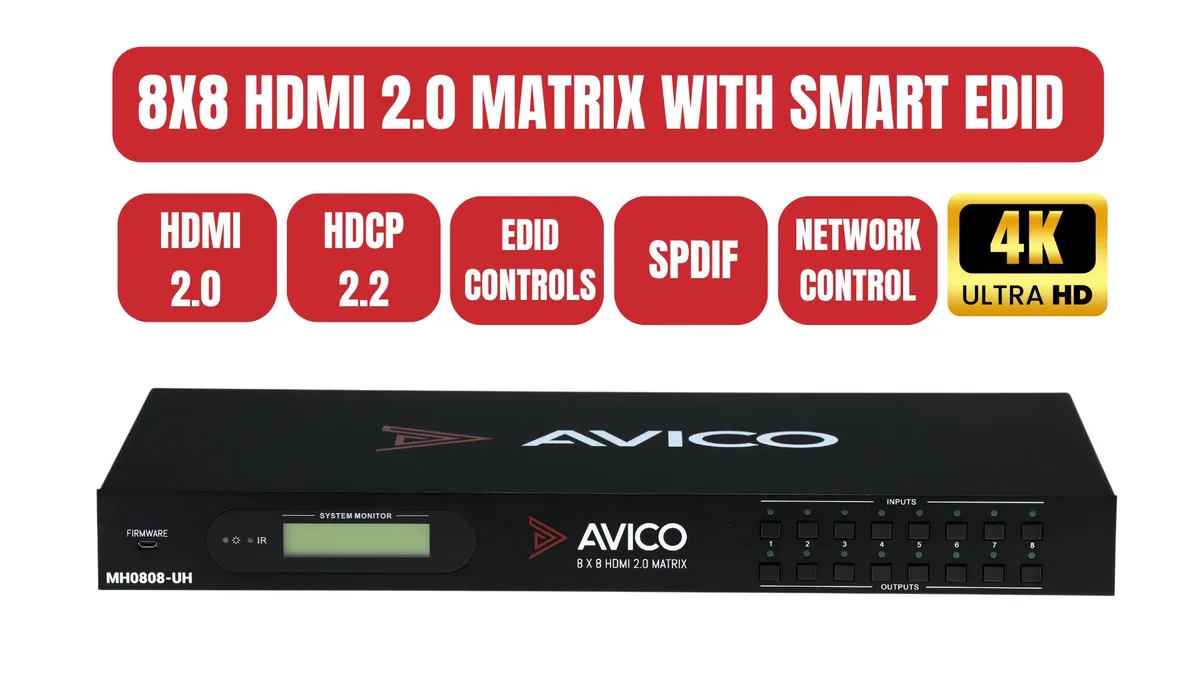

Black metal box with front-panel buttons and rear HDMI ports

Avico

Avico 8x8 HDMI 2.0 Matrix Switch Home Assistant Control

SKU CH-P76W-TBAMG

Routes eight HDMI sources to eight displays at 4K 60 Hz with EDID management and Home Assistant control via web GUI, RS232 or remote

  • Ports8x8 Matrix
  • Routes 8 sources to 8 displays independently
  • Delivers 4K 60 Hz 4:4:4 and 1080p 3D over HDMI 2.0
  • Protects 4K streams with HDCP 2.2 compliance
  • Manages EDID via DIP switches, RS232 or WebGUI
  • Controls matrix from phone, tablet or PC through web browser

8×8 HDMI 2.0 matrix for multi-room video

The Avico 8×8 HDMI 2.0 matrix routes eight sources to eight displays independently. It suits home entertainment, auditorium or surveillance installations that need simultaneous 4Kx2K@60Hz 4:4:4 or 1080p distribution. Home Assistant integration adds automation for power users.

Check source resolution and HDCP 2.2 compliance

Verify each source outputs 4K at 60 Hz or 1080p and supports HDCP 2.2 for protected content. Confirm you have eight HDMI cables for inputs and eight for outputs. Ensure a network connection is available for WebGUI access and RS‑232 cabling if serial control is planned.

Remote RS‑232 and WebGUI replace manual switching

The bundled IR remote handles basic routing from the couch. RS‑232 and the browser-based WebGUI add resolution control, audio settings, preset recalls and EDID management via DIP switches or software. Network connectivity enables operation from phone, tablet or computer without extra software.

Highlights

  • Routes 8 sources to 8 displays independently
  • Delivers 4K 60 Hz 4:4:4 and 1080p 3D over HDMI 2.0
  • Protects 4K streams with HDCP 2.2 compliance
  • Manages EDID via DIP switches, RS232 or WebGUI
  • Controls matrix from phone, tablet or PC through web browser

Specifications

Ports8x8 Matrix

Questions about this item

Does the Avico 8x8 HDMI 2.0 Matrix include cables or a rack-mount kit, or do I need to buy them separately?

The unit ships as the matrix switcher itself with a remote control and an RS-232 cable. HDMI cables for the eight inputs and eight outputs are not included, and no rack ears are mentioned in the specifications.

Should I choose this 8x8 model or would a smaller matrix suit a setup with only four sources and four displays?

This model provides eight HDMI 2.0 inputs and eight outputs, supporting 4K at 60 Hz 4:4:4 and HDCP 2.2 on every port. If your installation will never exceed four sources and four displays, a 4x4 matrix would cost less and use less space.

When the matrix is installed in a home system, what does the 4K 60 Hz 4:4:4 rating actually deliver?

Each of the eight outputs can pass a full 4K 60 Hz 4:4:4 signal with HDCP 2.2, so HDR sources and high-frame-rate gaming consoles display without chroma subscaling on every connected screen.
