Black metal panel with twelve green fiber ports, two-pack

Avantalk

Avantalk 2 in 1 Accessory 12 Simplex SCAPC Fiber Patch Panel 2-Pack

SKU CH-VK1A-TMX3F

Two-pack of 12-port SC/APC patch panels with 0.2 dB insertion loss and 60 dB return loss

  • Low insertion loss of .2 dB ensures efficient signal transmission
  • High return loss of 60 dB minimises signal reflection
  • Snap-in mechanism enables tool-less installation saving time
  • 12 simplex SCAPC ports support high-density fibre connectivity
  • Rated for 1000 mating cycles providing long-term reliability

Duogalia 2-Pack 12-Port SCAPC Patch Panel

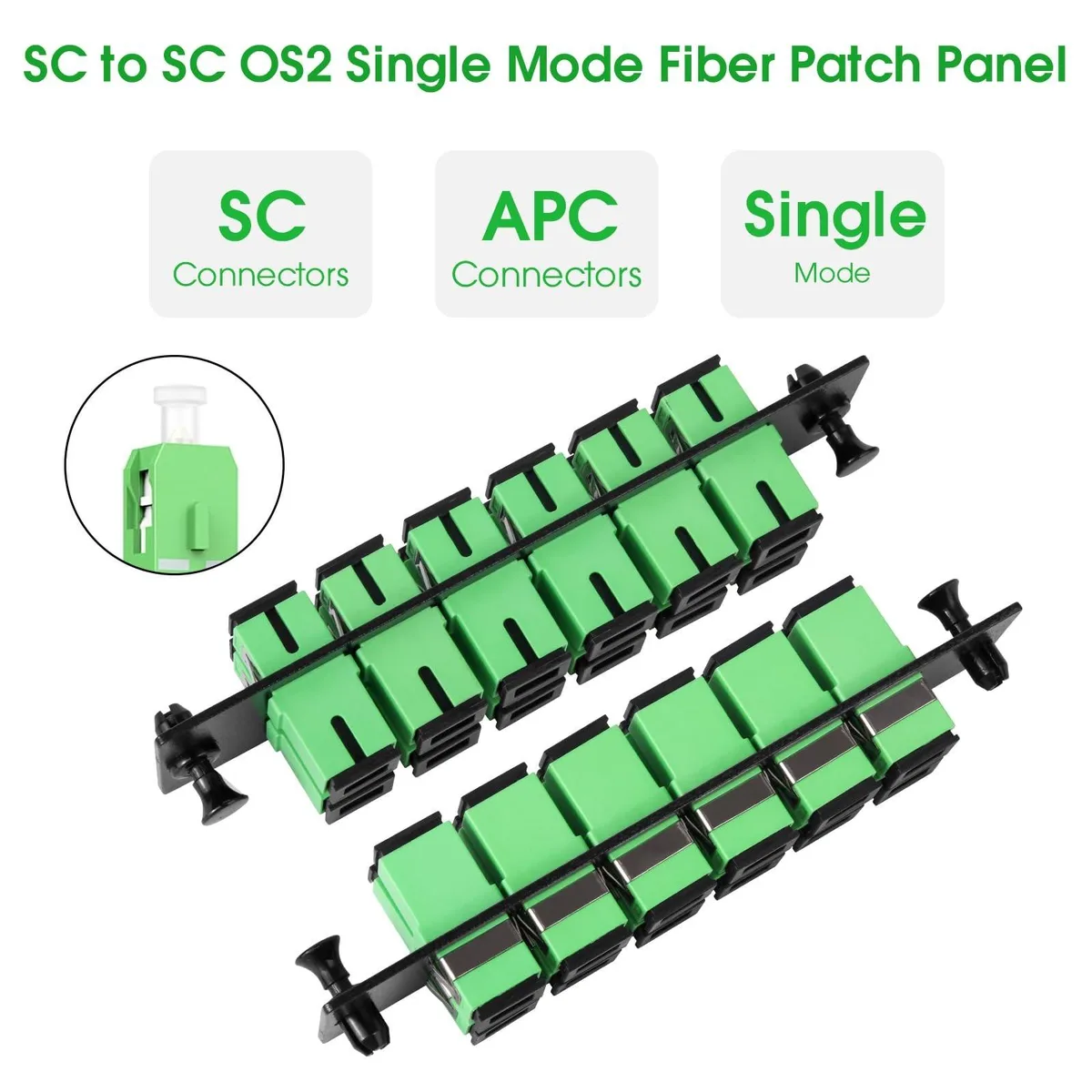

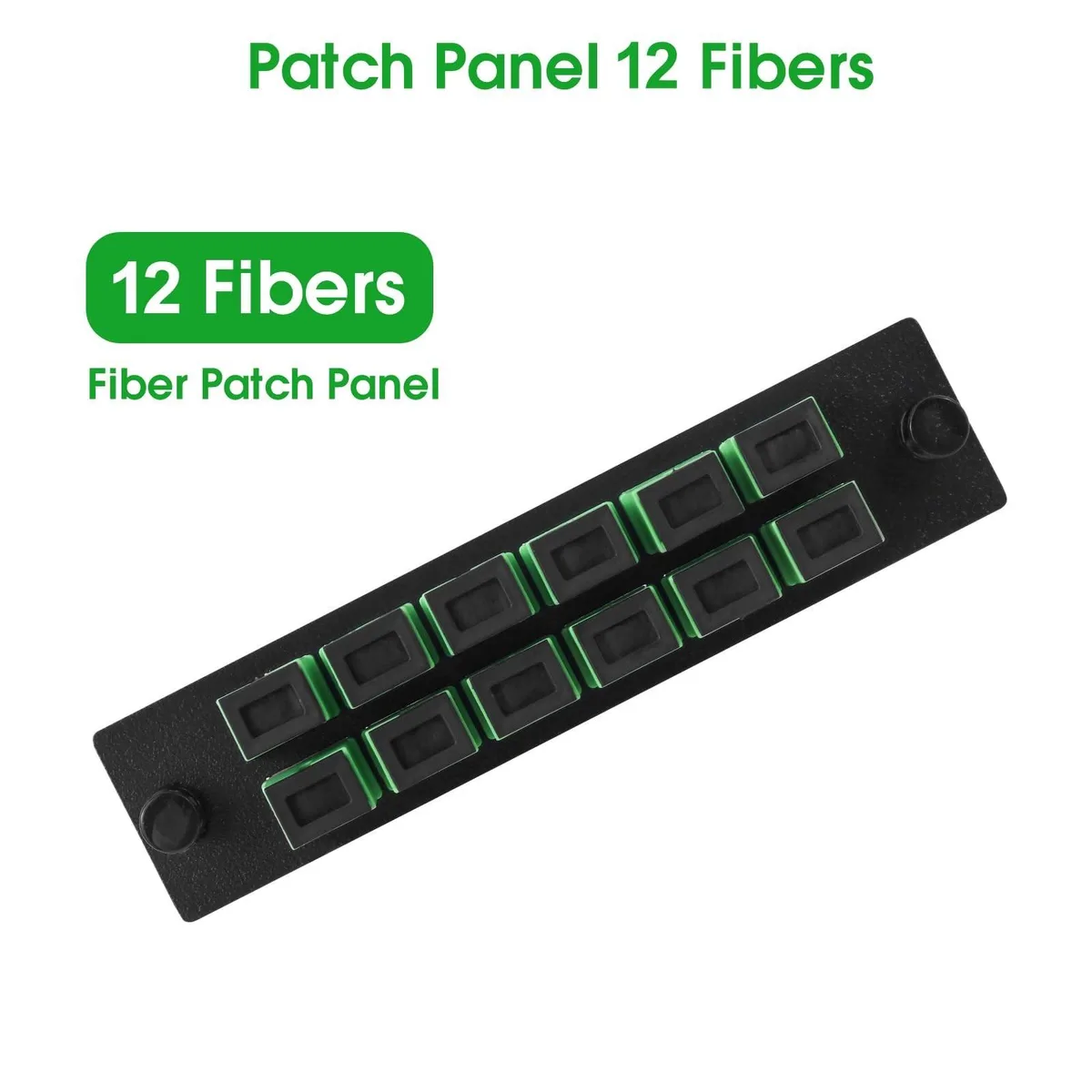

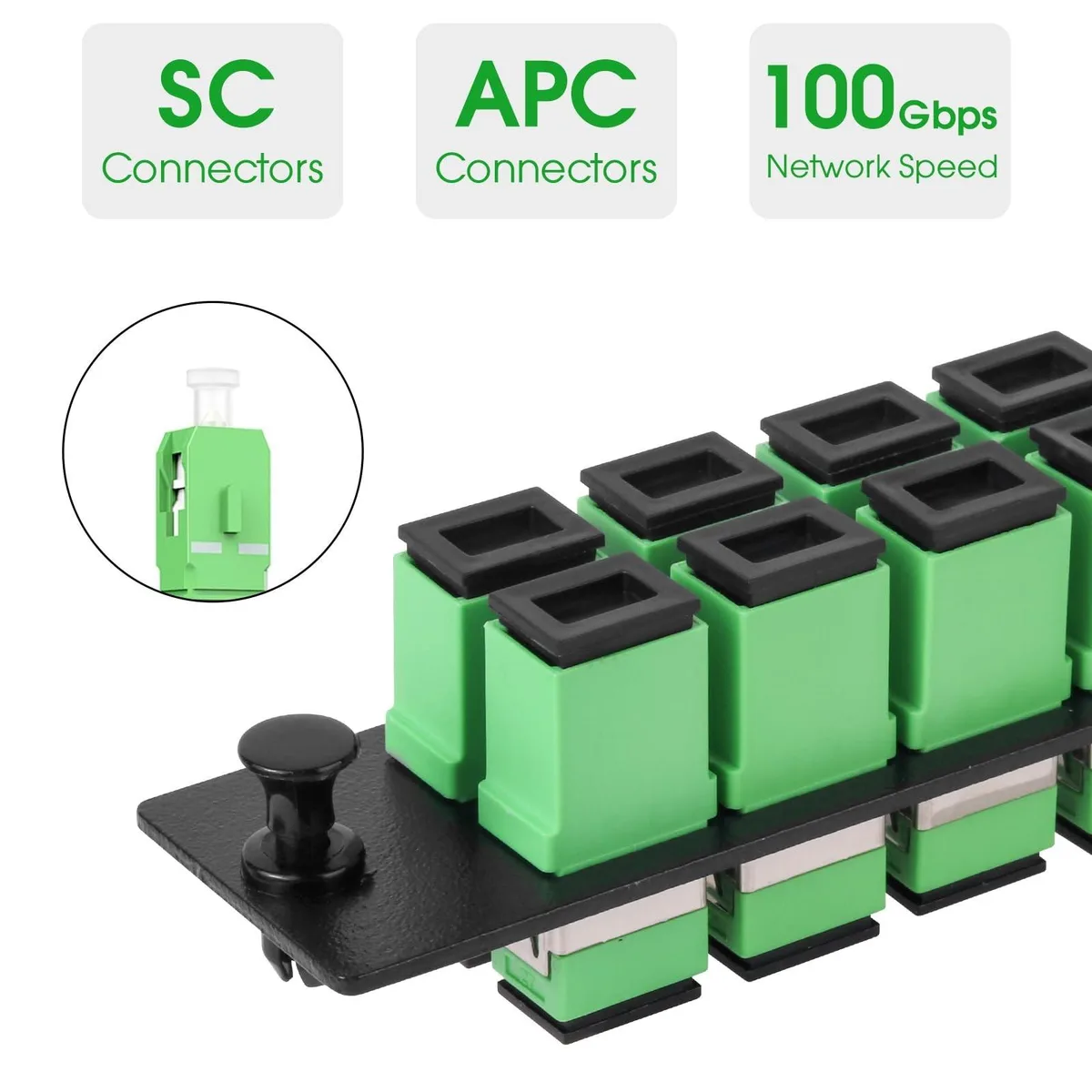

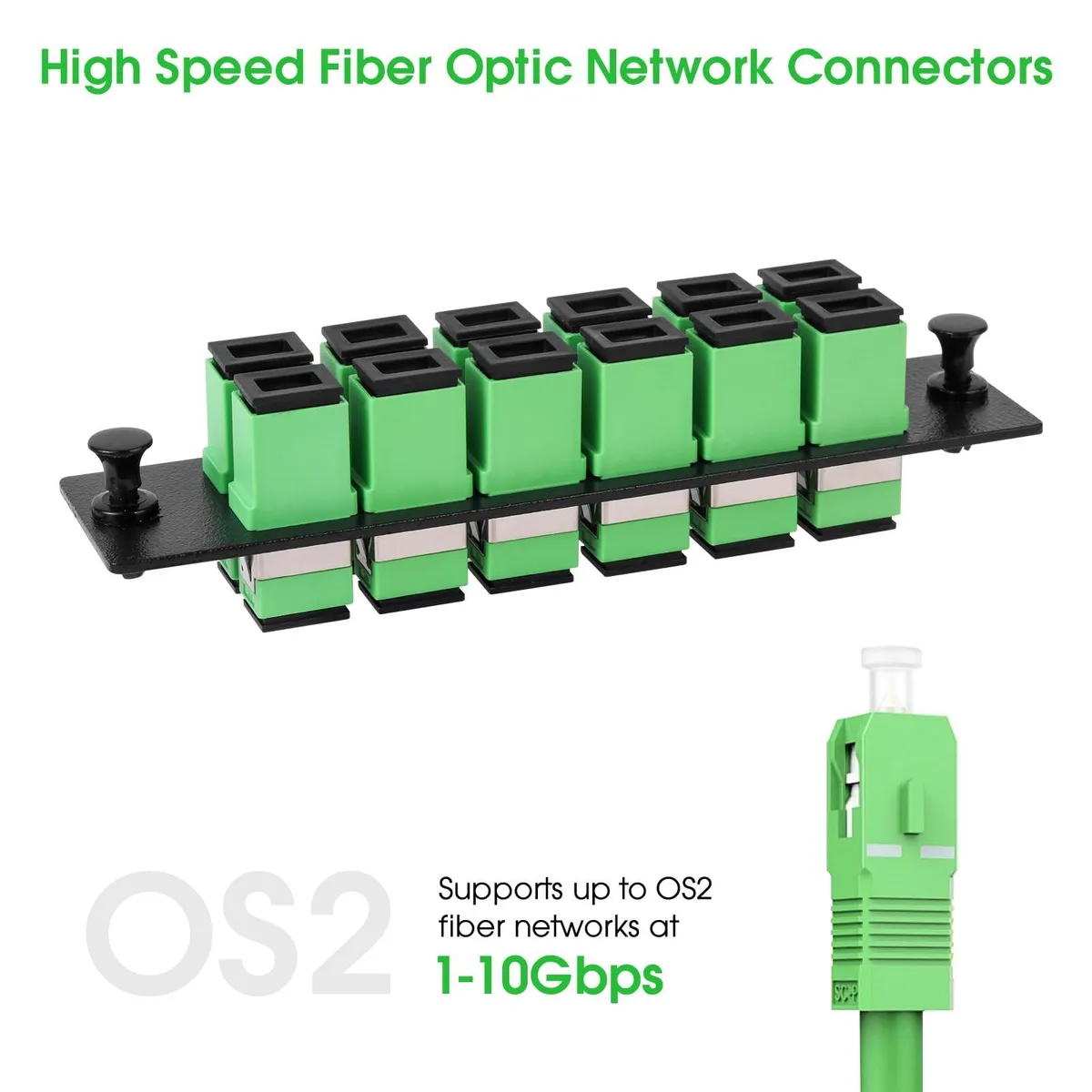

This two-pack delivers twenty-four simplex SC/APC ports across two steel panels finished in black electrostatic powder coating. Each panel loads twelve green singlemode couplers ready for immediate patching. The snap-in design allows tool-free mounting in standard racks or wall brackets. Network installers and data-centre technicians gain a dense, pre-terminated cross-connect point for singlemode infrastructure.

Replaces loose couplers and empty enclosures

Swapping individual bulkhead adapters for these pre-loaded panels cuts termination time and eliminates alignment errors during moves, adds and changes. The upgrade is worthwhile when a rack row needs twelve or twenty-four SC/APC ports in a single 1U footprint and repeatable performance matters. Insertion loss is rated at 0.2 dB with return loss of 60 dB, interchangeability of 0.2 dB and repeatability across 1000 mating cycles.

Verify patch-cord polish and wavelength window

Confirm every patch cord uses SC/APC singlemode connectors; mixing UPC or multimode ferrules degrades return loss. The couplers are characterised for the 1200 to 1600 nm window, so ensure transceivers and sources operate within that range. Check that the rack or cabinet accepts the panel’s snap-in tabs and that cable-management space exists for the bend radius of twelve fibres per unit.

Highlights

  • Low insertion loss of .2 dB ensures efficient signal transmission
  • High return loss of 60 dB minimises signal reflection
  • Snap-in mechanism enables tool-less installation saving time
  • 12 simplex SCAPC ports support high-density fibre connectivity
  • Rated for 1000 mating cycles providing long-term reliability

Specifications

No published specifications for this item yet.

Questions about this item

What rack or enclosure size does the 12-port SC/APC patch panel fit?

The panel is built from black electro-static powder-coated steel and provides 12 simplex SC/APC couplers; rack-unit dimensions are not supplied.

How do the green simplex SC/APC adapters snap in, and what is the common mistake?

Adapters use a tool-less snap-in mechanism; the frequent error is not pressing until the latch clicks, leaving a loose connection.

When should the SC/APC couplers be replaced based on the rated mating cycles?

The couplers are rated for 1000 repeatable matings; plan replacement once that cycle count is approached to maintain 0.2 dB insertion loss and 60 dB return loss.
