Black rectangular HDMI matrix switch with four inputs and two outputs

AUTYUE

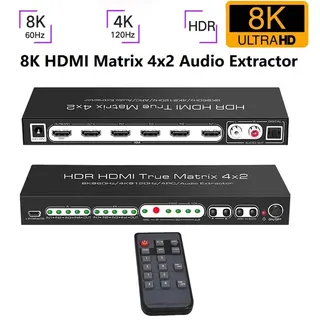

AUTYUE 8K HDR HDMI True Matrix 4x2 audio

SKU CH-AYPC-5S321

A 4x2 HDMI matrix switches four sources to two displays at up to 8K 60 Hz and extracts audio via optical or 3.5 mm outputs

  • TypeHDMI Switchers
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • SpecificationsThis 4K@120Hz HDMI matrix 4x2 allows easy switch or split 4
  • Routes four sources to two displays with independent audio extraction
  • Delivers 8K at 60 Hz and 4K at 120 Hz for high-refresh gaming
  • Supports HDR10 and Dolby Vision with 12-bit deep colour
  • Extracts sound via optical and 3.5 mm outputs simultaneously
  • Includes IR remote for switching up to 5 metres away

4x2 HDMI matrix for multi-source setups

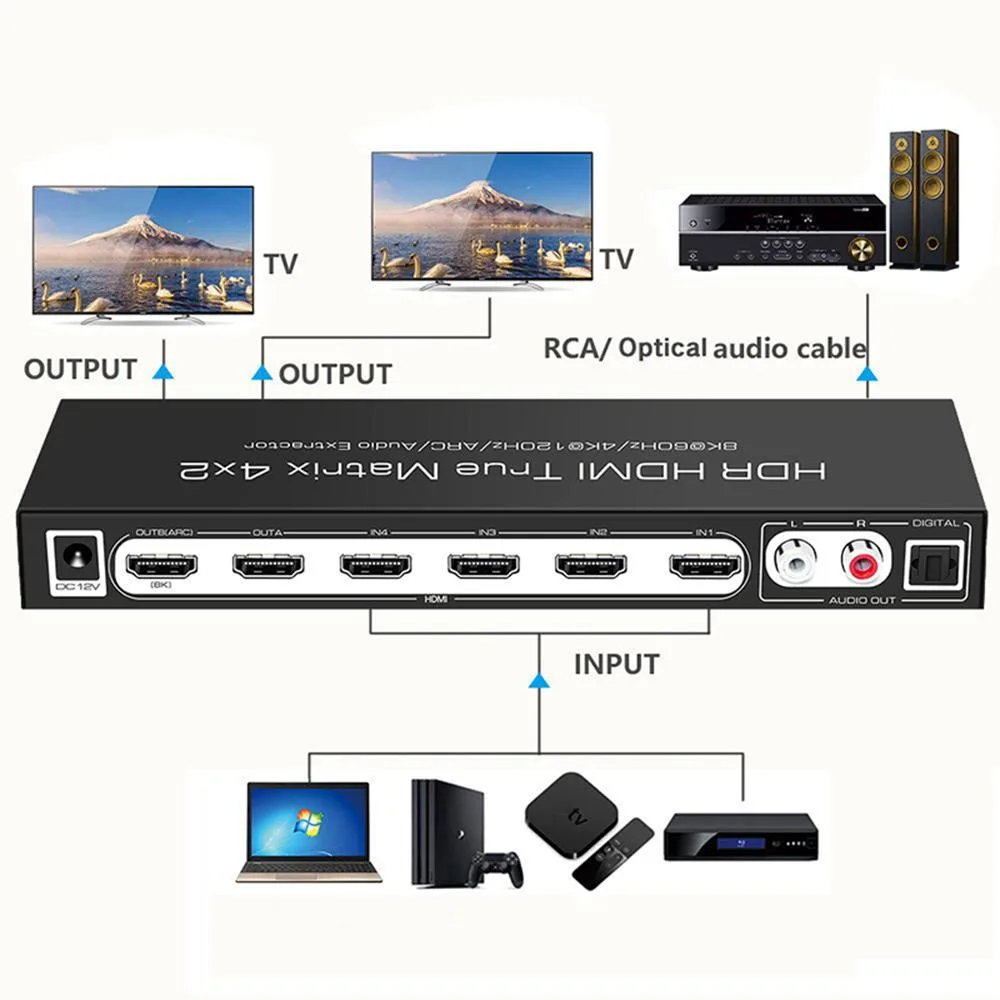

This AUTYUE 4x2 HDMI matrix routes four input sources to two displays while extracting audio through optical and analogue outputs. It suits home-theatre owners, gamers and installers who need simultaneous or independent switching across two screens. Buyers who require more than four inputs or additional HDMI outputs cannot use this unit.

Thermals and power in daily use

The metal chassis provides passive heat absorption and dissipation with no fan noise. Power draw is limited to 500 mA from the included 12 V 1.5 A adapter, so the device runs cool and silent during extended 8K or high-refresh sessions.

Build quality and connector layout

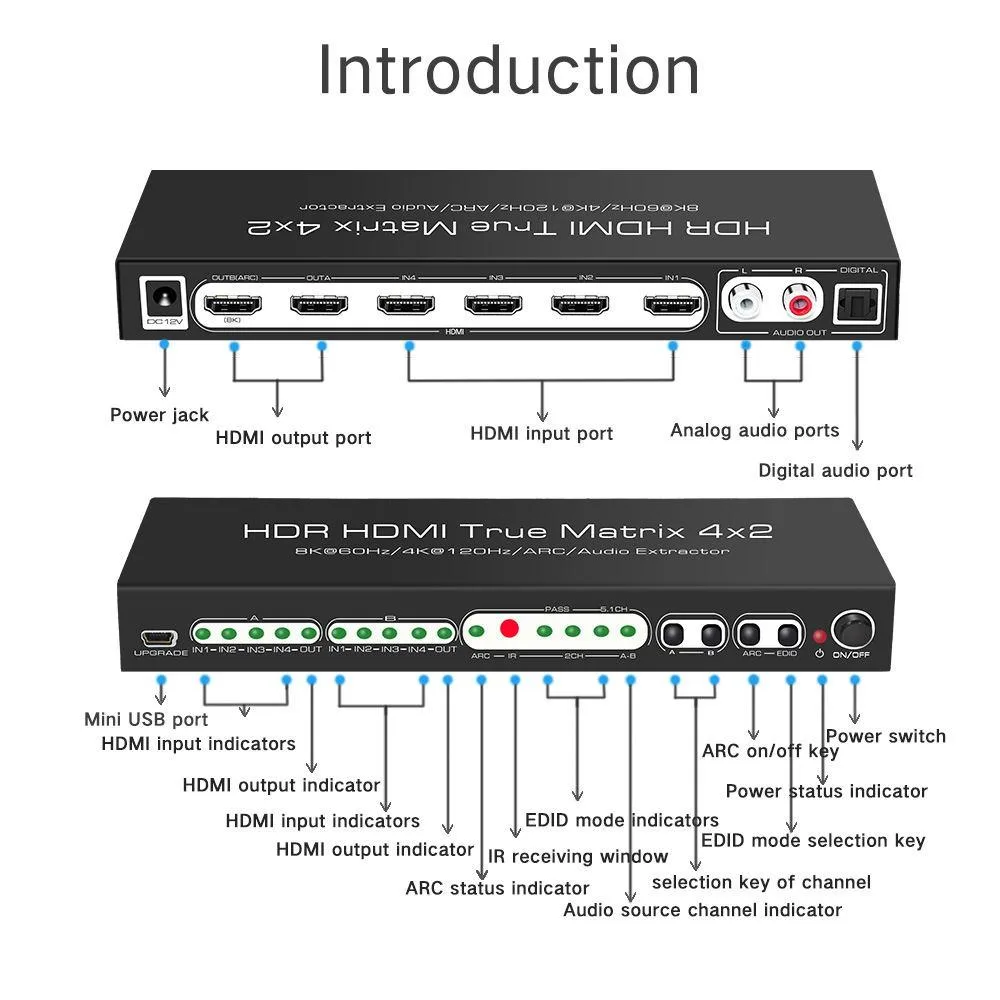

A compact black enclosure measuring 250 x 75 x 30 mm houses four HDMI inputs, two HDMI outputs, twin RCA stereo jacks and one optical audio port. Front-panel buttons and the supplied IR remote allow instant source selection without reaching behind equipment racks.

Day-to-day mounting and cabling

Short cable runs under five metres are recommended for 8K and 4K 120 Hz signals, while 1080p sources can reach ten metres on the input side. The 3.5 mm and optical audio outputs feed soundbars or amplifiers directly, reducing cable clutter in typical AV cabinets.

Highlights

  • Routes four sources to two displays with independent audio extraction
  • Delivers 8K at 60 Hz and 4K at 120 Hz for high-refresh gaming
  • Supports HDR10 and Dolby Vision with 12-bit deep colour
  • Extracts sound via optical and 3.5 mm outputs simultaneously
  • Includes IR remote for switching up to 5 metres away

Specifications

TypeHDMI Switchers
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsThis 4K@120Hz HDMI matrix 4x2 allows easy switch or split 4 HDMI input sources to 2 HDMI display or monitor via SPDIF optical fiber or 3.5mm stereo audio output. HDMI input support: DVD, Blu-ray players, PS4, PS5, X box, HD players, TV box, PC, Laptop, Fire Stick, Roku, etc. HDMI output support: Monitor, Projector, Full HD TV. Audio output: Amplifier, Soundbar, Speaker, etc. Can be widely used in office, school, home theater, museum or shopping mall.
Input Connector4x HDMI Female
Output Connector2x HDMI Female
Maximum Cable Length<5M
Maximum Resolutions7680x4320
Features8K Ultra HD Resolution: HDMI2.1 matrix switch splitter adopt the latest chips, support resolution can up to 8K@60Hz, also back compatible with 8K@30Hz, 4K@120Hz, 3D, 1080P@240Hz/144Hz, 720P,etc. Support 8/10/12/16 bit deep color, HDCP 2.3, VRR, HDR10, Dobly Vision.
Audio Extractor and ARC Function: Our this 8K HDMI matrix switcher 4 in 2 out can extract the audio to Toslinks SPDIF optical audio output or RCA audio output separately at the same time. Also support Dobly HD, DTS HD, Dobly Atoms, Dobly AC3, DTS, LPCM and smart EDID managements.
Dimensions250x75x30 (mm)
Weight440g

Questions about this item

How do I connect the 4 HDMI sources and 2 displays to the matrix, and which step causes no signal?

Connect each source to one of the four HDMI inputs and each display to the two HDMI outputs using cables no longer than 5 metres for 4K or 8K signals, then power the unit with the included 12 V 1.5 A adapter; the step most often missed is selecting the correct input for each output with the IR remote or front panel buttons.

What maintenance will the audio extractor and HDMI ports need over time?

The optical, RCA and 3.5 mm audio outputs are passive and need no servicing; keep the four HDMI inputs and two HDMI outputs dust-free and ensure cables stay firmly seated, as loose connections are the only common cause of signal loss.

What is the first limit reached when running 8K 60 Hz HDR content continuously?

The 40 Gbps bandwidth ceiling and 5 metre cable limit for 8K signals are the first constraints; exceeding either causes dropouts before thermal limits of the 500 mA draw become an issue.
