Silver rectangular 4x4 HDMI matrix switch with front panel buttons

AUTYUE

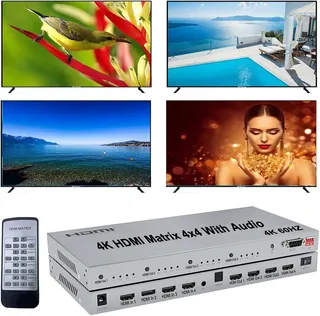

AUTYUE 4x4 HDMI Matrix Switch 4K@60Hz 18Gbps Silver

SKU CH-BHS8-8E2E8

A 4×4 HDMI matrix routes four 4K@60 Hz sources to four displays with independent switching, 18 Gbps bandwidth, HDR, 3D and 7.1-channel audio extraction via optical and 3.5 mm outputs.

  • TypeHDMI Switchers
  • ColorSilver
  • Ports4
  • MatrixYes
  • AudioYes
  • Input Connector4x HDMI
  • Routes any of four 4K sources to four displays independently
  • 18 Gbps bandwidth carries 4K 60 Hz HDR with deep colour
  • Optical and 3.5 mm outputs extract Dolby TrueHD and DTS-HD audio

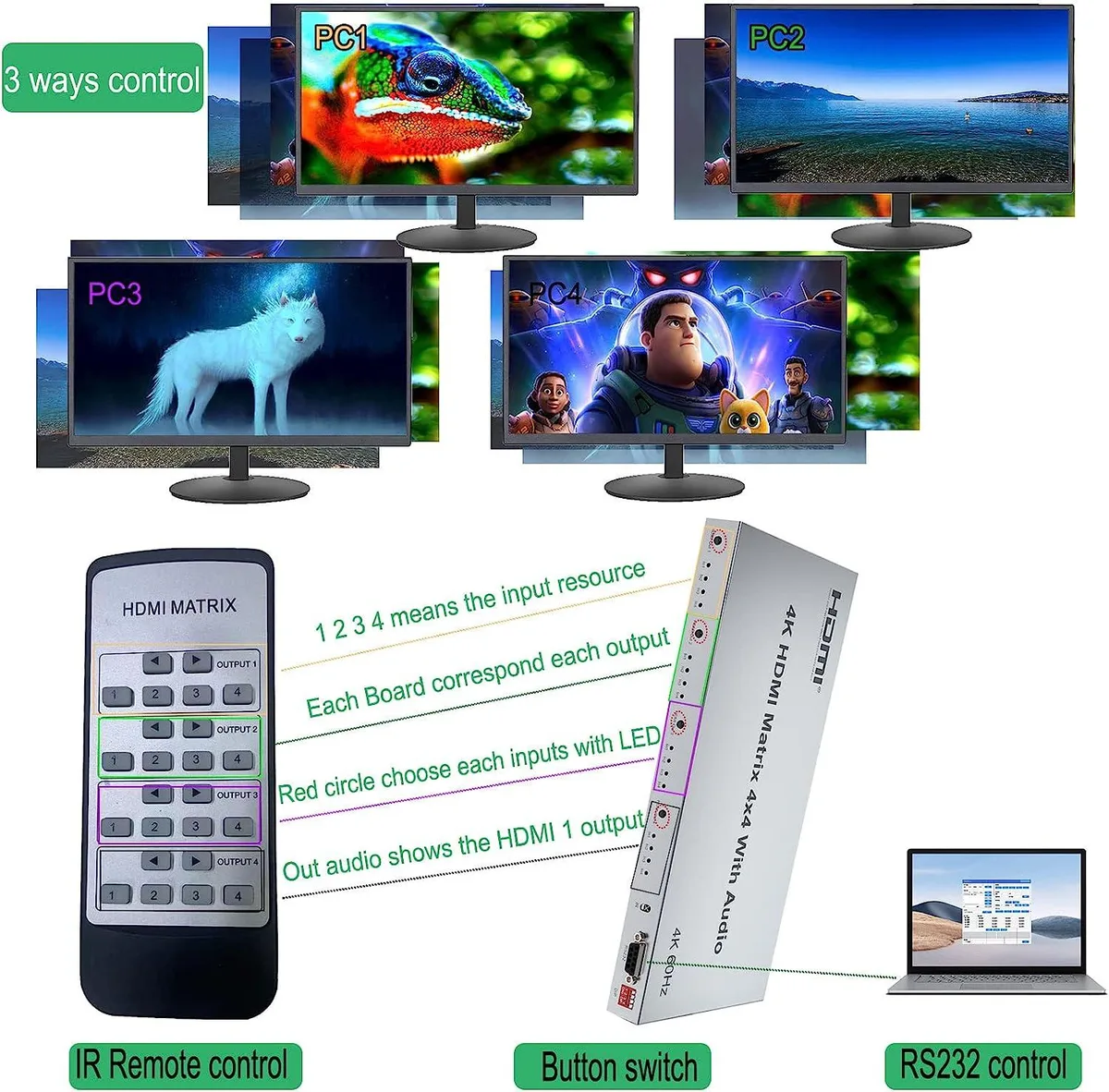

  • IR remote, front buttons and RS-232 give three control methods
  • EDID learning and presets lock correct resolution on every output

4x4 HDMI Matrix Switch

The AUTYUE 4x4 HDMI matrix routes four HDMI sources to four displays independently or duplicates any input across all outputs. It handles 4K at 60 Hz with HDR, 3D and deep colour up to 24-bit. Control is via front buttons, IR remote or RS-232, making it suitable for installers and multi-room AV setups.

Replaces basic splitters and single-output switches

A simple splitter only mirrors one source to many screens. This matrix lets each display show a different 4K source simultaneously. The jump is worth it when you need independent routing for gaming consoles, media players and computers across multiple zones without rewiring.

Four inputs and four outputs at 18 Gbps

Each path supports 3840x2160 at 60 Hz with RGB or YUV 4:4:4 sampling. HDCP 2.2 and 1.4 are both supported for protected content. Audio extracts via optical fibre and 3.5 mm stereo from output one. Cable runs up to 5 metres are specified; longer runs or more than four zones exceed the device capacity.

Highlights

  • Routes any of four 4K sources to four displays independently
  • 18 Gbps bandwidth carries 4K 60 Hz HDR with deep colour
  • Optical and 3.5 mm outputs extract Dolby TrueHD and DTS-HD audio
  • IR remote, front buttons and RS-232 give three control methods
  • EDID learning and presets lock correct resolution on every output

Specifications

TypeHDMI Switchers
ColorSilver
Ports4
MatrixYes
AudioYes
Input Connector4x HDMI
Output Connector4x HDMI
Maximum Cable Length5M
Maximum Resolutions3840x2160
Features【HDMI Video Resolution 】3840x2160 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4, YUV 4:4:4. Support 18Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24bit
【Audio Split& EDID】With out audio, Supports Dolby TrueHD, DTS-HD, 7.1ch digital and other HDMI audio formats, EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.
Dimensions10.86 x 5.6 x 1 inches
Weight720g
Package Quantity1
Package Contents1xswitch device, 1x12V charger, 1xuser manual, 1xIR remoter

Questions about this item

What rack depth is required for the 10.86 x 5.6 x 1 inch silver chassis?

The unit is 5.6 inches deep, so any standard 1U rack shelf or cabinet with at least 6 inches of usable depth will accommodate it with room for rear cable bend radius.

Which control method should I configure first to avoid the common EDID mismatch after power-up?

Set the desired EDID mode via the front-panel buttons or RS-232 before connecting sources, then power-cycle the matrix so the learned EDID is locked in and outputs 1-4 receive identical 3840x2160@60Hz signals.

When will the 12 V power supply need replacement under continuous operation?

The external 12 V charger is a standard replaceable part; plan to swap it after 3-5 years of 24/7 use or if the matrix begins to drop HDCP 2.2 handshakes on any of the four HDMI outputs.
