Silver 4x4 HDMI matrix unit with front buttons and rear ports

AUTYUE

AUTYUE 4x4 HDMI Matrix 4K@30Hz Silver

SKU CH-46KM-X1Q1G

Routes four HDMI sources to four displays independently at up to 4K@30Hz with IR, button and RS232 control

  • TypeHDMI Switchers
  • ColorSilver
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Specifications4x4 HDMI Splitter Reliably Distributes 4 HDMI Source Signal
  • Distributes four sources to four displays independently
  • 4K resolution at 30 Hz with deep colour support
  • HDCP 1.4 compliant with multi-format audio pass-through
  • EDID management ensures correct output resolution
  • Control via front buttons, IR remote or RS232

4x4 HDMI Matrix for Multi-Source Installations

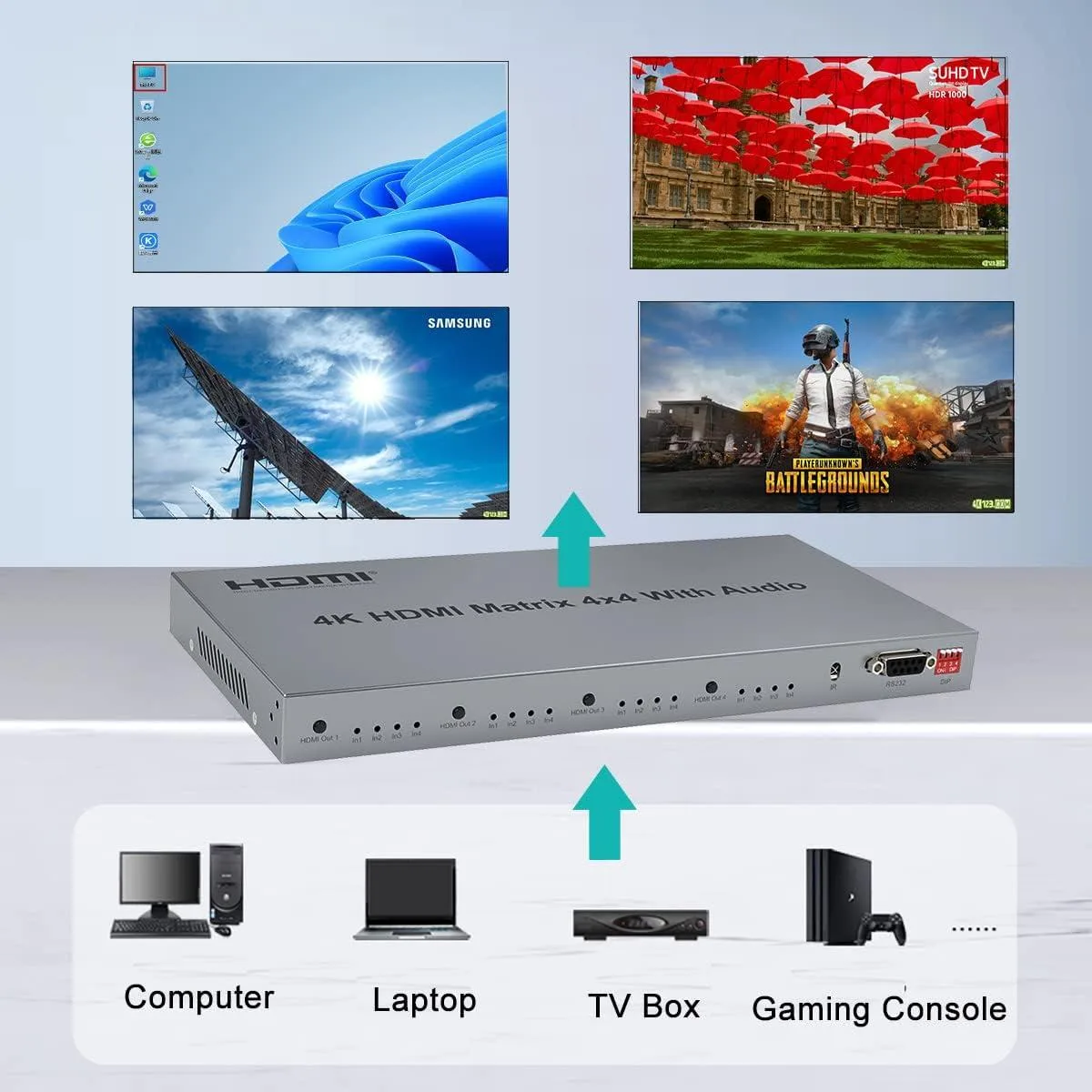

The AUTYUE 4x4 HDMI Matrix routes four HDMI sources to four displays, letting each screen show the same or a different signal simultaneously. It suits conference rooms, control centres and training spaces where multiple sources must be distributed without quality loss.

Silver Chassis with IR, RS232 and Audio Breakout

The silver enclosure provides front-panel buttons, an IR remote sensor and an RS232 port for automated control systems. HDMI output one also carries a 3.5 mm stereo jack and an optical audio output for external speakers or headphones.

Upgrades Single-Output Splitters and Basic Switches

This unit replaces a simple splitter when different rooms need different content, or a basic switch when simultaneous multi-display output is required. The jump is worth it when 4K at 30 Hz distribution across four zones is needed without signal degradation.

Highlights

  • Distributes four sources to four displays independently
  • 4K resolution at 30 Hz with deep colour support
  • HDCP 1.4 compliant with multi-format audio pass-through
  • EDID management ensures correct output resolution
  • Control via front buttons, IR remote or RS232

Specifications

TypeHDMI Switchers
ColorSilver
Ports4x4 Matrix
MatrixYes
AudioYes

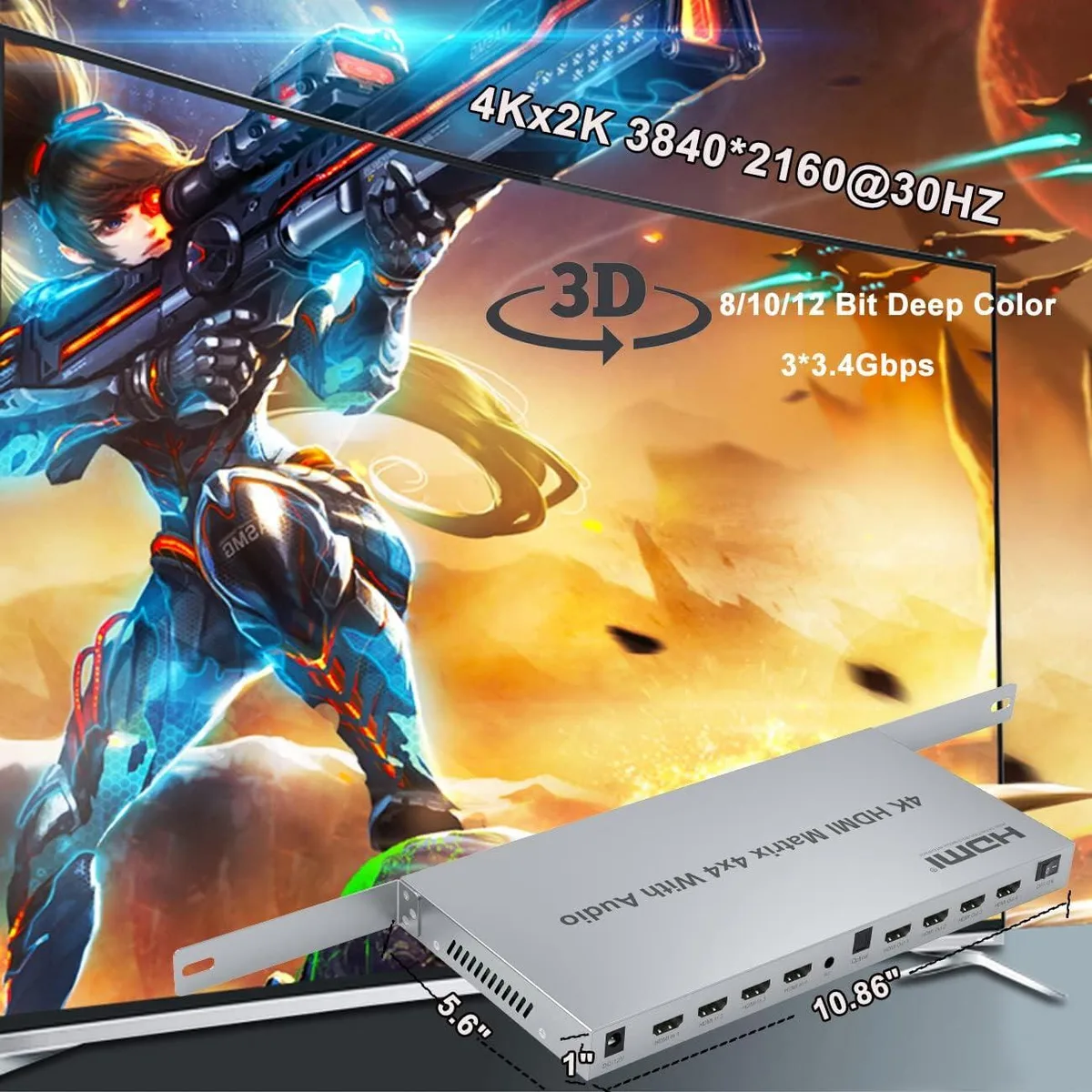

Specifications4x4 HDMI Splitter Reliably Distributes 4 HDMI Source Signal To 4 HDMI Displays and Show the Same or Different Source Simultaneously, Realize Max Resolution 4Kx2K 3840*2160@30Hz.
Maximum Resolutions3840 x 2160
FeaturesThis 4 In 4 Out HDMI Matrix Support Resolution Up To 4Kx2K 3840*2160@30HZ, Support 8/10/12 Bit Deep Color, Max Baud Rate 3*3.4Gbps
HDMI Matirx Support HDCP 1.4, 1080P 3D, DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Audio Format.EDID Settings Ensure The Correct Signal Resolution Is Output From the Sources, Making Better Picture Quality.
HDMI Matrix Support Power-Off Memory Function, Can Automatically Restore The Previous Status The Next Time Turn On Power. The Led Light Offer The Most Friendly Visual Operation.
Dimensions10.86x5.6x1(inch)
Package Quantity1
Package Contents1 x HDMI Matrix 4x4,
1 x Remote Controller,
1 x US Power Adapter,
1 x User Manual

Questions about this item

What HDMI standard does the matrix use and what resolution and refresh rate does it cap at?

The matrix follows HDMI 1.4 and caps at 3840 x 2160 at 30 Hz, with 1080p available at 60 Hz.

What physical space and connections are needed to mount the unit?

The chassis measures 10.86 x 5.6 x 1 inches and provides four HDMI inputs, four HDMI outputs, a 3.5 mm audio jack and an optical output on HDMI out 1, plus an RS-232 port.

How is the matrix set up and which step is often missed?

Connect sources to the four HDMI inputs and displays to the four HDMI outputs, attach the supplied US power adapter, then use the front buttons, IR remote or RS-232 commands to route signals; the step often missed is configuring EDID so each source outputs the correct resolution.
