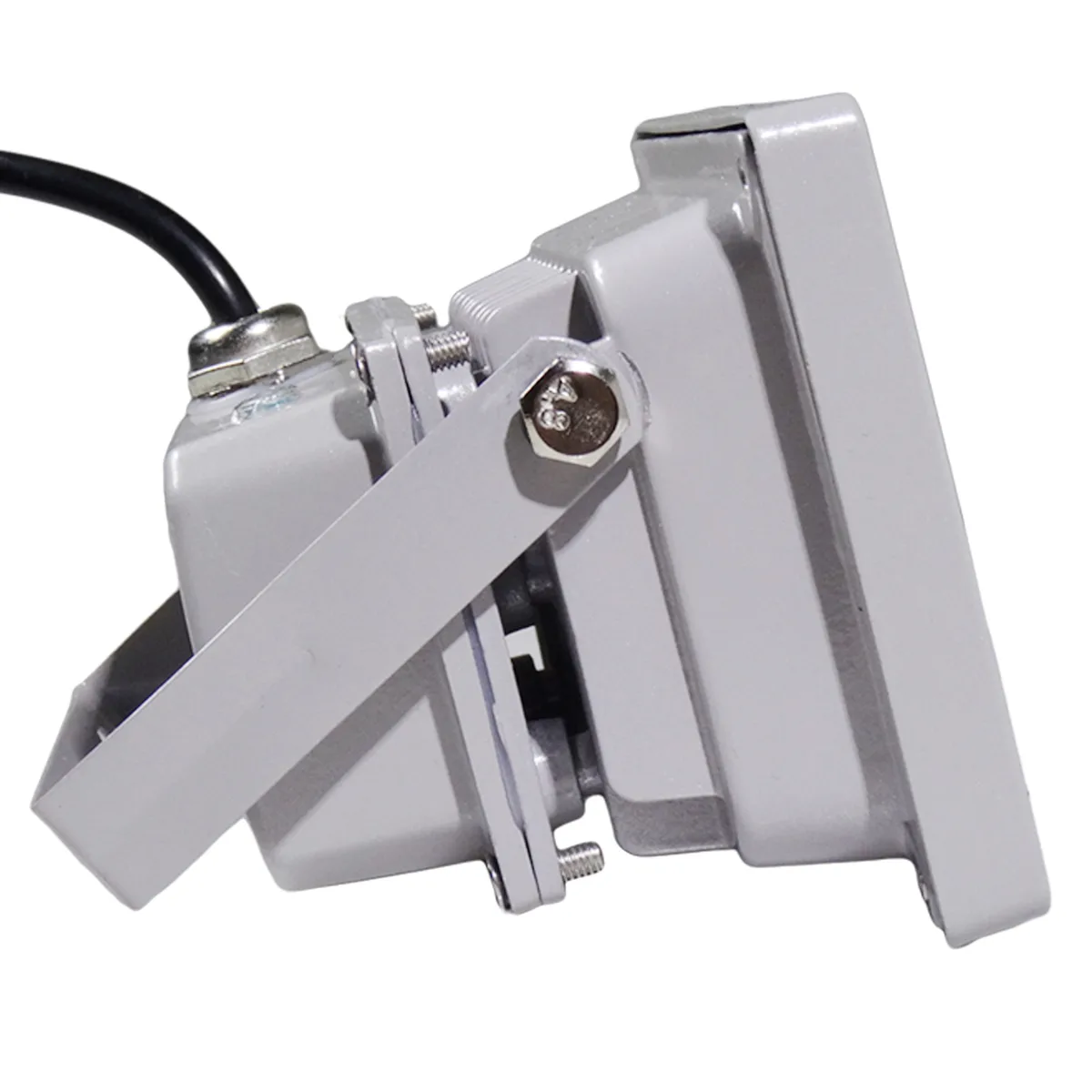

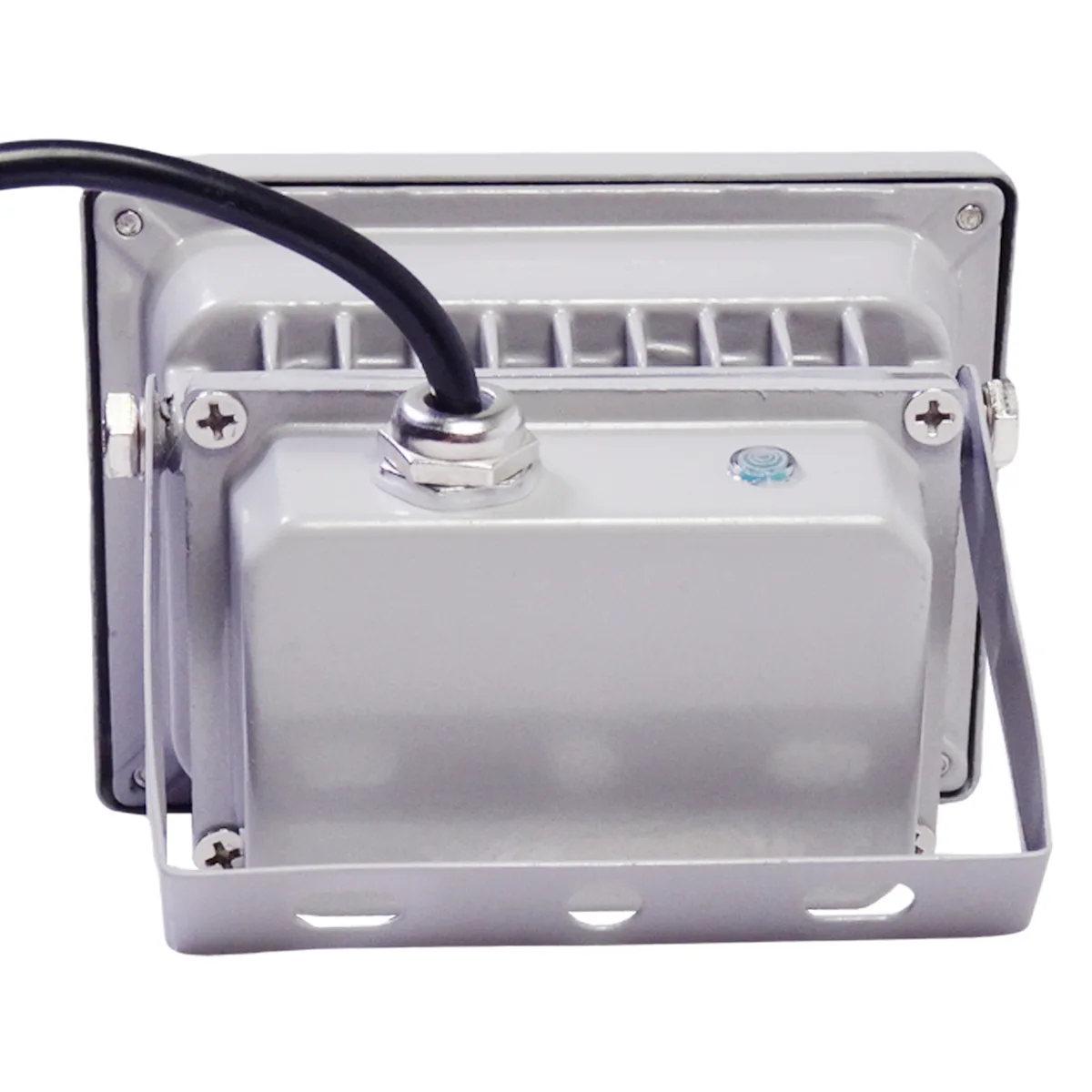

Rectangular aluminium IR illuminator with six LEDs behind reinforced glass, grey finish

AUTENS

AUTENS IR Illuminator 850nm 6-LED 90° IP67 cctv camera

SKU CH-HAH4-BR31S

Six 850 nm LEDs with 90° spread and IP67 housing extend night vision for analogue and IP cameras

  • Automatic night activation below 20 lux light level
  • IP67 rated aluminium housing withstands dust and water ingress
  • Six high-power 850 nm LEDs cover 90 degree field
  • 6 W DC 12 V power draw keeps running costs low
  • Operates reliably from -20 °C to 55 °C

AUTENS IR Illuminator 850nm 6-LED 90° IP67

The AUTENS IR Illuminator is an external infrared light array designed to boost night-vision performance for CCTV and analogue security cameras. It houses six high-power 850nm LEDs behind reinforced glass in an aluminium frame rated IP67 for dust and water resistance. A built-in light sensor activates the unit automatically when ambient light falls below 20 lux and switches it off again at dawn. The package includes a DC 12V 1A power adapter.

Wide-angle 90° coverage for short-range monitoring

This illuminator suits installers who need broad, even illumination across a 90-degree field of view for wide-angle IP or analogue cameras mounted indoors or outdoors. The 850nm wavelength produces a faint red glow on each LED when active, so it is not suited for covert applications that require completely invisible illumination. Buyers needing narrower beams for longer throw distances should consider alternative models. The operating temperature range spans -20°C to 55°C.

850nm wavelength with visible red LED glow

The single specification that decides compatibility is the 850nm infrared wavelength. Cameras must be sensitive to this band and users must accept the faint red indicator glow on the LEDs during night operation. Power draw is 6W from a 12V DC supply, and the housing measures 112 by 83 by 76mm. Verify that the camera lens angle matches the 90° spread before purchase.

Highlights

  • Automatic night activation below 20 lux light level
  • IP67 rated aluminium housing withstands dust and water ingress
  • Six high-power 850 nm LEDs cover 90 degree field
  • 6 W DC 12 V power draw keeps running costs low
  • Operates reliably from -20 °C to 55 °C

Specifications

BrandAUTENS

Questions about this item

How much power does the 6 W illuminator draw when it runs continuously day and night?

It consumes 6 W from a DC 12 V supply and activates automatically below 20 lux, so heat output stays low during all-day operation.

What separate items must I already have to power and mount the IP67 unit?

A DC 12 V / 1 A power source is required; the package includes an adapter, but you supply the mounting bracket and any cabling to reach the camera.

Will the 90° wide-angle IR pattern cover the same field as my older analogue camera with a narrower lens?

The 90° spread is fixed; if your camera lens is narrower the illuminator will overspill, and if it is wider there will be dark edges — match the angles for best results.
