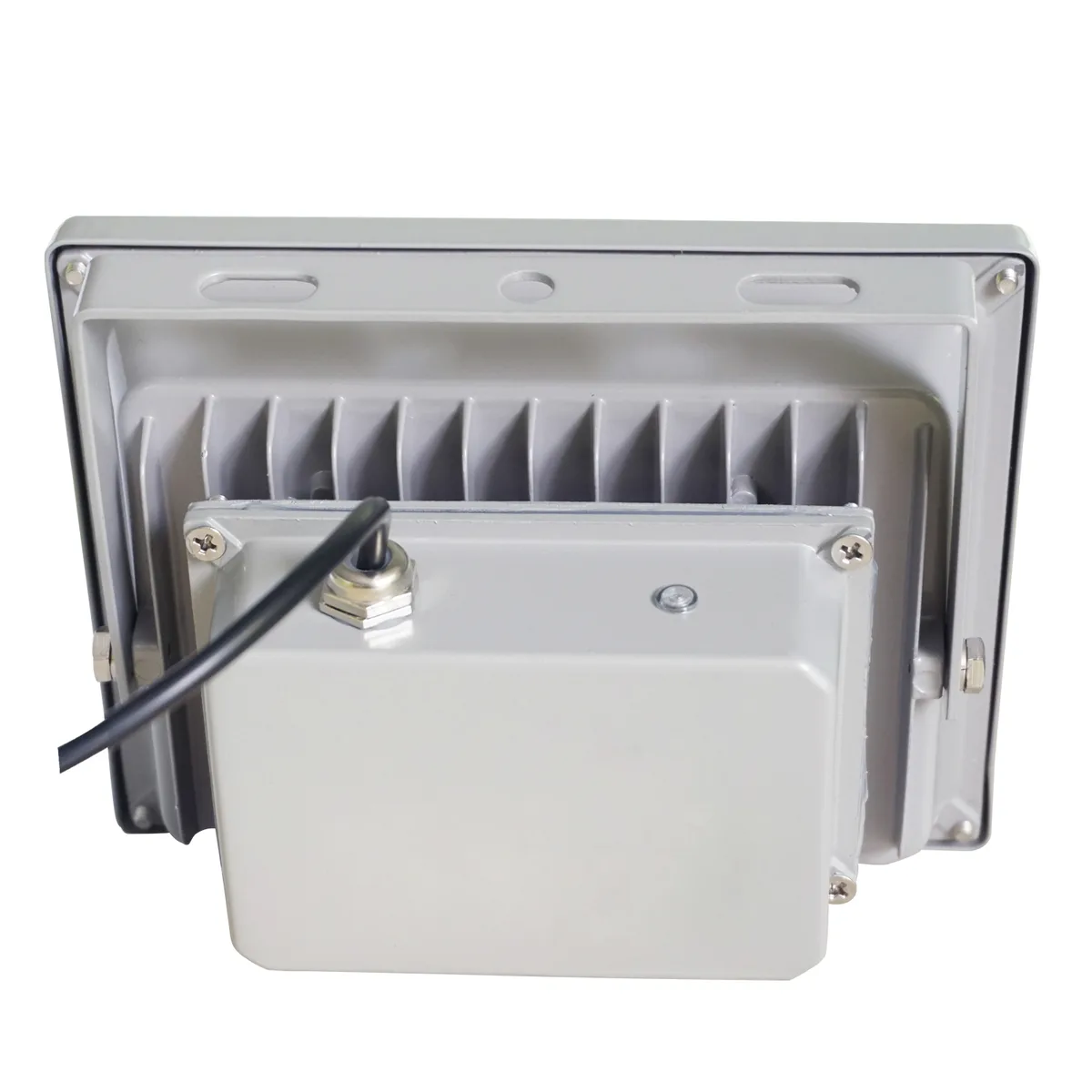

Grey aluminium IR illuminator with 12 LEDs and reinforced glass front

AUTENS

AUTENS IR Illuminator 850nm 12-LED 90 Degree IP67 CCTV Camera

SKU CH-A03X-B9GNX

Adds 850 nm infrared light with 12 LEDs and 90° spread for IP67 outdoor night vision

  • Automatic night activation below 20 lux light level
  • IP67 rated aluminium housing withstands dust and water ingress
  • 12 high-power 850 nm LEDs cover 90 degree view angle
  • 30 W DC 12 V input powers reliable infrared illumination
  • Operates from minus 20 °C up to 55 °C

850nm IR Illuminator for Wide-Angle CCTV

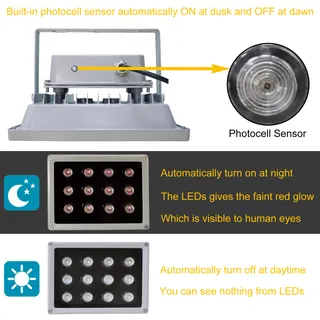

The AUTENS IR illuminator uses twelve high-power 850nm LEDs to extend night-vision range for analogue and IP security cameras. A built-in photocell switches the unit on automatically when ambient light drops below 20 lux and off again at dawn. The 90-degree beam spread matches wide-angle camera lenses, and a faint red glow on each LED confirms operation without visible illumination.

IP67 Weatherproof Limits and Beam Trade-Off

The aluminium frame and reinforced glass carry an IP67 rating for dustproof and waterproof outdoor installation from -20°C to 55°C. For a fixed LED count, widening the view angle reduces the effective IR distance, so the 90-degree coverage suits shorter-range, broad-area monitoring rather than long-distance spotting. The final viewing distance and angle depend on the paired camera lens, not the illuminator alone.

Simple 12V DC Mounting With Sensor Orientation

A 12V DC 3A power adapter is included for direct connection to the DC 12V/3A input. Mount the unit so the camera and illuminator share the same horizontal and vertical direction, and point the sensor head downward to prevent direct sun exposure from damaging the photocell. No network configuration or software setup is required.

Highlights

  • Automatic night activation below 20 lux light level
  • IP67 rated aluminium housing withstands dust and water ingress
  • 12 high-power 850 nm LEDs cover 90 degree view angle
  • 30 W DC 12 V input powers reliable infrared illumination
  • Operates from minus 20 °C up to 55 °C

Specifications

BrandAUTENS

Questions about this item

Should I pick a different LED count or angle for my camera?

This model has 12 high-power 850 nm LEDs and a 90-degree spread; the supplier notes that wider angles reduce IR distance, so match the illuminator angle to your camera lens.

What does the 850 nm wavelength mean when the unit is running?

At 850 nm you will see a faint red glow on each LED, but no visible beam; the light is invisible to the eye while the camera sensor picks it up for night vision.

How does the IP67 rating and 12 V input limit where I can mount it?

IP67 makes it dust-tight and waterproof for outdoor use, and the 12 V DC 3 A supply means you need a nearby 12 V source or a weatherproof adapter.
