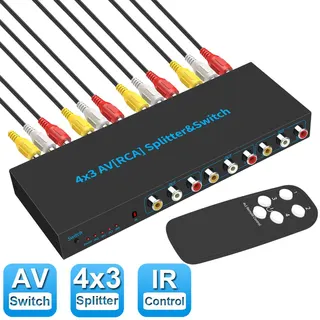

Black rectangular metal box with multiple RCA ports on front and back, selection buttons and remote sensor visible

AUBEAMTO

AUBEAMTO OZQV RCA AV Switch 4 in 3 out Composite audio

SKU CH-AR39-DW4B3

Composite AV switch routes four sources to three displays with stereo audio, IR remote and front-panel buttons

  • TypeRCA AV Switch Splitter
  • ColorBlack
  • AudioYes
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • Dimensions5.87 x 4.57 x 2.01 inches
  • Switch four sources to three displays without re-cabling
  • IR remote lets you change inputs from the sofa
  • Metal chassis resists wear in daily use
  • Plug-and-play hardware needs no drivers or setup
  • Powers from included 5 V 1 A adapter

Four-input composite AV switch

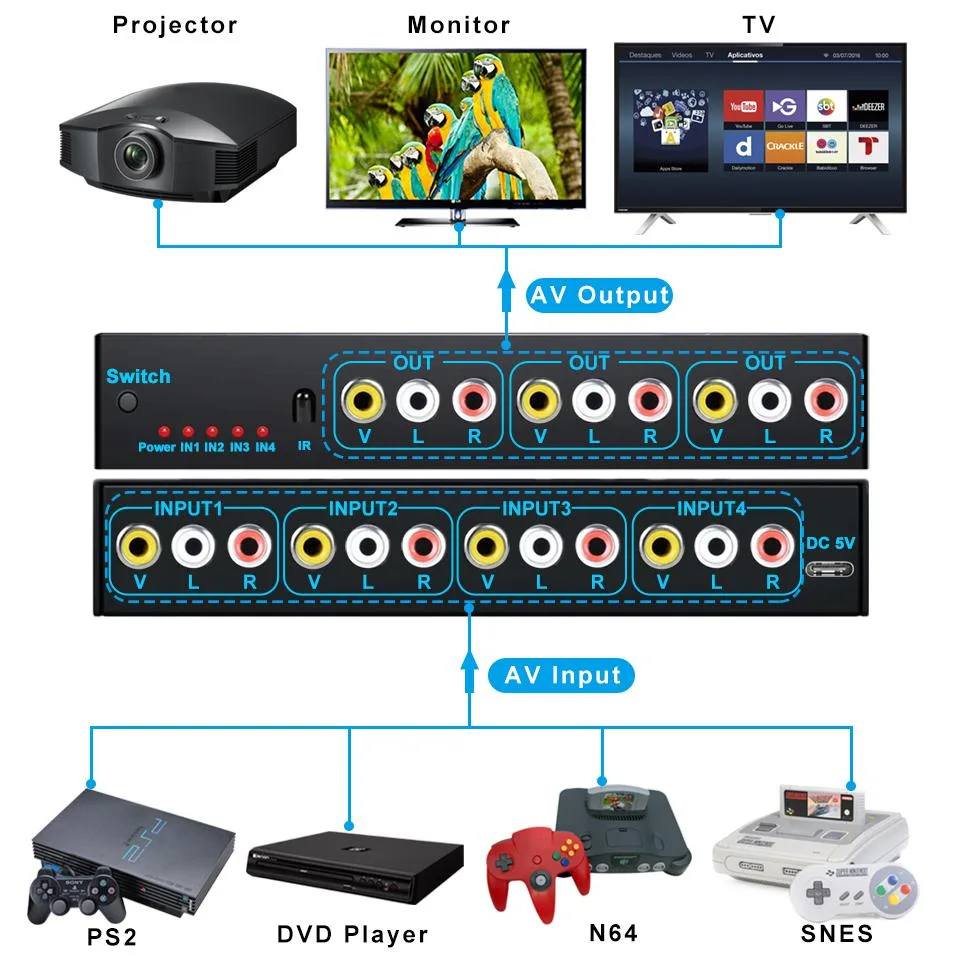

The AUBEAMTO OZQV routes four composite sources to three displays or recorders. Each channel carries video plus left and right audio through colour-coded RCA sockets. A front-panel button and an infrared remote select the active input without software or drivers. The unit ships with a 5 V power adapter and is housed in a metal chassis for durability.

Bandwidth and impedance limits

Video bandwidth spans 50 Hz to 5.5 MHz with 75 ohm input and output impedance. Audio frequency response covers 10 Hz to 20 kHz at 0 dB, with 47 kilohm input and 1 kilohm output impedance. Signal levels are 0.8 to 1.0 volts peak-to-peak for video and 2 volts RMS for audio. These analogue limits mean the switch cannot pass high-definition or digital formats.

Matrix switching not supported

The selector duplicates the chosen source to all three outputs simultaneously. It cannot route different inputs to different outputs at the same time. Buyers who need independent routing for each display should consider a matrix-style switcher instead.

Highlights

  • Switch four sources to three displays without re-cabling
  • IR remote lets you change inputs from the sofa
  • Metal chassis resists wear in daily use
  • Plug-and-play hardware needs no drivers or setup
  • Powers from included 5 V 1 A adapter

Specifications

BrandAUBEAMTO
ModelOZQV
TypeRCA AV Switch Splitter
ColorBlack
AudioYes
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
Dimensions5.87 x 4.57 x 2.01 inches
Weight9.6 ounces
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

Should I pick this 4-in-3-out switch or a simpler 4-to-1 model?

Choose the 4-in-3-out version when you need to send the same source to three different displays simultaneously. A 4-to-1 switch only routes one input to a single output.

What does the 5.5 MHz bandwidth mean for my composite video sources?

The 50 Hz to 5.5 MHz range covers standard-definition composite signals from consoles like the N64 or PS2, so picture quality stays intact on each of the three outputs.

How do the 75 ohm video and 47 kilohm audio impedances affect connectivity?

Matched 75 ohm video impedance prevents ghosting on long cable runs, while the 47 kilohm audio input and 1 kilohm output ensure clean line-level sound across all three zones.
