AUBEAMTO HDMI to SDI Converter Two SDI Output Audio Embedder

Converter Purpose

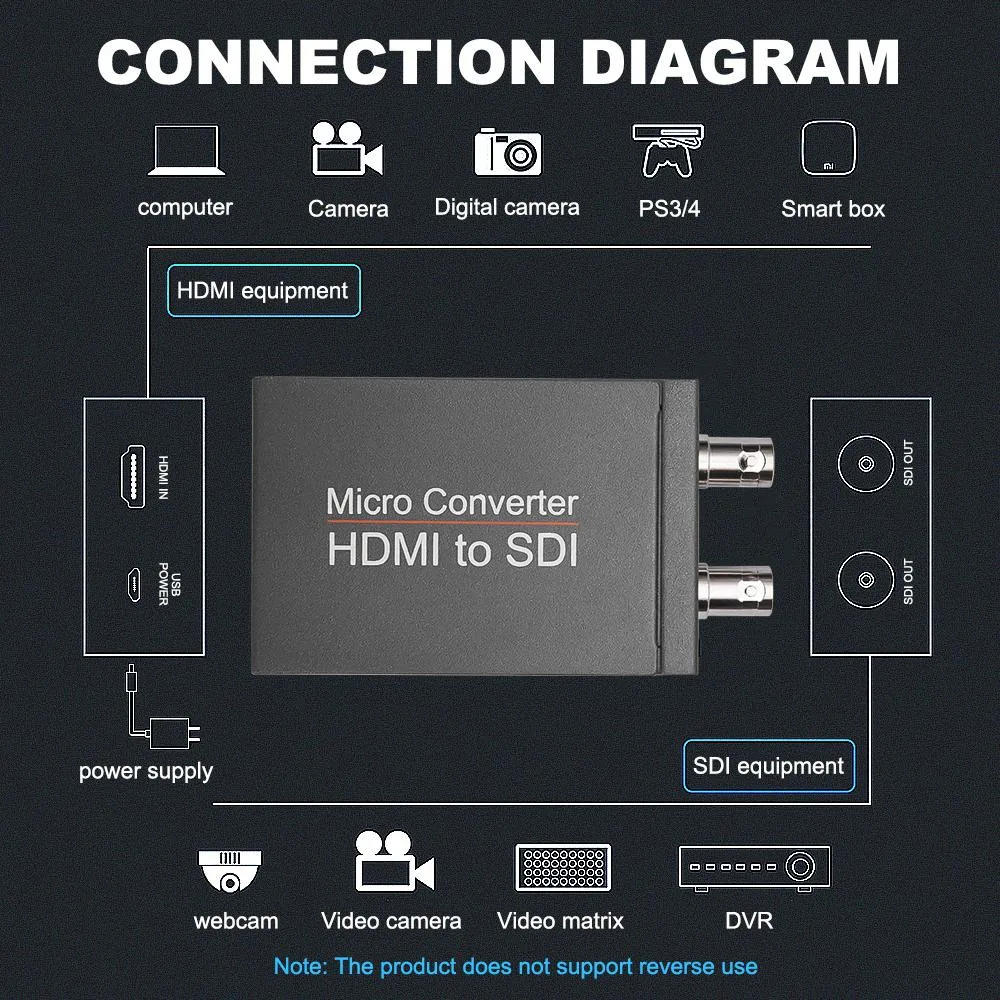

The AUBEAMTO HDMI to SDI Converter accepts a single HDMI Type A source and produces two identical SDI outputs for professional video distribution. It handles 1080p and 720p signals at frame rates of 24, 25, 30, 50 and 60 Hz, plus a range of computer resolutions up to 1680 x 1050 at 60 Hz. The unit operates at a high bit rate of 2.970 Gbit/s and includes a power adapter for immediate deployment. It is designed for camera, CCTV and broadcast workflows that require reliable signal duplication.

Who Should Use It

This converter suits installers and operators who need to split one HDMI feed to dual SDI displays or recorders without format conversion in the opposite direction. It does not support SDI to HDMI operation, so users requiring bi-directional conversion or input formats beyond the listed 1080p and 720p standards should select a different device. The fixed output resolutions mean it cannot up-scale or down-scale to arbitrary frame rates or resolutions outside the declared list.

Sustained Operation

The converter maintains continuous 2.970 Gbit/s throughput across both SDI ports during extended sessions, preserving signal integrity over long cable runs thanks to its double-shielded internal design. A mature IC solution provides stable clock recovery and automatic format detection, preventing drop-outs when source timing shifts. The included power adapter delivers consistent voltage, so the unit does not rely on bus power that could sag under prolonged load.
