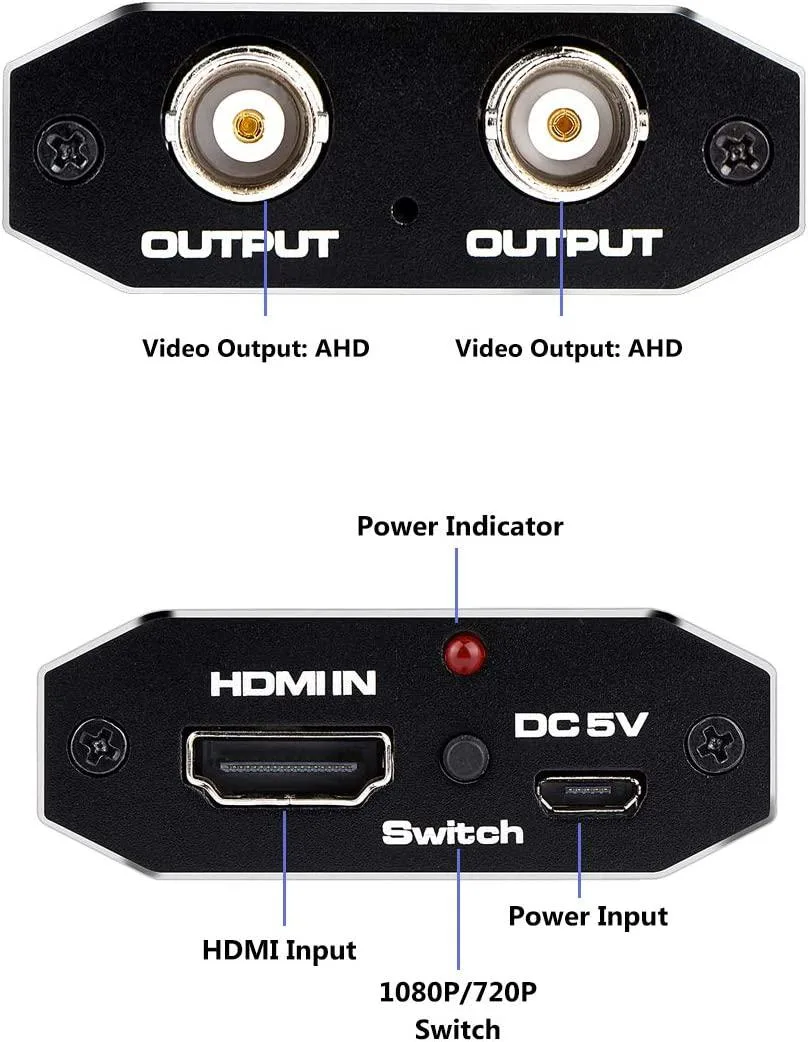

Small metal box with HDMI and BNC ports, panel-mount design

AUBEAMTO

AUBEAMTO HDMI to AHD Converter with AHD Loopout 500M Repeater

SKU CH-YKAF-7N9MT

Converts HDMI signals to AHD 720p or 1080p at 30Hz with a 500-metre loop-out repeater for CCTV systems

  • TypeHDMI to TVI/CVI/AHD Converter
  • Package Contents1x HDMI to AHD Converter 1x 5V/1A Power Adapter and Cable 1x
  • Connect HDMI sources to AHD CCTV systems with 720P or 1080P@30Hz output
  • Extend AHD signals up to 500M using built-in loopout repeater function
  • Accepts HDMI input from 480i to 1080p50/60Hz for wide compatibility
  • Professional BNC connectors and panel-mount design suit permanent security installations
  • Built-in ESD protection circuit safeguards equipment during continuous surveillance operation

HDMI to AHD Converter for Security Systems

This AUBEAMTO converter bridges an HDMI source to an AHD-compatible DVR or NVR, outputting 720p or 1080p at 30Hz. It accepts HDMI inputs ranging from 480i up to 1080p at 60Hz, covering standard and high-definition security camera feeds. The package includes the converter, a 5V/1A power adapter and cable, and a user manual. It suits installers who need to display live video on AHD recording equipment.

Upgrade from Direct HDMI Monitoring

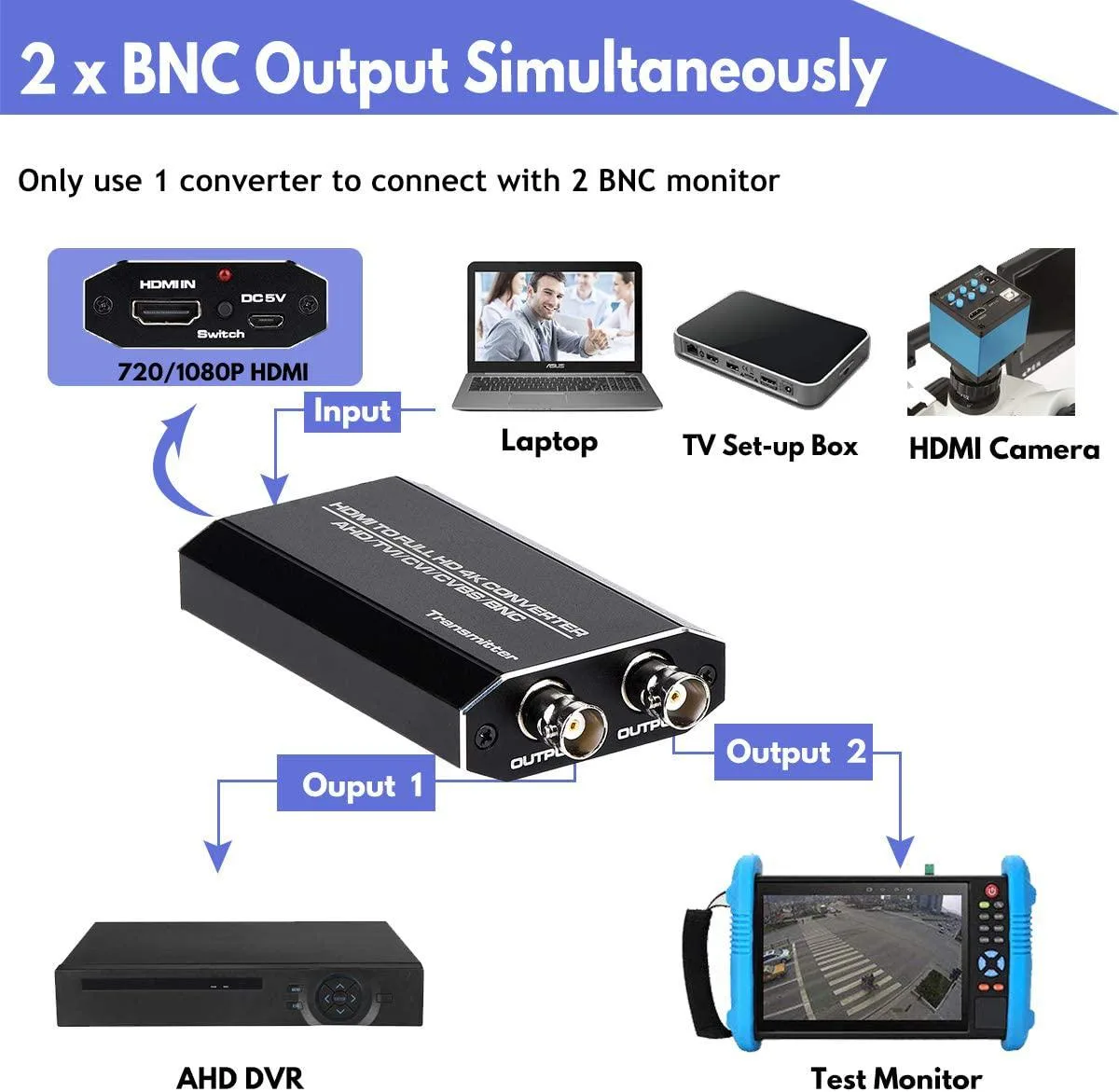

The unit replaces a direct HDMI-to-monitor link when the recorder only accepts AHD BNC signals, adding a loop-out that repeats the signal up to 500 metres. A front-panel button selects between 720p and 1080p output to match the DVR capabilities. Built-in ESD protection and a panel-mount design suit permanent rack or cabinet installations. It is not for users who need HDMI output or resolutions beyond 1080p at 30Hz.

Sustained Operation in Surveillance Loops

Under continuous 24/7 recording the converter maintains a stable AHD stream at the chosen 720p or 1080p 30Hz setting without frame drops. The repeater function preserves signal integrity over the full 500 metre coaxial run, avoiding the degradation seen on unamplified lines. HDMI 1.4 and HDCP 1.2 compliance ensures compatible handshake persistence during long sessions. It is not designed for high-refresh gaming or variable-refresh sources.

Highlights

  • Connect HDMI sources to AHD CCTV systems with 720P or 1080P@30Hz output
  • Extend AHD signals up to 500M using built-in loopout repeater function
  • Accepts HDMI input from 480i to 1080p50/60Hz for wide compatibility
  • Professional BNC connectors and panel-mount design suit permanent security installations
  • Built-in ESD protection circuit safeguards equipment during continuous surveillance operation

Specifications

TypeHDMI to TVI/CVI/AHD Converter
Package Contents1x HDMI to AHD Converter
1x 5V/1A Power Adapter and Cable
1x 1x User Manual

Questions about this item

Does the AUBEAMTO converter need a 5 V power supply to operate?

Yes, the package includes a 5V/1A power adapter and cable that must be connected for the unit to work.

Which button on the AUBEAMTO converter sets the AHD output to 1080p@30Hz?

Press the switch button on the panel until the indicator shows 1080P@30Hz; the converter then outputs at that resolution.

Will the BNC connectors on the AUBEAMTO converter need periodic cleaning for reliable 500 m loop-out?

Inspect and clean the BNC contacts with contact cleaner if the signal degrades; the built-in ESD circuit protects the electronics but not the connector surfaces.
