Black rectangular box with four HDMI inputs and one output, IR remote included

AUBEAMTO

AUBEAMTO HDMI Multiviewer Switch 4x1 4K 60Hz Quad Screen Black

SKU CH-FCGX-C30P3

A 4×1 HDMI multiviewer shows four sources on one screen with five layout modes and seamless switching

  • Type4K@60Hz 4 Port HDMI 2.0 Switcher
  • ColorBlack
  • Ports4
  • Input Connector1 X HDMI
  • Output Connector4 X HDMI
  • Maximum Resolutionsup to 4K@60Hz
  • View four sources simultaneously on one screen with five selectable display modes

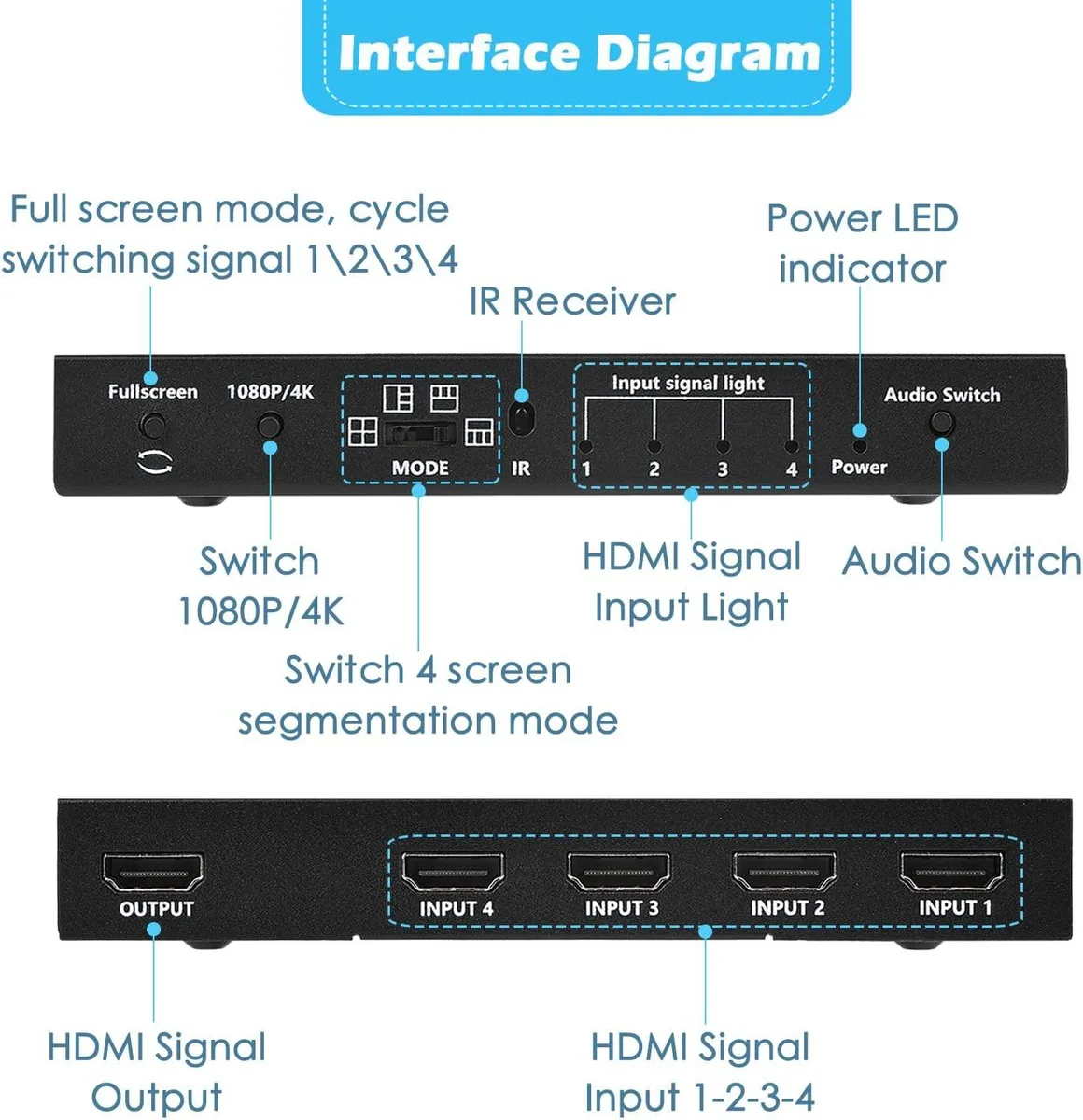

  • Switch instantly between four HDMI inputs using front-panel buttons or the included IR remote
  • Pass-through high-bitrate audio formats including DTS-HD, Dolby TrueHD and 7.1-channel LPCM
  • Output up to 4K 60 Hz YUV 4:2:0 and 1080p 60 Hz with 10.2 Gbps bandwidth
  • Connect legacy and current HDMI 1.4 devices thanks to HDCP 1.4 compliance and broad resolution support

Four-input HDMI multiviewer

This AUBEAMTO HDMI multiviewer switch accepts four HDMI sources and sends a single output to one display. It shows all four inputs at once in quad-screen layouts or switches to a single source in full-screen mode. The unit supports resolutions up to 4K at 60 Hz and 1080p at 60 Hz, making it suitable for security monitoring, meeting rooms and multi-PC setups. Audio formats including DTS-HD, Dolby TrueHD and LPCM 7.1 pass through to the output.

Fits between sources and one display

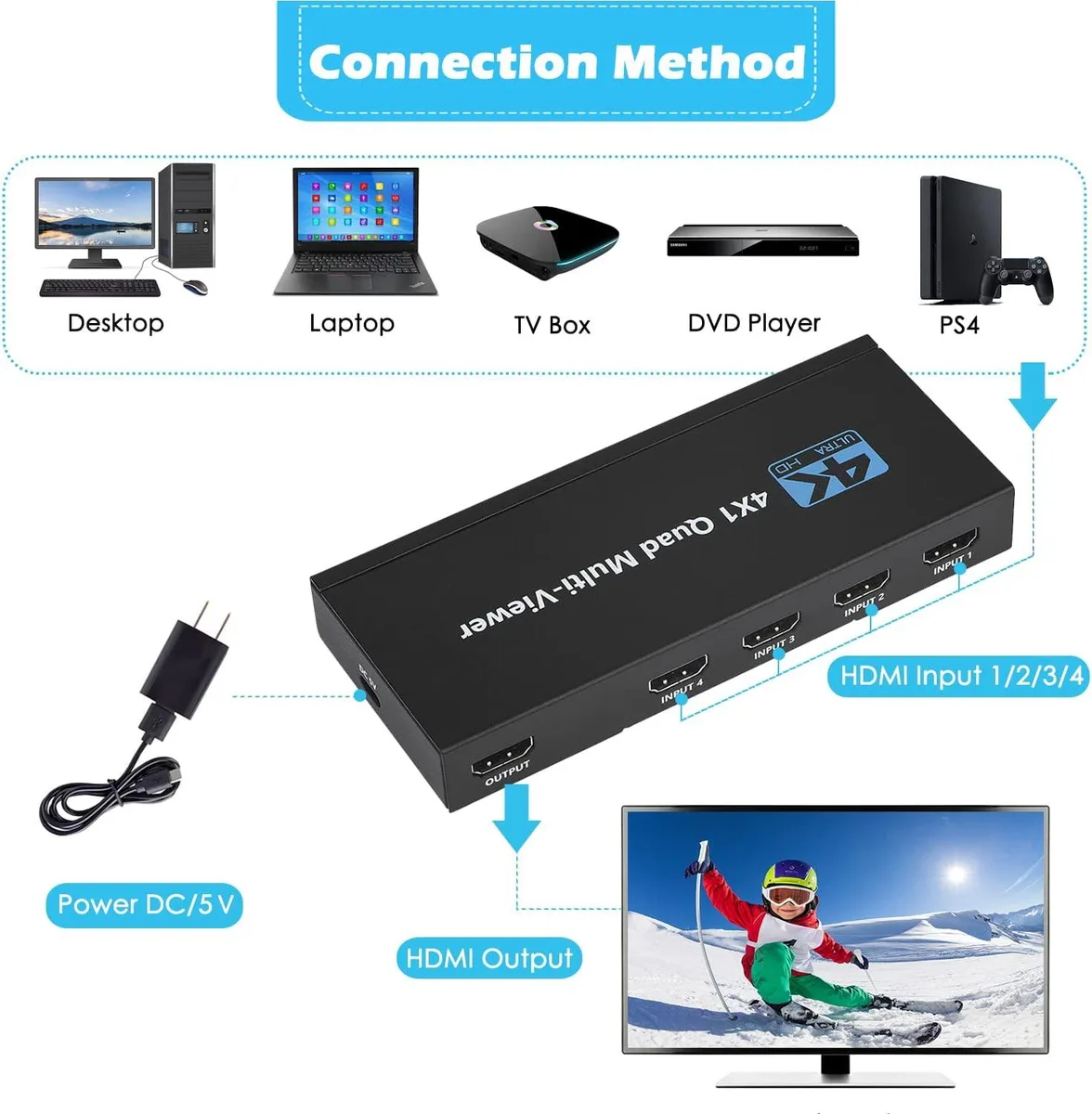

Connect up to four HDMI devices such as PCs, cameras or media players to the four inputs, then run one HDMI cable from the output to a monitor or TV. The switch handles HDMI 1.4 and HDCP 1.4 signals with a maximum bandwidth of 10.2 Gbps. It draws power from the included adapter, so no USB port on the display is required. Front-panel buttons and the IR remote let you change sources or layouts without reaching behind the screen.

Remote and downscaler included

The bundled IR remote controls source selection, viewing mode and audio routing without line-of-sight to the front buttons. A built-in downscaler allows a 4K source to appear correctly on a 1080p display in quad mode. The package supplies the switch, power adapter, remote without battery and a user guide. No software installation is needed; the device is ready to use once powered and connected.

Highlights

  • View four sources simultaneously on one screen with five selectable display modes
  • Switch instantly between four HDMI inputs using front-panel buttons or the included IR remote
  • Pass-through high-bitrate audio formats including DTS-HD, Dolby TrueHD and 7.1-channel LPCM
  • Output up to 4K 60 Hz YUV 4:2:0 and 1080p 60 Hz with 10.2 Gbps bandwidth
  • Connect legacy and current HDMI 1.4 devices thanks to HDCP 1.4 compliance and broad resolution support

Specifications

Type4K@60Hz 4 Port HDMI 2.0 Switcher
ColorBlack
Ports4
Input Connector1 X HDMI
Output Connector4 X HDMI
Maximum Resolutionsup to 4K@60Hz
Package ContentsHDMI 4K Multi-viewer X 1
Remote control X 1(no battery)
Power Adapter X 1
User gudie X1

Questions about this item

Does the 10.2 Gbps bandwidth limit 4K 60 Hz output to YUV 4:2:0 chroma subsampling?

Yes, the 10.2 Gbps maximum bandwidth restricts 4K 60 Hz to YUV 4:2:0 colour sampling; full 4:4:4 at 4K 60 Hz is not supported.

Will the unit run hot or draw high power when displaying four 1080p 60 Hz sources all day?

The switch is a compact passive device with an external power adapter; it produces minimal heat and draws low power during continuous quad-view operation.

Which cables and power source must I already have to connect four 1080p cameras and one monitor?

You need four HDMI cables for the camera inputs, one HDMI cable for the monitor output, and a mains socket for the included power adapter.
