Black rectangular HDMI matrix switch with four inputs and four outputs

AUBEAMTO

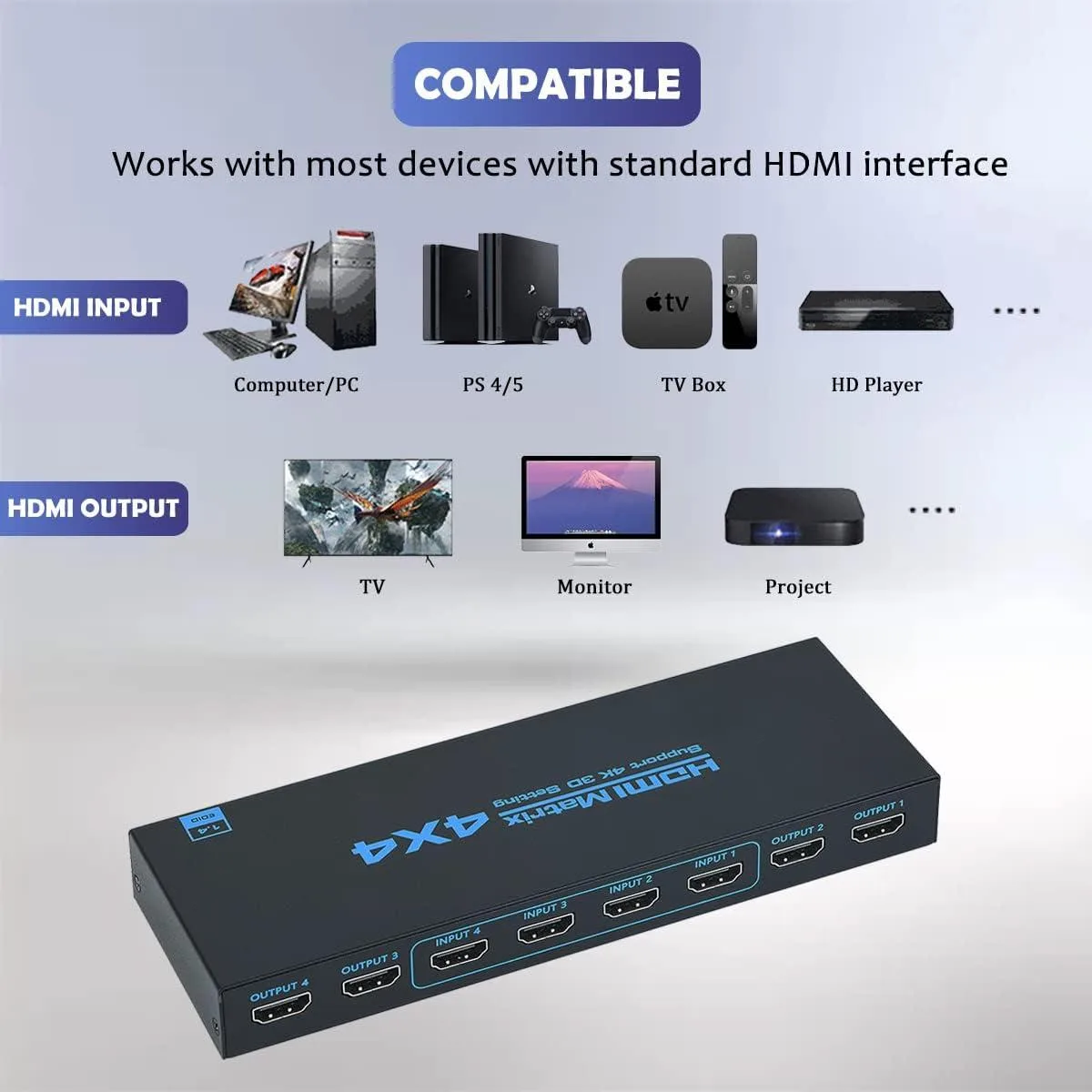

AUBEAMTO HDMI Matrix Switch 4x4 Black

SKU CH-YXKV-RC7GY

Connects four HDMI sources to four displays with 1080P@60Hz, 3D and YUV 4K@30Hz via IR remote

  • TypeHDMI Matrix Switch
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • SpecificationsSupport HDMI 1.4. Support 3D video format. Support highest r
  • Input ConnectorHDMI 1.4
  • Route four sources to four displays simultaneously
  • 250 MHz bandwidth carries 1080p at 60 Hz and 3D
  • Auto EDID detects lowest display resolution for all inputs
  • IR remote switches inputs with 3-5 second delay
  • Supports YUV 4:2:0 4K at 30 Hz

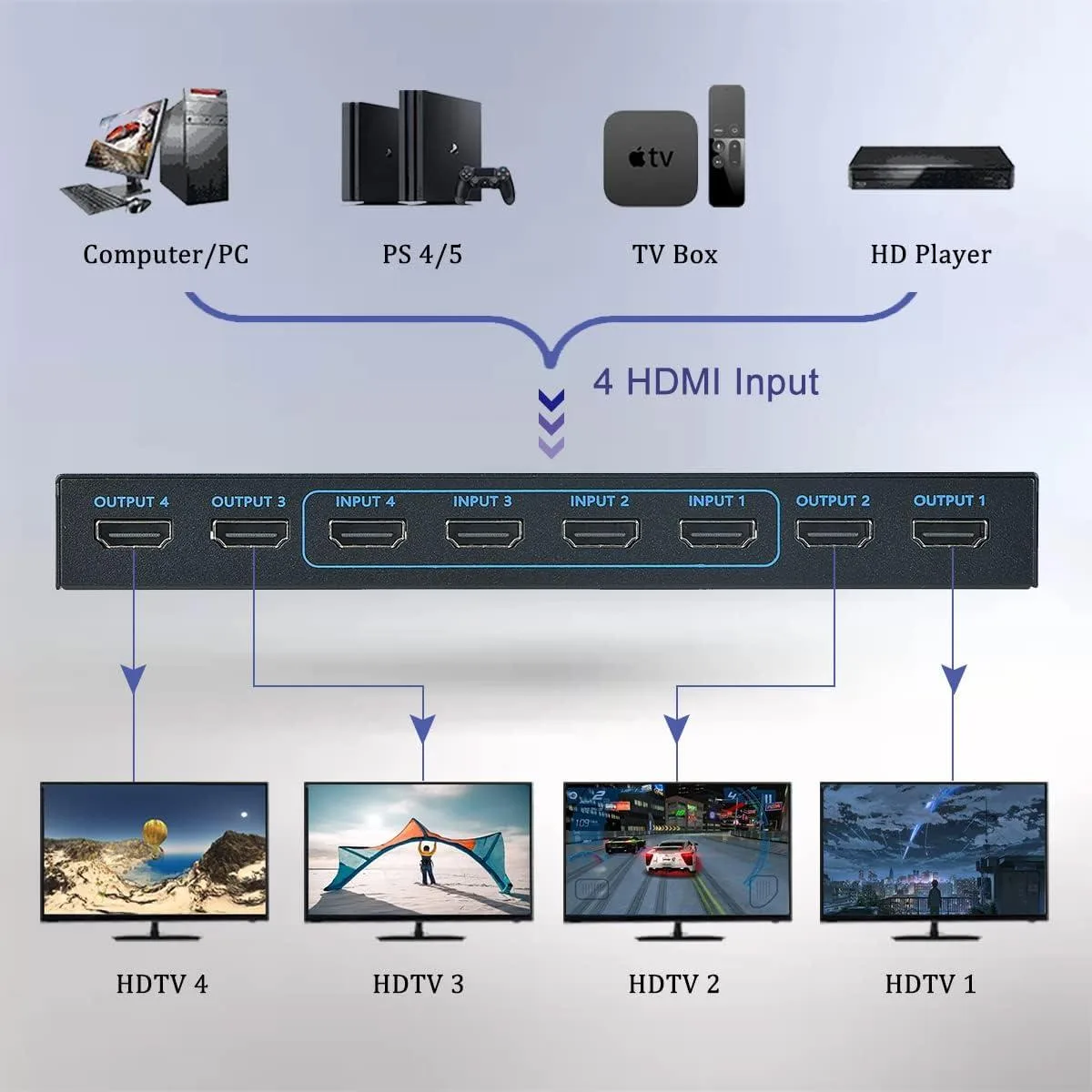

4x4 HDMI Matrix Switch for Multi-Display Routing

This new AUBEAMTO matrix connects four HDMI sources to four displays simultaneously. It suits installers and AV enthusiasts who need independent routing of 1080p or YUV 4:2:0 4K@30Hz signals to projectors or HDTVs in home or commercial setups. The unit handles switching and splitting without seamless transition.

IR Remote and Auto EDID Simplify Operation

The bundled IR remote lets users change routing from a distance while the front-panel button offers local control. Automatic EDID management detects the lowest resolution among connected displays and forces all inputs to match it, removing manual configuration. A power adapter and user manual complete the package for immediate deployment.

HDMI 1.4 Bandwidth Limits Resolution and Distance

The 250 MHz bandwidth caps output at 4096 x 2160 using YUV 4:2:0 at 30 Hz or 1080p at 60 Hz. Input cables must stay under 8 metres with AWG 26 HDMI 1.4 cable to maintain signal integrity. Switching incurs a 3 to 5 second delay and is not seamless, so rapid source changes will show a visible interruption.

Highlights

  • Route four sources to four displays simultaneously
  • 250 MHz bandwidth carries 1080p at 60 Hz and 3D
  • Auto EDID detects lowest display resolution for all inputs
  • IR remote switches inputs with 3-5 second delay
  • Supports YUV 4:2:0 4K at 30 Hz

Specifications

TypeHDMI Matrix Switch
ColorBlack
Ports4x4 Matrix
MatrixYes
SpecificationsSupport HDMI 1.4.
Support 3D video format.
Support highest resolution up to YUV4:2:0 4K@30Hz.
HDMI inputs switch and split to 4 HDMI displays.
Input cable distance: <8m AWG26 HDMI 1.4 standard cable.
Output cable distance: <8m AWG26 HDMI 1.4 standard cable
Input ConnectorHDMI 1.4
Output ConnectorHDMI 1.4
Maximum Resolutions4096 x 2160
Bandwidth250 MHz
FeaturesHDMI Matrix Switch 4x4: This HDMI Matrix Switch 4x4 can connect 4 HD signal sources to 4 HD display terminals not over YUV 4K@30Hz. The matrix allows 4 HDMI devices to be switched or split easily to 4 HDMI compatible monitors or projectors. It supports HDMI 1.4, 1080P@60Hz, 3D, YUV 4:2:0 . This 4x4 HDMI Matrix Switch can be controlled by a IR remote control. When Switch by a local button or remote control, Please Wait 3-5S to show on display. Not Seamless
HDMI Video Format: Support HDMI 1.4, 1080P@60Hz, 3D, YUV 4:2:0
No Need EDID Management: This HDMI Matrix Switch 4x4 no need EDID M
Dimensions5 x 5 x 0.5 inches
Weight1.04 pounds
Package Contents1x HDMI Matrix 4x4, 1x IR Remote Control, 1x Power adapter, 1x User Manual.

Questions about this item

Will the IR remote or its battery need replacing during the life of the AUBEAMTO 4x4 matrix?

The unit ships with an IR remote and a power adapter; the remote uses a standard coin-cell battery that can be swapped when it runs low, while the switch itself has no user-serviceable parts.

What resolution ceiling appears first when driving four displays continuously through the HDMI 1.4 ports?

The matrix negotiates the lowest common resolution across all connected screens, so sustained use is limited to the weakest display — maximum 4096 x 2160 at 30 Hz in YUV 4:2:0 mode.

How much heat or fan noise does the AUBEAMTO matrix produce when running all day?

The 5 x 5 x 0.5 inch enclosure is passively cooled and draws only modest power from the supplied adapter, so it stays silent and barely warm during continuous operation.
