Black rectangular HDMI matrix switch with front panel buttons and eight HDMI ports on each side

AUBEAMTO

AUBEAMTO HDMI Matrix 8x8 4K@60Hz Video Switch

SKU CH-4WGM-A8GF6

An 8×8 HDMI 2.0b matrix routes eight 4K@60 Hz sources to eight displays with IR, RS-232 or front-panel control

  • TypeHDMI Matrix Switch
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • SpecificationsHDMI version: HDMI 2.0b HDMI resolution: Up to 3840*2160@60H
  • Input Connector8xHDMI 2.0b
  • Connect 8 sources to 8 displays simultaneously
  • Switch or split 4K@60Hz signals with 18Gbps bandwidth
  • Control via IR remote RS232 or front panel keys
  • Supports 3D 1080p and deep colour up to 12-bit
  • Compact 5x5x.5 inch design weighs 1.04 pounds

8×8 HDMI Matrix Switch

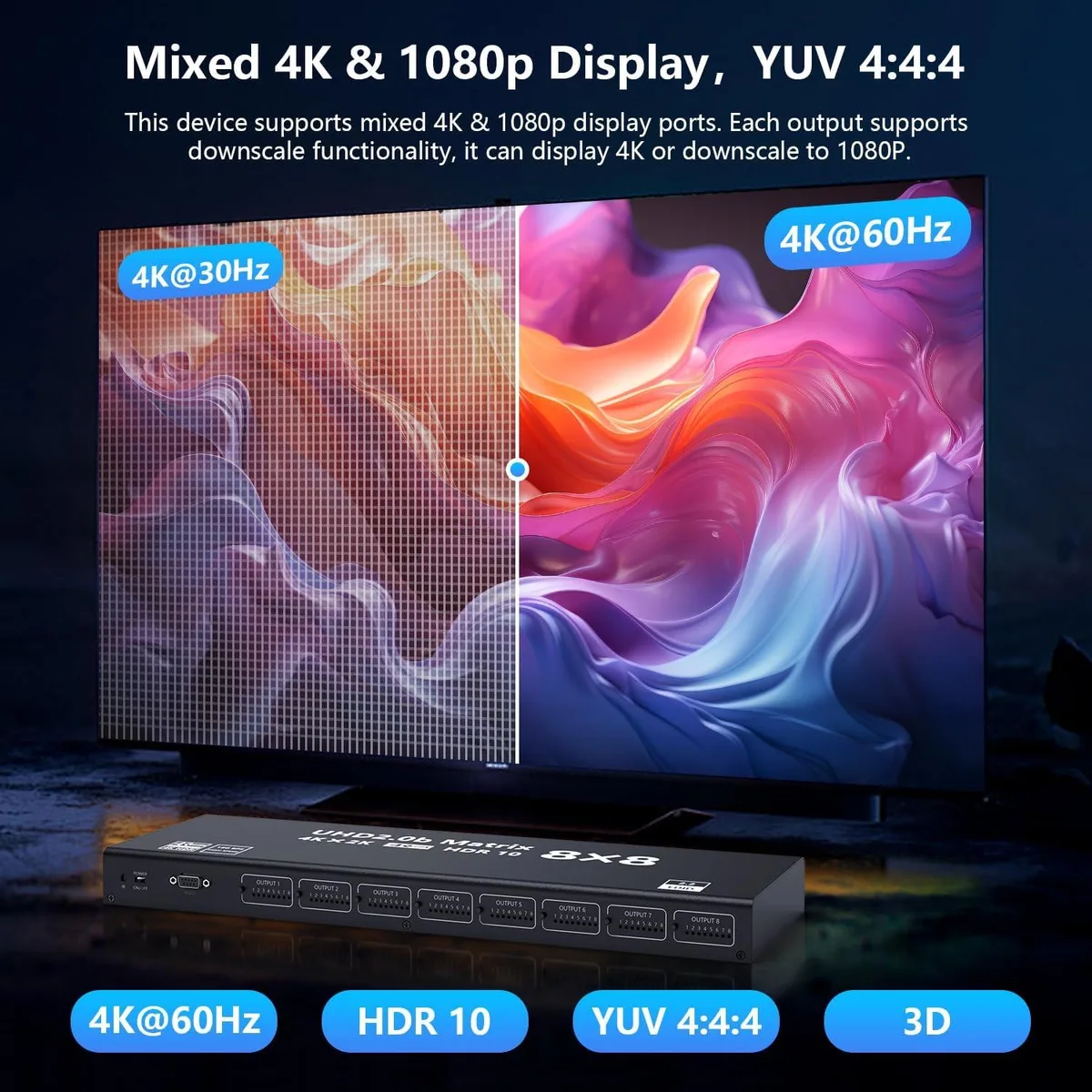

The AUBEAMTO HDMI Matrix 8x8 routes eight HDMI 2.0b sources to eight displays simultaneously. It supports resolutions up to 4096 x 2160 at 60Hz with 18Gbps bandwidth and 600MHz pixel clock. HDCP 2.2 and HDR10 compliance protect premium content while preserving 8, 10, 12 or 24-bit deep colour and 3D formats.

Installers needing flexible distribution

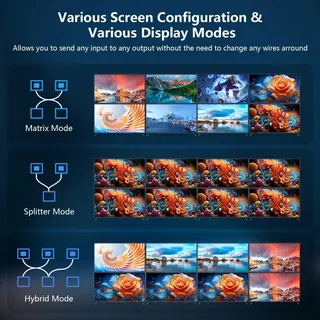

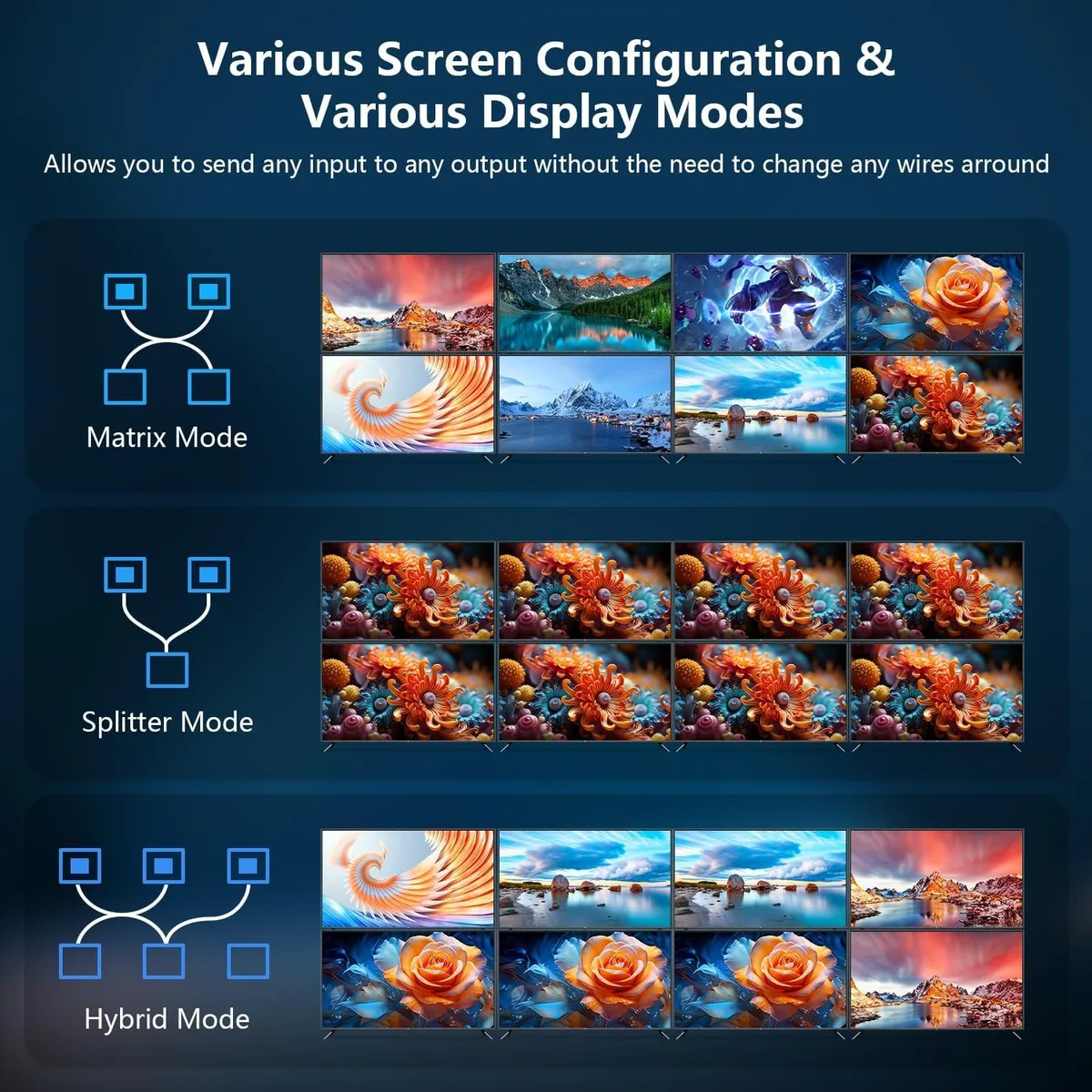

This unit suits conference rooms, classrooms or digital-signage arrays that must show different sources on different screens or mirror one source across all eight outputs. It is not for users who only need a simple two-port switch, nor for installations requiring fibre extension beyond the 8-metre copper cable limit stated for AWG26 leads.

IR remote RS232 and front-panel control

The bundle adds an IR remote, a power adapter and a user manual. These accessories enable three-way switching — handheld IR, serial RS232 commands or tactile panel keys — so operators can change routing without accessing the rear of the rack. No software licence or additional cabling is included.

Highlights

  • Connect 8 sources to 8 displays simultaneously
  • Switch or split 4K@60Hz signals with 18Gbps bandwidth
  • Control via IR remote RS232 or front panel keys
  • Supports 3D 1080p and deep colour up to 12-bit
  • Compact 5x5x.5 inch design weighs 1.04 pounds

Specifications

TypeHDMI Matrix Switch
ColorBlack
Ports8x8 Matrix
MatrixYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: ≤8m AWG26 HDMI 2.0b standard cable
Output cable distance: ≤8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: ①8*HDMI Input ②8*HDMI Output ③1*RS232 Port ④1*DC 12V Power Port
Switching mode: ①Manual switching ②IR remote control switch
Power adapter format: ①Input: AC (50HZ, 60HZ) 100V-240V ②Output: DC 12V/2A
Max working current: 500mA
Operating Temperature range: (-15 to +45℃)
Operatin
Input Connector8xHDMI 2.0b
Output Connector8xHDMI 2.0b
Maximum Resolutions4096 x 2160
Bandwidth600 MHz
FeaturesProduct Description: Video source output source matrix of 8×8 can pick up eight HDMI signal sources of eight displays at the same time.
It can easily and freely split or exchange eight hdmi signals among eight displays or projectors its compatible with the signals played on.
Extension of additional infrared receiver, IR transmitter, RS232 provide remote control. HDMI Matrix 8×8 has the ability to equalize and amplify to ensure HDMI signals are transmitted over long cables without quality loss. Supporting a wide range of editing matrices provides solutions for digital entertainment ce
Dimensions5 x 5 x 0.5 inches
Weight1.04 pounds
Package Contents1x HDMI Matrix 8x8, 1x IR Remote Control, 1x Power adapter, 1x User Manual.

Questions about this item

Do I need eight HDMI 2.0b sources and eight HDMI 2.0b displays to use every port?

The matrix provides eight HDMI 2.0b inputs and eight HDMI 2.0b outputs; connect up to eight sources and eight displays for full 4K@60Hz operation.

Will my 1080p sources and displays work with this 4K@60Hz matrix?

Yes, the unit is backward compatible with 1080p and 4K@30Hz signals alongside 4K@60Hz sources.

How can I confirm the matrix is passing 4K@60Hz RGB 4:4:4 after setup?

Check the display's info menu for 3840x2160@60Hz and RGB 4:4:4; the matrix supports 18Gbps bandwidth for that signal.
