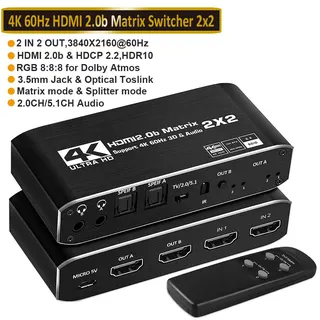

Compact black HDMI matrix box with four ports and IR remote

AUBEAMTO

AUBEAMTO HDMI Matrix 2x2 4K@60Hz Video Switch Black

SKU CH-63PN-GVBJX

Routes two HDMI sources to two displays at 4K 60 Hz with IR remote and HDCP 2.2 support

  • TypeHDMI Switchers
  • ColorBlack
  • Ports2-Port UHD
  • AudioYes
  • Input Connector2 X HDMI 2.0
  • Output Connector2 X HDMI 2.0
  • Switch or split two sources across two displays
  • 4K at 60 Hz via HDMI 2.0b and HDCP 2.2
  • HDR10 and deep colour up to 48-bit supported
  • IR remote and front buttons change inputs instantly
  • 10 m input and 25 m output cable reach

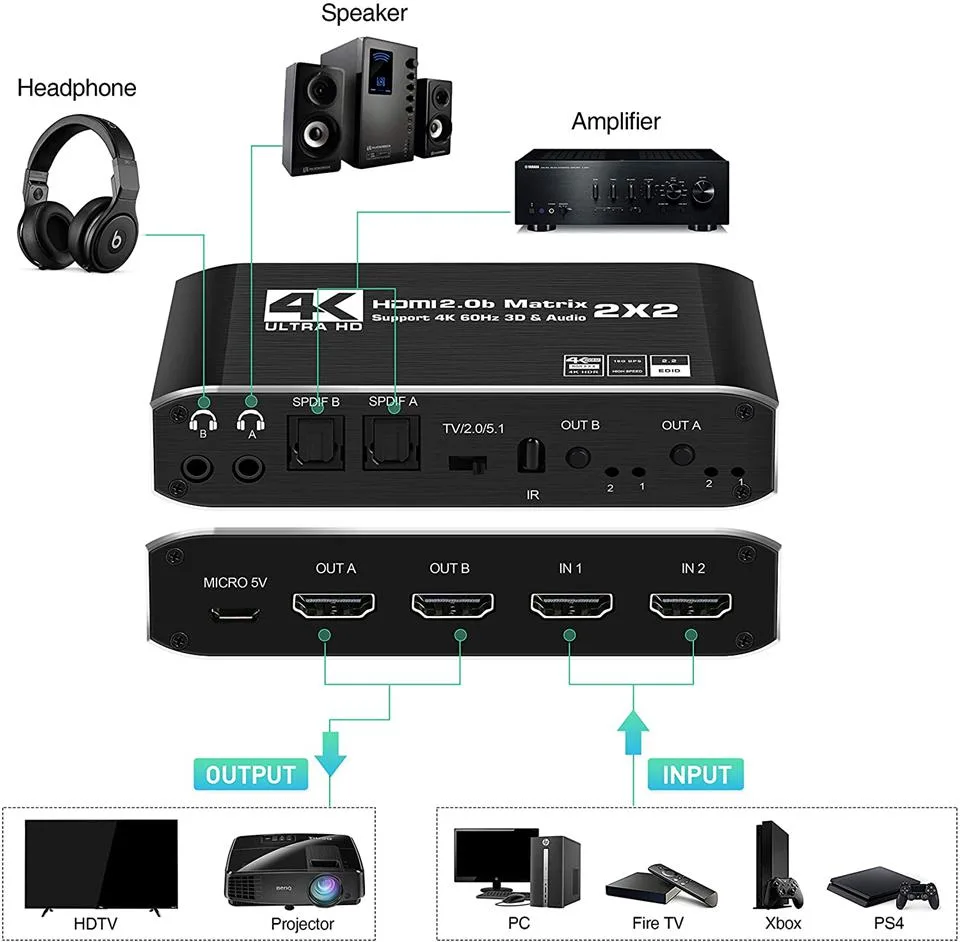

HDMI Matrix 2x2 for dual-source routing

The AUBEAMTO HDMI Matrix 2x2 routes two HDMI 2.0 sources to two displays simultaneously. It supports 4K@60Hz resolution at 3840 x 2160 and handles deep colour up to 48-bit depth. The unit suits home theatres, conference rooms and video-wall installations. Switching is done via IR remote or front-panel buttons.

Passive operation with external 5 V supply

The switch draws power from an included 5 V/1 A adapter and has no internal fan. In normal use it runs silently and adds negligible heat to the rack. Input cables up to 10 metres and output cables up to 25 metres are supported with standard AWG24 leads. HDCP 2.2 compliance protects premium content streams.

Stable signal integrity under continuous load

During sustained operation the matrix maintains 18.5 Gbps bandwidth and a TMDS clock up to 600 MHz across both outputs. Audio formats including LPCM 2.1, DTS 5.1, Dolby TrueHD and DSD pass through without degradation. The hardware is built for all-day use in commercial and educational environments.

Highlights

  • Switch or split two sources across two displays
  • 4K at 60 Hz via HDMI 2.0b and HDCP 2.2
  • HDR10 and deep colour up to 48-bit supported
  • IR remote and front buttons change inputs instantly
  • 10 m input and 25 m output cable reach

Specifications

TypeHDMI Switchers
ColorBlack
Ports2-Port UHD
AudioYes
Input Connector2 X HDMI 2.0
Output Connector2 X HDMI 2.0
Maximum Resolutions3840 x 2160
Package Contents1 x HDMI Matrix 2 in 2 out, 1 x Charger, 1 x USB Cable, 1 x IR Remote, 1 x User Manual.

Questions about this item

How do I connect the 2 HDMI sources and 2 displays, and what step is often missed?

Connect each source to an HDMI 2.0 input and each display to an HDMI 2.0 output, then plug the 5V/1A power adapter into the unit before turning on sources; the step often missed is powering the matrix first so the EDID handshake completes on both outputs.

What maintenance or replacement will this matrix need over time?

The IR remote uses a standard button cell that will need replacing when range drops; the 5V/1A power adapter may need replacement if the barrel jack loosens or the supply fails after extended use.

What is the first limit I will hit when running 4K@60Hz signals continuously?

The 18.5Gbps TMDS bandwidth and 600MHz clock ceiling limit cable length — inputs are reliable up to 10 metres and outputs up to 25 metres with AWG24 cable; beyond that the 3840x2160/60Hz signal will drop out.
