Black rectangular HDMI 3x2 matrix switch with front buttons and rear ports

AUBEAMTO

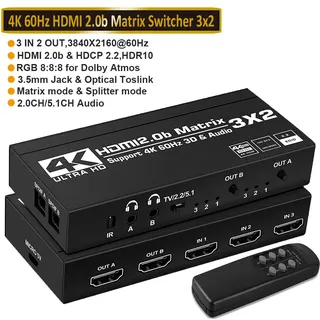

AUBEAMTO HDMI 3x2 Matrix Switch 4K 60Hz Black

SKU CH-2PJ9-20AFS

Routes three 4K 60 Hz sources to two displays with SPDIF and 3.5 mm audio extraction and IR remote control

  • Type4K HDMI 3x2 Matrix Switch
  • ColorBlack
  • Ports3
  • AudioYes
  • Input Connector3 X HDMI 2.0
  • Output Connector2 X HDMI 2.0
  • Connect three 4K HDR sources to two displays with 3840 x 2160 resolution
  • Extract audio via Toslink SPDIF or 3.5mm stereo output supporting LPCM 2.1 and Dolby/DTS 5.1
  • Control switching by IR remote or local button for flexible operation
  • Smart EDID management ensures optimal compatibility with each connected source device
  • Compact 170 x 56 x 24mm black chassis fits neatly into any setup

Matrix Switch for Three Sources

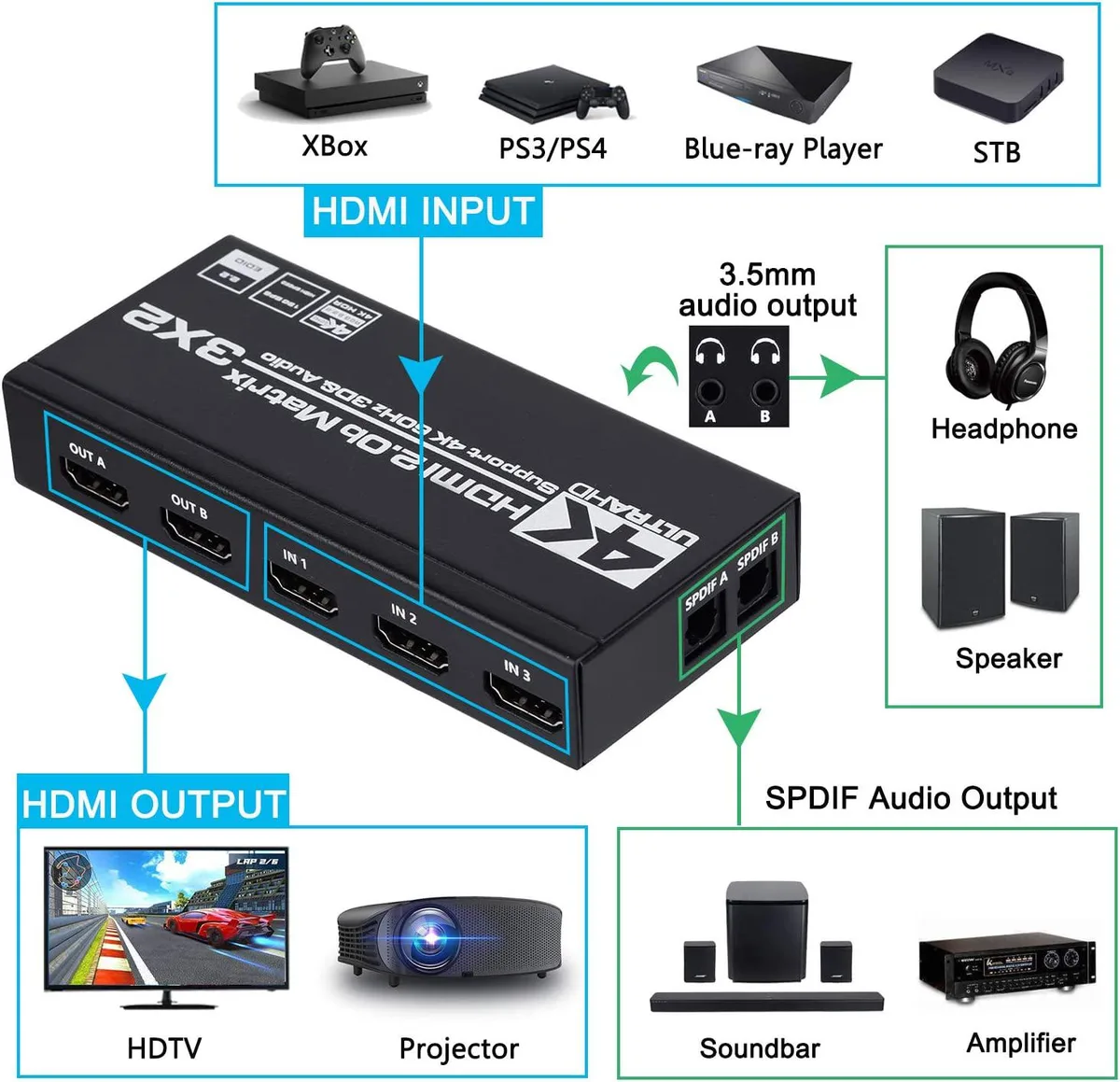

The AUBEAMTO HDMI 3x2 Matrix Switch connects three HDMI 2.0 sources to two displays, letting you route any input to either output independently. It supports 4K resolution at 60 Hz with HDR and HDCP 2.2 compliance. Integrated audio extraction provides Toslink SPDIF and 3.5 mm stereo outputs for separate sound routing.

Upgrade from Basic Splitters

A simple splitter duplicates one source to two screens; this matrix lets you send different 4K sources to each display simultaneously. The jump is worth it when you need independent switching for gaming consoles, media players and PCs without constantly swapping cables. Built-in EDID management helps maintain stable handshakes across varied source and sink combinations.

Sustained Operation Within Thermal Limits

The unit operates from -15 °C to +45 °C while drawing a maximum of 600 mA from its 5 V DC supply. Passive cooling across the 170 mm by 56 mm by 24 mm chassis maintains stable video and audio extraction during extended sessions. IR remote and front-panel button switching remain responsive without thermal throttling under continuous load.

Highlights

  • Connect three 4K HDR sources to two displays with 3840 x 2160 resolution
  • Extract audio via Toslink SPDIF or 3.5mm stereo output supporting LPCM 2.1 and Dolby/DTS 5.1
  • Control switching by IR remote or local button for flexible operation
  • Smart EDID management ensures optimal compatibility with each connected source device
  • Compact 170 x 56 x 24mm black chassis fits neatly into any setup

Specifications

Type4K HDMI 3x2 Matrix Switch
ColorBlack
Ports3
AudioYes
Input Connector3 X HDMI 2.0
Output Connector2 X HDMI 2.0
Maximum Resolutions3840 x 2160
Package Contents1x HDMI Matrix 3x2, 1xUser Manual,1xPower Adapter, 1xIR Remote Control

Questions about this item

What are the exact dimensions of the 170x56x24 mm matrix switch and how much clearance does it need?

The unit measures 170 mm long, 56 mm wide and 24 mm high; allow a few centimetres around the sides for cable bend radius and IR sensor line of sight.

Which power adapter is required and what is the correct way to connect it before linking any HDMI cables?

Use the included DC 5 V adapter rated for at least 600 mA; plug the adapter into mains first, then into the switch, and only afterwards connect the three HDMI inputs and two HDMI outputs.

Does the IR remote need a battery and are there any user-serviceable parts inside the switch?

The remote requires one AAA battery, which is not supplied; the switch itself has no user-serviceable components and needs no periodic maintenance.
