Black rectangular HDMI matrix switch with four inputs and two outputs

AUBEAMTO

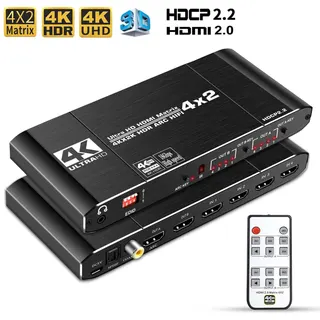

AUBEAMTO HDMI 2.0 4x2 Matrix Switch 4K 60Hz 18.5Gbps ARC Audio Extractor

SKU CH-FVFE-JMEVF

Routes four 4K 60 Hz sources to two displays with SPDIF and 3.5 mm audio extraction

  • Type4K HDMI 2x2 Matrix Switch
  • ColorBlack
  • Ports4
  • Input Connector4 X HDMI
  • Output Connector2 X HDMI
  • Maximum Resolutions3840 x 2160
  • Switch four 4K sources to two displays with 18.5 Gbps bandwidth
  • Extract audio via SPDIF optical or 3.5 mm jack while viewing
  • Supports HDR 4K at 60 Hz with HDCP 2.2 compliance
  • Control switching by IR remote or front-panel button
  • Handles 8-bit, 10-bit and 12-bit colour depth for smooth gradients

What this 4x2 matrix does

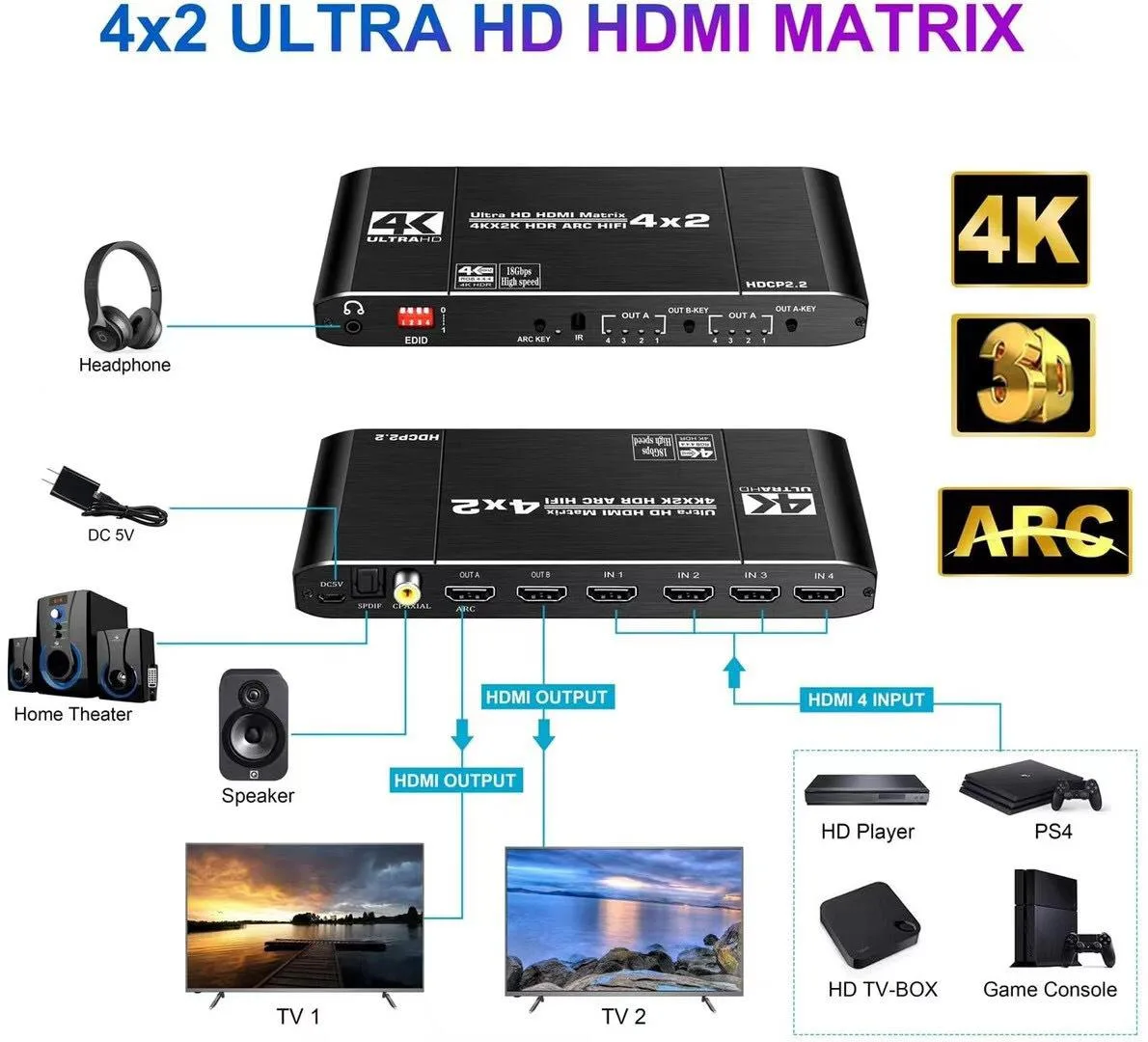

This AUBEAMTO switch connects four HDMI sources to two displays and extracts audio through SPDIF or 3.5 mm outputs. It supports HDMI 2.0b and HDCP 2.2 for protected 4K content. The unit includes an IR remote and front-panel buttons for input selection. It suits home-theatre, office or classroom installations that need flexible routing.

Bandwidth and resolution limit

Video bandwidth reaches 18.5 Gbps, enabling 3840 x 2160 at 50 or 60 Hz with RGB 8:8:8 colour. The switch also handles 10-bit and 12-bit depth plus YUV 4:4:4 and 4:2:2 sampling. HDCP 1.4 and 2.2 are both supported so playback of protected streams is not blocked.

Sustained operation and audio handling

The device draws up to 600 mA from the included 5 V supply and operates from 10 °C ambient temperature. Audio extraction works continuously on any input, delivering LPCM 2.0 to 7.1, Dolby 5.1, DTS 5.1 and lossless formats to the optical port, while the 3.5 mm jack carries stereo or down-mixed sound. EDID management can be set per input to maintain stable handshakes during long sessions.

Highlights

  • Switch four 4K sources to two displays with 18.5 Gbps bandwidth
  • Extract audio via SPDIF optical or 3.5 mm jack while viewing
  • Supports HDR 4K at 60 Hz with HDCP 2.2 compliance
  • Control switching by IR remote or front-panel button
  • Handles 8-bit, 10-bit and 12-bit colour depth for smooth gradients

Specifications

Type4K HDMI 2x2 Matrix Switch
ColorBlack
Ports4
Input Connector4 X HDMI
Output Connector2 X HDMI
Maximum Resolutions3840 x 2160
Package Contents1x HDMI-Compatible Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What does 4K at 60 Hz mean for my display setup?

It delivers 3840 x 2160 resolution at 60 frames per second with full RGB 8:8:8 colour and HDR support.

How does the HDMI 2.0 interface limit bandwidth and features?

The 18.5 Gbps link caps video at 4K 60 Hz 8:8:8 and carries HDCP 2.2 plus 10-bit or 12-bit colour depth.

What physical connections and power does the unit need to fit my rack?

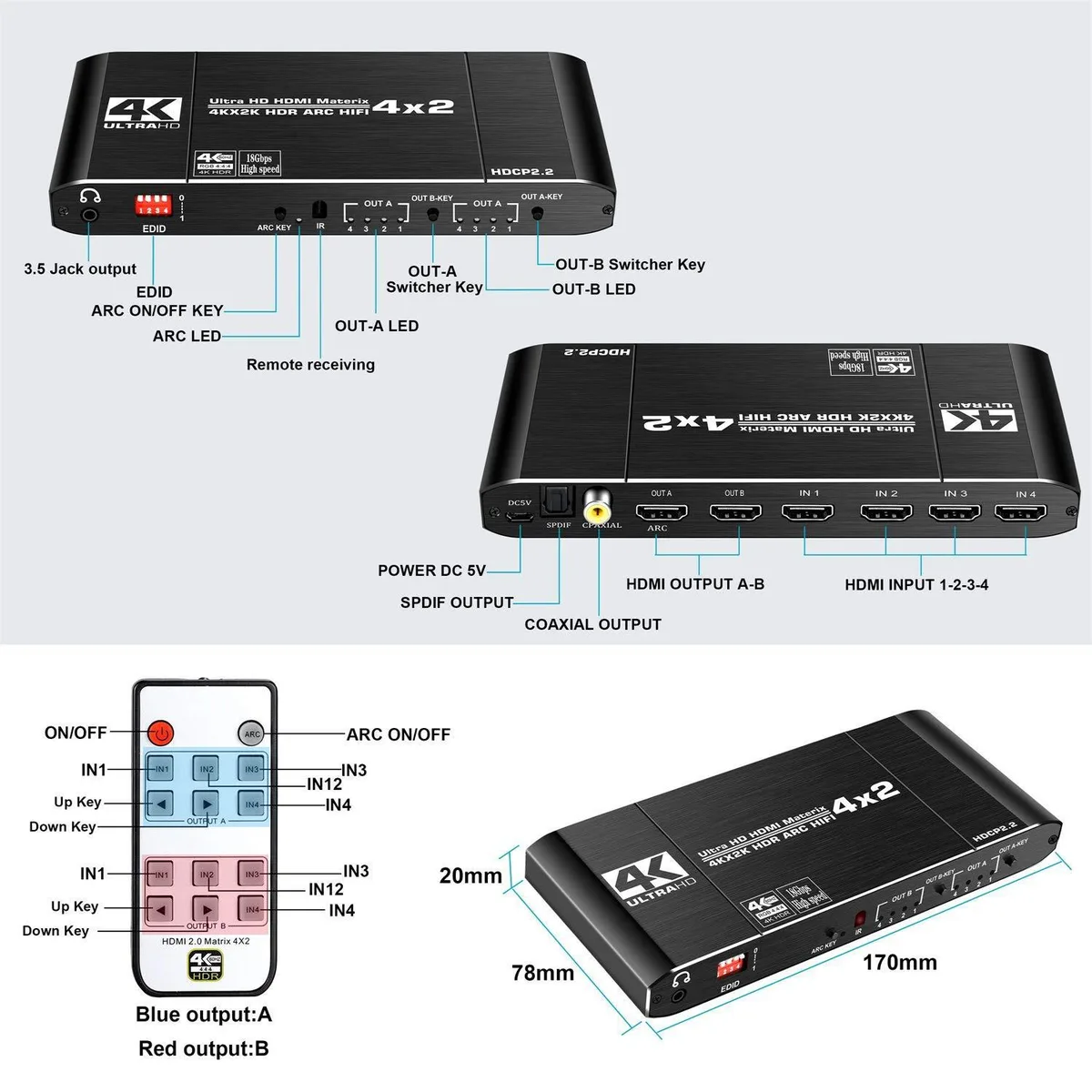

Four HDMI inputs, two HDMI outputs, one optical SPDIF, one 3.5 mm jack, and a 5 V DC adapter drawing up to 600 mA.
