Black rectangular HDMI 2.0 switch with four inputs and audio extraction ports

AUBEAMTO

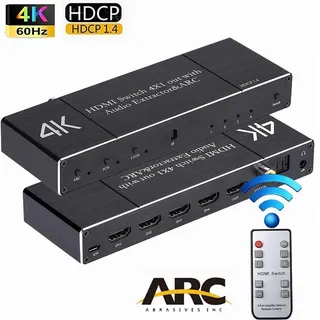

AUBEAMTO 4K HDMI 2.0 4x1 Switch Audio Extractor ARC

SKU CH-D3EB-V6C8C

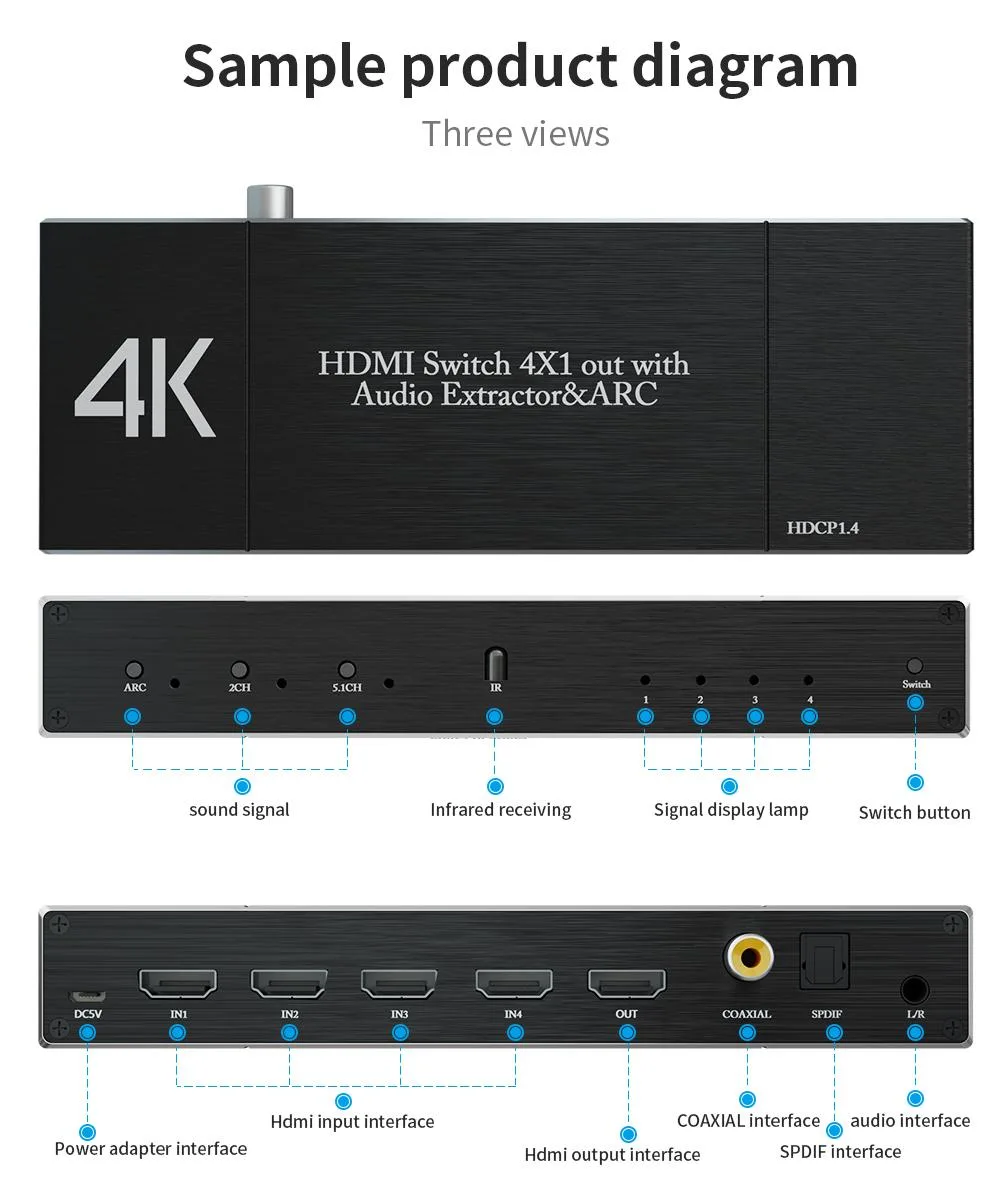

Connects four HDMI 2.0 sources to one display at up to 3840 x 2160 and extracts audio via SPDIF, coaxial or 3.5 mm with ARC support

  • TypeHDMI Switchers
  • ColorBlack
  • Ports4
  • AudioYes
  • Input Connector4 X HDMI 2.0
  • Output Connector1 X HDMI 2.0 , Audio Extractor with ARC SPDIF Coaxial 3.5mm
  • Connect four HDMI sources to one display with 4K 3840 x 2160 resolution
  • Extract digital audio via SPDIF coaxial or Toslink with ARC support
  • Separate analogue audio through 3.5 mm jack for headphones or speakers
  • Switch inputs instantly using the included remote control
  • HDMI 2.0 bandwidth up to 10.2 Gbps for smooth 4K video

4x1 HDMI 2.0 Switch with Audio Extraction

This HDMI 2.0 switch routes four HDMI sources to a single display. It supports video resolutions up to 3840 x 2160 at 60 Hz with 4:2:0 chroma subsampling. The unit extracts audio through SPDIF coaxial, Toslink optical and 3.5 mm analogue outputs. ARC return is available on the optical and coaxial ports for TV-to-soundbar setups.

Fits a Multi-Source Home Cinema Build

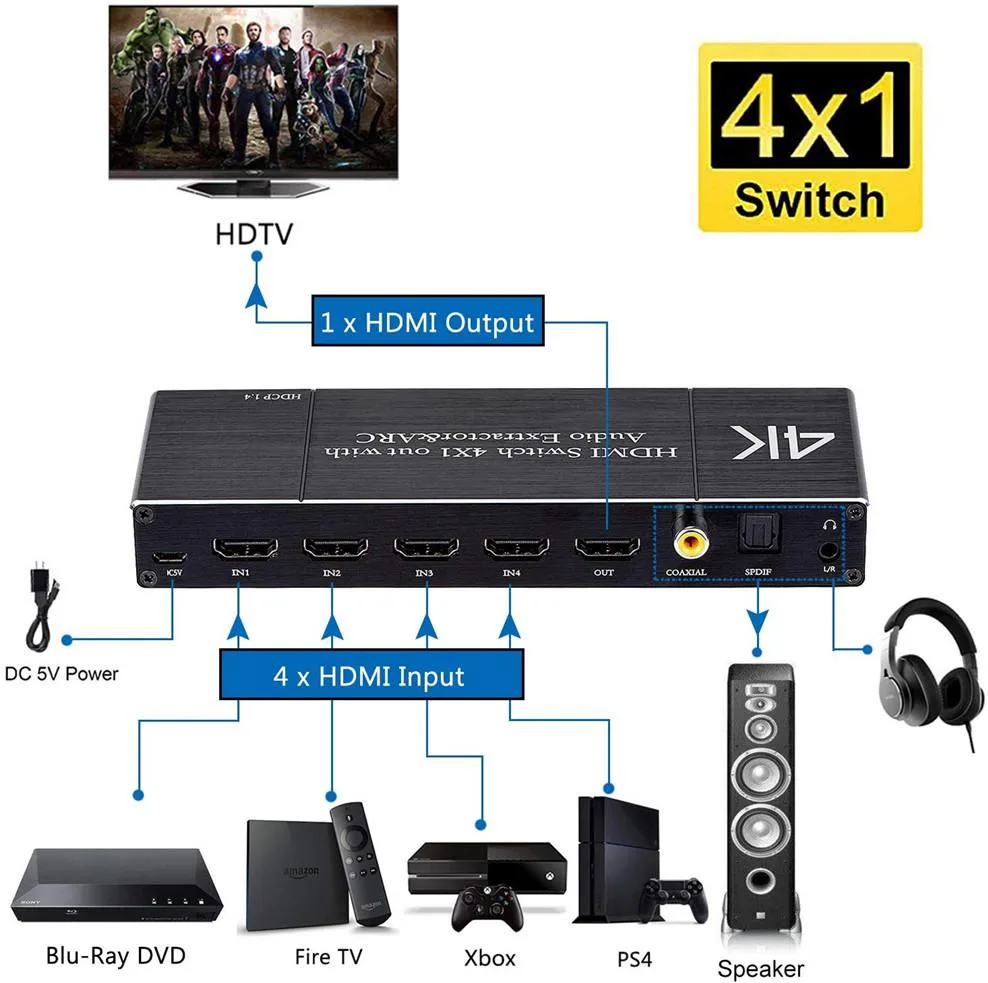

The switch sits between up to four source devices — such as a PC, streaming box, Blu-ray player or game console — and one HDMI display or projector. It accepts DC 5 V / 1 A power from the included adapter. HDMI 2.0 cables up to three metres are supported at 4K 60 Hz, extending to five metres at 4K 30 Hz. The 3.5 mm jack does not carry the ARC signal.

Sustained Operation at Full Bandwidth

Maximum bandwidth per channel is 300 MHz with a peak data rate of 10.2 Gbps per display. Supported refresh rates include 480i, 480p, 576i, 576p, 720p at 50 or 60 Hz, 1080p at 50 or 60 Hz, and 4K at 20 or 30 Hz with 24-bit colour depth. Audio pass-through covers Dolby True-HD, DTS-HD, AC3, DTS and DSD formats without decoding them.

Highlights

  • Connect four HDMI sources to one display with 4K 3840 x 2160 resolution
  • Extract digital audio via SPDIF coaxial or Toslink with ARC support
  • Separate analogue audio through 3.5 mm jack for headphones or speakers
  • Switch inputs instantly using the included remote control
  • HDMI 2.0 bandwidth up to 10.2 Gbps for smooth 4K video

Specifications

TypeHDMI Switchers
ColorBlack
Ports4
AudioYes
Input Connector4 X HDMI 2.0
Output Connector1 X HDMI 2.0 , Audio Extractor with ARC SPDIF Coaxial 3.5mm Audio Out
Maximum Resolutions3840 x 2160
Package Contents1 * HDMI Switch 4x1
1 * Remote
1 * DC 5V/1A Power Adapter
1 * User Manual

Questions about this item

How many HDMI sources can I connect before I run out of inputs?

The switch provides four HDMI 2.0 inputs so you can connect up to four sources simultaneously.

Does the unit get hot or draw much power when it runs all day?

It ships with a 5 V 1 A power adapter and has no fan, so heat and power draw stay low during continuous use.

Which cables do I need to have on hand for the audio outputs to work?

You will need an HDMI cable for the main output plus either a Toslink optical cable or a coaxial digital cable for ARC audio; the 3.5 mm jack uses a standard stereo lead.
