Small black box with one HDMI input and two HDMI outputs plus audio ports

AUBEAMTO

AUBEAMTO 4K@60Hz HDMI Splitter 1x2 Audio Extractor SPDIF 3.5mm

SKU CH-EXWW-Q3FPS

Splits one HDMI source to two displays at 4K 60 Hz and extracts audio via SPDIF and 3.5 mm with selectable PASS, 2.0CH or 5.1CH modes

  • TypeHDMI Splitters
  • Ports2
  • Input Connector1x HDMI female
  • Output Connector2x HDMI female
  • Maximum Cable Length*One HDMI input converted to two HDMI+ Audio(SPDIF+R/L )Outp
  • Maximum Resolutions3840 x 2160
  • Splits one HDMI source to two displays simultaneously
  • Extracts audio via SPDIF and 3.5 mm for external sound systems
  • Delivers 4K resolution at 60 Hz with HDR10 support
  • Offers PASS, 2.0 CH and 5.1 CH audio mode selection
  • Handles 18.5 Gbps bandwidth for uncompressed video quality

4K@60Hz HDMI Splitter with Audio Extraction

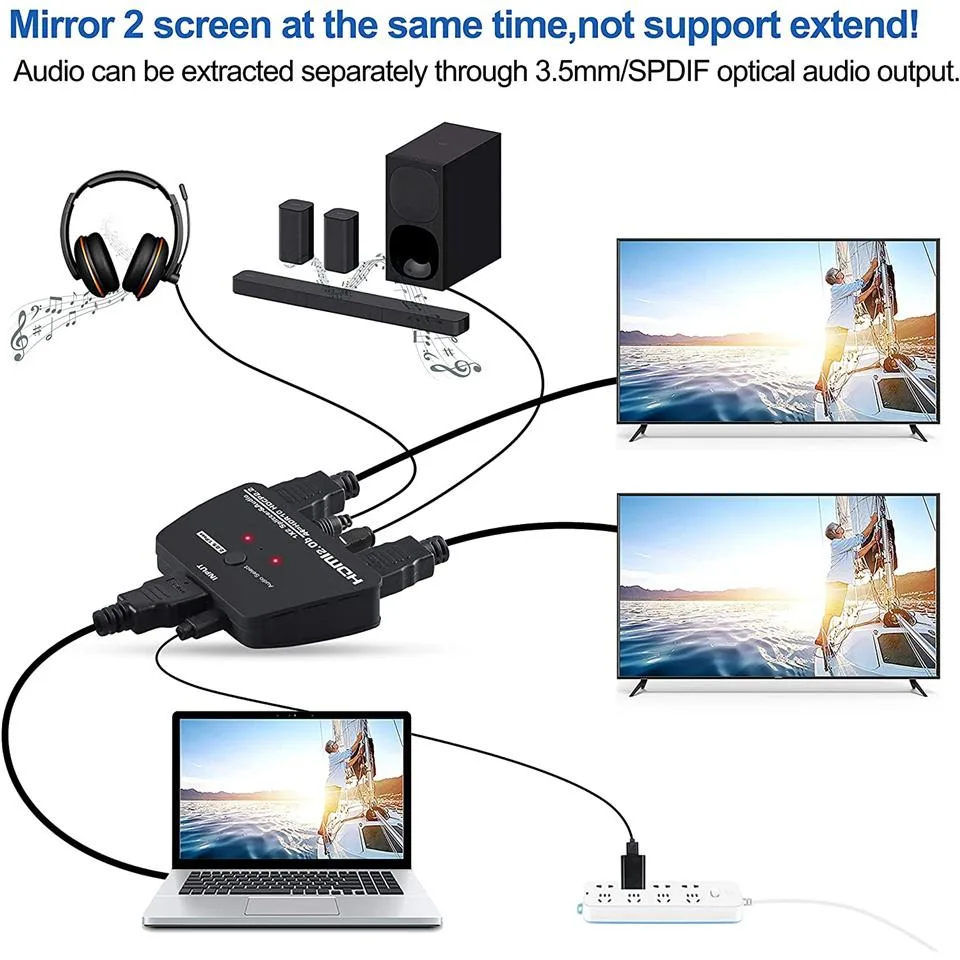

The AUBEAMTO 1x2 HDMI splitter takes a single HDMI source and duplicates the signal to two displays at up to 3840 x 2160 resolution and 60Hz refresh rate. It supports HDR10, 3D content and deep colour up to 36-bit. An integrated audio extractor provides SPDIF and 3.5mm stereo outputs with selectable PASS, 2.0CH or 5.1CH modes for separate sound routing.

Compact metal enclosure

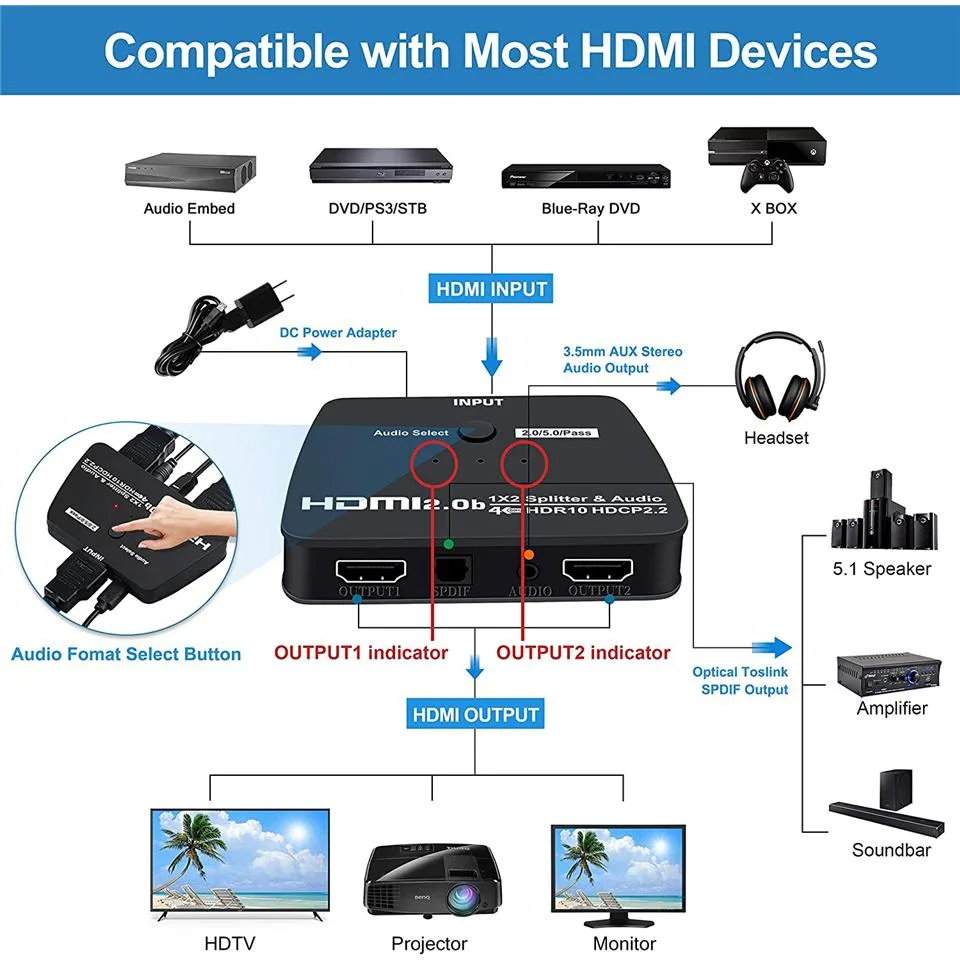

The unit measures 90 x 55 x 20 mm and uses a metal housing for heat dissipation without a fan. One HDMI input and two HDMI outputs are HDMI 2.0b compliant with HDCP 2.2 support for protected 4K streams. SPDIF and 3.5mm ports sit alongside the HDMI connectors, allowing direct connection to soundbars or AV receivers. Signal retiming helps maintain stability over standard AWG26 cables up to 10 metres on both input and output sides.

Verify source resolution.

Confirm your source device can output 4K at 60Hz or 1080p at 120Hz if those modes are required. The extractor does not decode Dolby Digital Plus, so check whether your audio system needs that format. Ensure HDMI cables do not exceed 10 metres for reliable 4K transmission and that your displays support HDCP 2.2 for protected content playback.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Extracts audio via SPDIF and 3.5 mm for external sound systems
  • Delivers 4K resolution at 60 Hz with HDR10 support
  • Offers PASS, 2.0 CH and 5.1 CH audio mode selection
  • Handles 18.5 Gbps bandwidth for uncompressed video quality

Specifications

TypeHDMI Splitters
Ports2
Input Connector1x HDMI female
Output Connector2x HDMI female
Maximum Cable Length*One HDMI input converted to two HDMI+ Audio(SPDIF+R/L )Output to achieve the synchronization of audio signal separation.
*There are PASS /2.0CH/5.1CH three kinds of audio mode options
*Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
*Support blue-ray 24/50/60fs/hd-dvd/XVYCC
*Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
*Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
*Support signal retiming
*No loss of quality
Maximum Resolutions3840 x 2160
Bandwidth600MHz
Package Contents0.8

Questions about this item

What HDMI standard and bandwidth does the 4K@60Hz splitter use, and what resolution does that cap at?

The splitter uses HDMI 2.0b with 600 MHz bandwidth and 18.5 Gbps throughput, capping video at 3840 x 2160 at 60 Hz with RGB 4:4:4 colour.

What physical space and cables are needed to fit the 90 x 55 x 20 mm unit?

The splitter measures 90 x 55 x 20 mm and requires one HDMI input cable plus two HDMI output cables; standard AWG26 cables up to 10 m are supported on each side.

How is the audio mode set on the PASS/2.0CH/5.1CH switch, and what step do users often miss?

Slide the switch to PASS, 2.0CH or 5.1CH before powering on; the step often missed is matching the setting to the connected audio system so the extractor outputs the correct format.
