AUBEAMTO
AUBEAMTO 4K@60Hz 4-Port HDMI 2.0 Video Switch Black
Four HDMI sources share one display with five viewing modes, seamless switching, and 4K@60Hz support via IR remote or front button
- Type4K@60Hz 4 Port HDMI 2.0 Switcher
- ColorBlack
- Ports4-Port UHD
- Input Connector1 X HDMI
- Output Connector4 X HDMI
- Maximum Resolutionsup to 4K@60Hz
- View four sources simultaneously on one screen with 5 display modes

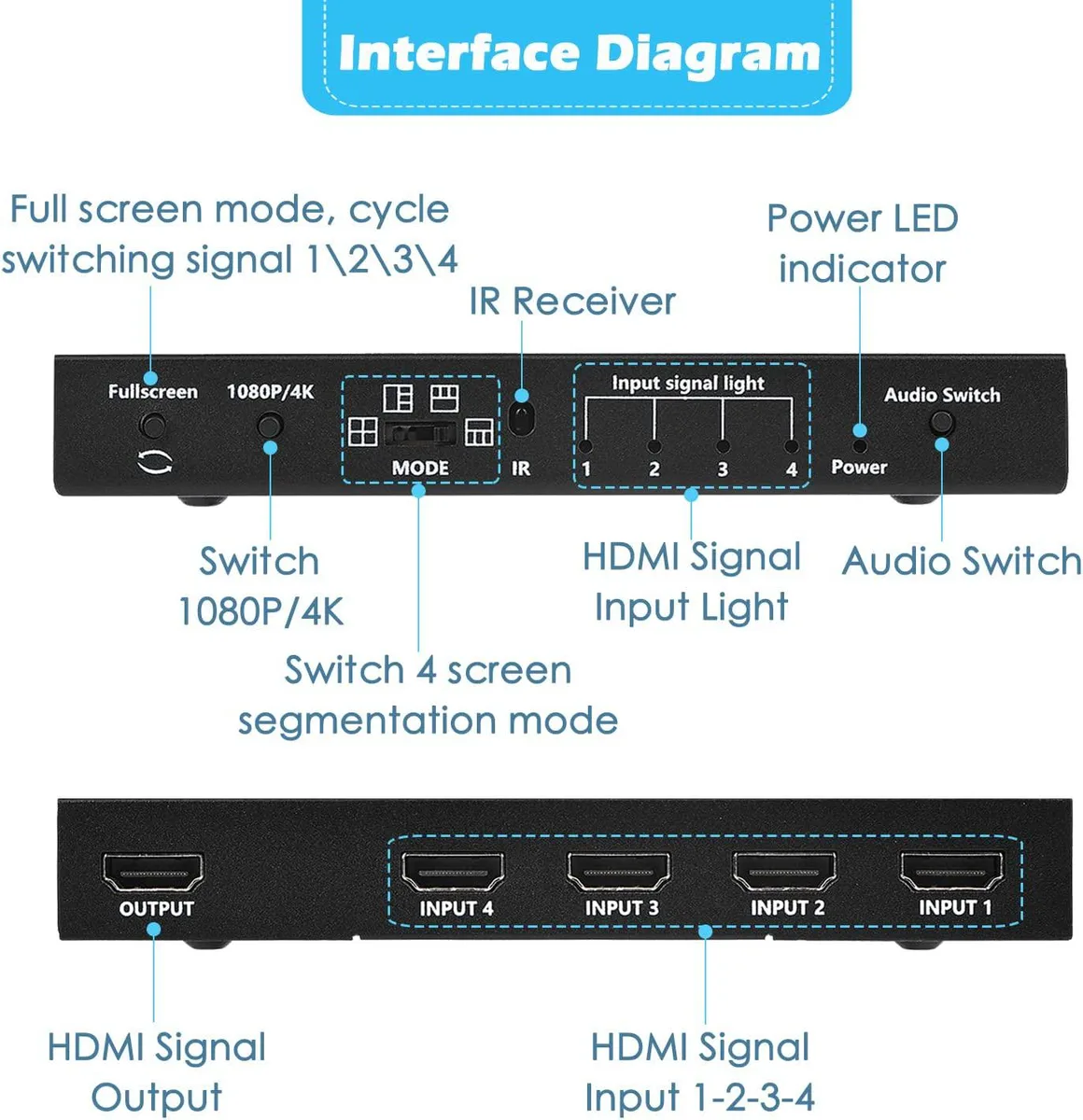

- Switch instantly between inputs using front buttons or IR remote
- Connect four HDMI devices to one display without cable swapping
- Enjoy 4K 60 Hz YUV4:2:0 video and up to 36-bit colour depth
- Supports LPCM 7.1, Dolby TrueHD and DTS-HD audio pass-through
Quad HDMI Multi-viewer Switch
The AUBEAMTO 4K@60Hz 4-Port HDMI 2.0 Video Switch is a 4x1 quad multi-viewer that displays four HDMI sources on a single screen. It supports five display modes including full-screen and quad-view layouts. IR remote and front-panel buttons provide flexible control for switching sources and audio. The unit handles video colour formats up to 36-bit and audio formats including DTS-HD and Dolby TrueHD.
For multi-source monitoring setups
This switch suits users who need simultaneous viewing of four HDMI devices such as security cameras, gaming consoles or PCs on one display. It is not for buyers who require independent switching of multiple outputs or matrix routing between several displays. The single HDMI output limits use to one monitor or projector at a time. Users needing more than four inputs should consider a larger matrix solution.
Sustained 4K signal handling
The switch maintains a maximum bandwidth of 10.2Gbps for continuous 4K@60Hz YUV4:2:0 transmission from a computer source. TMDS signal levels stay within 0.5 to 1.5V p-p during extended operation. DDC communication remains stable at 5Volts p-p. HDCP 1.4 compliance ensures protected content streams without interruption over long sessions.
Highlights
- View four sources simultaneously on one screen with 5 display modes
- Switch instantly between inputs using front buttons or IR remote
- Connect four HDMI devices to one display without cable swapping
- Enjoy 4K 60 Hz YUV4:2:0 video and up to 36-bit colour depth
- Supports LPCM 7.1, Dolby TrueHD and DTS-HD audio pass-through
Specifications
| Type | 4K@60Hz 4 Port HDMI 2.0 Switcher |
|---|---|
| Color | Black |
| Ports | 4-Port UHD |
| Input Connector | 1 X HDMI |
| Output Connector | 4 X HDMI |
| Maximum Resolutions | up to 4K@60Hz |
| Package Contents | HDMI 4K Multi-viewer X 1 Remote control X 1(no battery) Power Adapter X 1 User gudie X1 |
Questions about this item
What display do I need to see the 4K@60Hz output this switch provides?
You need a monitor or TV with an HDMI input that accepts 4K at 60 Hz (YUV 4:2:0) to use the highest supported mode.
Will my 1080p60 sources work alongside 4K30 sources on the same quad view?
Yes — the switch handles 1080p at 60 Hz, 1080i, 720p, 576p, 576i, 480p and 480i together with 4K30 and 4K60 inputs in any of the five display modes.
How can I confirm the switch is passing both video and audio correctly after I connect everything?
Select each input in full-screen mode using the front button or IR remote; verify the picture appears at the expected resolution and that LPCM or PCM2 audio is heard from the display.
