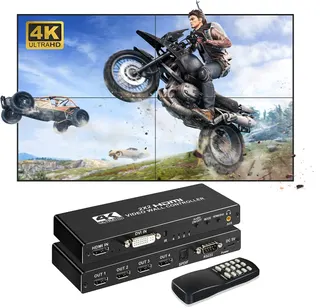

Black rectangular box with one HDMI input, four HDMI outputs, audio ports, power socket and remote control

AUBEAMTO

AUBEAMTO 2x2 HDMI Video Wall Controller 4K Input 1080P Output 180° Rotate 8 Modes Black

SKU CH-4VZ8-ENX9Y

Distributes one 4K HDMI or DVI source across four 1080p displays with eight splicing modes, 180° rotation, stereo and 5.1 audio outputs

  • Type2x2 HDMI Video Wall Controller
  • ColorBlack
  • Ports4-Port UHD
  • Input Connector1 X HDMI
  • Output Connector4 X HDMI
  • Maximum Resolutionsup to 1080@60Hz
  • Distributes one HDMI or DVI source to four displays simultaneously
  • Accepts 4K input at 30 Hz and outputs 1080p at 60 Hz

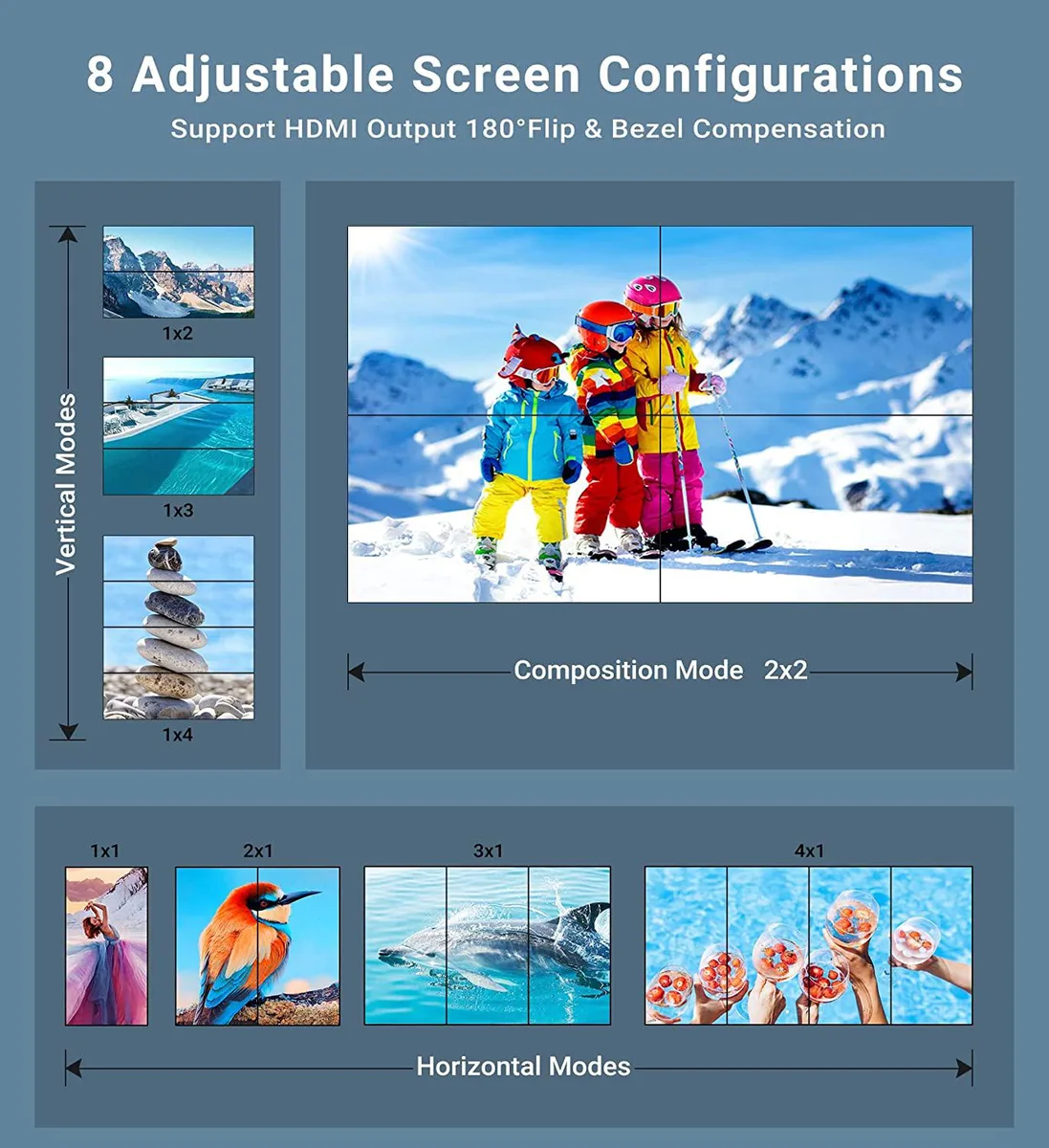

  • Eight display modes including 2×2, 1×3, 1×4 and rotated layouts
  • 180-degree image rotation for flexible screen orientation
  • Optical SPDIF 5.1-channel and 3.5 mm 2.0-channel audio outputs

What it is

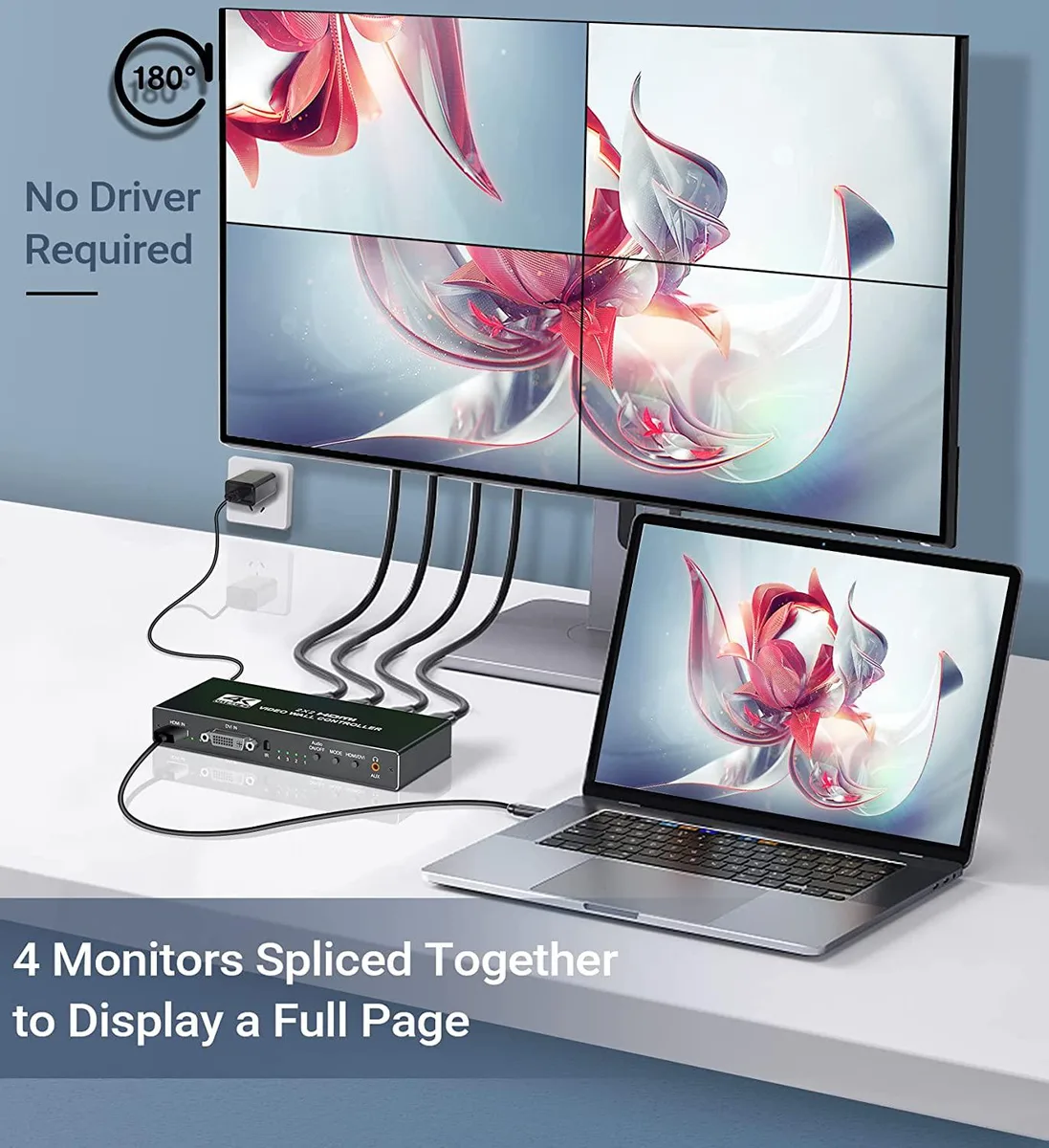

The AUBEAMTO 2x2 HDMI Video Wall Controller takes a single HDMI or DVI source at up to 4K 30Hz and splits it across four HDMI displays. It is designed for installers and integrators building digital-signage walls or multi-screen presentations from one media player, PC or set-top box. The unit includes a remote control and a 5V 2.1A power adapter for immediate deployment.

Build and connections

A compact black chassis houses one HDMI input, four HDMI outputs, a 3.5mm stereo jack for 2.0CH audio and an optical SPDIF port for 5.1CH audio. The 3.5mm and SPDIF outputs let you feed external speakers or an amplifier independently of the displays. No rack ears or mounting brackets are mentioned, so the device sits on a shelf or in a cabinet near the screens.

Limits of the HDMI 1.4 path

The controller complies with HDCP 1.4 and HDMI 1.4, so input tops out at 3840x2160 30Hz while every output is fixed at 1920x1080 60Hz. Eight preset layouts including 2x2, 1x3 and 4x1 are selectable, and the image can be rotated 180 degrees for bezel alignment. Sources sending 4K 50 or 60Hz will not be accepted, and higher refresh rates at 1080p are not supported on the output side.

Highlights

  • Distributes one HDMI or DVI source to four displays simultaneously
  • Accepts 4K input at 30 Hz and outputs 1080p at 60 Hz
  • Eight display modes including 2×2, 1×3, 1×4 and rotated layouts
  • 180-degree image rotation for flexible screen orientation
  • Optical SPDIF 5.1-channel and 3.5 mm 2.0-channel audio outputs

Specifications

Type2x2 HDMI Video Wall Controller
ColorBlack
Ports4-Port UHD
Input Connector1 X HDMI
Output Connector4 X HDMI
Maximum Resolutionsup to 1080@60Hz
Package Contents2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1.

Questions about this item

What HDMI version limits the input to 4K at 30 Hz and output to 1080p at 60 Hz?

The controller complies with HDMI 1.4, which caps the single input at 3840x2160 @ 30 Hz and each of the four outputs at 1920x1080 @ 60 Hz.

What physical connections and power does the unit require to sit in a rack or on a desk?

It needs one HDMI or DVI source, four HDMI display cables, a 3.5 mm stereo or optical SPDIF audio link, and the included 5 V 2.1 A power adapter.

How do you configure the 180° rotation and eight display modes without getting the output resolution wrong?

Use the remote to select a mode — 2x2, 1x2, 1x3, 1x4, 4x1, 3x1 or 2x1 — then set every connected screen to 1080p so the controller can sync correctly.
