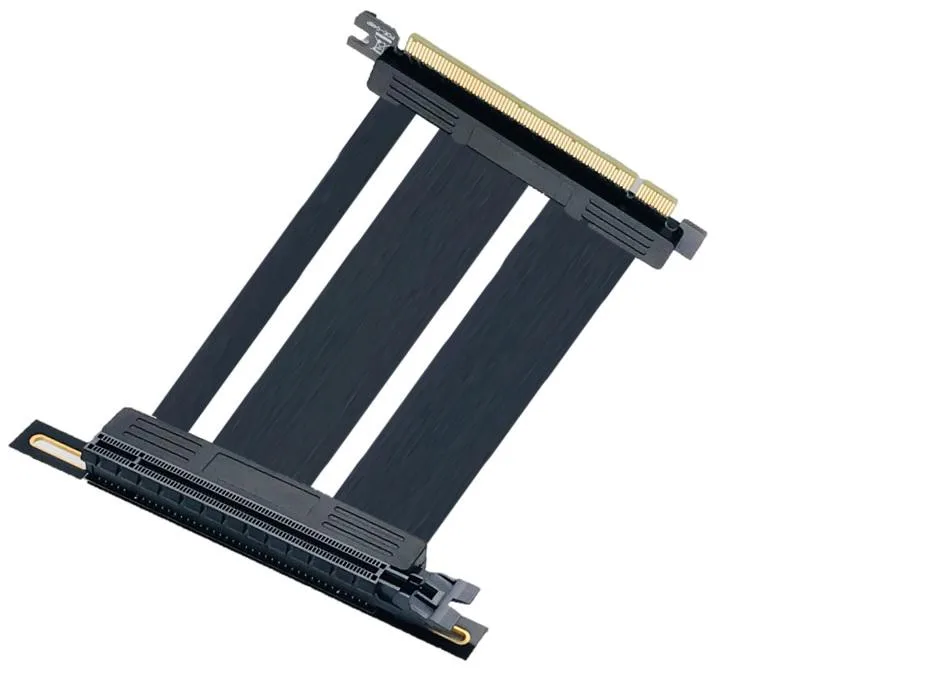

Black 600mm PCI-E 4.0 x16 riser cable with 90-degree left-angle connector, 1.3mm thick, shielded

Athena Power

Athena Power CABLE-PCIE16X40-L60 600mm PCI-E 4.0 90° left-angle extender riser cable

SKU CH-YJ75-EN3FX

A 600 mm PCI-E 4.0 x16 riser with a 90-degree left-angle connector, 1.3 mm thickness and conducting-polymer EMI shielding for tight builds

  • TypeExtension Cable
  • ColorBlack
  • Length2 ft.
  • SpecificationsCable Length: 600mm (24inch) Cable Thickness: 1.3mm Net Weig
  • Connector Number2
  • Terminal GenderMale to Female
  • PCI-E 4.0 bandwidth up to 16 Gbps for fast data transfer
  • 90-degree left-angle connector saves space in tight builds
  • 600 mm length with 1.3 mm thickness enables flexible routing
  • EMI shielding with conducting polymer reduces signal interference
  • Weighs only 0.19 kg for lightweight installation

PCI-E 4.0 x16 90° left-angle extender

This 600 mm cable extends a PCI Express x16 slot with a 90-degree left-angle male connector on one end and a matching female receptacle on the other. It is built for PCI-E 4.0 signalling and rated for bandwidths of 16 Gbps and beyond. The thin 1.3 mm profile and flexible construction suit compact or custom chassis where a straight riser will not fit. Shielded with conducting polymer and aluminium-foil Mylar, it protects signal integrity in dense builds.

Builders needing a left-angled x16 riser for tight

The cable serves enthusiasts who must route a full-length graphics card or accelerator parallel to the motherboard in small-form-factor, open-bench or modded cases. It is not for systems that require a right-angle or straight-through orientation, nor for installations where a 600 mm reach is excessive or too short. Users who need multiple risers or a different connector pitch should look at alternative cable designs.

Fits x16 slots and cards without occupying extra

The male plug inserts into the motherboard x16 slot while the female end accepts the add-in card, preserving the full electrical x16 link. Conducting-polymer EMI shielding and the integrated cable protector reduce crosstalk in crowded interiors, freeing vertical space above the board for larger coolers or reservoir placement. Weighing 0.19 kg, the assembly adds negligible mass and requires no auxiliary power or driver support.

Highlights

  • PCI-E 4.0 bandwidth up to 16 Gbps for fast data transfer
  • 90-degree left-angle connector saves space in tight builds
  • 600 mm length with 1.3 mm thickness enables flexible routing
  • EMI shielding with conducting polymer reduces signal interference
  • Weighs only 0.19 kg for lightweight installation

Specifications

BrandAthena Power
ModelCABLE-PCIE16X40-L60
TypeExtension Cable
ColorBlack
Length2 ft.
SpecificationsCable Length: 600mm (24inch)
Cable Thickness: 1.3mm
Net Weight: 0.19 kg / 0.42 lb.
Color: Black
Material: Thermoplastic, PCB EM-888, Polyethylene(PE), Copper Alloy, Aluminum foil Mylar
Connector: Type PCI Express X16 Male to PCI Express X16 Female
Data Rate: 16 Gbps
Current Rating: 1A
Operating temperature: -20 to +80 deg. C
Commercial standards: EIA-364, UL, RoHS
Connector Number2
Terminal GenderMale to Female
ShieldingYes
FeaturesImproved EMI shielding with conducting polymer
Capable of expanding bandwidth up to 16Gbps and beyond
Designed for PCI-E 4.0 x16 Compatible Components
Available in multiple lengths to support premium case modding
Premium Cable protection (Both ends PCB/Cable reinforced)
Crafted for Space-saving with ribbionized format flat cable
Minimizes disturbance and degradation on performance
Dual Layer cable with TPE Sleeve + PE Insulating Layers

Questions about this item

Does my motherboard need a PCI Express x16 slot to use this cable?

Yes, the cable has a male PCI Express x16 connector that plugs into a motherboard x16 slot and a female x16 connector for the graphics card.

Will this cable work with a graphics card that only supports PCIe 3.0?

The cable is designed for PCIe 4.0 x16 components and remains compatible with PCIe 3.0 cards, which will operate at their native 3.0 speeds.

How can I verify the cable is functioning correctly after I install it?

Confirm the system posts, the graphics card appears at PCIe 4.0 x16 in GPU-Z or BIOS, and stress tests complete without artefacts or link-width drops.
