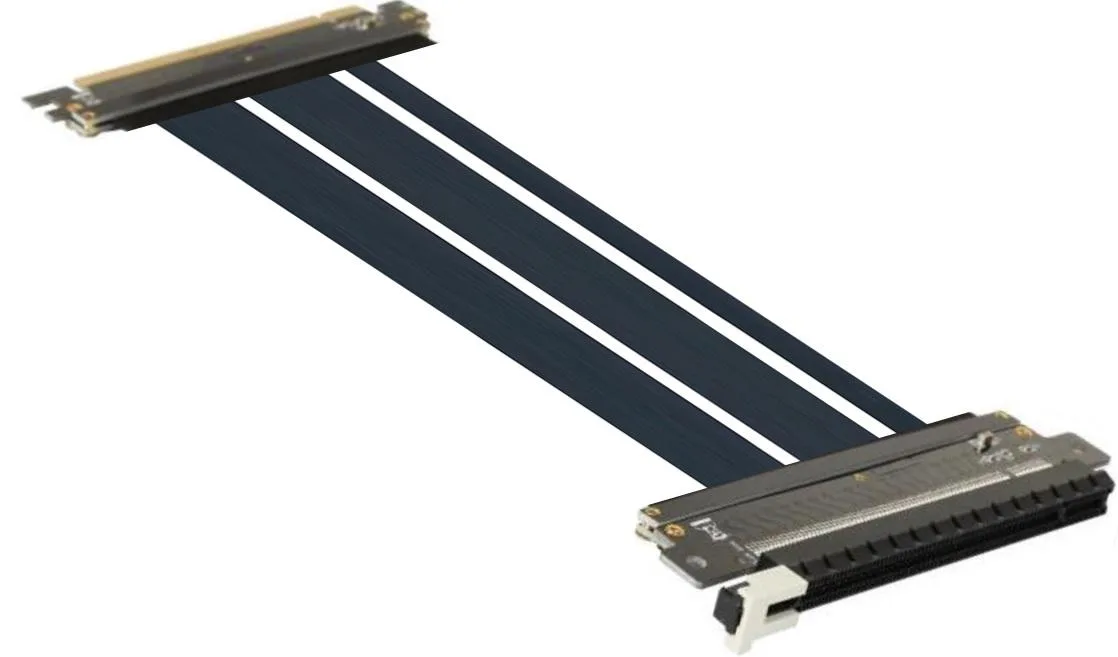

Black 300 mm PCI-E 4.0 x16 riser cable, 1.3 mm thick, male-to-female connectors

Athena Power

Athena Power CABLE-PCIE16X40-30 300mm PCI-E 4.0 x16 riser cable

SKU CH-PWZY-RMZZ5

A 300 mm PCI-E 4.0 x16 riser cable with EMI shielding and conducting polymer for high-speed GPU extension

  • TypeExtension Cable
  • ColorBlack
  • Length1 Foot
  • SpecificationsCable Length: 300mm (12inch) Cable Thickness: 1.3mm Net Weig
  • Connector Number2
  • Terminal GenderMale to Female
  • 300 mm length enables flexible GPU placement in compact builds
  • PCIe 4.0 x16 support delivers up to 16 Gbps bandwidth for modern graphics cards
  • EMI shielding with conducting polymer protects signal integrity against interference
  • Thin 1.3 mm cable profile simplifies routing behind motherboard trays
  • Male-to-female connectors allow quick installation without soldering or adapters

Premium PCI-E 4.0 x16 Riser Cable

This 300 mm flexible extender connects a graphics card to a motherboard slot using the PCI Express 4.0 x16 interface. The cable is 1.3 mm thick and weighs 0.19 kg, making it suitable for tight routing inside custom chassis. Improved EMI shielding with conducting polymer protects signal integrity at up to 16 Gbps. The black thermoplastic and polyethylene jacket resists wear during installation.

Compact Builds and Custom Loop Routing

Builders who need to position a GPU away from the primary slot for vertical mounting, water-block clearance or small-form-factor layouts will benefit from the 300 mm reach. The male-to-female connectors allow direct plug-in without adapters. Systems that require longer runs or multiple riser segments should look at other lengths, as this unit is fixed at 300 mm.

PCI Express 4.0 x16 Bandwidth Support

The cable is specified for PCI-E 4.0 x16 operation, delivering up to 16 Gbps per lane across the full 16-lane width. This bandwidth ceiling determines whether the riser can saturate modern GPUs without throughput loss. Verify that both the motherboard slot and the graphics card operate at PCI-E 4.0 x16 to match the cable rating.

Highlights

  • 300 mm length enables flexible GPU placement in compact builds
  • PCIe 4.0 x16 support delivers up to 16 Gbps bandwidth for modern graphics cards
  • EMI shielding with conducting polymer protects signal integrity against interference
  • Thin 1.3 mm cable profile simplifies routing behind motherboard trays
  • Male-to-female connectors allow quick installation without soldering or adapters

Specifications

BrandAthena Power
ModelCABLE-PCIE16X40-30
TypeExtension Cable
ColorBlack
Length1 Foot
SpecificationsCable Length: 300mm (12inch)
Cable Thickness: 1.3mm
Net Weight: 0.19 kg / 0.42 lb.
Color: Black
Material: Thermoplastic, PCB EM-888, Polyethylene(PE), Copper Alloy, Aluminum foil Mylar
Connector: Type PCI Express X16 Male to PCI Express X16 Female
Data Rate: 16 Gbps
Current Rating: 1A
Operating temperature: -20 to +80 deg. C
Commercial standards: EIA-364, UL, RoHS
Connector Number2
Terminal GenderMale to Female
ShieldingYes
FeaturesImproved EMI shielding with conducting polymer
Capable of expanding bandwidth up to 16Gbps and beyond
Designed for PCI-E 4.0 x16 Compatible Components
Available in multiple lengths to support premium case modding
Premium Cable protection (Both ends PCB/Cable reinforced)
Crafted for Space-saving with ribbionized format flat cable
Minimizes disturbance and degradation on performance
Dual Layer cable with TPE Sleeve + PE Insulating Layers

Questions about this item

How do I confirm the 300mm riser is delivering PCI-E 4.0 x16 bandwidth after installation?

Verify the link runs at 16 Gbps in your motherboard BIOS or GPU-Z; the cable’s EMI shielding and conducting polymer are designed to maintain that signal integrity.

What ships with the CABLE-PCIE16X40-30 and what must I source separately?

The package contains one 300mm male-to-female PCI Express x16 extender with a cable protector; you still need a compatible motherboard slot and graphics card.

Which length should I choose for a compact build using this Athena Power riser series?

The 300mm version suits most small-form-factor layouts; longer options exist if your GPU mounting point sits farther from the slot.
