Black aluminium internal drive backplane with 80mm fan and safety lock

Athena Power

Athena Power BP-SAC3141B hdd accessory

SKU CH-TZS6-5VV5K MPN BP-SAC3141B

Internal backplane holds four 3.5-inch drives with hot-swap, RAID 0/1/5/10, aluminium cooling, 80 mm fan and Molex or SATA power

  • SpecificationsColor: Black Plug & Play Support Hot-Swap, RAID 0 / 1 / 5 /
  • Hot-swap capable for quick drive changes without powering down
  • Supports RAID 0, 1, 5 and 10 for flexible data protection
  • All-aluminium construction with dissipation grooves aids heat management
  • Powered by Molex 4-pin or SATA 15-pin with sensor and alarm
  • Safety triangle lock secures drives during operation

Internal HDD Backplane

The Athena Power BP-SAC3141B is a 3.5-inch internal backplane that holds a single SATA or SAS hard drive in a 5.25-inch bay. It targets system builders and server operators who need hot-swap capability without a full drive cage. An all-aluminium frame with conductive dissipation grooves and an included 80mm fan provides active cooling for continuous operation. The safety triangle lock secures each drive during insertion and removal.

SATA and SAS Interface Limits

The backplane supports SATA at up to 3 Gb/s and SAS at up to 6 Gb/s, so drive throughput is capped by those link speeds rather than the drive’s own maximum. RAID 0, 1, 5 and 10 are handled by the host controller; the backplane itself performs no RAID processing. Power is supplied through either a Molex 4-pin or SATA 15-pin connector, and a sensor with audible alarm alerts the operator to fan failure or over-temperature conditions.

Single-Drive Capacity and Headroom

The unit accommodates one drive up to 1 TB, making it suited for boot volumes, small databases or backup targets that fit within that limit. Workloads requiring multiple terabytes of online storage or multi-drive arrays will exceed the physical and capacity headroom of this model. The included 7-pin SATA data cable simplifies connection to the host, while the balance handle ensures smooth, skew-free drive insertion.

Highlights

  • Hot-swap capable for quick drive changes without powering down
  • Supports RAID 0, 1, 5 and 10 for flexible data protection
  • All-aluminium construction with dissipation grooves aids heat management
  • Powered by Molex 4-pin or SATA 15-pin with sensor and alarm
  • Safety triangle lock secures drives during operation

Specifications

BrandAthena Power
ModelBP-SAC3141B
SpecificationsColor: Black
Plug & Play
Support Hot-Swap, RAID 0 / 1 / 5 / 10
All Aluminum Design with Conductive Dissipation Grooves
Power Control w/Molex 4pins or SATA 15pins connector, Sensor & Alarm
The Safety Tri-angle Lock Safeguards the Hard Drives
Super Air Ventilation & Heat Sink with 80mm Fan
Balance Handle - No Skew In/Out
Capacity Up To 1TG (1HD), 4TG (4HD)
Data Transfer Rate up to 3G(SATA) / 6G (SAS)

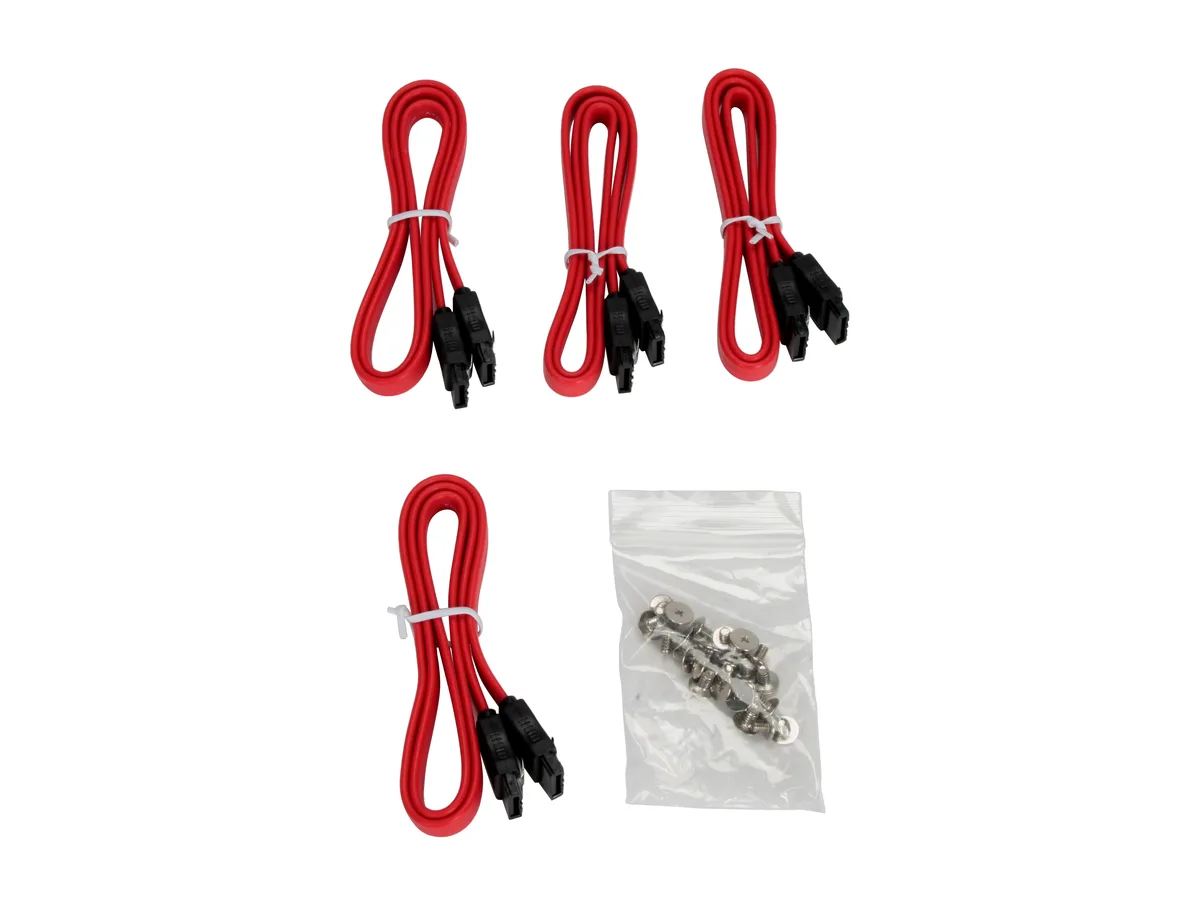

7D SATA Data Cable Included
RoHS ready
Shipping weight1.79 kg
Package size256 × 179 × 165 mm

Questions about this item

Which capacity option fits my drive count — the 1TG single-drive or the 4TG four-drive version?

Choose the 1TG model for one hard drive or the 4TG model for up to four drives, matching the bay count you need.

What does the 3G SATA and 6G SAS rate mean for actual throughput in my system?

The backplane passes up to 3 Gb/s on SATA links and 6 Gb/s on SAS links, so drive speed will not exceed those ceilings.

Which interface standard does the backplane use, and what speed does it cap at?

It uses SATA and SAS interfaces, capping at 3 Gb/s for SATA and 6 Gb/s for SAS connections.
