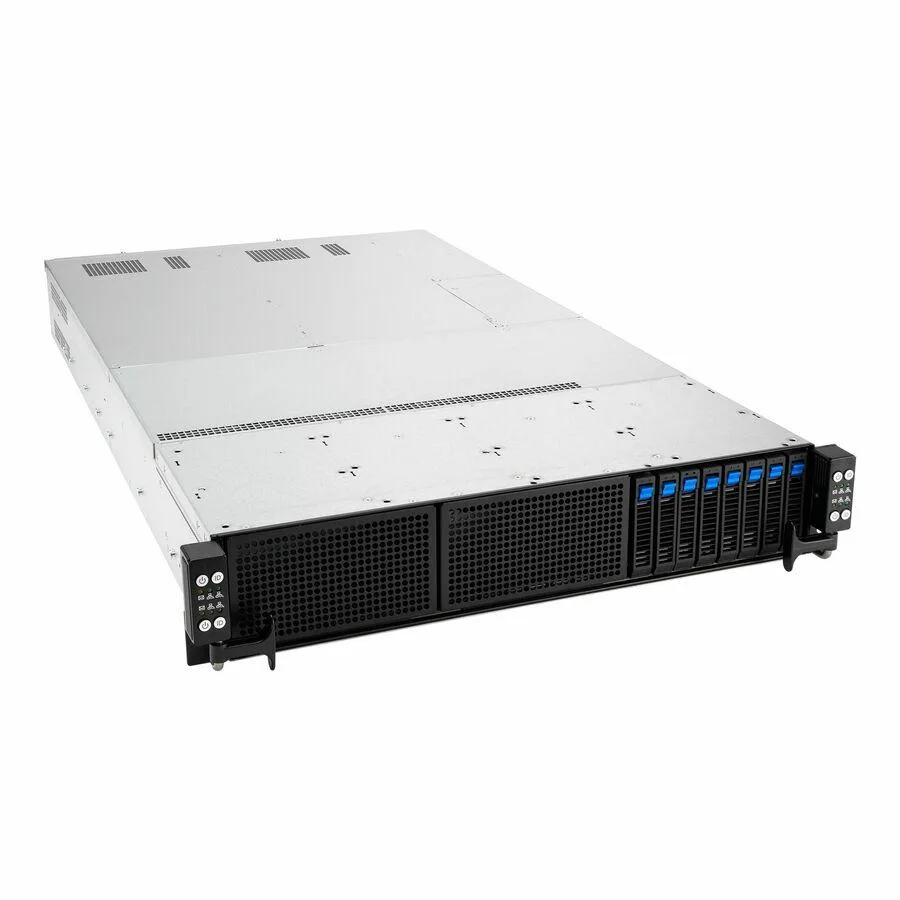

Silver 2U rackmount chassis with four server nodes visible behind front drive bays

ASUS

ASUS RS720Q-E11-RS8U-3WSTEVHS 2U 4-node barebone server

SKU CH-B7N2-X4VJ9 MPN RS720Q-E11-RS8U-3WSTEVHS

A 2U rackmount barebone housing four independent server nodes, each supporting dual 4th Gen Intel Xeon Scalable processors, 16 DDR5 DIMM slots, two PCIe 5.0 x16 slots, eight 2.5" front hot-swap bays.

  • Form Factor2U Rackmount
  • WorkloadHigh Density Server
  • CPU Type4th Gen Intel Xeon Scalable processors
  • CPU Socket2 x Socket P (LGA 4677)
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Supports 4th Gen Intel Xeon Scalable processors up to 350W liquid cooling
  • 16 DDR5 4800 memory slots per node for up to 4TB capacity
  • Four independent nodes in 2U form factor with 8 hot-swap 2.5" bays
  • Dual 10 Gigabit LAN plus PCIe 5.0 x16 slots per node
  • Redundant 3000W 80 Plus Titanium power supplies with 1+1 configuration

Four-node 2U barebone server

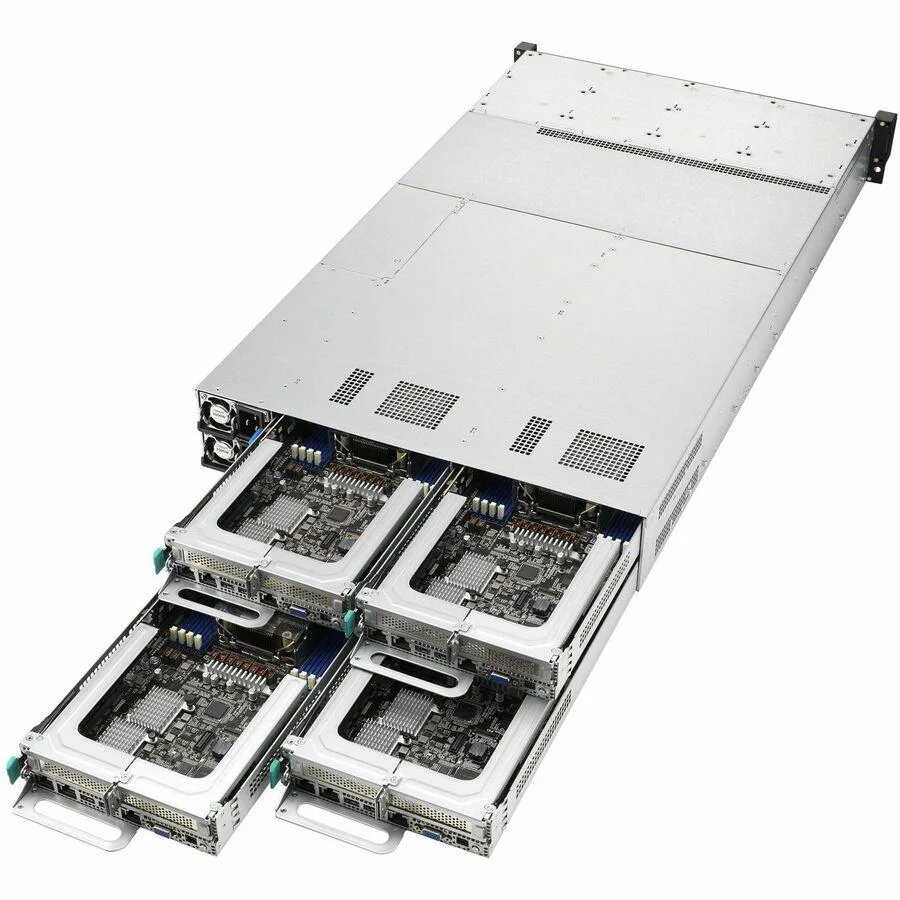

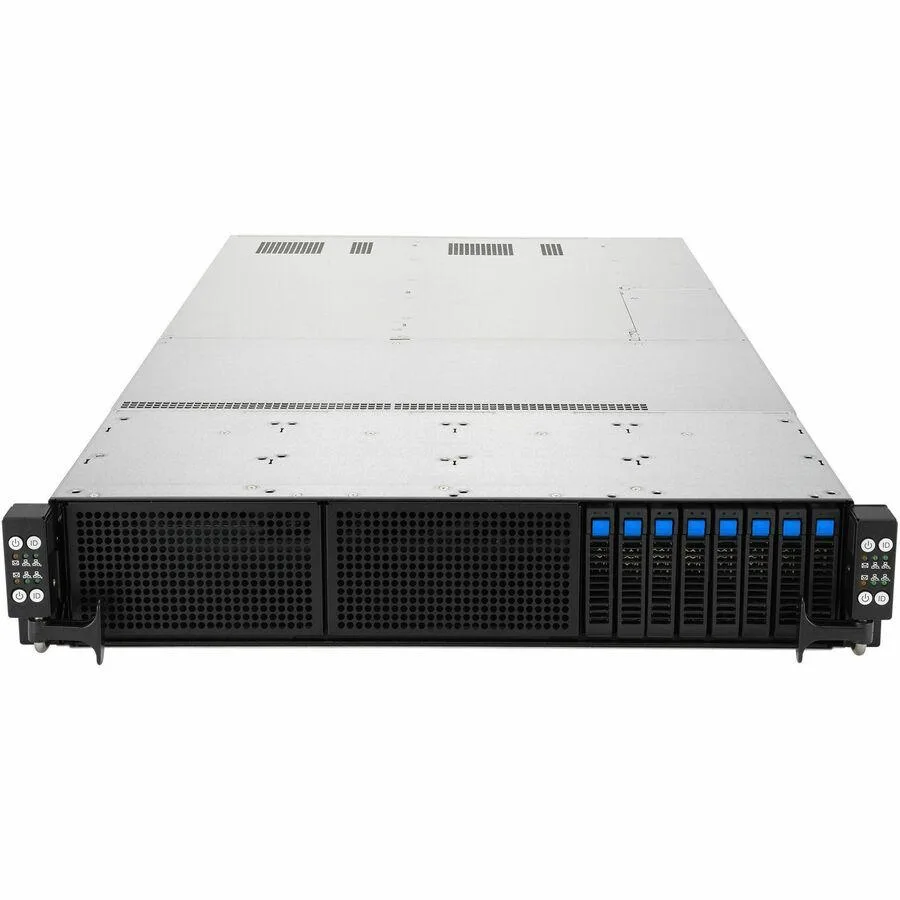

The ASUS RS720Q-E11-RS8U-3WSTEVHS fits four independent compute nodes in a 2U rackmount chassis. Each node accepts two 4th Gen Intel Xeon Scalable processors in Socket P (LGA 4677) and up to 16 DDR5 4800 RDIMM slots. The platform targets high-density workloads such as CDN, HCI and cloud deployments where maximum cores per rack unit are required. No processors or memory are installed.

PCIe 5.0 x16 slots and 10 GbE per node

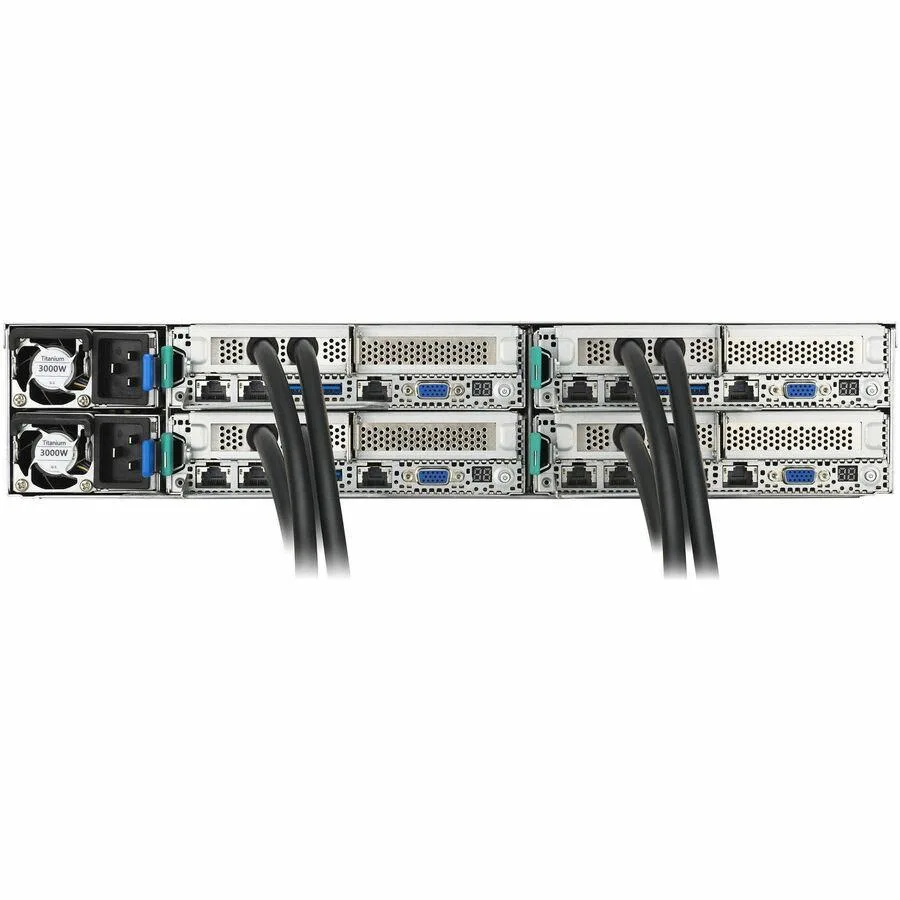

Every node provides two PCIe 5.0 x16 slots (HHHL) for accelerators or high-speed networking and two 10 Gigabit LAN ports via Intel I710-AT2. Storage density includes eight front 2.5-inch hot-swap bays shared across the chassis, plus two M.2 sockets per node supporting up to 22110 form factor with SATA or Gen4 x2 link. The 3000 W 1+1 redundant 80 Plus Titanium power supply feeds all four nodes.

Check CPU cooling and memory configuration

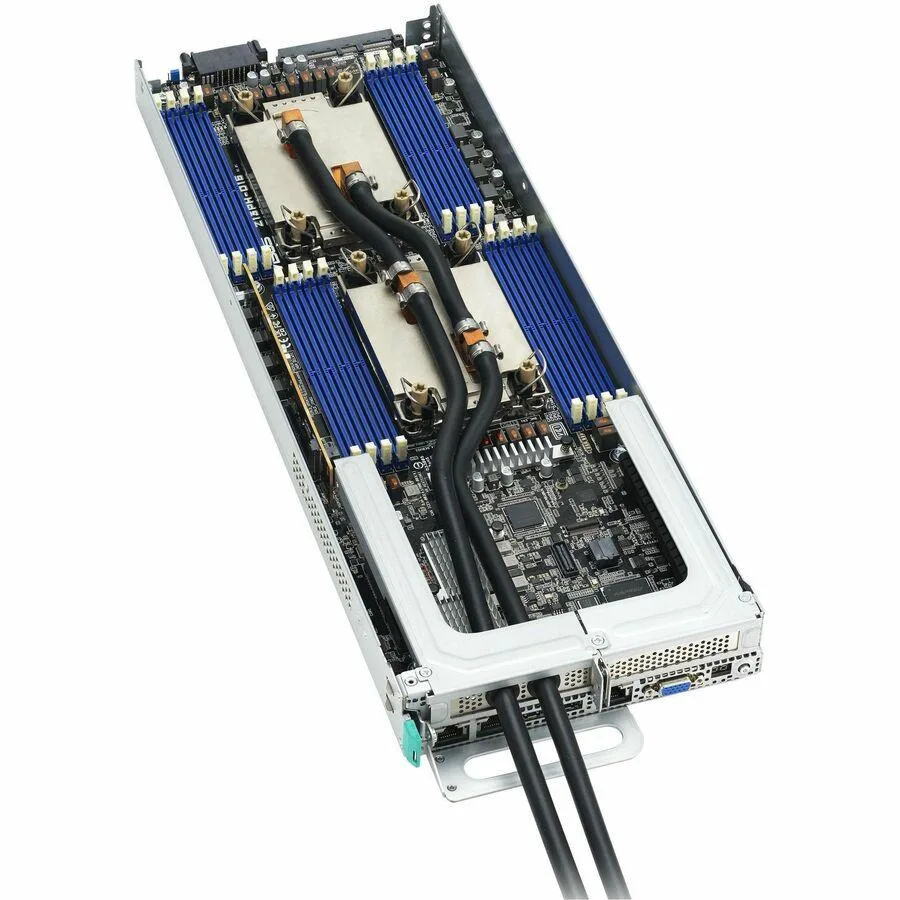

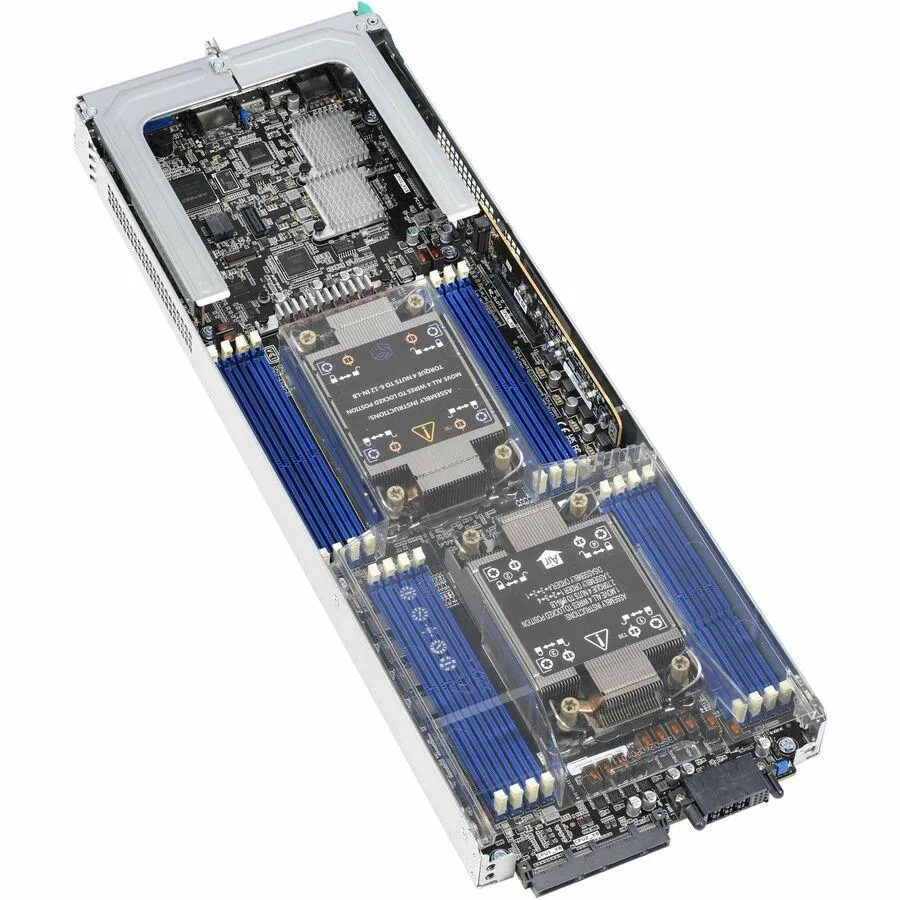

Each node supports air cooling with EVAC heatsinks up to 270 W TDP, standard heatsinks up to 205 W, or direct liquid cooling up to 350 W. Verify your chosen processors match the supported TDP and cooling method. Memory capacity scales to 2 TB DDR5 or 4 TB with Crow Pass modules per node; populate all 16 slots with RDIMM or 3DS RDIMM. Ensure rack depth and liquid-cooling infrastructure suit the 2U form factor.

Highlights

  • Supports 4th Gen Intel Xeon Scalable processors up to 350W liquid cooling
  • 16 DDR5 4800 memory slots per node for up to 4TB capacity
  • Four independent nodes in 2U form factor with 8 hot-swap 2.5" bays
  • Dual 10 Gigabit LAN plus PCIe 5.0 x16 slots per node
  • Redundant 3000W 80 Plus Titanium power supplies with 1+1 configuration

Specifications

BrandASUS
ModelRS720Q-E11-RS8U-3WSTEVHS
Form Factor2U Rackmount
WorkloadHigh Density Server
CPU Type4th Gen Intel Xeon Scalable processors
CPU Socket2 x Socket P (LGA 4677)
Installed CPUNo CPU Installed
Max Processors2
CPU FeaturesAir cool with EVAC up to 270W, with STD HSK up to 205W; with Liquid cool up to 350W
North BridgeIntel C741
Memory Slots16 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory SupportedMaximum up to 2 + 4 TB (Per Node, DDR5 + Crow Pass)
Memory Type SupportedDDR5 4800 RDIMM/RDIMM 3DS
Installed HDDNo Storage Installed
M.2Per node: 2 x M.2 (Up to 22110, SATA or Gen4 x2 link)
PCI ExpressPer node:
Up to 2 slots
2 x PCIe x16 slot (Gen5 x16 link, HHHL)
First LANIntel I710-AT2
Max. LAN Speed10 Gigabit
2.5" Bays8 x 2.5" Front Hot-swap drive bays
VGAPer Node: 1 x VGA (Rear)
Rear USBPer Node: 2 x USB 3.0
RJ452 x RJ-45 10GbE LAN ports
Other Ports1 x RJ-45 Management port
Max. Power3000W Redundant 1+1, 80 Plus Titanium
Dimensions31.5" x 17.48" x 3.46"
Weight71.65 lbs.
Shipping weight40.37 kg
Package size1045 × 590 × 275 mm

Questions about this item

Should I choose the 205 W air-cooled limit or the 350 W liquid-cooled limit for my CPUs?

Each node accepts two Socket P (LGA 4677) processors. Air cooling with the standard heatsink supports up to 205 W per CPU, while the EVAC heatsink raises that to 270 W. Direct liquid cooling enables up to 350 W per CPU for maximum density.

What does the 10 Gigabit LAN figure mean once the server is racked?

Every node includes an Intel I710-AT2 controller providing two 10 Gigabit Ethernet ports, so the four-node chassis delivers eight 10 GbE links in total for high-throughput east-west traffic.

How does the PCIe 5.0 x16 slot cap expansion in practice?

Each node offers two PCIe 5.0 x16 slots (HHHL), giving four lanes of Gen5 bandwidth per node for NVMe adapters, GPUs or networking cards.
