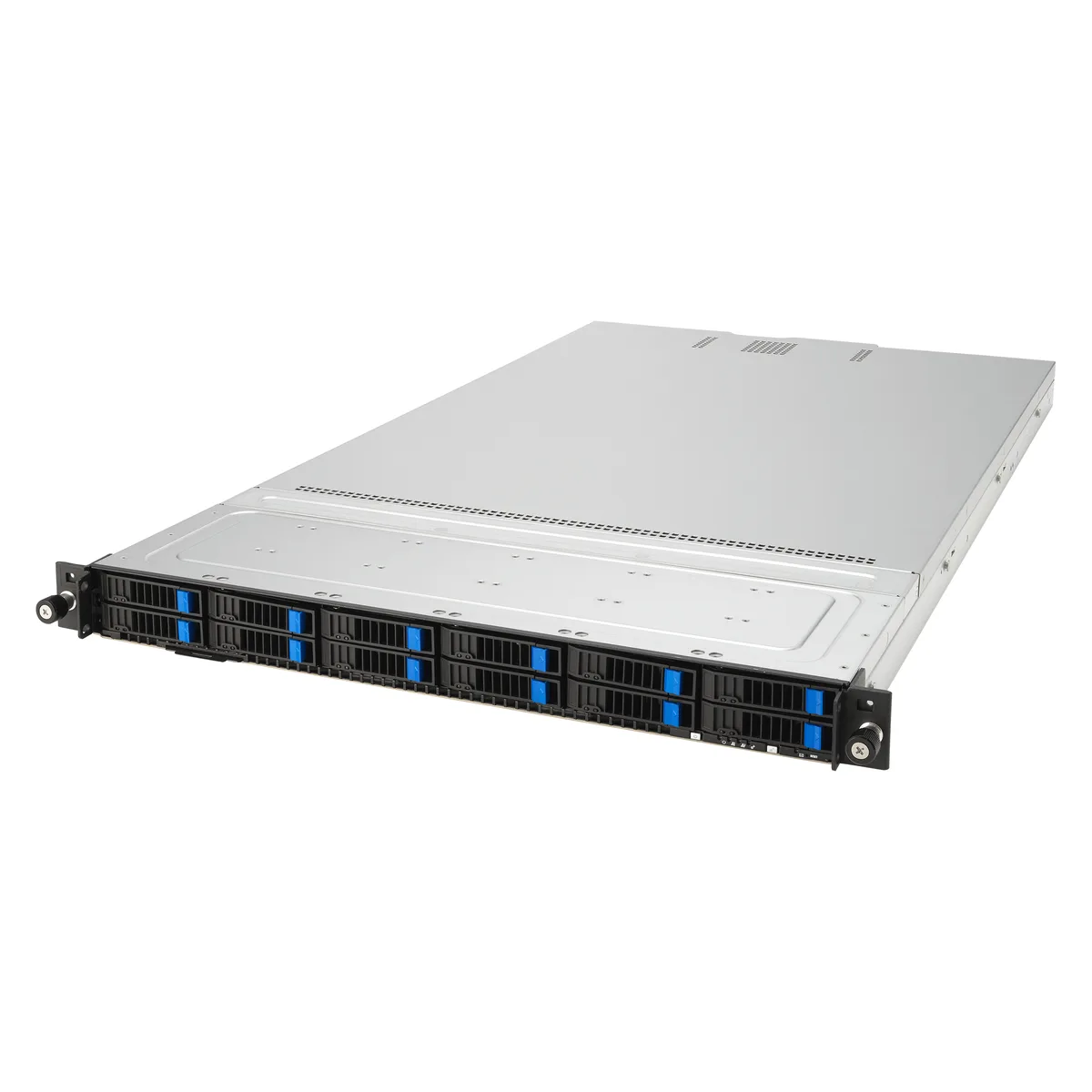

Silver 1U rackmount server chassis, front drive bays and rear ports visible

ASUS

ASUS RS700A-E12-RS12U-16W10G 1U barebone server

SKU CH-7C0Y-37B9V MPN RS700A-E12-RS12U-16W10G

A 1U rackmount barebone supporting dual AMD EPYC 9004 processors, 24 DDR5 memory slots, 12 NVMe/SATA/SAS bays, 10GbE networking and 1600W redundant power

  • Form Factor1U Rackmount
  • CPU TypeSupports AMD EPYC 9004 Series Processors (up to 400W)
  • CPU SocketSocket SP5
  • Installed CPUNo CPU Installed
  • Max Processors2
  • CPU FeaturesSupports 4th Generation AMD EPYC Processors with AMD 3D V-Ca
  • Supports dual AMD EPYC 9004 processors up to 400W each
  • 24 DDR5 4800/4400 memory slots enable 3072GB per socket capacity
  • 12 NVMe/SATA/SAS plus 2 M.2 bays for flexible storage configuration
  • Three PCIe Gen5 slots plus OCP 3.0 option for high-speed expansion
  • Redundant 1600W 80 Plus power supplies with 10GbE Intel I710 networking

1U dual-socket EPYC barebone

The ASUS RS700A-E12-RS12U-16W10G is a 1U rackmount server barebone built for two Socket SP5 processors. It targets datacentre operators and HPC integrators who need dense AMD EPYC 9004 series compute with integrated 10 Gigabit networking and flexible PCIe Gen5 expansion. No CPU or memory is installed, so the buyer supplies both.

24 DDR5 slots and 12 drive bays

Twenty-four 288-pin slots accept DDR5 4800/4400 RDIMM or 3DS RDIMM modules across twelve channels per socket, scaling to 3072 GB per processor. Twelve 2.5-inch bays support NVMe, SATA or SAS drives, plus two M.2 slots, giving ample local storage headroom. The board maxes at two CPUs and 24 DIMMs; larger memory or processor counts need a different platform.

Redundant 1600 W power and Gen5 slots

A 1600 W 1+1 redundant 80 Plus supply feeds the chassis, while three PCIe Gen5 x16 slots — one full-height full-length, one FHFL or OCP 3.0, one low-profile — plus an internal Gen4 x8 RAID slot handle accelerators or networking. Rear I/O includes dual 10GbE RJ45, two USB 3.2 Gen1, VGA and a dedicated management port; no GPU beyond the Aspeed AST2600 BMC is provided.

Highlights

  • Supports dual AMD EPYC 9004 processors up to 400W each
  • 24 DDR5 4800/4400 memory slots enable 3072GB per socket capacity
  • 12 NVMe/SATA/SAS plus 2 M.2 bays for flexible storage configuration
  • Three PCIe Gen5 slots plus OCP 3.0 option for high-speed expansion
  • Redundant 1600W 80 Plus power supplies with 10GbE Intel I710 networking

Specifications

BrandASUS
ModelRS700A-E12-RS12U-16W10G
Form Factor1U Rackmount
CPU TypeSupports AMD EPYC 9004 Series Processors (up to 400W)
CPU SocketSocket SP5
Installed CPUNo CPU Installed
Max Processors2
CPU FeaturesSupports 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
Memory Slots24 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory SupportedMaximum up to 3072GB per socket
Memory Type SupportedDDR5 4800/4400 RDIMM / 3DS RDIMM
Channel Supported12 Channel
Installed HDDNo Storage Installed
Serial ATA12 x NVMe/SATA/SAS
M.22
GPU/VPUAspeed AST2600
PCI ExpressUp to 3 x PCIe Gen5 slots + 1 x internal RAID slot
1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LP)
1 x PCIe Gen4 x8 (LP, internal)
First LANIntel I710-AT2
Max. LAN Speed10 Gigabit
2.5" Bays12
VGA1 x VGA (Rear)
Rear USB2 x USB 3.2 Gen1
RJ452 x 10GbE
Other Ports1 x Management Port
Max. Power1600W Redundant 1+1, 80 Plus
TemperatureOperating temperature: 10°C - 35°C
Non operating temperature: -40°C - 70°C
HumidityNon operating humidity: 20% - 90% (Non condensing)
Dimensions33.17” x 17.68" x 1.73"
Weight32.94 lbs.
Shipping weight24.54 kg
Package size1143 × 610 × 203 mm

Questions about this item

Will the dual 1600W redundant power supplies handle my existing AMD EPYC 9004 processors rated at 400W each?

Yes, the 1+1 redundant 1600W units are rated 80 Plus and support up to two 400W EPYC 9004 CPUs, so your current processors will run within the power budget.

Which rear-panel LEDs or ports confirm the Aspeed AST2600 management controller is active after first power-on?

The dedicated management port and the VGA output are driven by the Aspeed AST2600; a live management-port link light and video signal on the VGA connector show the BMC is running.

The barebone ships with 24 DDR5 slots and 12 front 2.5-inch bays — what must I purchase separately to populate them?

You must buy AMD EPYC 9004 series CPUs, DDR5 4800 or 4400 RDIMM or 3DS RDIMM modules, 2.5-inch NVMe, SATA or SAS drives for the front bays, and M.2 modules for the two internal M.2 slots.
