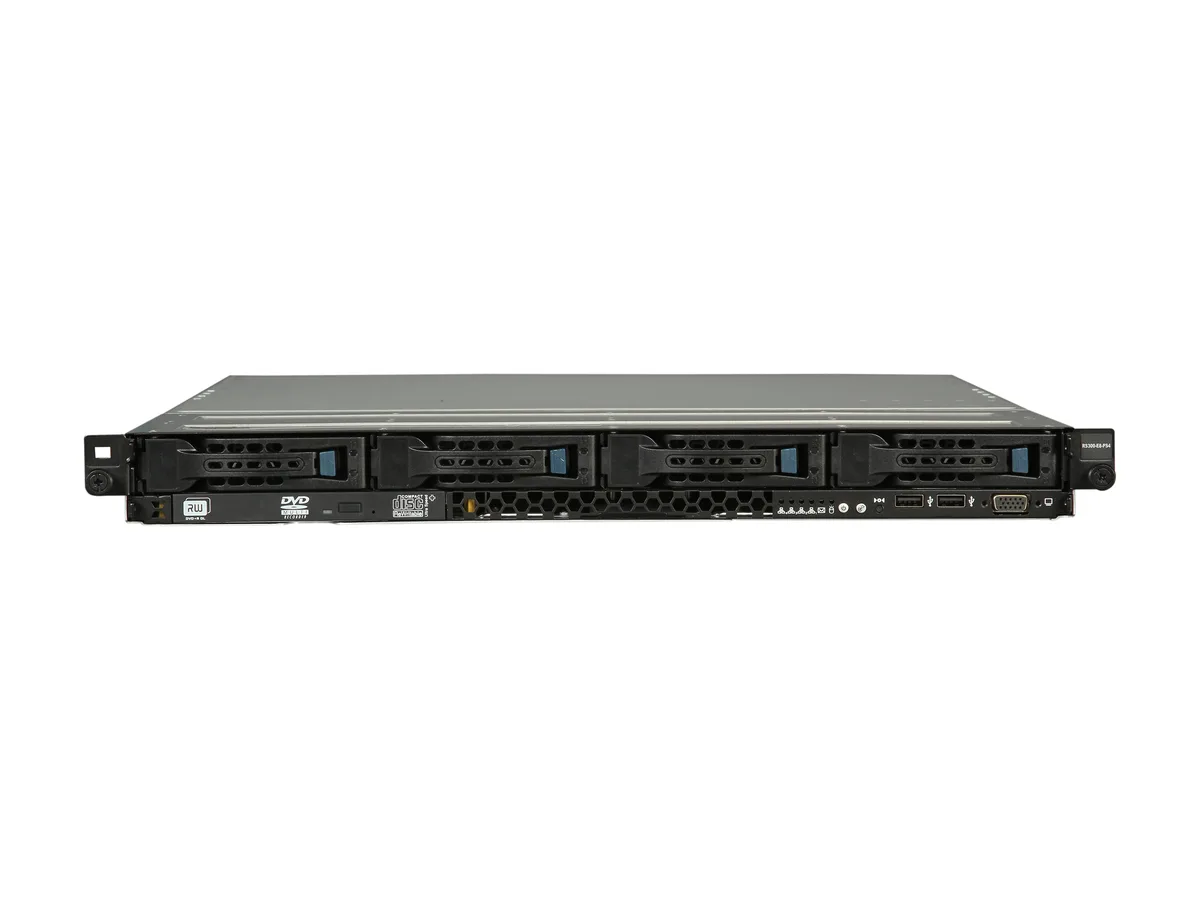

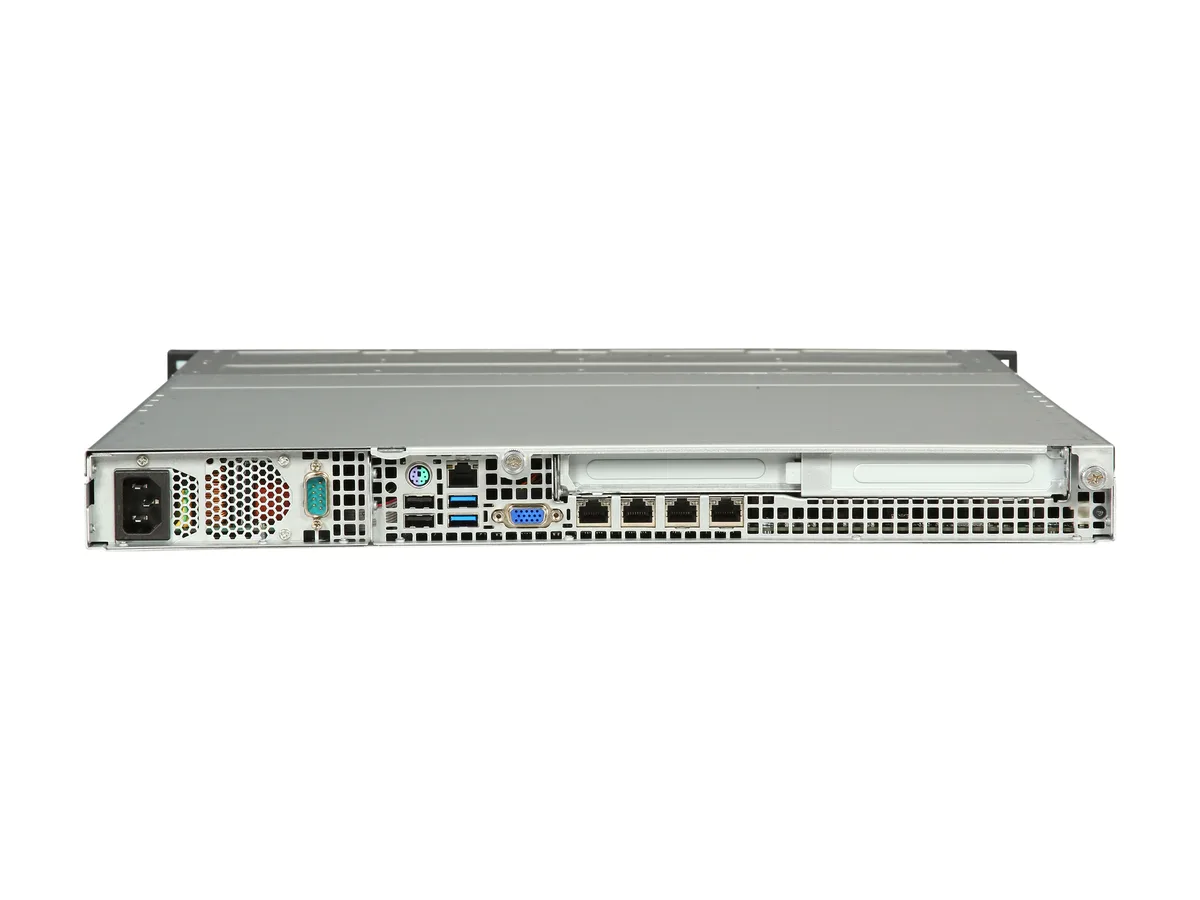

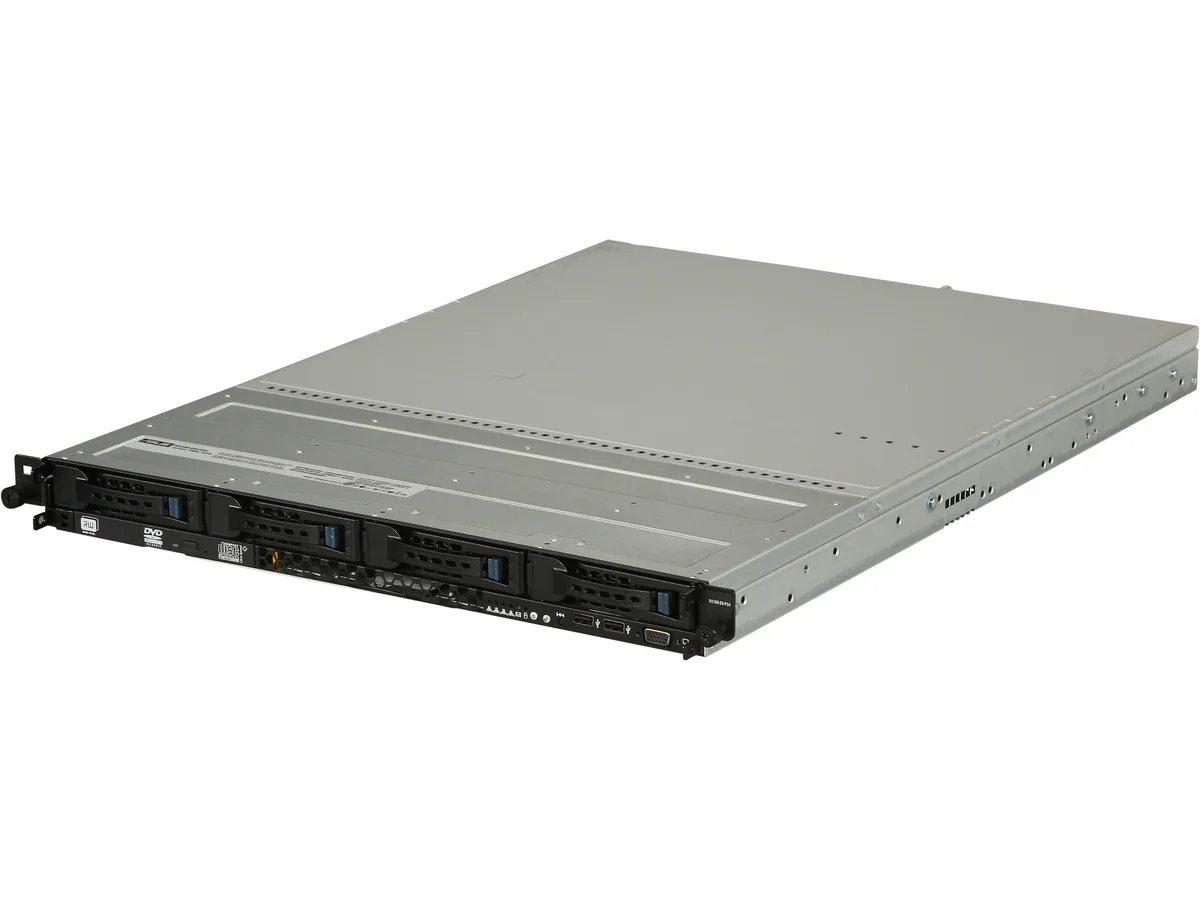

Silver 1U rackmount server barebone with front drive bays and rear I/O ports

ASUS

ASUS RS300-E8-PS4 1U rackmount barebone server

SKU CH-9XZZ-QHG5M MPN RS300-E8-PS4

1U rackmount barebone with LGA 1150 socket for Xeon E3-1200 v3 CPUs, four DDR3 slots up to 32 GB, quad gigabit LAN and 400 W Gold PSU

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeIntel Xeon E3-1200 v3 product family
  • CPU SocketLGA 1150
  • North BridgeIntel C224
  • Memory Slots4 x 240Pin
  • Supports Intel Xeon E3-1200 v3 processors for general-purpose workloads
  • Four DDR3 memory slots accept up to 32 GB with ECC support
  • Six SATA ports provide 3 Gb/s and 6 Gb/s storage connectivity
  • Quad Intel I210-AT Gigabit LAN ports for redundant networking
  • Single 400 W 80 PLUS Gold power supply reduces energy loss

Target Workload and CPU Platform

The RS300-E8-PS4 is a 1U rackmount barebone server built for general-purpose workloads. It accepts Intel Xeon E3-1200 v3 processors in an LGA 1150 socket with the Intel C224 chipset. The system targets buyers who need a compact, single-socket platform for standard compute tasks rather than high-density virtualisation or GPU-heavy acceleration.

Sustained Load Behaviour and Expansion

ASUS specifies that the platform operates at up to 40°C ambient stress, indicating stable performance under continuous load. Expansion includes one PCI Express 3.0 x16 slot running at x8 link, one PCI Express 3.0 x8 slot at x4 link, and a dedicated PIKE slot for storage add-in cards. Dual-channel DDR3 1600/1333 memory scales to 32 GB across four 240-pin slots with ECC support.

Thermals, Noise and Power Delivery

A single 400 W 80PLUS Gold power supply handles conversion efficiency for typical rack environments. The Aspeed AST2300 BMC with 32 MB video memory provides out-of-band management via ASWM Enterprise and ASMB7-iKVM without taxing the main CPU. Quad Intel I210-AT controllers deliver four 1 GbE ports for redundant network connectivity. Buyers needing redundant power supplies or higher-wattage configurations will need a different chassis.

Highlights

  • Supports Intel Xeon E3-1200 v3 processors for general-purpose workloads
  • Four DDR3 memory slots accept up to 32 GB with ECC support
  • Six SATA ports provide 3 Gb/s and 6 Gb/s storage connectivity
  • Quad Intel I210-AT Gigabit LAN ports for redundant networking
  • Single 400 W 80 PLUS Gold power supply reduces energy loss

Specifications

BrandASUS
SeriesE8
ModelRS300-E8-PS4
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeIntel Xeon E3-1200 v3 product family
CPU SocketLGA 1150
North BridgeIntel C224
Memory Slots4 x 240Pin
Max Memory Supported32GB
Memory Type SupportedDDR3 1600/1333
Channel SupportedDual Channel
ECC SupportedYes
Serial ATA2 x SATA 300 + 4 SATA 600
SATA RAIDIntel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
GPU/VPUAspeed AST2300
Video Memory32MB
PCI Express1 * PCI-E x16 (Gen3 x8 link) (Full-Height/HL)
1 * PCI-E x8 (Gen3 x4 link) (Full-Height/HL)
1* PIKE Slot for Stroage Enhancement
First LAN4 x Intel I210-AT
Max. LAN SpeedQuad 1 Gigabit
Slim Bays1
Hot-Swap Bays4 x 3.5"
Front USB2 x USB 3.0
PS/21 x PS/2 KB/MS port
VGA2 x VGA port (Front x 1, Rear x 1)
Rear USB2 x USB 3.0, 2 x USB 2.0
RJ455 x RJ-45 ports (One for ASMB7-iKVM)(Optional)
Other Ports1 x Internal A Type USB Port
Max. PowerSingle 400W 80PLUS Gold Power Supply
FeaturesSoftware: ASWM Enterprise
*Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-IP
Shipping weight15.42 kg
Package size836 × 597 × 188 mm

Questions about this item

How loud does the single 400W 80PLUS Gold supply get when the server runs at 40°C all day?

The 400W 80PLUS Gold unit is rated for continuous operation at up to 40°C ambient, so fan speed stays moderate under sustained load.

Which processor and memory must I supply to complete this barebone?

You need an Intel Xeon E3-1200 v3 family CPU for the LGA 1150 socket and DDR3 1600/1333 ECC UDIMMs, up to 32 GB across four 240-pin slots.

Will my older SATA 3 Gb/s drives work with the onboard SATA ports?

Yes, the board provides two SATA 300 and four SATA 600 ports, so legacy 3 Gb/s drives connect without adapters.
