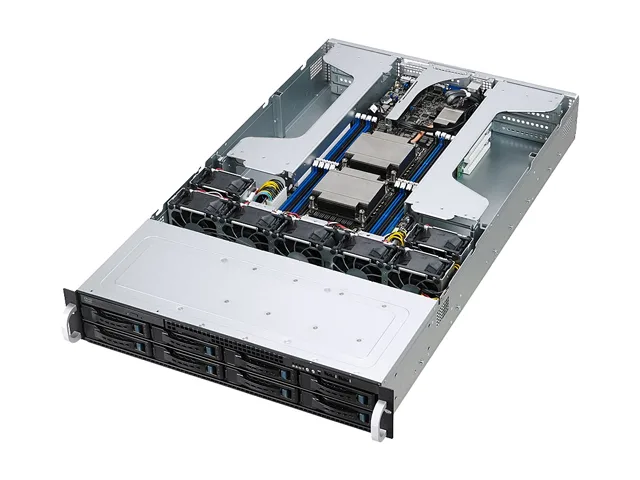

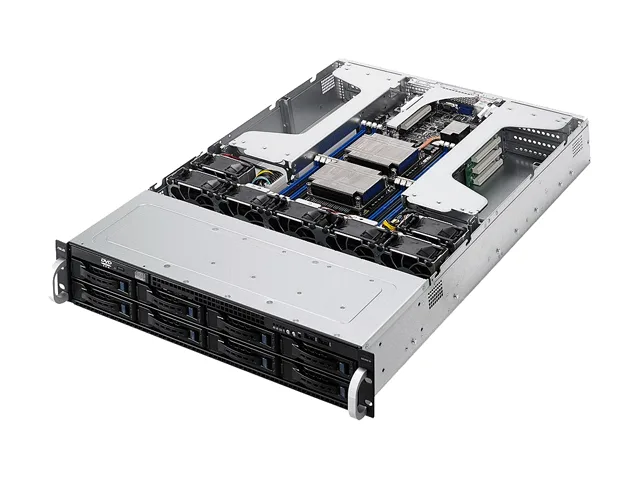

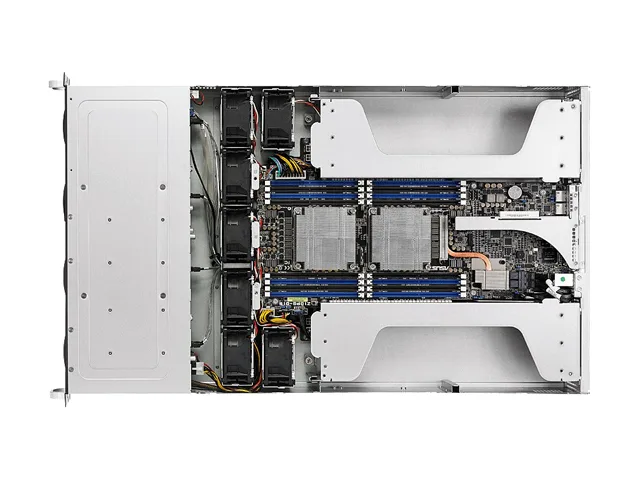

Silver 2U rackmount server chassis with front drive bays and rear expansion slots

ASUS

ASUS ESC4000 G3 barebone pc 2U rack dual Xeon LGA2011-3 DDR4 8×3.5" 10 slots

SKU CH-ZMV4-AN0RJ MPN ESC4000 G3

2U rack-mount barebone server supporting dual Xeon processors with eight 3.5" drive bays and ten expansion slots

  • CPU TypeXeon
  • CPU SocketSocket R3 (LGA2011-3)
  • Memory Type SupportedDDR4-2133/PC4-17000
  • PCI Express9 x PCI Express x16
  • Serial ATANumber of SATA Interfaces:8
  • Onboard VideoAST2400
  • Dual Xeon LGA2011-3 support for heavy compute
  • Eight 3.5" drive bays for massive storage
  • Ten expansion slots fit eight full-length cards
  • DDR4-2133 memory up to 1 TB capacity
  • AST2400 onboard video with Q-Code LED diagnostics

Dual Xeon 2U barebone for GPU compute

The ASUS ESC4000 G3 is a 2U rack-mountable barebone system built around the Intel C612 chipset and dual Socket R3 (LGA2011-3) for Xeon processors. It targets users who need dense CPU-plus-co-processor performance in a compact server chassis.

Tool-less rail kit and Q-Code display aid deployment

The exclusive tool-less rail kit simplifies rack installation, while the visible Q-Code port 80 LED display shows real-time POST progress for rapid diagnostics. No heatsinks or GPU cables are included, so builders must source compatible coolers and power cabling for their chosen expansion cards.

Eight 3.5-inch bays and ten expansion slots

Eight hot-swap 3.5-inch drive bays provide high-density SATA 600 storage, and ten total slots support up to eight single-width or four dual-width full-length cards. Memory scales to 1 TB of DDR4-2133 across the board, with the AST2400 handling onboard video for management tasks.

Highlights

  • Dual Xeon LGA2011-3 support for heavy compute
  • Eight 3.5" drive bays for massive storage
  • Ten expansion slots fit eight full-length cards
  • DDR4-2133 memory up to 1 TB capacity
  • AST2400 onboard video with Q-Code LED diagnostics

Specifications

BrandASUS
CPU TypeXeon
CPU SocketSocket R3 (LGA2011-3)
Memory Type SupportedDDR4-2133/PC4-17000
PCI Express9 x PCI Express x16
Serial ATANumber of SATA Interfaces:8
Onboard VideoAST2400
FeaturesNumber of Processors Supported:2
Number of 3.5" Bays:8
Number of Total Expansion Slots:10
Form Factor:Rack-mountable
Controller Type:Serial ATA/600
Maximum Memory:1 TB
Chipset Manufacturer:Intel
Chipset Model:C612
Graphics Memory Capacity:32 MB
RAID Supported:Yes
Ethernet Technology:Ethernet
Total Number of USB Ports:4
Height:3.4"
Width:17.5"
Depth:29.5"
Rack Height:2U
Operating System Supported:CentOS
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Ubuntu Server
Windows Server 2008 R2 Enterprise
Windows Server 2012
Windows Server 2012 R2
Package ContentsESC4000 G3 Barebone System
1 x MB Support DVD
1 X ASWM Enterprise DVD
1 x ASMB8 SDVD
1 x Bag of Screws
1 x AC Power Cable
8 x GPU Air Ducts
Shipping weight34.02 kg
Package size965 × 589 × 272 mm

Questions about this item

How do I confirm the ESC4000 G3 is booting correctly after installing the dual Xeon processors and memory?

The front Q-Code/port 80 LED display shows POST codes during each boot stage so you can watch the initialisation sequence and verify the system reaches the operating system load.

Which components are included with the barebone and which must I source separately for a working server?

The box contains the chassis, proprietary motherboard, two DVDs, screw bag, AC power cable and eight GPU air ducts; you must add two LGA2011-3 Xeon CPUs, DDR4-2133 RDIMMs, storage drives for the eight 3.5-inch bays and any expansion cards for the ten slots.

Which DDR4 memory speed should I select to match the motherboard specification?

The board supports DDR4-2133/PC4-17000 modules up to a total of 1 TB across the available DIMM slots.
