ASRock

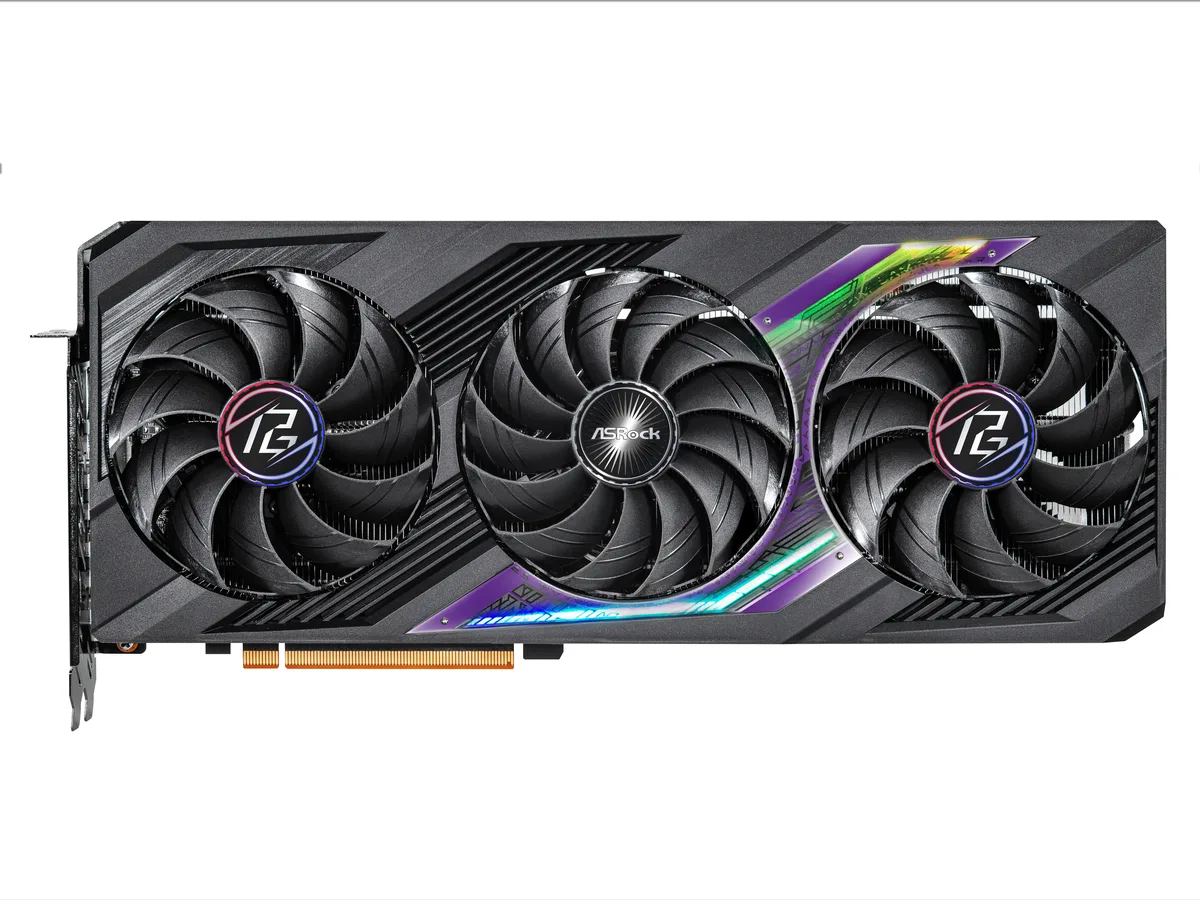

ASRock RX7700XT PG 12GO graphics card
A Radeon RX 7700 XT GPU with 12GB GDDR6 on a 192-bit bus, 3456 stream processors and boost clock of 2599 MHz, triple-fan cooling, PCIe 4.0 x16, HDMI 2.1 plus three DisplayPort 2.1 outputs, 245W TDP
- InterfacePCI Express 4.0 x16
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 7000 Series
- GPURadeon RX 7700 XT
- Core Clock2276 MHz
- Boost Clock2599 MHz
- 12GB GDDR6 memory handles high-resolution textures
- Boost clock up to 2599 MHz drives high frame rates
- Triple-fan cooler keeps thermals controlled under load
- PCI Express 4.0 x16 interface delivers full bandwidth
- HDMI 2.1 plus three DisplayPort 2.1 outputs support four displays
Phantom Gaming 12GB GPU
The ASRock Radeon RX 7700 XT Phantom Gaming card delivers 12GB of GDDR6 memory across a 192-bit interface for 1440p gaming and creative workloads. It targets enthusiasts who want high frame rates without stepping up to flagship pricing. The triple-fan cooler keeps the 245W board stable under load.
Upgrade from 8GB or older architecture
Moving from an 8GB card or a pre-RDNA 3 GPU unlocks the 3456 stream processors and 2599 MHz boost clock for noticeably higher texture headroom. The jump is worth it when your current VRAM limit forces texture downgrades or when you need DisplayPort 2.1 for new high-refresh panels. DirectX 12 Ultimate support future-proofs the feature set.
ATX build with 750W PSU and 328 mm clearance
The 2.8-slot design needs a case that fits 328 mm length and a 750W power supply with two 8-pin connectors. PCI Express 4.0 x16 provides full bandwidth on modern platforms. One HDMI 2.1 and three DisplayPort 2.1 outputs drive up to four 7680 x 4320 displays simultaneously.
Highlights
- 12GB GDDR6 memory handles high-resolution textures
- Boost clock up to 2599 MHz drives high frame rates
- Triple-fan cooler keeps thermals controlled under load
- PCI Express 4.0 x16 interface delivers full bandwidth
- HDMI 2.1 plus three DisplayPort 2.1 outputs support four displays
Specifications
| Brand | ASRock |
|---|---|
| Series | Phantom Gaming |
| Model | RX7700XT PG 12GO |
| Interface | PCI Express 4.0 x16 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 7000 Series |
| GPU | Radeon RX 7700 XT |
| Core Clock | 2276 MHz |
| Boost Clock | 2599 MHz |
| Stream Processors | 3456 Stream Processors |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1 |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 245W |
| Recommended PSU Wattage | 750W |
| Form Factor | ATX |
| Max GPU Length | 328 mm |
| Slot Width | 2.8 Slots |
| Shipping weight | 1.86 kg |
| Package size | 404 × 217 × 100 mm |
Questions about this item
Will the 328 mm length and 2.8-slot width fit inside my ATX case?
The card measures 328 mm long and occupies 2.8 slots, so verify your case has at least that much clearance from the motherboard slot to the drive cage or side panel.
Which PCIe power connectors are required and how many?
A 750 W PSU is recommended for the 245 W board; connect two 8-pin PCIe cables directly from the supply — avoid daisy-chained pigtails to ensure stable power delivery.
How often should I clean the triple-fan cooler to keep thermals in check?
Use compressed air to blow dust from the three fans and heatsink fins every three to six months, holding the blades still while spraying to prevent bearing damage.
