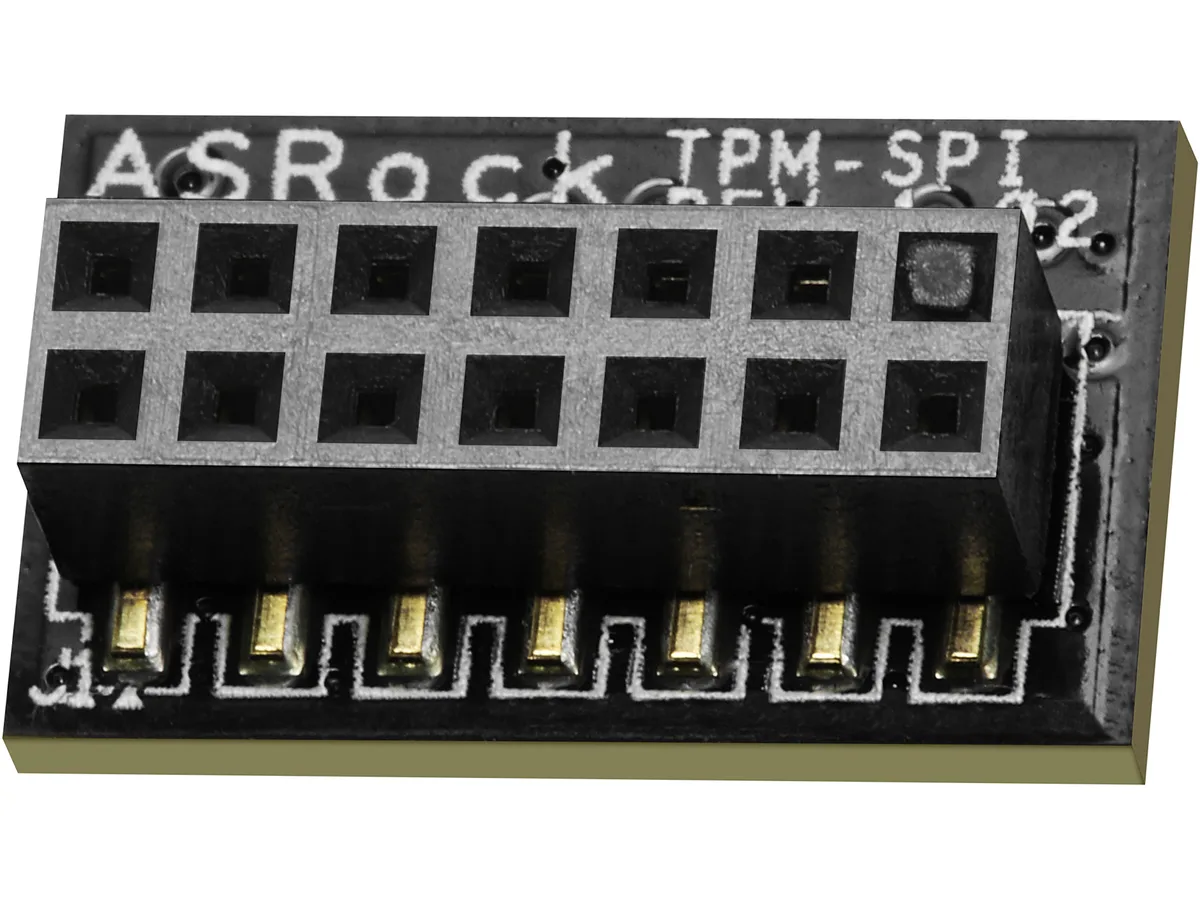

Small black rectangular TPM module, 16.51mm by 10.16mm

ASRock Rack

ASRock Rack TPM-SPI 2.0 server accessory

SKU CH-4VJ8-NJ6KP

A TPM 2.0 module with SPI interface, 24 PCRs and 7206 bytes of NV memory for server platform security

  • TypeTPM
  • ColorBlack
  • SpecificationsDimensions: 16.51mm x 10.16mm Type: Compliant to TPM Main Sp
  • TPM 2.0 revision 1.16 meets Intel TXT and Windows certification criteria
  • SPI interface fits server boards with 16.51 mm by 10.16 mm footprint
  • Random number generator follows NIST SP800-90A for strong cryptographic keys
  • 24 PCR banks and 7206 bytes NV memory store measurements and secrets
  • Low 110 µA standby current and -40 to +85 °C range suit always-on systems

Dedicated TPM 2.0 module

The ASRock Rack TPM-SPI is a discrete trusted platform module that adds hardware-based cryptographic functions to compatible server boards. It targets system integrators and administrators who need measured boot, disk encryption key storage or platform attestation on hardware that lacks an integrated TPM.

Low standby draw and wide temperature range

Typical standby current is 110 µA, so the device adds negligible load to the platform power budget. It is rated for standard operation from -20 °C to +85 °C and an enhanced range down to -40 °C, allowing deployment in cooled racks or harsher industrial environments without active cooling.

SPI interface in a 16.51 mm by 10.16 mm package

The module uses a 32-pin VQFN or UQFN footprint that is pin-compatible with the SLB 9670 TPM 1.2, enabling drop-in upgrades on validated layouts. Twenty-four PCR banks support SHA-1 or SHA-256 measurements, while 7 206 bytes of non-volatile memory and support for up to 64 active sessions provide headroom for multiple concurrent security contexts.

Highlights

  • TPM 2.0 revision 1.16 meets Intel TXT and Windows certification criteria
  • SPI interface fits server boards with 16.51 mm by 10.16 mm footprint
  • Random number generator follows NIST SP800-90A for strong cryptographic keys
  • 24 PCR banks and 7206 bytes NV memory store measurements and secrets
  • Low 110 µA standby current and -40 to +85 °C range suit always-on systems

Specifications

BrandASRock Rack
ModelTPM-SPI
TypeTPM
ColorBlack
SpecificationsDimensions: 16.51mm x 10.16mm
Type: Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16
- SPI interface
- Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
- Random Number Generator (RNG) according to NIST SP800-90A
- Full personalization with Endorsement Key (EK) and EK certificate
- Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
- PG-VQFN-32-13 or PG-UQFN-32-1 package
- Pin compatible to OPTIGA TPM SLB 9670 TPM1.2 version
- Optimized for battery operated devices: low sta
Shipping weight0.09 kg
Package size71 × 58 × 13 mm

Questions about this item

How do I install the ASRock Rack TPM-SPI 2.0 module on my server motherboard, and which step is commonly missed?

Plug the 32-pin PG-VQFN-32-13 or PG-UQFN-32-1 package into the dedicated SPI TPM header, then enable the TPM 2.0 device in the BIOS Security menu; the step most builders skip is activating it in firmware after physical insertion.

What maintenance or replacement will the TPM-SPI module need during its service life?

The module has no moving parts or battery; it requires no scheduled maintenance, and replacement is only necessary if the motherboard fails or platform certification demands a newer TPM revision.

What is the first limit reached under sustained cryptographic workloads on this TPM 2.0 device?

The firmware caps concurrent operations at 64 active sessions and 3 loaded transient objects, so heavy key-generation workloads hit the session ceiling before thermal or power limits appear.
