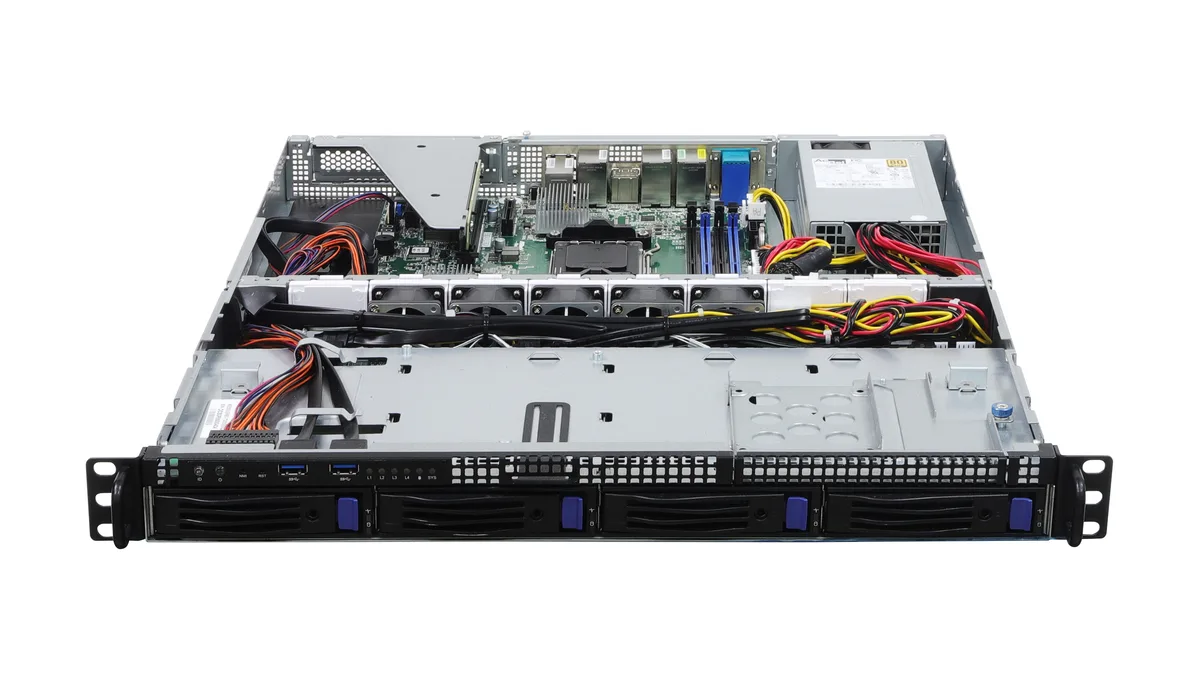

Silver 1U rackmount chassis with four front drive bays and dual power supply visible

ASRock Rack

ASRock Rack 1U4LW-B650/2L2T barebone server

SKU CH-HCJM-5NJW4 MPN 1U4LW-B650/2L2T

1U rackmount barebone with four hot-swap 3.5" SATA bays, dual 10GbE and dual 1GbE, single AM5 socket for Ryzen 7000/8000/9000 or EPYC 4004, four DDR5 ECC DIMM slots.

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeAMD Ryzen 7000 Series
  • CPU SocketSingle Socket AM5 (LGA 1718)
  • Installed CPUNo CPU Installed
  • Max Processors1
  • 1U rackmount with 400W 80-PLUS Gold PSU for efficient power delivery
  • Single Socket AM5 supports AMD EPYC 4004 and Ryzen 7000/8000/9000 processors
  • Four DDR5 DIMM slots accept ECC or non-ECC UDIMM up to 48GB each
  • Four hot-swap 3.5-inch SATA bays plus one PCIe 5.0 M.2 slot for storage flexibility
  • Dual 10GbE and dual 1GbE ports provide high-speed network connectivity

Purpose-built 1U server barebone

The ASRock Rack 1U4LW-B650/2L2T is a 1U rackmount barebone designed for general-purpose workloads. It targets system integrators and IT teams building compact storage or compute nodes. The chassis includes a single-socket AM5 platform and an 80 PLUS Gold 400W power supply. No processor, memory or drives are installed.

Socket AM5 with B650 chipset

The board uses the AMD B650 chipset and a single Socket AM5 (LGA 1718) that accepts AMD EPYC 4004 and Ryzen 7000, 8000 and 9000 series CPUs. Four DDR5 288-pin DIMM slots support ECC and non-ECC UDIMMs up to 48 GB per module. Memory runs at 5200 MHz with one DIMM per channel or 3600 MHz with two DIMMs per channel.

Sustained operation in a 1U enclosure

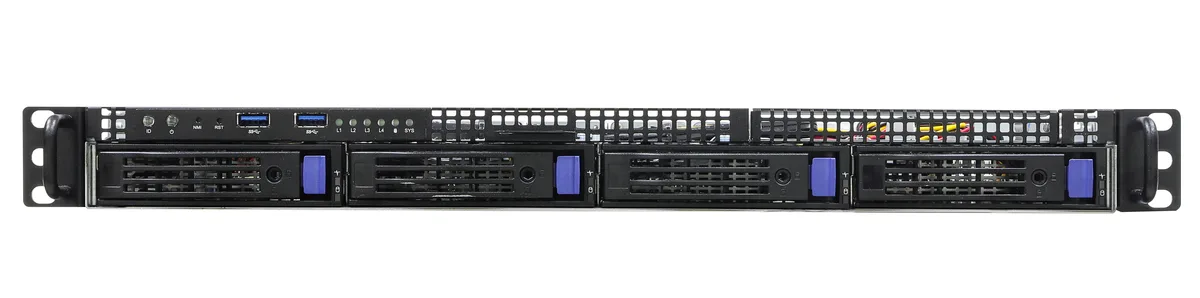

Four hot-swap 3.5-inch SATA bays provide high-density storage without exceeding the 1U height. Dual 10 GbE ports from the Broadcom BCM57416 and dual 1 GbE ports from the Intel i210 handle continuous network throughput. A full-height PCIe 4.0 x16 slot and an M.2 slot with PCIe 5.0 x4 allow expansion cards and fast boot devices to run within the 400W power budget.

Highlights

  • 1U rackmount with 400W 80-PLUS Gold PSU for efficient power delivery
  • Single Socket AM5 supports AMD EPYC 4004 and Ryzen 7000/8000/9000 processors
  • Four DDR5 DIMM slots accept ECC or non-ECC UDIMM up to 48GB each
  • Four hot-swap 3.5-inch SATA bays plus one PCIe 5.0 M.2 slot for storage flexibility
  • Dual 10GbE and dual 1GbE ports provide high-speed network connectivity

Specifications

BrandASRock Rack
Model1U4LW-B650/2L2T
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeAMD Ryzen 7000 Series
CPU SocketSingle Socket AM5 (LGA 1718)
Installed CPUNo CPU Installed
Max Processors1
North BridgeAMD B650
Memory Slots4 DIMM slots (2DPC)
DDR5 288-pin ECC/non-ECC UDIMM
Installed Memory SizeNo Memory Installed
Max Memory SupportedMax. Capacity per DIMM: 48GB
Memory Type SupportedMax. DIMM Frequency: 5200 MHz (1DPC); 3600 MHz (2DPC)
ECC SupportedYes
Installed HDDNo Storage Installed
Serial ATA4 x SATA 600
M.21 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
GPU/VPUAspeed AST2600
PCI ExpressRear: 1 FH PCIe4.0 x16 via RB1UX16_G4
First LANBroadcom BCM57416: 2 RJ45 (10GbE)
Second LANIntel i210: 2 RJ45 (1GbE)
Max. LAN Speed10 Gigabit
Hot-Swap Bays4 Hot-swap 3.5" SATA drive bays
Front USB2 Type-A (USB3.2 Gen1)
Other PortsUID Button/LED: 1 UID button w/ LED
VGA Port: 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port: 1 DB9 (COM)
USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
Max. Power400W 80-PLUS Gold
System CompatibilityMicrosoft Windows:
- Windows 10 (64 bit)
- Windows 11 (64 bit)
Linux:
- RedHat Enterprise Linux Server 8.7 (64bit)
- CentOs 8.5 ( 64 bit)
- SUSE SLES 15.4(64 bit) / 15.2(64 bit)
- UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
Hypervisor:
- VMWare ESXi 8.0 / 7.0 U3g
BIOS FeaturesBIOS Type: AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features: Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
Fans5 PWM Hot-swap 40x28 mm fans
Hardware MonitorTemperature: CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
Fan: Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage: VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
TemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
HumidityNon operation humidity: 20% ~ 90% ( Non condensing)
Shipping weight16.03 kg
Package size770 × 638 × 218 mm

Questions about this item

What does the 5200 MHz DDR5 rating mean once the board is populated?

With one DIMM per channel the board runs up to 5200 MHz; filling all four slots drops the ceiling to 3600 MHz.

How does the M.2 slot's PCIe 5.0 x4 link translate to real throughput?

The slot is wired for PCIe 5.0 x4 from the CPU, so a compatible drive can use the full four-lane bandwidth.

What physical space do the drive bays and expansion slot occupy?

Four hot-swap 3.5" SATA bays sit at the front, and one full-height PCIe 4.0 x16 slot is available at the rear via the included riser.
