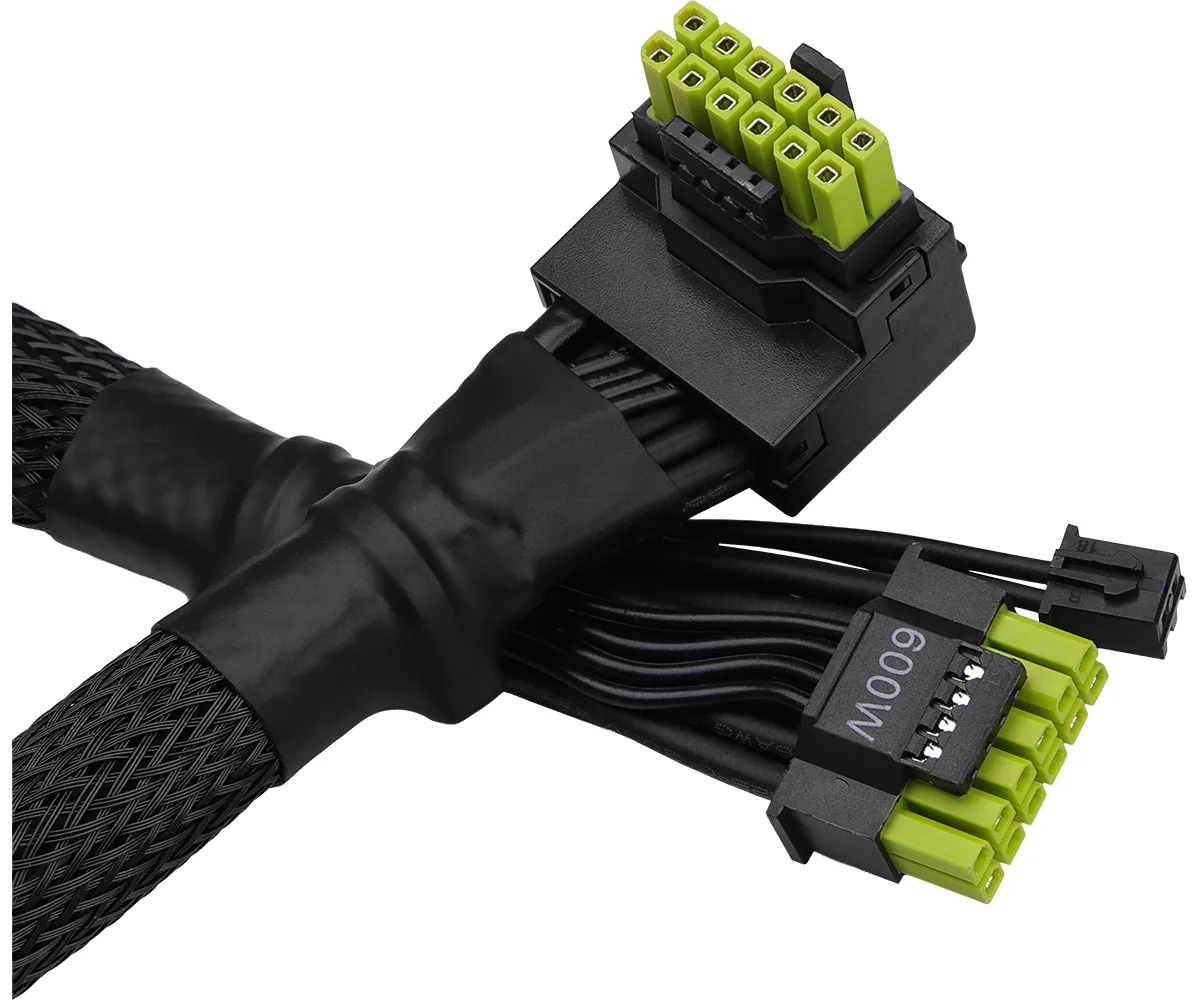

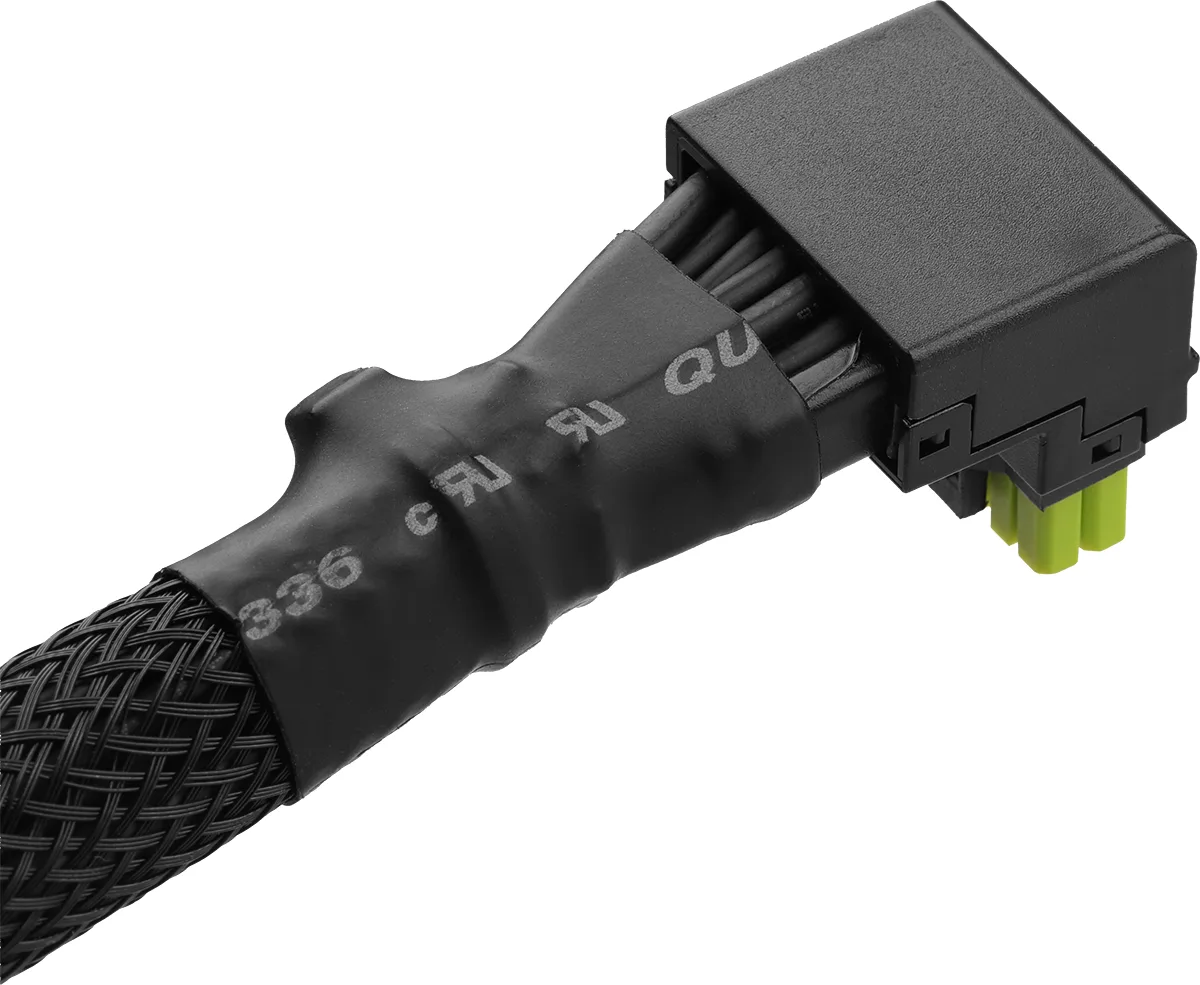

Black 12V-2x6 internal power cable with right-angle L-type connector, 2.3 ft long

ASRock

ASRock CB-12V2X6L600W 12V-2x6 600W internal power cable

SKU CH-S9ZG-K78FR MPN CB-12V2X6L600W

A 700 mm L-type 12V-2x6 cable delivering up to 600 W for PCIe 5.1 graphics cards

  • TypePCI-E
  • ColorBlack
  • Cable Length2.3 ft. (0.70m)
  • Specifications1x 700mm 12+4pin to 12+4pin (L-Type) 12V-2x6 Cable, PCIe 5.1
  • Connector A1x 12V-2x6 male
  • Connector B1x 12V-2x6 male
  • ATX 3.1 and PCIe 5.1 compliant for modern GPU power delivery

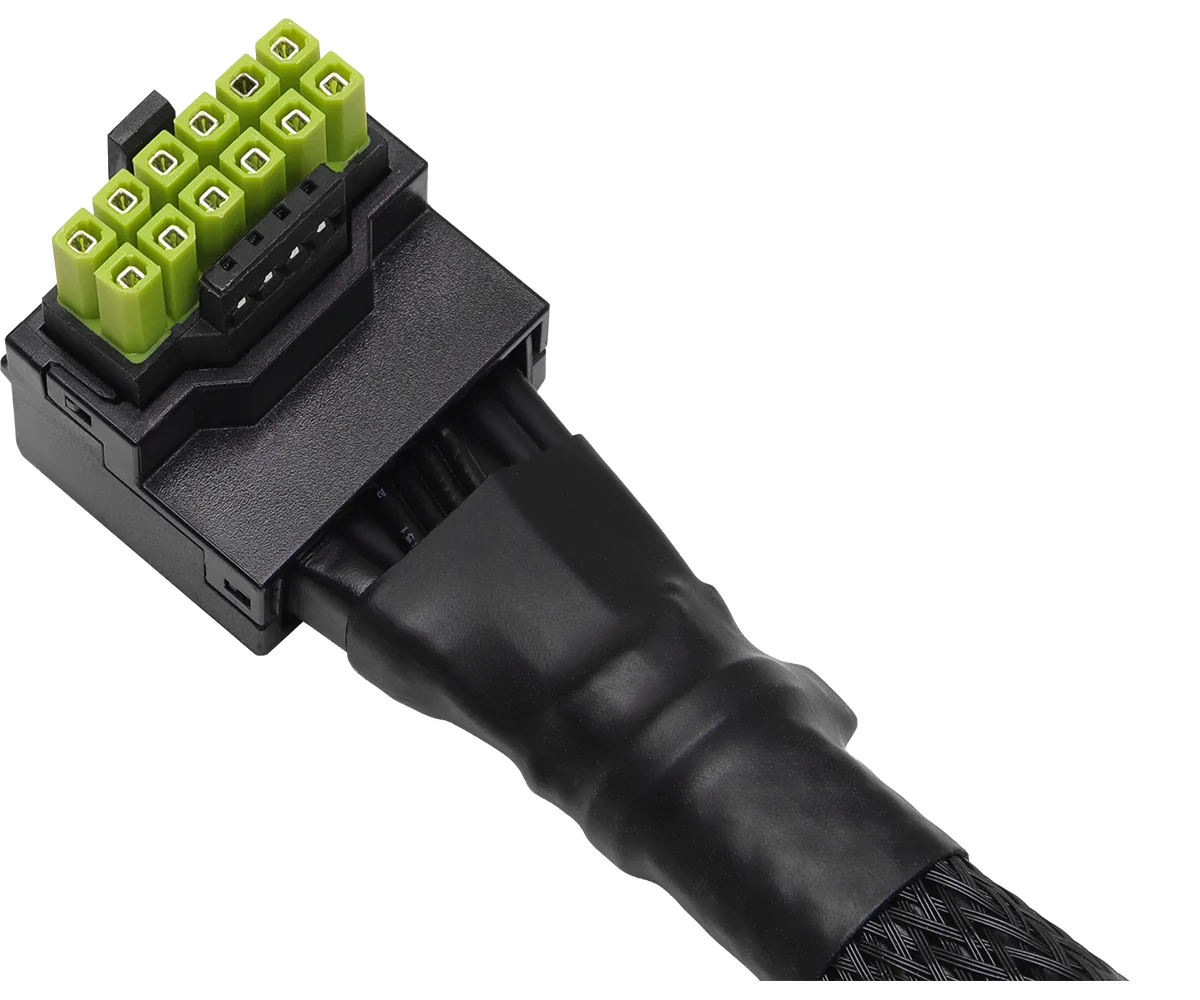

  • L-Type right-angle connector eases routing in tight cases
  • 600 W rating supports high-end graphics cards
  • 16 AWG wires with 94V-0 housing handle sustained current safely
  • 3 ft length reaches most PSU-to-GPU paths without excess slack

12V-2x6 GPU power cable for RTX 40 series

This 12V-2x6 internal power cable connects an ATX 3.1 power supply directly to a compatible graphics card. It is built for owners of RTX 40 series GPUs who need a single, standards-compliant link without adapters. The L-Type right-angle connector eases routing in tighter chassis. The 700 mm length suits most mid-tower builds.

Thermals and power handling at 600 W

The cable uses 16 AWG conductors and HCS terminals housed in 94V-0 rated plastic to carry up to 600 W. Over-temperature protection activates when paired with ASRock Taichi or Phantom Gaming series power supplies. PCIe 5.1 and ATX 3.1 compliance ensures stable delivery under sustained load. No active cooling or fan noise is involved.

Dual-colour design and backwards compatibility

The 12V-2x6 format remains backwards compatible with existing 12VHPWR sockets on earlier cards. A dual-colour sheath helps builders distinguish the GPU-side L-Type plug from the PSU-side straight connector during installation. The package contains only the single 2.3 ft cable; no extra combs, ties or software utilities are included.

Highlights

  • ATX 3.1 and PCIe 5.1 compliant for modern GPU power delivery
  • L-Type right-angle connector eases routing in tight cases
  • 600 W rating supports high-end graphics cards
  • 16 AWG wires with 94V-0 housing handle sustained current safely
  • 3 ft length reaches most PSU-to-GPU paths without excess slack

Specifications

BrandASRock
ModelCB-12V2X6L600W
TypePCI-E
ColorBlack
Cable Length2.3 ft. (0.70m)
Specifications1x 700mm 12+4pin to 12+4pin (L-Type) 12V-2x6 Cable, PCIe 5.1
Connector A1x 12V-2x6 male
Connector B1x 12V-2x6 male
Connector Number2
Terminal GenderFemale to Female
Shipping weight0.16 kg
Package size241 × 127 × 25 mm

Questions about this item

How do I install the right-angle L-Type 12V-2x6 connector on my GPU?

Plug the L-Type end into the graphics card 12V-2x6 socket until the latch clicks; the 700mm cable runs from the PSU 12V-2x6 port to the GPU.

What maintenance or replacement will this cable need later?

Inspect the 16 AWG conductors and 94V-0 housings periodically for discoloration or melting; replace the cable if any terminal shows heat damage.

What limit appears first under sustained 600 W load?

The 600 W rating and 16 AWG wire gauge set the thermal ceiling; the over-temperature protection on compatible ASRock PSUs will trip before the cable exceeds its design limit.
