Small rectangular USB camera board with lens and microphone, 62.3 by 9 by 7 millimetres

ARENTI

ARENTI 16MP USB Camera Module 2 in 1 accessory 68° lens

SKU CH-QPNQ-QZXKF

A 16MP IMX298 USB camera module with autofocus, 68° field of view and UVC plug-and-play for PC, Raspberry Pi or Android

  • 16MP IMX298 sensor delivers sharp 4656×3496 stills
  • Autofocus lens covers 68° horizontal view without distortion

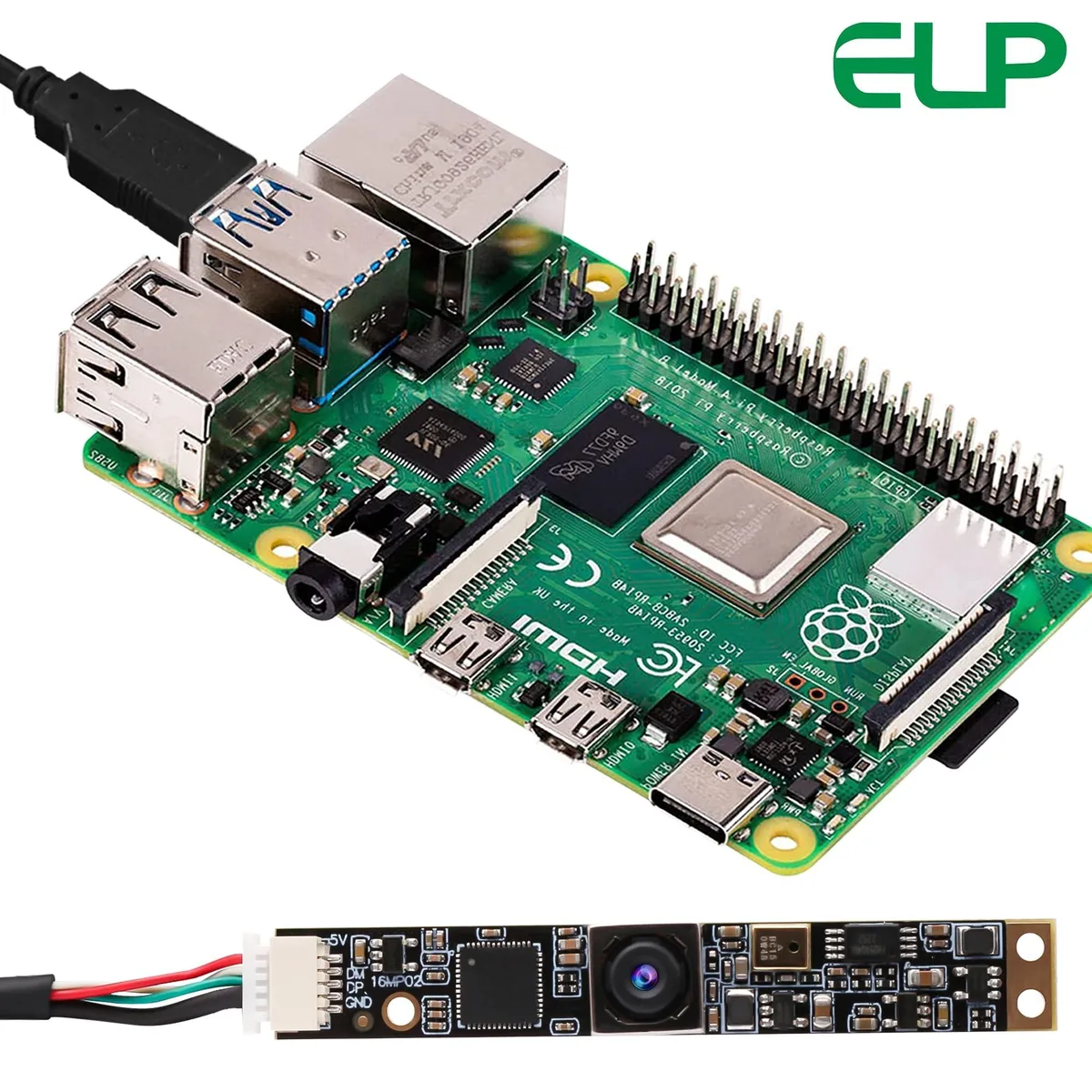

  • UVC plug-and-play works on PC, laptop, Android or Raspberry Pi
  • 30 fps at 1280×720 for smooth video calls
  • Tiny 62.3 mm board fits tight spaces for surveillance or machine vision

Compact 16MP USB camera module for embedded vision

This ARENTI module uses a 16MP IMX298 sensor to deliver still images up to 4656 x 3496 and video at 10fps in 4K or 30fps at 1080p. The 68° autofocus lens provides a fixed horizontal field of view without distortion. UVC compliance lets it work on Windows, Linux, Android and Raspberry Pi without extra drivers. Its 62.3mm board fits inside tight enclosures for surveillance, machine vision or laser engraver monitoring.

Fixed 68° autofocus lens and UVC interface

The integrated autofocus lens locks the horizontal field of view at 68 degrees, removing the need for manual focus adjustment during deployment. UVC support means the camera appears as a standard video class device, so any application that reads a webcam can capture MJPEG streams at the listed resolutions and frame rates. No proprietary software or firmware updates are supplied, so feature changes rely on the host application.

Press-fit installation in narrow spaces

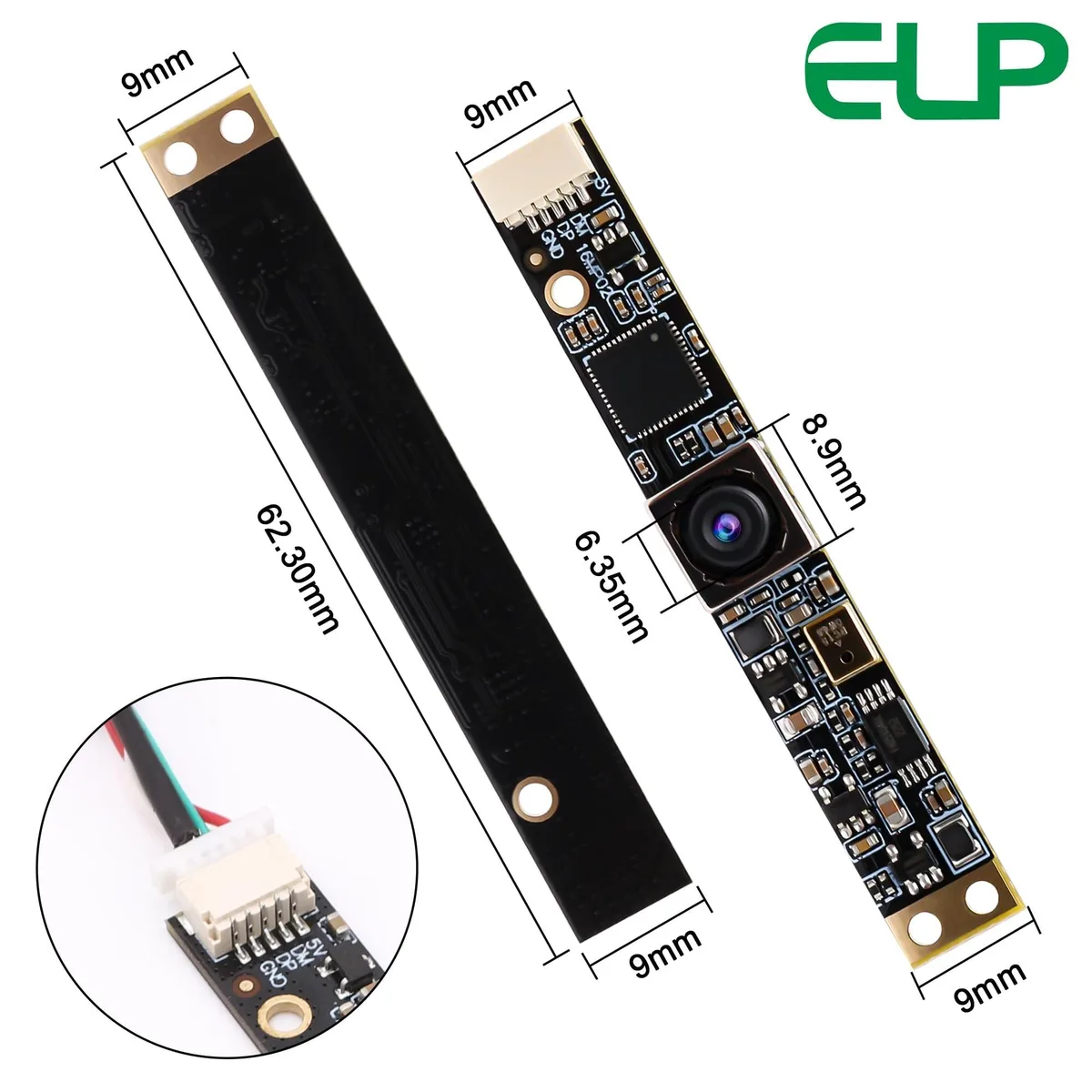

The 62.3 x 9 x 7mm board slides into tight brackets or custom 3D-printed mounts with no screw holes documented. Builders typically route the Micro-USB cable through a small cutout and secure the module with adhesive or friction fit. The fixed 68° view cannot be widened, so projects needing a wider angle must choose a different module. Autofocus may hunt in very low light, and the Micro-USB connector can loosen under vibration unless strain-relieved.

Highlights

  • 16MP IMX298 sensor delivers sharp 4656×3496 stills
  • Autofocus lens covers 68° horizontal view without distortion
  • UVC plug-and-play works on PC, laptop, Android or Raspberry Pi
  • 30 fps at 1280×720 for smooth video calls
  • Tiny 62.3 mm board fits tight spaces for surveillance or machine vision

Specifications

No published specifications for this item yet.

Questions about this item

Does the 16 MP IMX298 sensor or autofocus lens need periodic cleaning or replacement?

The fixed-focus autofocus lens has no moving parts to wear out; only the glass surface may need occasional dust removal with a soft cloth.

What resolution or frame-rate limit appears first during continuous streaming?

At the top 4656 x 3496 resolution the module is capped at 10 fps MJPEG; dropping to 2048 x 1536 or lower raises the ceiling to 30 fps.

How much heat or power draw should I expect when the camera runs all day?

The board draws power only from the USB port and stays cool enough for enclosed mounting; no fan or heatsink is required.
