Black 140 mm case fan with 27 mm thick frame and 3 pin connector

ARCTIC COOLING

ARCTIC COOLING ACFAN00123A P14 140 mm case fan

SKU CH-CFA8-8Z11Q MPN ACFAN00123A

Pressure-optimised 140 mm fan delivers 72.8 CFM at 1700 RPM with 0.3 Sone noise and fluid-dynamic bearing

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Fan Thickness27mm

Fan Size 140mm

  • 30mm
  • 140mm

Struck-through versions exist but are not stocked here.

LED · Model P14

  • P14
  • P14 (Pack of 5)
  • P14 PWM PST W/W

Struck-through versions exist but are not stocked here.

  • Pressure-optimised design delivers 2.4 mm H₂O static pressure for dense heatsinks and radiators
  • Fluid-dynamic bearing keeps noise to 0.3 sone while spinning at 1700 RPM
  • 8 CFM airflow moves 123.76 m³/h through restrictive vents
  • 27 mm thick 140 mm frame fits standard mounts and supports push-pull configurations
  • 3-pin power connector provides simple voltage control without extra controllers

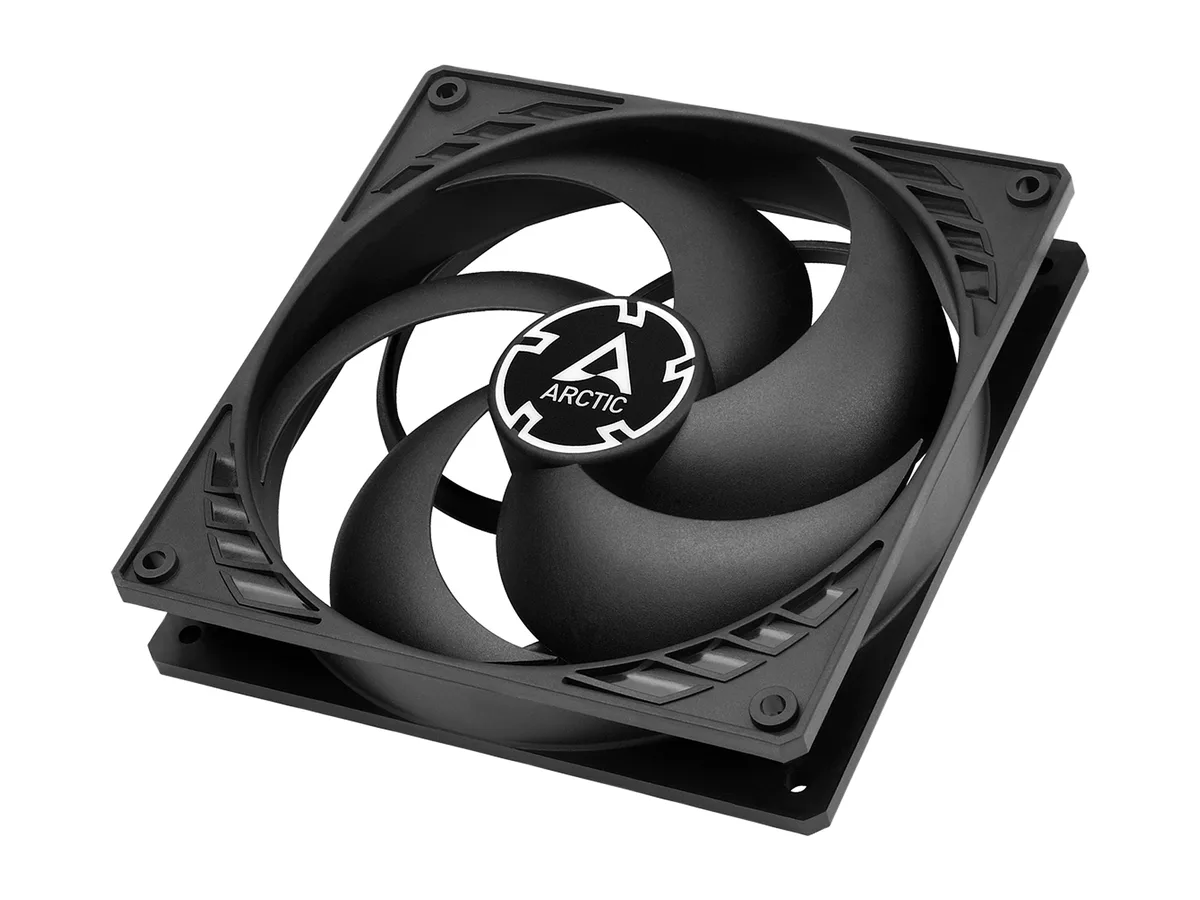

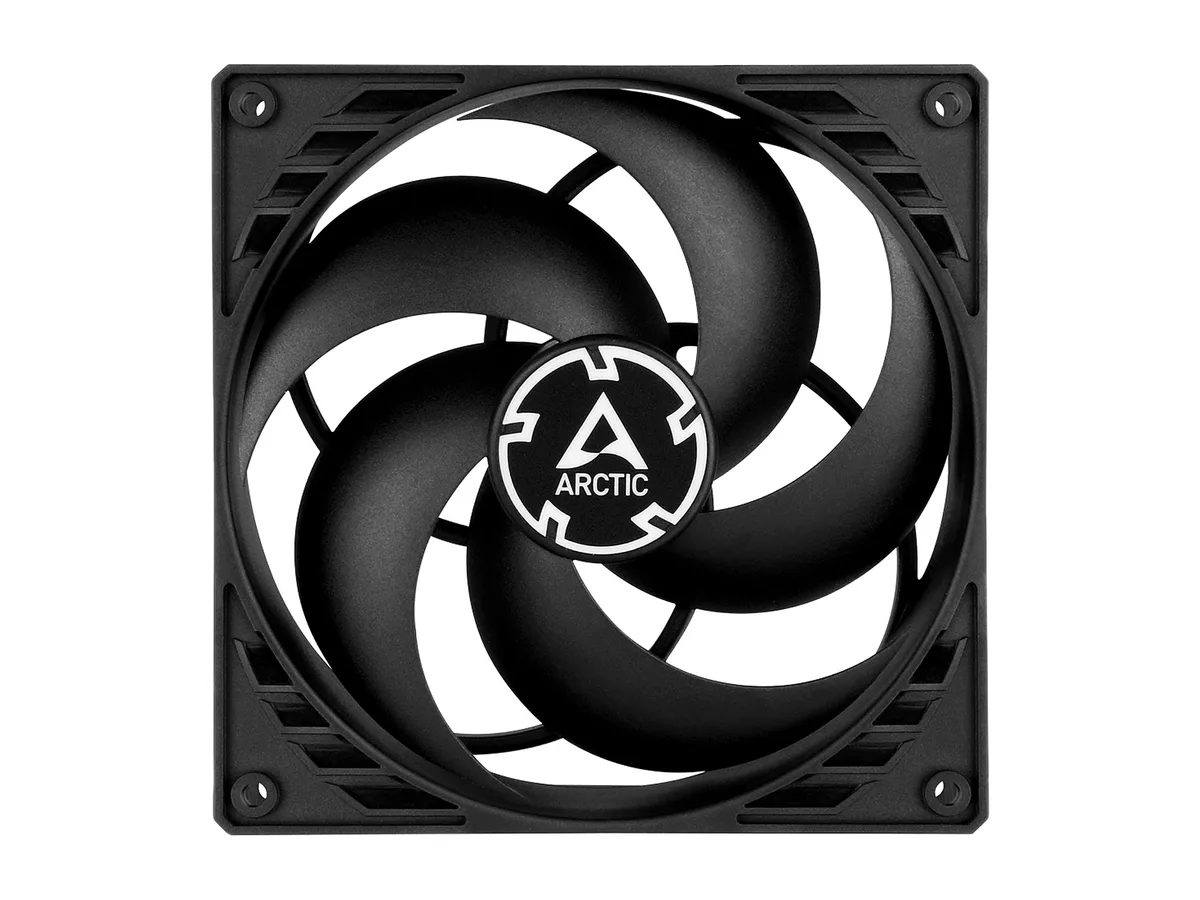

140 mm pressure-optimised case fan

The ARCTIC P14 is a 140 mm case fan built for static-pressure tasks such as heatsinks, radiators and partly covered vents. It spins at 1700 RPM and moves 72.8 CFM of air while producing only 0.3 Sone of noise. A fluid-dynamic bearing keeps the single fan running smoothly in push or pull configurations.

3-pin connector and 27 mm thickness

The fan uses a standard 3-pin power connector, so confirm your motherboard or fan hub has a free 3-pin header before ordering. Its frame measures 140.00 x 140.00 x 27.00 mm, meaning the mounting holes must match 140 mm spacing and the case or radiator must accommodate the 27 mm depth. Four mounting screws are included in the package.

Sustained pressure delivery

Under continuous load the fan maintains its rated static pressure of 2.4 mm H2O and airflow of 123.76 m³/h without the drop-off typical of airflow-optimised designs. The fluid-dynamic bearing and pressure-tuned blade geometry keep performance stable during long rendering or gaming sessions. Noise remains at the quoted 0.3 Sone level even at constant 1700 RPM.

Highlights

  • Pressure-optimised design delivers 2.4 mm H₂O static pressure for dense heatsinks and radiators
  • Fluid-dynamic bearing keeps noise to 0.3 sone while spinning at 1700 RPM
  • 8 CFM airflow moves 123.76 m³/h through restrictive vents
  • 27 mm thick 140 mm frame fits standard mounts and supports push-pull configurations
  • 3-pin power connector provides simple voltage control without extra controllers

Specifications

BrandARCTIC COOLING
SeriesP14
ModelACFAN00123A
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size140mm
Fan Thickness27mm
Bearing TypeFluid Dynamic
RPM1700 RPM
Air Flow72.8 CFM
Noise Level0.3 Sone
Power Connector3 Pin
ColorBlack
FeaturesOptimized for static pressure
Ideal for heatsinks,radiators, and partly covered vents
Pull/push config. Possible
Static pres. 2.4 mm H2), airflow: 72.8 CFM/123.76 m^3/h
Dimensions140.00 x 140.00 x 27.00 mm
Package Contents1 x Fan
4 x Screw
Shipping weight0.17 kg
Package size145 × 145 × 30 mm

Questions about this item

Does the package include everything needed to mount the 140 mm fan or are extra screws required?

The box contains the 140 mm fan and four mounting screws so no additional hardware is needed for a standard case installation.

The P14 is listed at 1700 RPM and 0.3 Sone — should I choose this model or a lower-speed variant for quieter operation?

At 1700 RPM the fan delivers 72.8 CFM with a noise rating of 0.3 Sone; if you need less airflow and even lower noise you would need a different model with a lower RPM specification.

What does the 2.4 mm H₂O static pressure figure mean when the fan is mounted on a radiator or heatsink?

A static pressure of 2.4 mm H₂O indicates the fan can push air effectively through the dense fins of a radiator or heatsink, making it suitable for push or pull configurations on liquid-cooling radiators.
