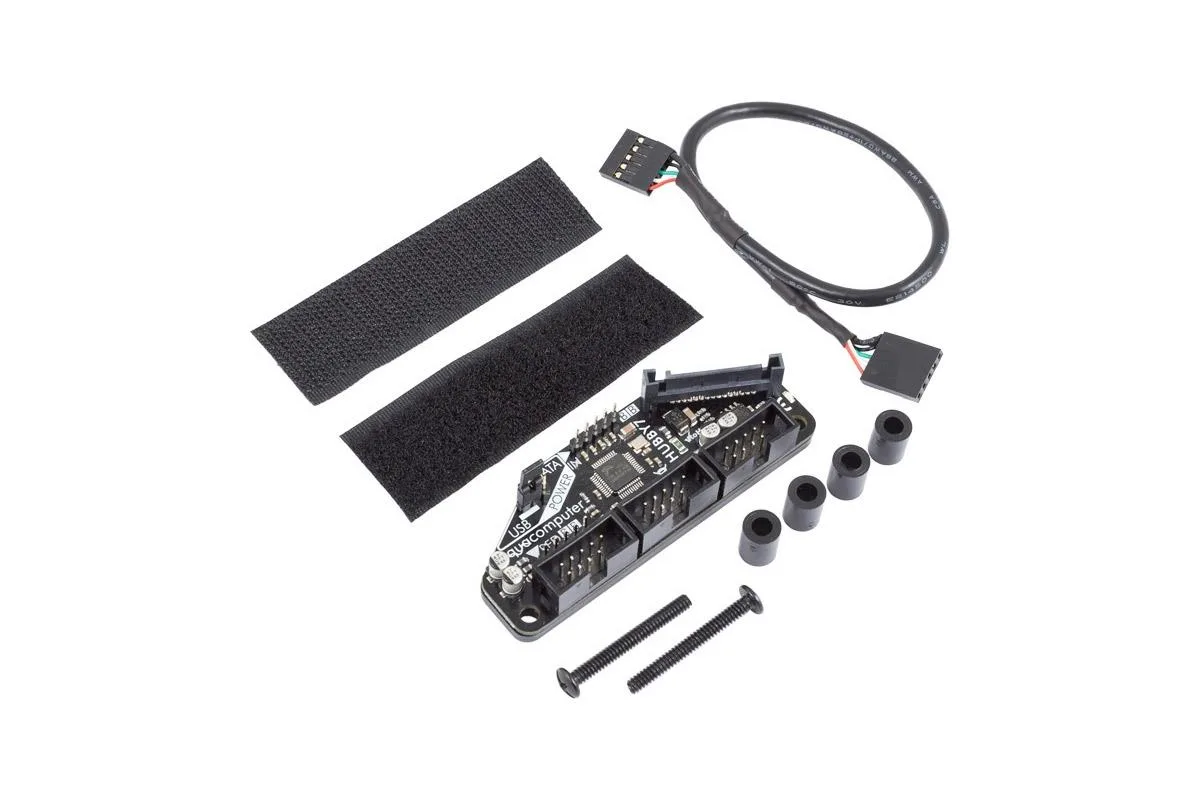

Black rectangular internal USB 2.0 hub with seven ports and SATA power connector

Aquacomputer

Aquacomputer HUBBY7 Internal USB 2.0 Hub 7-Port SATA 53230

SKU CH-GMHQ-P9W6H

Internal USB 2.0 hub adds seven ports with SATA power delivering up to 1000 mA split across two groups and current monitoring for safe operation

  • Block CompatibilityFalse
  • Pump Bearing12.5
  • Pump CapacityLK Aquacomputer HUBBY7 interner USB 2.0 Hub
  • Pump NoiseLüfterkabel und Adapter
  • Radiator Material19,79
  • ColorBlack
  • Seven-port internal USB 2.0 hub expands sensor and controller connectivity
  • SATA power delivers up to 1000 mA total current across all ports
  • Current monitoring with automatic shutdown protects motherboard and devices from overcurrent
  • Thermal monitoring plus safety fuse adds another layer of hardware protection
  • USB power option supplies up to 500 mA and can enable standby wake-up

Internal USB 2.0 Hub with Seven Ports

The Aquacomputer HUBBY7 adds seven internal USB 2.0 ports for connecting Aquacomputer sensors and controllers. It draws power from either a motherboard USB header or a SATA power connector. The hub is intended for builders who need more internal USB headers than the board provides.

500 mA USB Power or 1000 mA SATA Power

When powered from the motherboard USB header the hub shares a 500 mA budget across all seven ports and can keep devices active during standby. Switching to SATA power raises the total budget to 1000 mA split into two 500 mA groups but removes standby power. Builders who need more current than 1000 mA total cannot use this hub.

Overcurrent Monitoring and Thermal Fuse

The hub monitors current on every port and shuts down automatically if an overcurrent event occurs, reporting the error to the operating system. A thermal monitor and safety fuse add a second layer of protection for the motherboard and attached devices. No external mounting brackets or additional cooling hardware are included.

Highlights

  • Seven-port internal USB 2.0 hub expands sensor and controller connectivity
  • SATA power delivers up to 1000 mA total current across all ports
  • Current monitoring with automatic shutdown protects motherboard and devices from overcurrent
  • Thermal monitoring plus safety fuse adds another layer of hardware protection
  • USB power option supplies up to 500 mA and can enable standby wake-up

Specifications

BrandAquacomputer
Model53230
Part NumberAQ-53230
Block CompatibilityFalse
Pump Bearing12.5
Pump CapacityLK Aquacomputer HUBBY7 interner USB 2.0 Hub
Pump NoiseLüfterkabel und Adapter
Radiator Material19,79
ColorBlack
Reservoir CapacityFalse
FeaturesHUBBY7 is an internal USB 2.0 hub with seven ports. The hub is designed to meet the requirements of Aqua Computers sensors and controllers and comes with some special features:

Questions about this item

Will the HUBBY7 work with my existing USB 2.0 Aquacomputer sensors and controllers?

Yes, the hub is designed specifically for Aqua Computer sensors and controllers and provides seven USB 2.0 ports for them.

How can I confirm the HUBBY7 is operating correctly after installation?

The hub performs current monitoring and thermal monitoring, reporting any overcurrent errors to the operating system and shutting down the affected ports automatically.

Does the AQ-53230 include a SATA power cable or must I source one separately?

The hub includes a SATA power connector for PSU connection; a compatible SATA power cable from your power supply is required to use the 1000 mA total current mode.
