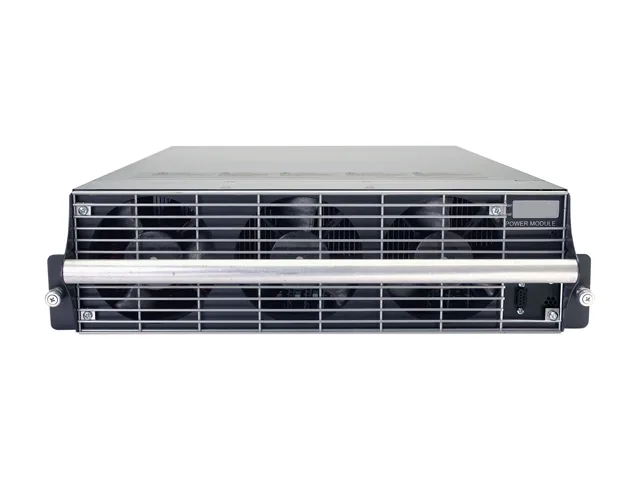

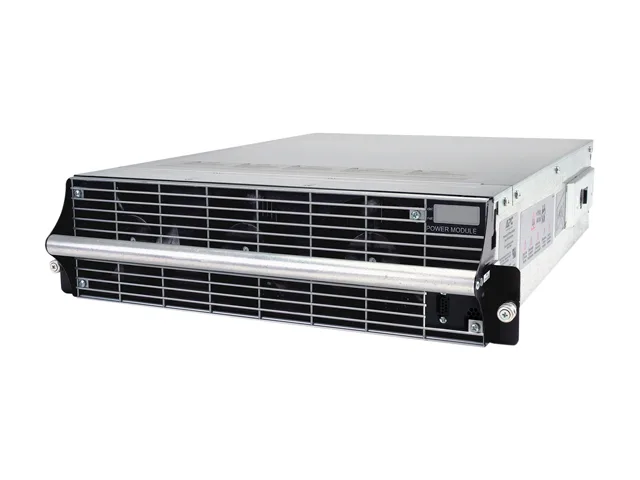

Rectangular metal UPS power module, 19 inch rack width, silver front panel with status lights

APC

APC SYPM10KF2 Symmetra PX 10 kW 208V UPS

SKU CH-KP19-7N2Z8 MPN SYPM10KF2

10 kW 208 V power module for Symmetra PX frames, 10000 VA and 10000 W output, cUL and FCC Class A listed

  • International Version208V
  • Input Voltage Range177 - 239 V
  • Input Frequency60 Hz +/- 3 Hz
  • VA Rating10000 VA
  • Watts10000 W
  • Output Voltage208V
  • 10 kW output power supports critical loads
  • 208 V input and output matches facility power
  • Hot-swappable 19-inch rack module enables easy scaling
  • cUL, FCC Class A and UL 60950 certifications ensure compliance
  • 1 lb weight fits standard rack capacity

10 kW 208V Power Module

The APC Symmetra PX SYPM10KF2 is a hot-swappable power module rated at 10000 VA and 10000 W for 208V environments. It fits Symmetra PX frames to add or replace capacity in scalable three-phase or single-phase installations. Facilities managers and data-centre engineers use it to grow runtime or redundancy without shutting down connected loads.

Hot-swap design with cUL and FCC Class A approvals

The unit measures 5.20 inches high, 19.02 inches wide and 27.56 inches deep, weighing 55.10 lbs, and slides into a standard 19-inch rack slot. Front-panel connectors and tool-less latches allow replacement while the UPS remains online. Certifications include cUL Listed, UL 60950, FCC Part 15 Class A, ISO 9001, ISO 14001, REACH and RoHS compliance.

Verify 208V input range and frame compatibility

Before ordering, confirm your site delivers 177 to 239 V at 60 Hz within the specified tolerance. Ensure the existing Symmetra PX frame has an available module bay and supports the 10 kW rating. The module synchronises to mains between 57 and 63 Hz or runs at 60 Hz ±0.1% when not synced.

Highlights

  • 10 kW output power supports critical loads
  • 208 V input and output matches facility power
  • Hot-swappable 19-inch rack module enables easy scaling
  • cUL, FCC Class A and UL 60950 certifications ensure compliance
  • 1 lb weight fits standard rack capacity

Specifications

BrandAPC
SeriesSymmetra
ModelSYPM10KF2
International Version208V
Input Voltage Range177 - 239 V
Input Frequency60 Hz +/- 3 Hz
VA Rating10000 VA
Watts10000 W
Output Voltage208V
Output FrequencyOutput Frequency (sync to mains): 57 - 63 Hz for 60 Hz nominal
Output Frequency (not synced): 60Hz +/- 0.1% for 60Hz nominal
ApprovalscUL Listed, FCC Part 15 Class A, ISO 14001, ISO 9001, UL 60950, UL Listed
Dimensions5.20" x 19.02" x 27.56"
Weight55.10 lbs.
Shipping weight27.99 kg
Package size795 × 595 × 225 mm

Questions about this item

What output frequency range does the 208V module deliver when synced to a 60 Hz mains supply?

The SYPM10KF2 tracks the mains between 57 and 63 Hz while synchronised to a 60 Hz nominal source, and holds 60 Hz ±0.1 % when running unsynchronised.

What rack depth and height clearance does the 5.2-inch high, 27.56-inch deep module require?

The power module occupies 3 U of height (5.20 in) and needs a cabinet at least 27.56 in deep; its 19.02 in width fits standard 19 in EIA rack rails.

How is the 55.10 lb hot-swap module installed, and what step is often missed?

Slide the module into the Symmetra PX frame until the front latch engages, then tighten the captive retention screws; skipping the screw tightening leaves the module loose and can break the high-current bus connection.
