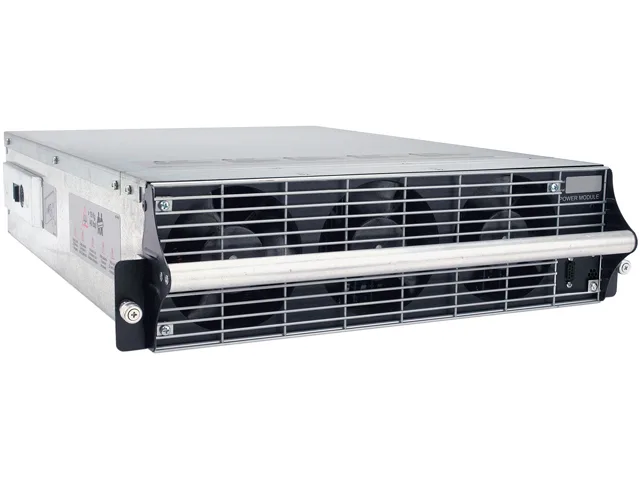

Rectangular metal chassis with front handle and ventilation slots, rack-mount form factor

APC

APC SYPM10KF2 Symmetra PX 10 kW 208 V power module accessory

SKU CH-NM7B-PRDNQ MPN SYPM10KF2

Provides 10 kW of 208 V three-phase UPS power with 92% efficiency in a 55 lb hot-swappable module

  • TypeBattery
  • SpecificationsOutput Output Power Capacity: 10 kWatts / 10 kVA Max Configu
  • Dimensions5.25" x 19.02" x 27.56"
  • Weight55.10 lbs.
  • Delivers 10 kW of reliable three-phase power at 208 V
  • 00% efficiency at full load reduces energy waste and heat
  • Pure sine-wave output with under 5% distortion protects sensitive equipment
  • Hard-wire 5-wire input and output connections support 3PH + N + G installations
  • cUL and UL 60950 listed with RoHS compliance for regulated environments

Symmetra PX 10 kW Power Module

The APC SYPM10KF2 is a hot-swappable power module for Symmetra PX UPS frames. It delivers 10 kW and 10 kVA at 208 V three-phase with 92.00 percent efficiency at full load. The unit accepts a 177-239 V input range and produces a sine-wave output with less than 5 percent distortion. Hard-wire 5-wire connections are used for both input and output.

Suits N+1 redundancy; not for standalone use

This module suits data-centre managers expanding an existing Symmetra PX chassis or replacing a failed unit to restore N+1 redundancy. It supports web, SNMP and Telnet management through an RJ-45 10 Base-T port and a SmartSlot. Buyers who need a self-contained UPS with internal batteries or a different voltage should look at other product lines.

10 kW / 10 kVA at 208 V three-phase

The single specification that decides fit is the 10 kW / 10 kVA rating at 208 V three-phase output. The module measures 5.25" x 19.02" x 27.56" and weighs 55.10 lbs. It carries cUL Listed, UL 60950, FCC Part 15 Class A, ISO 9001, ISO 14001 and RoHS approvals.

Highlights

  • Delivers 10 kW of reliable three-phase power at 208 V
  • 00% efficiency at full load reduces energy waste and heat
  • Pure sine-wave output with under 5% distortion protects sensitive equipment
  • Hard-wire 5-wire input and output connections support 3PH + N + G installations
  • cUL and UL 60950 listed with RoHS compliance for regulated environments

Specifications

BrandAPC
ModelSYPM10KF2
TypeBattery
SpecificationsOutput
Output Power Capacity: 10 kWatts / 10 kVA
Max Configurable Power: 10 kWatts / 10 kVA
Nominal Output Voltage: 208 V,208 V 3PH
Efficiency at Full Load: 92.00%
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 57 - 63Hz for 60Hz nominal
Crest Factor: Unlimited
Waveform Type: Sine wave
Output Connections: (1) Hard Wire 5-wire (3PH + N + G)
Input
Nominal Input Voltage: 208 V,208 V 3PH
Input Frequency: 60Hz +/- 3Hz
Input Connections: Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations: 177 - 239 (208 V) V
Communications & Manag
Dimensions5.25" x 19.02" x 27.56"
Weight55.10 lbs.
Shipping weight25.45 kg
Package size711 × 496 × 146 mm
