Silver rackmount UPS, 3U height, front panel with outlets and display

APC

APC SURTD5000RMXLP3U UPS 5000VA 4000W 208V 3U

SKU CH-7YJ1-5D5MT MPN SURTD5000RMXLP3U

Rack-mountable on-line UPS delivers 5000 VA and 4000 W with 208 V input and 120 V or 208 V output, plus six outlets and a SmartSlot interface

  • Input Frequency50/60 Hz +/- 5 Hz (auto sensing)
  • VA Rating5000 VA
  • Watts4000 Watts
  • Output Voltage120V,208V
  • Outlets6
  • Outlet Type(4) NEMA 5-20R (1) NEMA L14-30R (1) NEMA L6-30R
  • Delivers 4000 Watts continuous power for critical server loads
  • 1 minutes runtime at half load keeps systems running during outages
  • Converts 208 V input to 120 V and 208 V outputs for flexible distribution
  • Six mixed NEMA outlets support diverse equipment without adapters
  • Hot-swappable RBC44 battery enables replacement without downtime

Smart-UPS RT 5000VA on-line UPS

The APC SURTD5000RMXLP3U is a double-conversion on-line UPS rated at 5000 VA and 4000 W. It accepts a 208 V input and delivers both 120 V and 208 V output for mixed-voltage loads. The unit mounts in a standard 3U rack space and includes a SmartSlot for optional management cards. It suits server rooms and network closets that require continuous power conditioning.

Runtime at half and full load

At a 2000 W half load the battery provides 15.1 minutes of backup; at the full 4000 W load runtime drops to 4.8 minutes. Recharge takes 2.5 hours after a discharge event. The sealed lead-acid battery is user-replaceable using the RBC44 cartridge. Buyers needing more than five minutes at full load or longer half-load runtime should consider external battery packs or a higher-capacity model.

Outlets surge and management limits

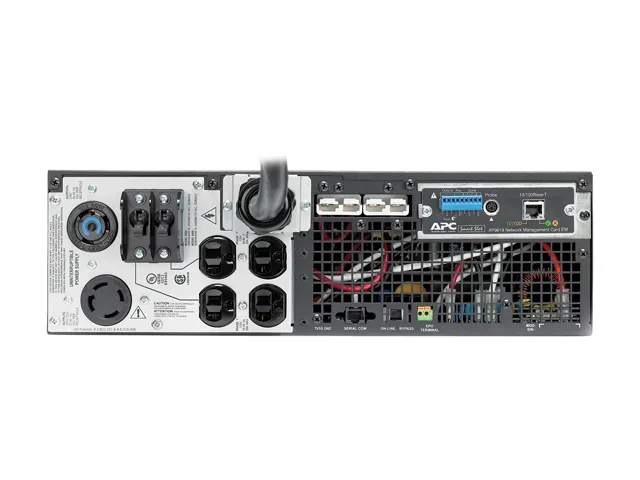

Six outlets are provided: four NEMA 5-20R, one NEMA L14-30R and one NEMA L6-30R. Surge protection is rated at 365 joules. The SmartSlot interface supports an optional network management card for remote monitoring. The unit carries CSA, FCC Part 15 Class A and UL 1778 approvals. Installations requiring more outlet count, higher surge rating or different receptacle types will need additional power distribution units.

Highlights

  • Delivers 4000 Watts continuous power for critical server loads
  • 1 minutes runtime at half load keeps systems running during outages
  • Converts 208 V input to 120 V and 208 V outputs for flexible distribution
  • Six mixed NEMA outlets support diverse equipment without adapters
  • Hot-swappable RBC44 battery enables replacement without downtime

Specifications

BrandAPC
ModelSURTD5000RMXLP3U
Input Frequency50/60 Hz +/- 5 Hz (auto sensing)
VA Rating5000 VA
Watts4000 Watts
Output Voltage120V,208V
Outlets6
Outlet Type(4) NEMA 5-20R
(1) NEMA L14-30R
(1) NEMA L6-30R
Battery TypeSealed Lead Acid
Battery Run TimeTypical Backup Time at Half Load: 15.1 minutes (2000 Watts)
Typical Backup Time at Full Load: 4.8 minutes (4000 Watts)
Battery Recharge Time2.50 hour(s)
Battery ReplaceableYes - RBC44
AlarmsAlarm when on battery
Distinctive low battery alarm
Overload continuous tone alarm
Interface PortSmart-Slot
ApprovalsCSA,FCC Part 15 Class A,UL 1778
Rackmountable3U
Surge Energy Rating365 Joules
Dimensions5.1" x 17" x 26"
Weight127.73 lbs. (58.06 kg)
Shipping weight70.31 kg
Package size970 × 607 × 338 mm

Questions about this item

Will the NEMA L6-30R and L14-30R outlets support my existing 208 V rack equipment?

Yes, the unit provides one NEMA L6-30R and one NEMA L14-30R outlet, both delivering 208 V output alongside four NEMA 5-20R outlets at 120 V.

How can I confirm the UPS is operating normally once installed?

The front-panel indicators show on-line, on-battery and fault states; a distinct low-battery alarm and a continuous overload tone sound when those conditions occur.

Which items ship with the UPS and what must I purchase separately?

The UPS includes the rack-mount chassis and internal RBC44 battery; the SmartSlot network management card and any input power cord are sold separately.
