APC SMTL2200RM2UCNC 2200VA 120V Lithium-ion UPS

APC Smart-UPS 2200VA Lithium-ion

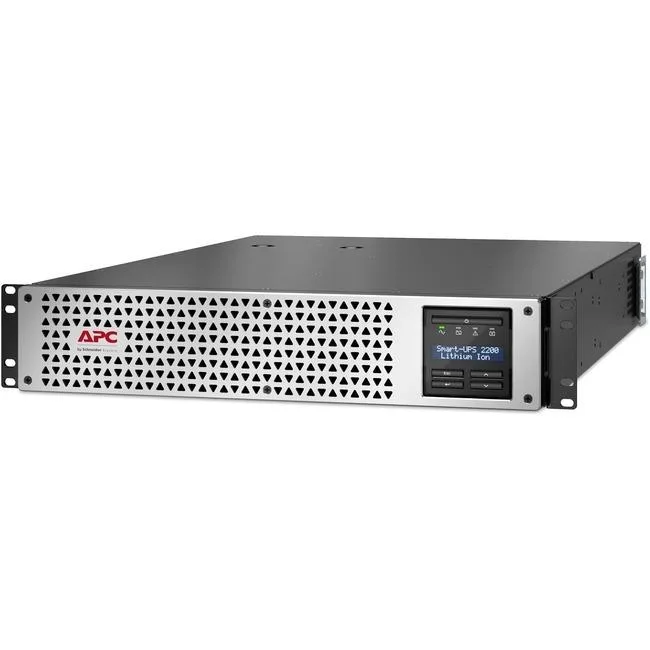

The APC Smart-UPS SMTL2200RM2UCNC is a 2200VA line-interactive UPS designed for rackmount environments. It delivers conditioned 120V power with automatic voltage regulation and surge protection. Built-in SmartConnect Ethernet and a pre-installed network card enable secure cloud monitoring and remote management. This unit suits IT managers who need reliable battery backup for servers and network gear in short-depth or standard racks.

Rackmount fit and outlet layout

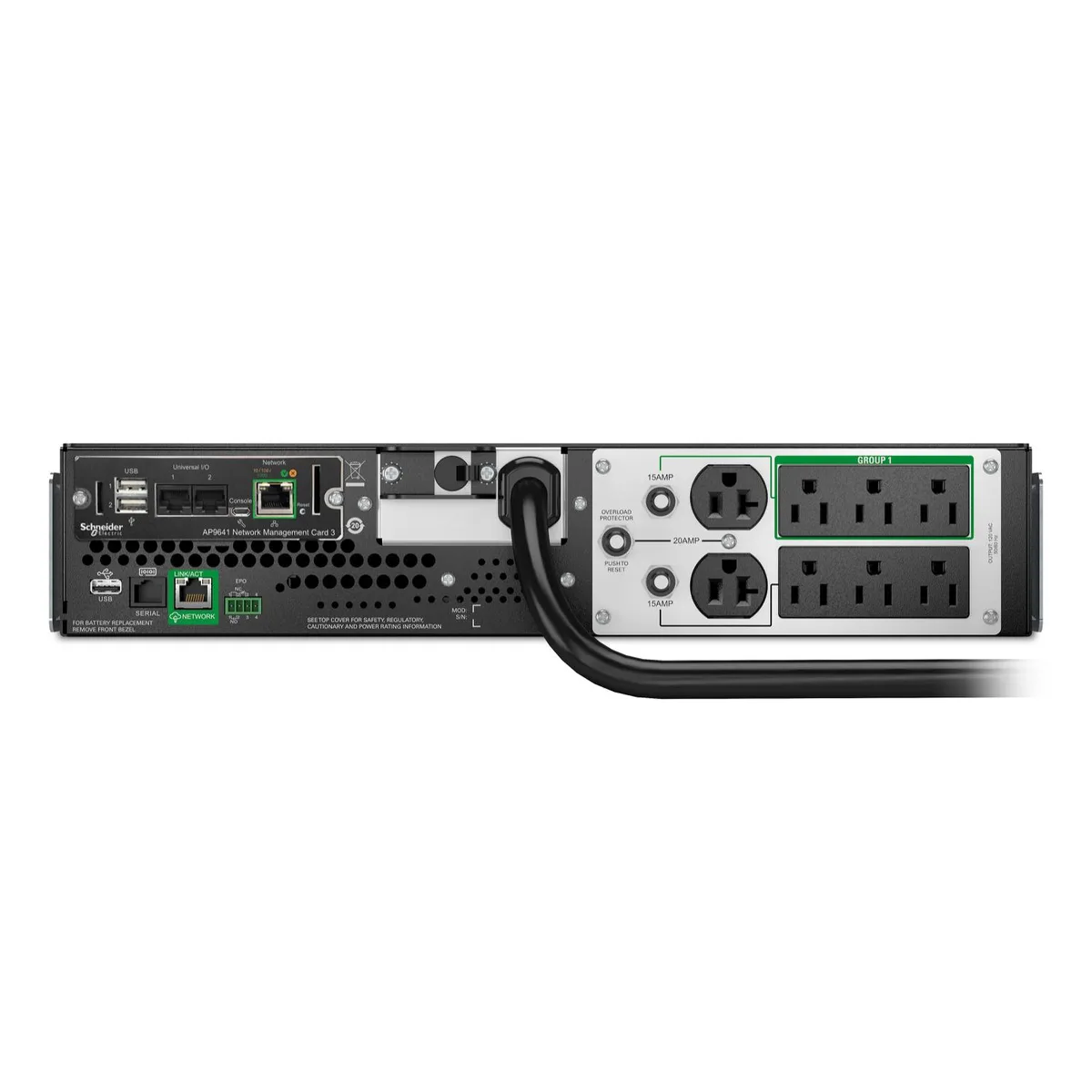

The 2U form factor fits short-depth and standard racks, leaving extra space for cable management behind the unit. Eight output receptacles are provided: two NEMA 5-20R and six NEMA 5-15R outlets. Equipment requiring 20 A connections and standard 15 A plugs can be powered simultaneously without additional distribution strips. The integrated network card and SmartConnect port connect directly to existing Ethernet infrastructure for out-of-band monitoring.

Battery capacity and runtime headroom

Lithium-ion cells reduce weight by up to 65% and extend service life to three times that of traditional VRLA batteries. Cell-level voltage monitoring ensures consistent performance across the pack. The UPS measures energy consumption and displays efficiency in each operating mode for straightforward tracking. Five-year coverage on both electronics and internal batteries provides long-term assurance. Units needing longer runtime or higher VA capacity will require a larger model.
