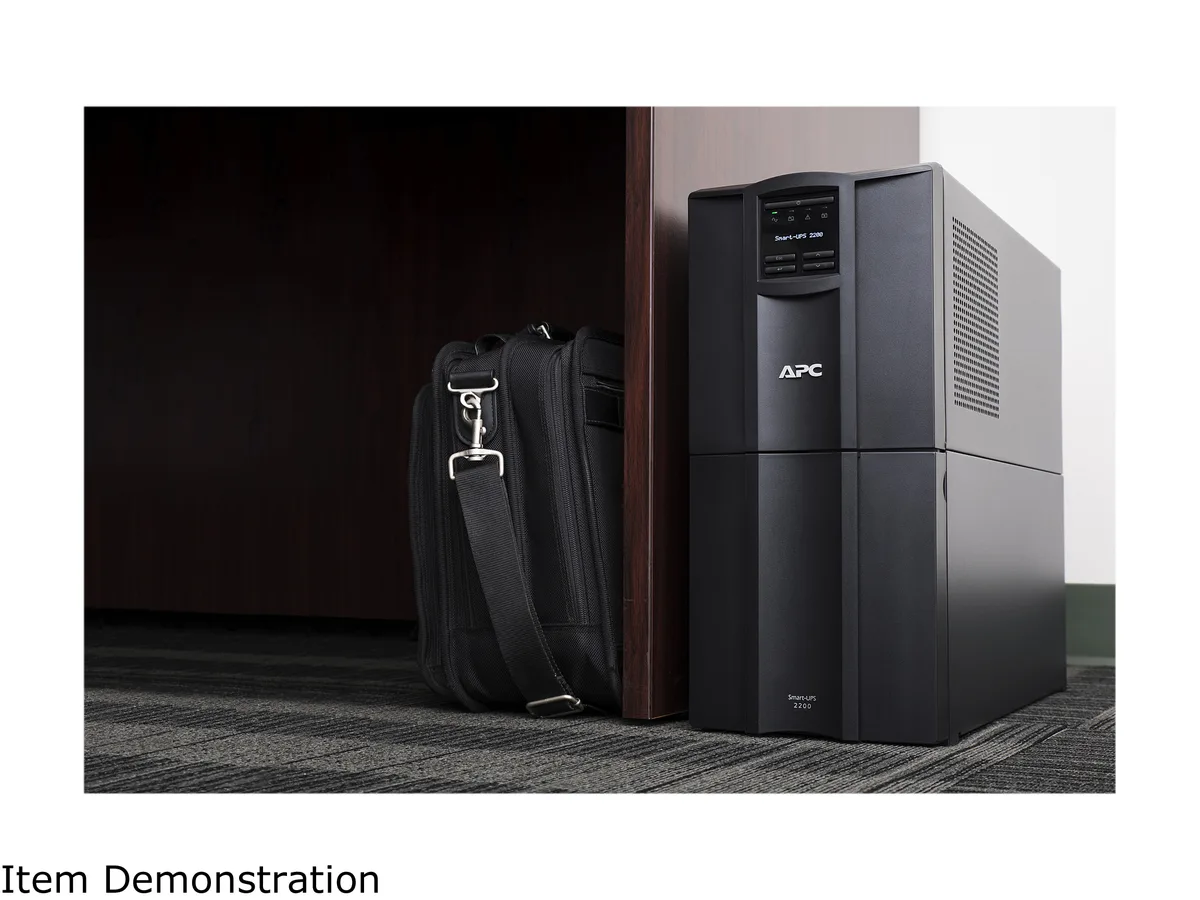

Tower UPS with LCD screen and ten NEMA outlets

APC

APC SMT2200C 2200VA 120V Tower UPS 10 Outlets

SKU CH-VTVB-J84G0 MPN SMT2200C

Line-interactive tower UPS delivers 2200 VA with automatic voltage regulation, LCD status screen, and ten outlets including two NEMA 5-20R

  • International Version120V
  • Input Voltage Range82 - 144V
  • Input Frequency50/60 Hz +/- 3 Hz
  • Input ConnectionNEMA 5-20P
  • VA Rating2200 VA
  • Watts1980 Watts

Options SMT2200C

Show 2 more configurations
  • 2200 VA capacity powers demanding servers and network gear
  • 1980 watts output with pure sine-wave waveform protects sensitive electronics
  • Automatic voltage regulation corrects 82-144 V input without draining battery
  • Hot-swappable RBC55 battery enables replacement while equipment stays running
  • LCD screen shows runtime, load, efficiency and battery health at a glance

Smart-UPS for servers and networks

The APC SMT2200C is a line-interactive uninterruptible power supply rated at 2200 VA and 1980 W. It delivers sine-wave output to protect servers, point-of-sale systems, routers, switches and other network devices from power disturbances. The unit operates from a 120 V input with a range of 82 to 144 V and includes automatic voltage regulation.

Runtime and load capacity

At full load the battery provides approximately 10.10 minutes of backup time, while the rated load capacity is 1920 VA. A sealed lead-acid battery recharges in roughly three hours and is user-replaceable using the RBC55 cartridge. Cold-start capability supplies temporary battery power when utility power is unavailable.

Connectivity and management limits

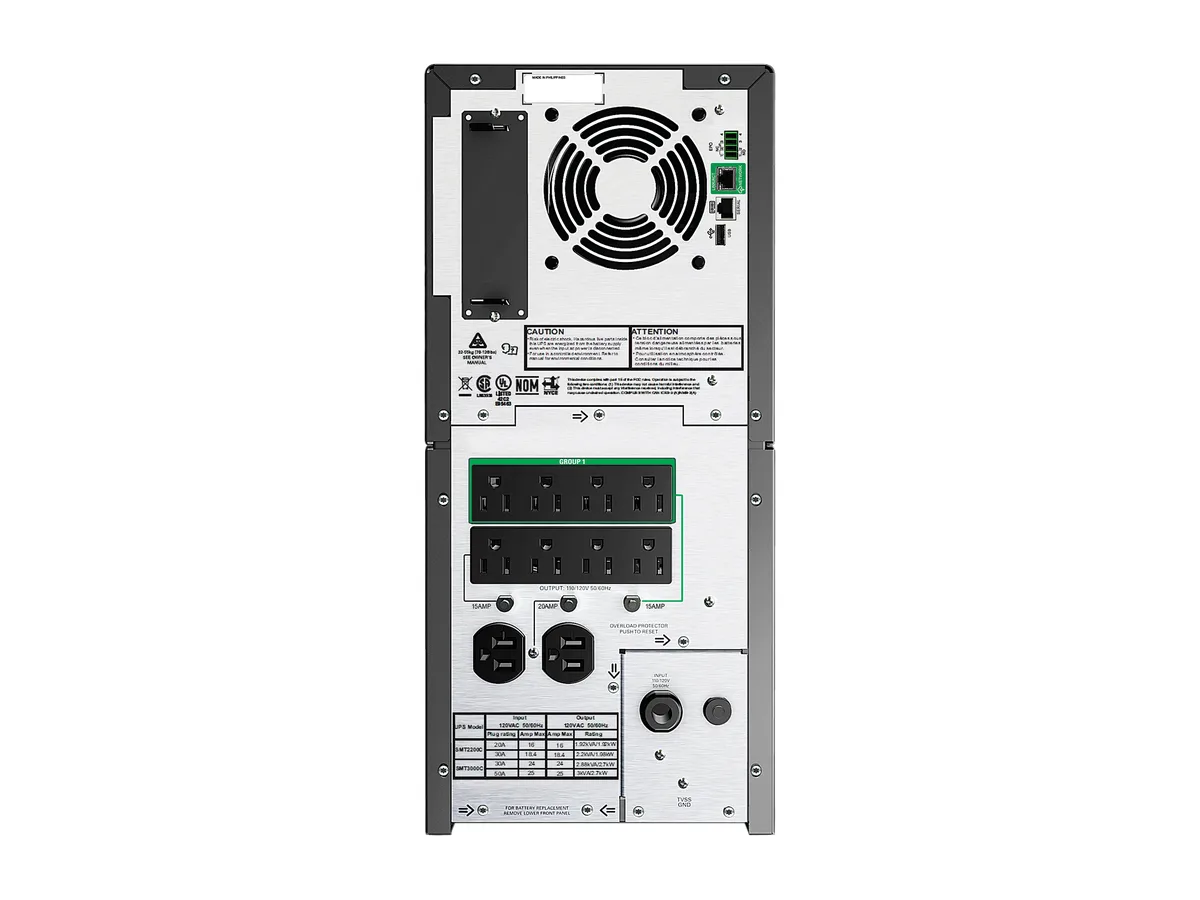

Ten output receptacles are provided: eight NEMA 5-15R and two NEMA 5-20R. The input connection uses a NEMA 5-20P plug. Management interfaces include an RJ-45 network port with SmartConnect, a USB port and a SmartSlot for optional cards. Surge energy rating is 530 J and the unit carries UL 1778 and CSA approvals.

Highlights

  • 2200 VA capacity powers demanding servers and network gear
  • 1980 watts output with pure sine-wave waveform protects sensitive electronics
  • Automatic voltage regulation corrects 82-144 V input without draining battery
  • Hot-swappable RBC55 battery enables replacement while equipment stays running
  • LCD screen shows runtime, load, efficiency and battery health at a glance

Specifications

BrandAPC
ModelSMT2200C
International Version120V
Input Voltage Range82 - 144V
Input Frequency50/60 Hz +/- 3 Hz
Input ConnectionNEMA 5-20P
VA Rating2200 VA
Watts1980 Watts
Output Voltage120V
Output Frequency47 - 53 Hz
Outlets10
Outlet Type8 x NEMA 5-15R
2 x NEMA 5-20R
Battery TypeSealed Lead Acid
Battery Run TimeAt Full load: 7 Minutes
Battery ReplaceableRBC55
Interface PortRJ-45, USB, Smart-Slot
ApprovalsUL 1778, CSA
FeaturesLCD Display Screen - Clear, Consistent, and detailed information in your choice of basic or advanced menus
Power Status- Operating mode, efficiency, load, input / output frequency, battery capacity, runtime and more
Configuration - Easily configure: language, power quality, alarms, delay and threshold settings
Test and Diagnostics - Initiate battery and runtime calibration tests
Control - UPS and outlet group settings
Quick Status Indicators - Online, on battery, fault, and replace battery LEDs for quick status identification
Escape, Return and navigation buttons - Intuitive navigati
Dimensions17.00" x 7.70" x 21.50"
Weight112.00 lbs.
Shipping weight60.91 kg
Package size749 × 565 × 375 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the NEMA 5-20P input plug on this SMT2200C work with my existing NEMA 5-15R wall receptacle?

The SMT2200C requires a NEMA 5-20R receptacle rated for 20 A. A standard NEMA 5-15R receptacle is rated for 15 A and will not accept the 5-20P plug, so a dedicated 20 A circuit is needed.

How can I confirm the UPS is delivering clean sine-wave output to my servers after installation?

The LCD menu shows output voltage, output frequency (47 – 53 Hz), load percentage and runtime. Steady 120 V output within that frequency range confirms the sine-wave inverter is operating correctly.

Which cables come in the box with the SMT2200C and what must I source separately?

The unit includes a USB cable and an RJ-45 network management cable. The NEMA 5-20P input cord is attached. You must supply NEMA 5-15 or 5-20 power cords for each connected device and any SmartSlot accessory card.
