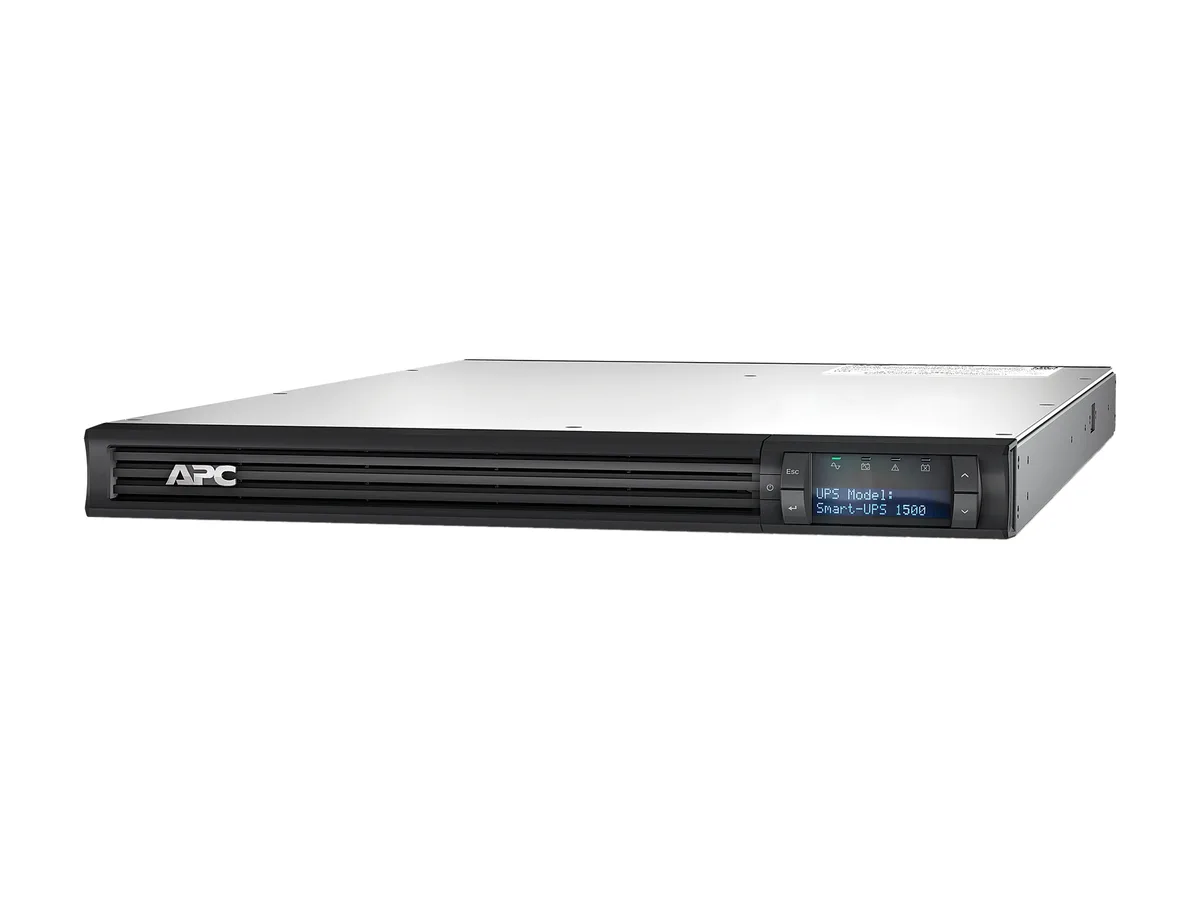

APC Smart-UPS 1500VA 1U rack-mount unit with LCD display and IEC outlets

APC

APC SMT1500RMI1U 1500VA 1U Rack UPS

SKU CH-PHVZ-43RVM MPN SMT1500RMI1U

Rack-mountable 1U UPS delivers 1500 VA and 1000 W with four C13 outlets and USB management

  • FeaturesReceptacles: 4 x IEC 60320 C13,2 x IEC JumperLoad Capacity (
  • Weight64
  • Package Contents61335U
  • 1500 VA capacity protects critical equipment during outages
  • 1000 watt load rating supports dense server deployments
  • 1U form factor installs in 44 mm rack space
  • 5 minute runtime at full load allows graceful shutdown
  • USB and RS-232 cables enable remote monitoring

1U Rack UPS, 1500 VA capacity

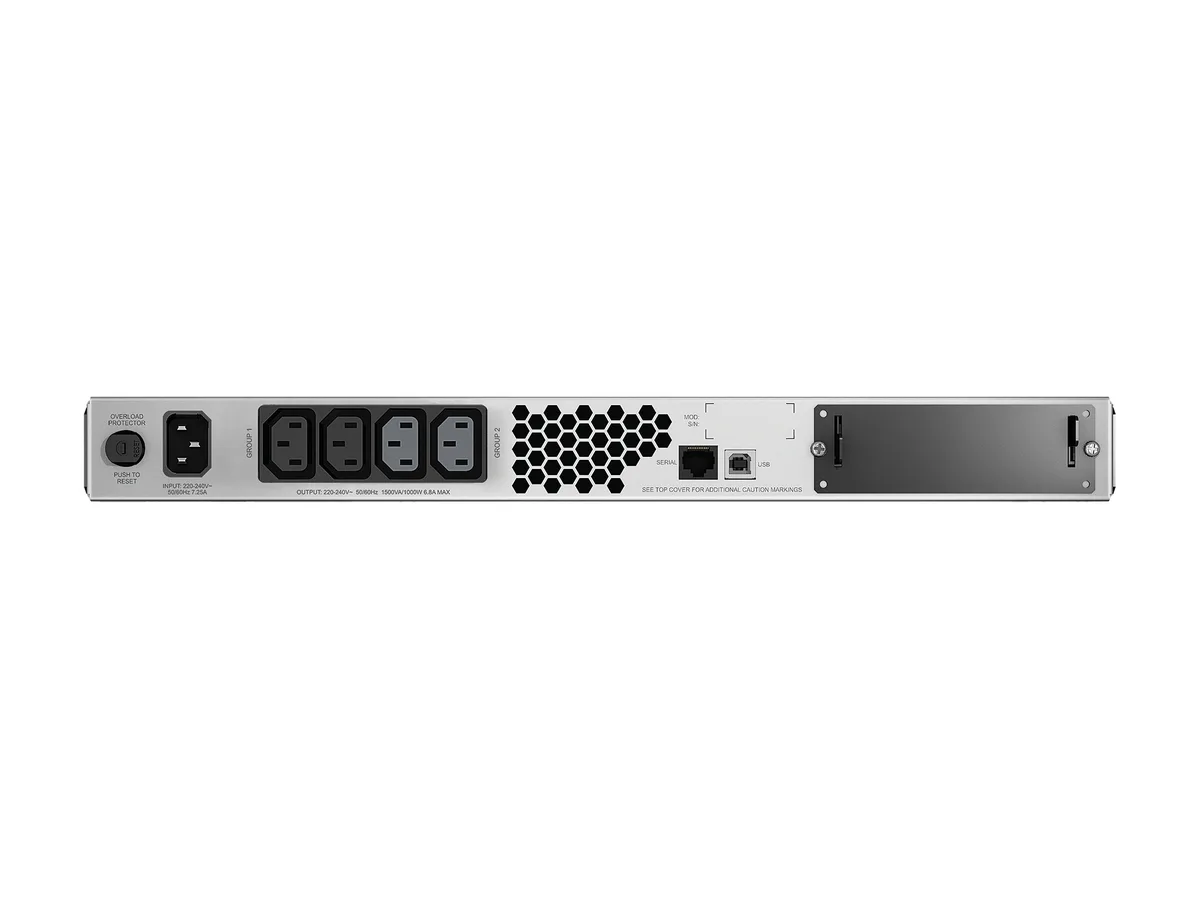

The APC SMT1500RMI1U is a new 1U rack-mountable uninterruptible power supply rated at 1500 VA and 1000 W. It accepts a 220 V AC input and delivers a regulated 230 V AC output. Four IEC 60320 C13 receptacles and two IEC jumper outlets provide protected power connections for servers and network gear.

Suited for single-rack deployments.

This unit fits administrators protecting a single rack of equipment where 5 minutes of backup at full load allows an orderly shutdown. USB and RS-232 cables are included for management software integration. Buyers who need longer autonomy at the same load should look at higher-capacity UPS models or external battery packs.

5-minute runtime at 1000 W decides fit

At full rated load the battery provides 5 minutes of backup before depletion, with a maximum recharge time of 4 hours. This figure determines whether the UPS meets the shutdown window required by the connected devices.

Highlights

  • 1500 VA capacity protects critical equipment during outages
  • 1000 watt load rating supports dense server deployments
  • 1U form factor installs in 44 mm rack space
  • 5 minute runtime at full load allows graceful shutdown
  • USB and RS-232 cables enable remote monitoring

Specifications

BrandAmerican Power Conversion Corp
FeaturesReceptacles: 4 x IEC 60320 C13,2 x IEC JumperLoad Capacity (VA): 1500 VALoad Capacity (Watt): 1000 WInput Voltage: 220 V ACOutput Voltage: 230 V ACBackup/Run Time (Full Load): 5 MinuteMaximum Battery Recharge Time: 4 HourHeight: 1.7" (44 mm)Width: 17" (432 mm)Depth: 26.2" (665 mm)Rack Height: 1UForm Factor: Rack-mountableWeight (Approximate): 24.09 kgPackage Contents: Smart-UPS 1500VA LCD RM 1U 230V CD with Software Documentation CD Installation Guide Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Warranty Card Green Compliant: YesGreen Compliance Certificate/
Weight64
Package Contents61335U
Shipping weight29.03 kg
Package size800 × 570 × 208 mm

Questions about this item

How do I install the 1U rack-mount unit and which step is often missed?

Secure the included support rails to the 17" wide rack, slide the 44 mm high chassis in, then connect the RS-232 and USB signalling cables — the signalling cables are the step most installers forget.

What maintenance will the internal battery require and when?

The sealed lead-acid battery typically lasts three to five years; plan replacement when runtime at 1000 W drops well below the 5 minute full-load figure or the LCD shows a replace-battery warning.

What is the first limit reached during a prolonged outage at full load?

At 1000 W the battery provides only 5 minutes of runtime, so the backup-time limit is reached long before the 4 hour recharge cycle or thermal limits become a factor.
