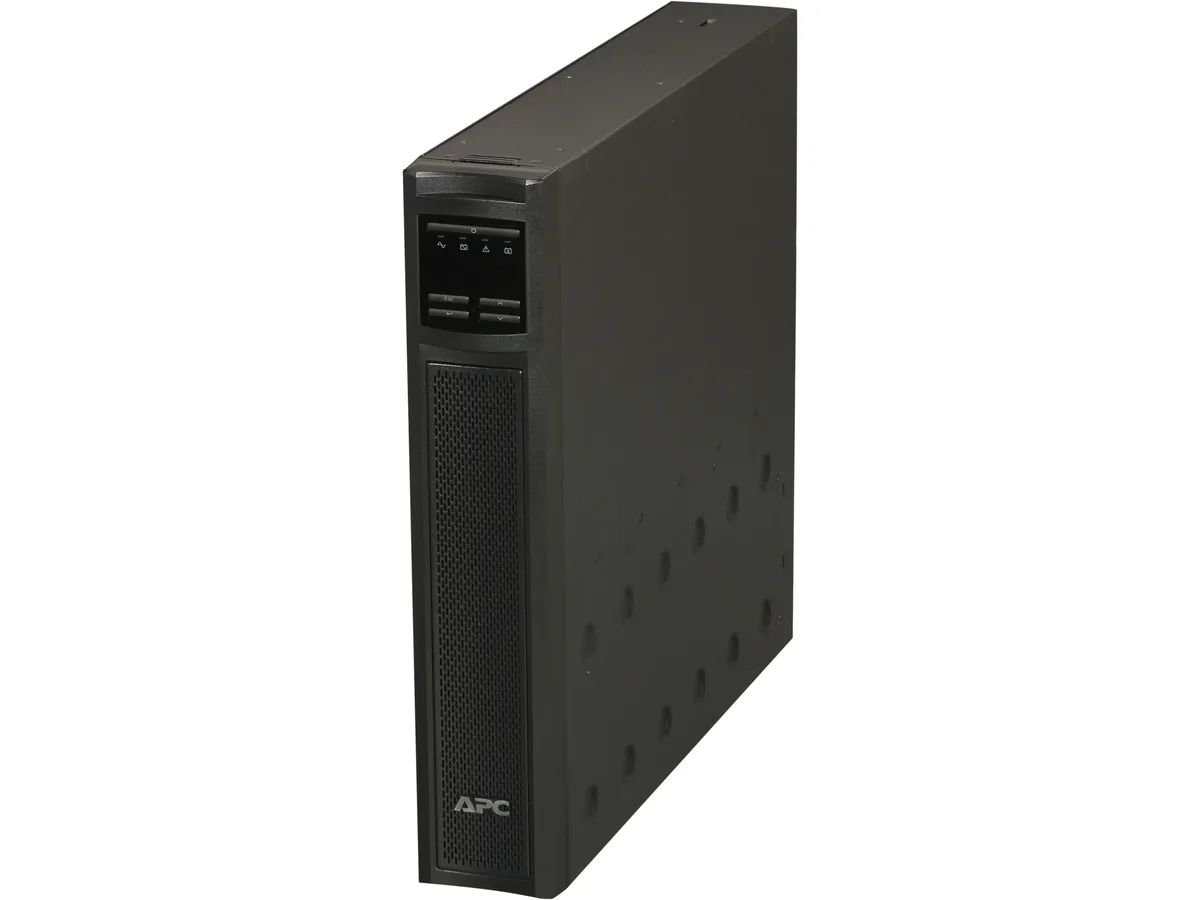

Rectangular matte-black tower with LCD display and eight rear outlets

APC

APC Smart-UPS X SMX1000 1000VA 800W 120V UPS

SKU CH-GZK5-HHGP0 MPN SMX1000

Line-interactive UPS delivering 1000 VA pure sine-wave power with eight NEMA 5-15R outlets and extended-run capability for rack or tower use

  • International Version120V
  • Input Voltage Range82 - 143V
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • Input ConnectionNEMA 5-15P
  • VA Rating1000 VA
  • Watts800 Watts
  • Pure sine wave output protects sensitive equipment
  • 1000 VA and 800 W capacity runs critical loads
  • Tower or 2U rackmount form factor fits any space
  • Extended run option accepts external battery packs for longer runtime
  • SmartSlot and USB ports enable remote monitoring

Smart-UPS X 1000VA for servers

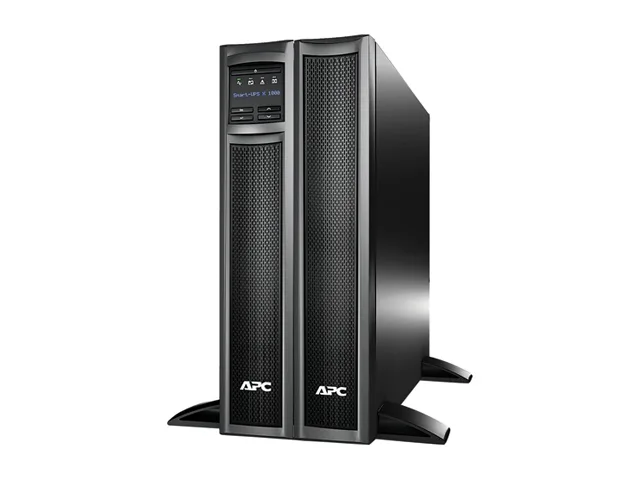

The APC Smart-UPS X SMX1000 is a line-interactive uninterruptible power supply rated at 1000 VA and 800 W with pure sine-wave output. It accepts 120 V input through a NEMA 5-15P plug and provides eight NEMA 5-15R outlets for connected equipment. The unit operates as a tower or converts to a 2U rackmount form factor with optional rails.

8.1 minutes at full load runtime

At the maximum 800 W load the internal sealed lead-acid battery delivers 8.1 minutes of backup time before shutdown. Recharging the battery to full capacity takes approximately three hours after a discharge event. Audible alarms signal low-battery and overload conditions so operators can respond before power is lost.

Smart-Slot and USB management ports

A Smart-Slot bay and a USB port provide the only communication interfaces for monitoring and control cards or direct computer connection. The input voltage window spans 82 to 143 V at 50 or 60 Hz with automatic frequency sensing. Extended runtime requires the separate SMX48RMBP2U battery pack, which is not included with the UPS.

Highlights

  • Pure sine wave output protects sensitive equipment
  • 1000 VA and 800 W capacity runs critical loads
  • Tower or 2U rackmount form factor fits any space
  • Extended run option accepts external battery packs for longer runtime
  • SmartSlot and USB ports enable remote monitoring

Specifications

BrandAPC
SeriesSmart-UPS X
ModelSMX1000
International Version120V
Input Voltage Range82 - 143V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionNEMA 5-15P
VA Rating1000 VA
Watts800 Watts
Output Voltage120V
Output Frequency50/60 Hz +/- 3 Hz
Outlets8
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run Time800W: 8.1 min
Battery Recharge Time3 hour(s)
Battery ReplaceableCURK116-01-02
AlarmsAlarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Interface PortSmart-Slot, USB
ApprovalscUL Listed, UL 1778
Rackmountable2U
Surge Energy Rating600 Joules
FeaturesAuto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Green mode
Unique operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protectio
Dimensions17.01" x 3.50" x 19.29"
Weight50.40 lbs.
Package ContentsAccessories: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Shipping weight25.33 kg
Package size622 × 597 × 244 mm

Questions about this item

How loud is the fan when the SMX1000 runs continuously at 800W?

The unit uses internal cooling fans that spin faster under heavy load; at full 800W output expect noticeable airflow noise typical of a 2U rackmount UPS.

What external battery pack works with the SMX1000 for longer runtime?

The SMX48RMBP2U pack connects to the rear Smart-Slot and adds 48V of sealed lead-acid capacity for extended run time.

Will my older server with a NEMA 5-15P plug work on the eight NEMA 5-15R outlets?

Yes, each of the eight outlets accepts a standard NEMA 5-15P plug, so legacy 120V equipment connects directly without adapters.
