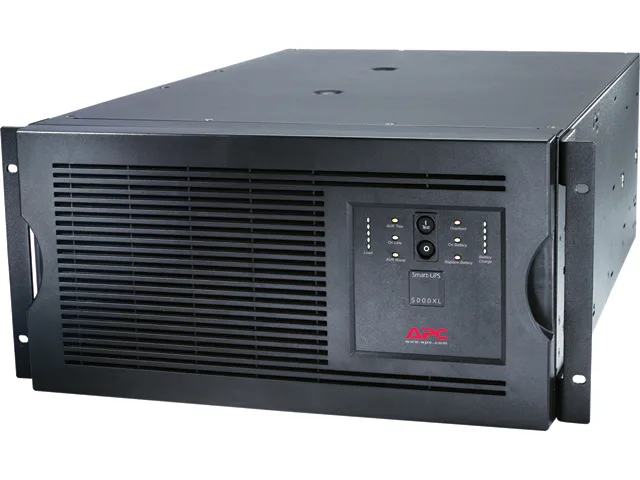

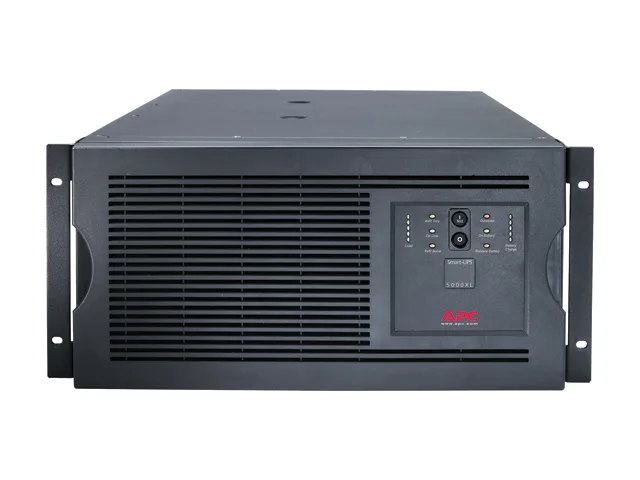

Silver rack-mount UPS, 5U high, 19 wide, 26 deep, front display and vents

APC

APC Smart-UPS SUA5000RMT5U 5000 VA 4000 W 208 V 5U UPS

SKU CH-NJZ7-DVKQB MPN SUA5000RMT5U

Rackmount UPS delivers 5000 VA / 4000 W at 208 V with four locking outlets and SmartSlot management in 5U

  • International Version208V
  • Input Voltage Range141 - 255V
  • Input Frequency50/60 Hz +/- 5 Hz (manual switch)
  • Input ConnectionNEMA L6-30P
  • VA Rating5000 VA
  • Watts4000 Watts
  • 4000 W output protects critical servers
  • 5000 VA capacity handles heavy network loads
  • 5U rack height fits standard cabinets
  • 3-hour recharge restores battery fast
  • SmartSlot plus RS-232 enables remote management

5000 VA rack UPS for critical servers

The APC Smart-UPS SUA5000RMT5U delivers 4000 watts of continuous power at 208 volts for business-critical servers, voice and data networks, point-of-sale systems and ATMs. Its 5U rackmount or tower form factor fits standard 19-inch enclosures while the sealed lead-acid batteries recharge in three hours. The unit weighs approximately 215.46 lb and includes a DB-9 RS-232 port plus a SmartSlot for optional network management cards.

Verify 208 V supply and NEMA L6-30P plug

Before ordering confirm that your facility provides a 208 volt AC circuit within the 141 to 255 volt input range and a compatible NEMA L6-30P receptacle. The UPS accepts 50 or 60 hertz with a manual frequency switch. Ensure the rack or floor space accommodates the 8.7 inch height, 19 inch width and 26 inch depth. Loads must not exceed 5000 VA or 4000 watts combined across all outlets.

Four locking outlets and hot-swap battery

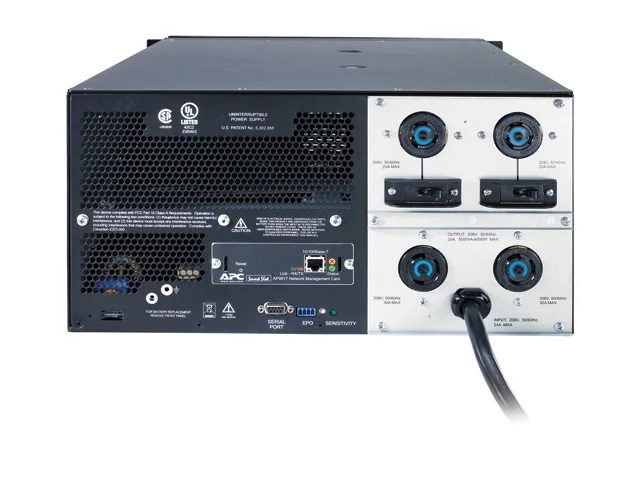

Two NEMA L6-30R and two NEMA L6-20R outlets provide secure locking connections for attached equipment. The RBC55 battery cartridge is user-replaceable without powering down the load. A 480 joule surge rating and UL 1778, CSA and FCC Class A approvals support reliable daily operation in rack or tower orientation.

Highlights

  • 4000 W output protects critical servers
  • 5000 VA capacity handles heavy network loads
  • 5U rack height fits standard cabinets
  • 3-hour recharge restores battery fast
  • SmartSlot plus RS-232 enables remote management

Specifications

BrandAPC
SeriesSmart-UPS
ModelSUA5000RMT5U
International Version208V
Input Voltage Range141 - 255V
Input Frequency50/60 Hz +/- 5 Hz (manual switch)
Input ConnectionNEMA L6-30P
VA Rating5000 VA
Watts4000 Watts
Output Voltage208V
Outlets4
Outlet Type(2) NEMA L6-20R
(2) NEMA L6-30R
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceableRBC55
AlarmsAlarm when on battery: distinctive low battery alarm : configurable delays
Interface PortDB-9 RS-232,SmartSlot
ApprovalsCSA,FCC Part 15 Class A,UL 1778
Rackmountable5U
Surge Energy Rating480 Joules
Dimensions26" x 19" x 8.75"
Weight215.00 lbs
Shipping weight106.59 kg
Package size762 × 635 × 610 mm

Questions about this item

What ships with the SUA5000RMT5U and which cables or accessories must be purchased separately?

The unit includes the rack-mount hardware and a DB-9 serial cable. Input cord uses a NEMA L6-30P plug; output cords for the two L6-20R and two L6-30R receptacles are not supplied.

Which battery module does the SUA5000RMT5U use and how long does a full recharge take?

The UPS takes the RBC55 sealed lead-acid cartridge. After a discharge it reaches full charge in about 3 hours.

What does the 5000 VA / 4000 W rating mean for equipment connected to the 208 V outlets?

You can load up to 4000 watts of real power across the four outlets. At 208 V that equals roughly 19 amps total, split between the two L6-20R and two L6-30R receptacles.
