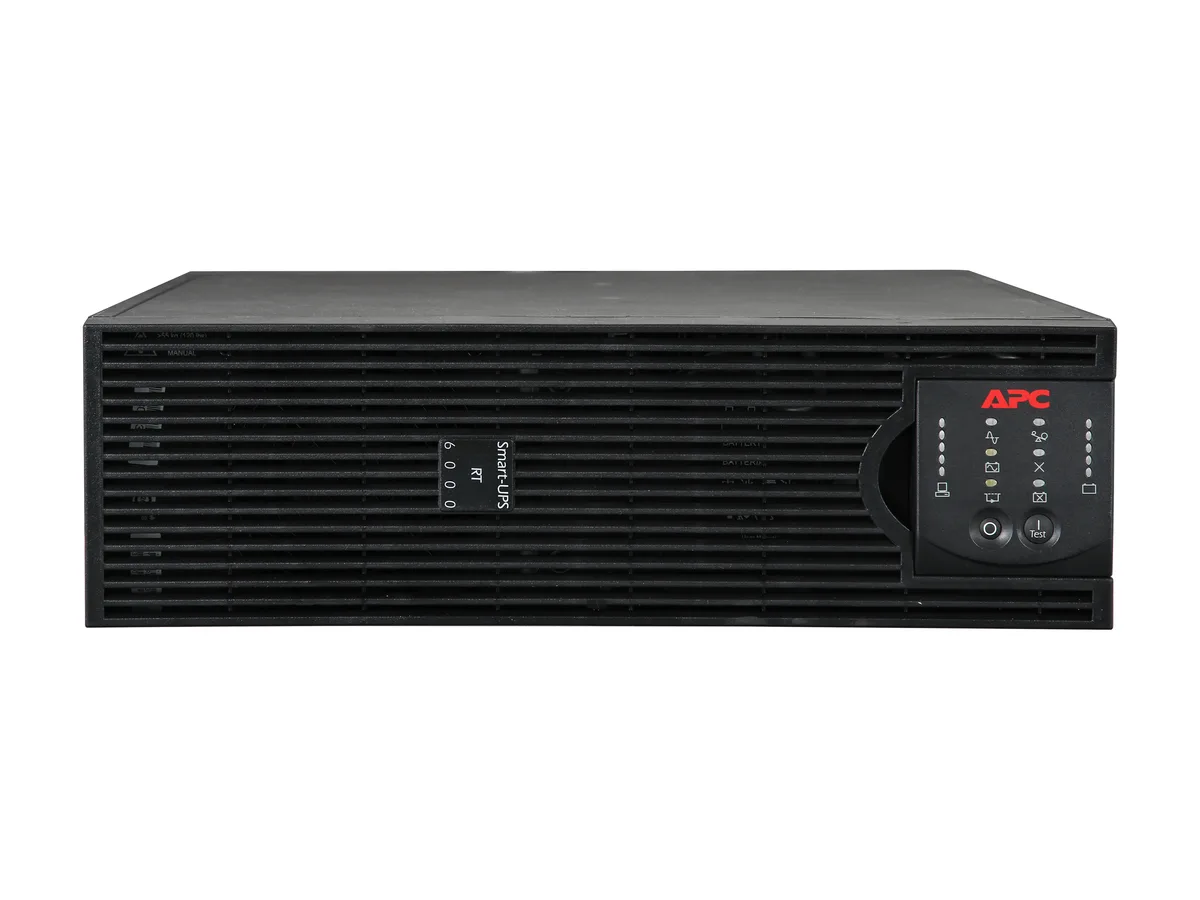

Black rectangular rackmount UPS unit with front display panel and multiple outlet ports

APC

APC Smart-UPS On-Line SURT6000RMXLT3U 6000VA 4200W 208V 3U UPS

SKU CH-XBCA-QZX45 MPN SURT6000RMXLT3U

Rackmount 208 V online UPS delivering 4200 W with extended runtime and network management

  • International Version208V
  • Input Frequency50/60 Hz +/- 5 Hz (auto sensing)
  • Input ConnectionNEMA L6-30P
  • VA Rating6000 VA
  • Watts4200 Watts
  • Output Voltage208V
  • Double-conversion topology delivers clean 208V power
  • 6000 VA capacity supports critical server loads
  • 4200 Watt rating handles dense compute clusters
  • Network card slot enables remote monitoring
  • 50 hour recharge restores runtime quickly

On-Line Double-Conversion UPS

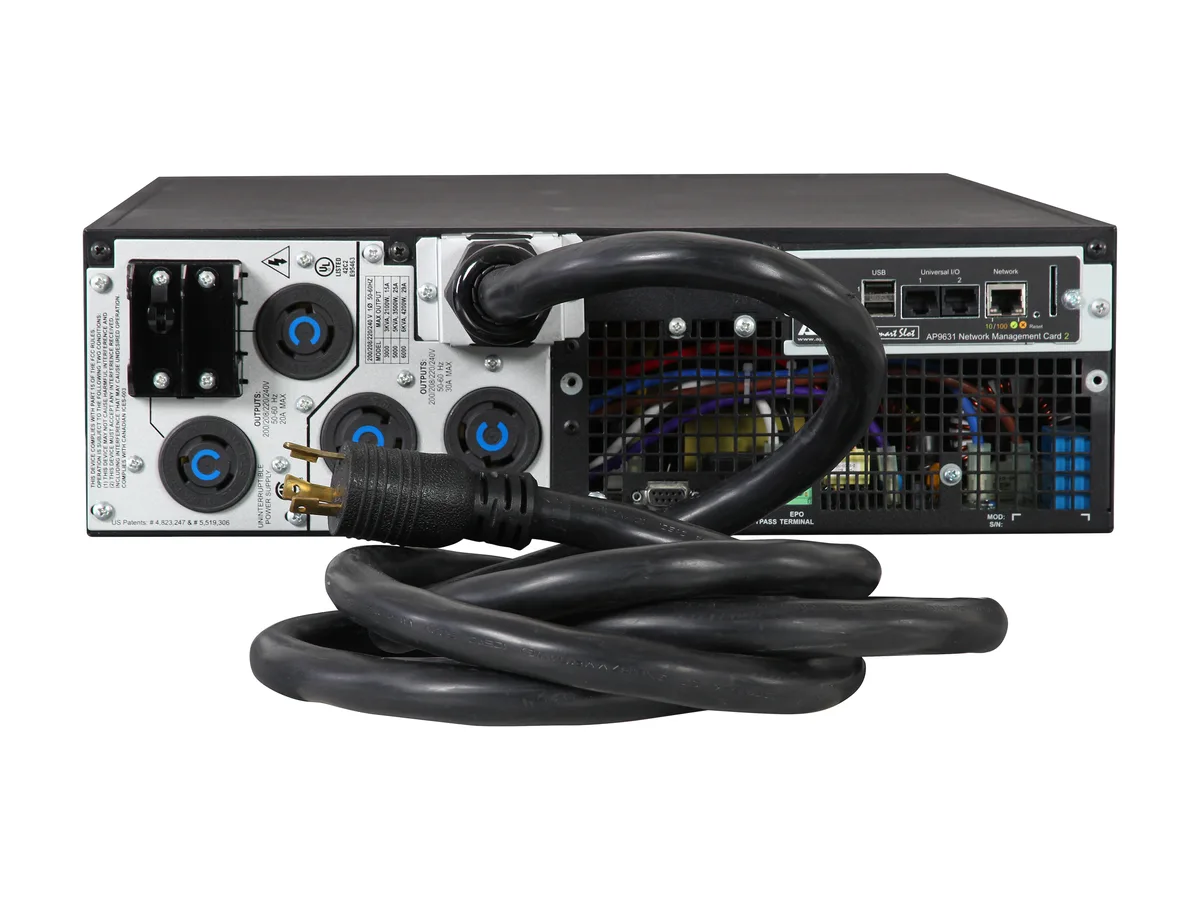

The APC Smart-UPS On-Line SURT6000RMXLT3U is a rack-mountable 3U battery backup delivering 6000 VA and 4200 W of continuous double-conversion power. It accepts a 208 V NEMA L6-30P feed and provides four 208 V outlets: two NEMA L6-20R and two NEMA L6-30R. Network management is available through DB-9 RS-232, RJ-45 10/100 Base-T and a Smart-Slot. The unit carries CSA, FCC Part 15 Class A, OSHPD and UL 1778 approvals.

Sites on 208 V three-phase or split-phase service

This UPS suits data centres and equipment rooms wired for 208 V input and output where true on-line topology and extended runtime capability are required. It is not for sites wired only for 120 V service, nor for installations that require a different input voltage without a separate transformer.

208 V input and output voltage match

The single specification that decides fit is the fixed 208 V input and output pairing; the unit will not operate from or deliver any other voltage without external conversion.

Highlights

  • Double-conversion topology delivers clean 208V power
  • 6000 VA capacity supports critical server loads
  • 4200 Watt rating handles dense compute clusters
  • Network card slot enables remote monitoring
  • 50 hour recharge restores runtime quickly

Specifications

BrandAPC
SeriesSmart-UPS On-Line
ModelSURT6000RMXLT3U
International Version208V
Input Frequency50/60 Hz +/- 5 Hz (auto sensing)
Input ConnectionNEMA L6-30P
VA Rating6000 VA
Watts4200 Watts
Output Voltage208V
Outlets4
Outlet Type(2) NEMA L6-20R
(2) NEMA L6-30R
Battery Recharge Time2.50 hour(s)
Battery ReplaceableRBC44
AlarmsAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Interface PortDB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
ApprovalsCSA, FCC Part 15 Class A, OSHPD, UL 1778
RackmountableYes
Surge Energy Rating555 Joules
Dimensions5.12" H x 17.01" W x 25.98" D
Weight120.26lbs
Shipping weight73.48 kg
Package size991 × 622 × 343 mm

Questions about this item

Should I choose the 208V international version or a different voltage model?

This model is the 208V international version; it requires a 208V supply and delivers 208V output.

What does the 6000 VA / 4200 W rating mean for my connected equipment?

You can connect loads up to 4200 W (6000 VA) total; the unit will support that load on battery or utility power.

What management interfaces are available and what do they allow?

DB-9 RS-232, RJ-45 10/100 Base-T, and a Smart-Slot provide serial, network and optional card connectivity for monitoring and control.
