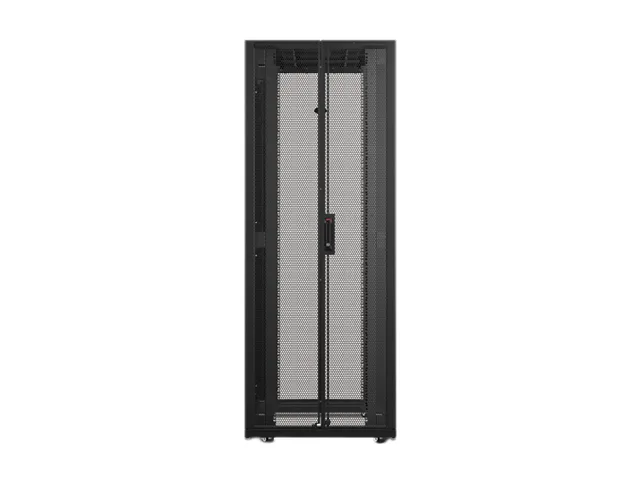

Black floor-standing 42U server rack enclosure 750mm wide 1200mm deep with side panels

APC

APC AR3340 42U NetShelter SX 750mm x 1200mm Server Rack

SKU CH-PVZB-T2RQ5 MPN AR3340

42U floor-standing server rack holds 19-inch equipment in a 750 mm wide by 1200 mm deep frame with integrated cable managers and keyed-alike doors

  • TypeRack Enclosure
  • Rack Units42U
  • ColorBlack
  • Weight Capacity1363.64 KG (static load), 1022.73 KG (dynamic load)
  • SpecificationMinimum Mounting Depth: 279.00 mm Maximum Mounting Depth: 95
  • FeaturesNetShelter SX Networking Enclosure expands APC's superior IT
  • Supports high-density networking with integrated cable managers and improved roof access
  • Holds up to 1363.64 kg static load for heavy server deployments
  • Adjustable mounting depth from 279.00 mm to 959.00 mm fits varied equipment
  • Conforms to EIA-310-E standard for universal 19-inch rack compatibility
  • Ships with pre-installed casters, leveling feet, baying hardware and vertical cable managers

42U NetShelter SX Server Rack

The APC AR3340 is a 42U floor-standing enclosure built to the EIA-310-E standard with a 19-inch mounting width. It suits data-centre and server-room installations that need a deep cabinet for high-density networking gear and large switches.

Integrated cable managers and keyed-alike panels

Pre-installed vertical cable managers and an improved cable-access roof organise large cable bundles. Baying hardware, leveling feet, casters, side panels and mounting hardware arrive in the box, while keyed-alike doors and sides simplify physical security across multiple cabinets.

Check floor load and aisle depth before ordering

The unit weighs 161.36 kg and carries a static load rating of 1363.64 kg, so the floor must support that weight. Maximum depth is 1200 mm with a mounting-depth range of 279 mm to 959 mm; verify aisle clearance and equipment depth against those limits.

Highlights

  • Supports high-density networking with integrated cable managers and improved roof access
  • Holds up to 1363.64 kg static load for heavy server deployments
  • Adjustable mounting depth from 279.00 mm to 959.00 mm fits varied equipment
  • Conforms to EIA-310-E standard for universal 19-inch rack compatibility
  • Ships with pre-installed casters, leveling feet, baying hardware and vertical cable managers

Specifications

BrandAPC
ModelAR3340
TypeRack Enclosure
Rack Units42U
ColorBlack
Weight Capacity1363.64 KG (static load), 1022.73 KG (dynamic load)
SpecificationMinimum Mounting Depth: 279.00 mm
Maximum Mounting Depth: 959.00 mm
FeaturesNetShelter SX Networking Enclosure expands APC's superior IT enclosure line with improved support for high density networking applications.
Integrated high density cable managers and improved cable access roof provide support for large cable bundles.
When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Industry StandardEIA-310-E
Included AccessoryBaying hardware, Documentation CD, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual, Vertical cable managers.
Unit DimensionMaximum Height: 1991.00 mm
Maximum Width: 750.00 mm
Maximum Depth: 1200.00 mm
Unit Weight161.36 KG
Shipping weight182.80 kg
Package size2118 × 1321 × 851 mm

Questions about this item

Will the casters or levelling feet need replacement after the rack is fully loaded and moved?

The pre-installed casters and levelling feet are rated for the dynamic load limit of 1022.73 kg, so they only require replacement if that rolling weight is exceeded.

What is the first limit reached when the enclosure is filled with heavy networking gear?

The dynamic load rating of 1022.73 kg is reached before the static limit of 1363.64 kg, making it the governing constraint for a fully populated rack.

Does the 42U cabinet generate any fan noise or heat of its own during continuous operation?

The enclosure is a passive structure with no fans or power supply, so it adds no audible noise or heat beyond what the installed equipment produces.
